Zapi SMART CONSOLE Manuale utente
ZAPI SMART CONSOLE
Introduction for V8

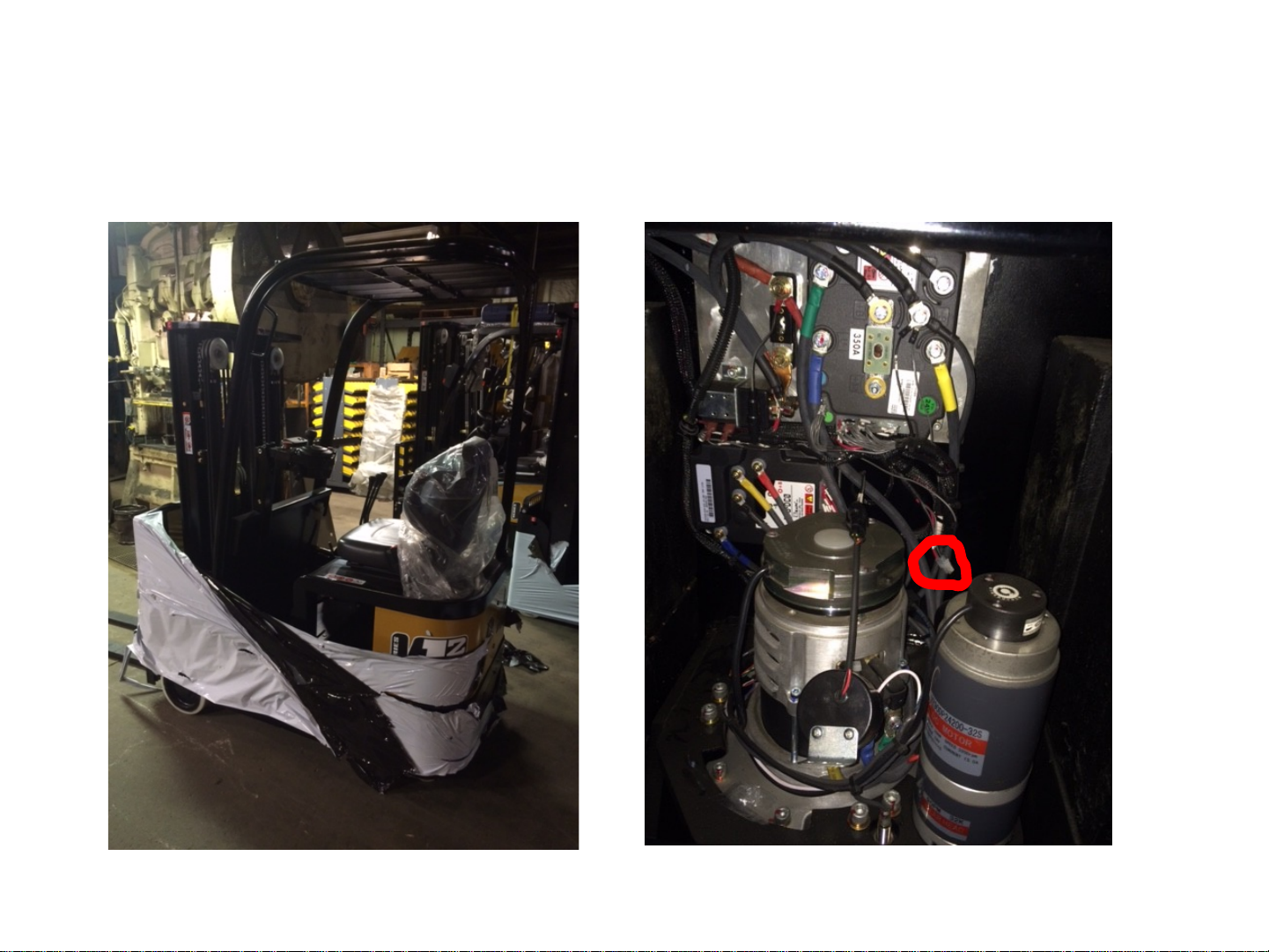

Location of CAN Connection
Traction VACC
Turn on ZAPI Handset
Push and hold the power button for 3s
The Display will show: Cons AFG ZP021*
The Display will show : Cons AFG ZP021*
CAN CONSOLE
Press or button until CAN
CONSOLE shows on the display
Press OK to go into the
CANCONSOLE Menu
The Display will show:
The Display will show:
CANCONSOLE
SELECT NODE
Push , or
To select Node 2
SELECT NODE
NODE 2
Press OK to go into the
Traction controller
The Display will show: ADXT2BC10BEP0.07
24V 240A 0H
Press OK to go into the
Main Menu
The Display will show: Main Menu
Press or button until
PROGRAM VACC shows on the display
The Display will show: MAIN MENU
PROGRAM VACC
Press OK to go into the PROGRAM
VACC function
The Display will show the accelerator
minimum and maximum voltage values.
Both directions will be shown
VACC SETTING
CURRENT VALUE
Press OK to clear these values.
Display will show 0.0
Select Forward Direction, operator
must be in seat during this step FORWARD x.xV x.xV
Push the direction lever forward , slowly
depress the pedal accelerator to its
maximum value. Do not release the
pedal.The new minimum and maximum
voltages will be displayed on the
Console. When finished , press ESC
Select the Reverse Direction and
repeat the items above BACKWARD x.xV x.xV
When finished , press ESC
The Display will ask : APPLY
CHANGES ? APPLY CHANGES?
YES= OK NO=ESC
Press OK for yes
The Display will ask : APPLY
CHANGES ? APPLY CHANGES?
YES= OK NO=ESC
Press OK for yes
When finished, the Console shows : Main Menu
Press and hold power button for 3s
to turn off the Console
Steering Calibration
•PENDING
