Zeblaze NEO Manuale utente

SMART WATCH

User’S Manual

Please read this manual carefully before using the product

TABLE OF CONTENTS

English .....................................................................................1-6

Deutsch ................................................................................ 7-12

Pусский ..............................................................................13-19

Español .............................................................................20-26

Português ..........................................................................27-33

Français...............................................................................34-40

日本語..................................................................................41-46

User Guide

1 Power on/off key 2 Side-down key 3 Display 4 Watch strap

About charging

1. Charge the watch for two hours before using for the first time to ensure it is fully charged.

2. Magnetic charging: Charge with magnetic wire as shown in the figure below.

Install the APP

Please scan the corresponding QR code or enter the "App Store" or Google Play to download according to your

mobile phone operating system and install the "F FIT" .

Google Play APP Store

System requirements: Android 4.4/higher versions or IOS 9.0/higher versions while supporting BT 4.0/higher

versions.

Bind the watch

1. Turn on the phone BT

2. Open the APP - click Add Device-Search, then click the searched NEO 2-the binding is successfully completed.

Please make sure it matches the BT address shown on the watch when pairing.

Enter the sub interface system of the setting interface and click about to view the BT address.

Operating instructions

Definition of keys

POWER key: Press it and keep 3 s to pop up the shutdown confirmation interface, and press it to return to the home

interface.

BACK/SPORT key: Press it to enter sport selection mode.

Operations: Swipe the screen left and right to switch the interface and single-click the icon to enter the sub-interface

if there is a sub-interface on the current interface. Swipe the screen right to return to the previous menu.

Synchronize information

When the watch is successfully bound to the phone, the watch will automatically adjust the time and simultaneously

synchronize and record your sport information and health status.

Key features

Clock, step counting, distance, calories, sleep monitoring, 24-hour heart rate monitoring, call reminder, alarm clock

reminder, sedentary reminder, message reminder and so on.

Power on/off and Restore settings

Press POWER key and keep 2 s for starting up, then enter the home interface; swipe the screen up enter the Setting

interface, then single-click setting to enter the Setting List in order to select Shutdown or Restore.

Home interface switch

There are three pictures in the watch, which can be manually switched according to the Setting.

Sport data

Record steps, distance and calories, make data reset at 00:00 and recalculation on the next day; at the same time, the

historical data can be saved and uploaded to APP.

Heart rate monitoring

Enter the interface of heart rate monitoring and the led blinks constantly, then the monitoring data appears after an

interval of 10s, and can be synchronized in the APP. Swipe the screen to stop monitoring and you can also set

continuous heart rate monitoring in the APP.

Blood pressure monitoring

Enter the interface of heart rate monitoring and the led blinks constantly, then the monitoring data appears after

about 15s and can be synchronized in the APP. Swipe the screen to stop monitoring.

Option interface

Swipe the screen on the home interface to enter the option interface.

Status interface

Consistent with the sport data interface.

Heart rate and blood pressure interface

Single-click it to enter the measurement interface.

Multi-sport mode

A total of 9 sport modes are available.

Click on Sport to enter Sport interface and your sport data can be recorded in detail.

Sleep data

Record the last night's sleep. The watch must be worn for monitoring, and the monitoring time lasts from 8:00 pm to

12:00 noon on the next day.

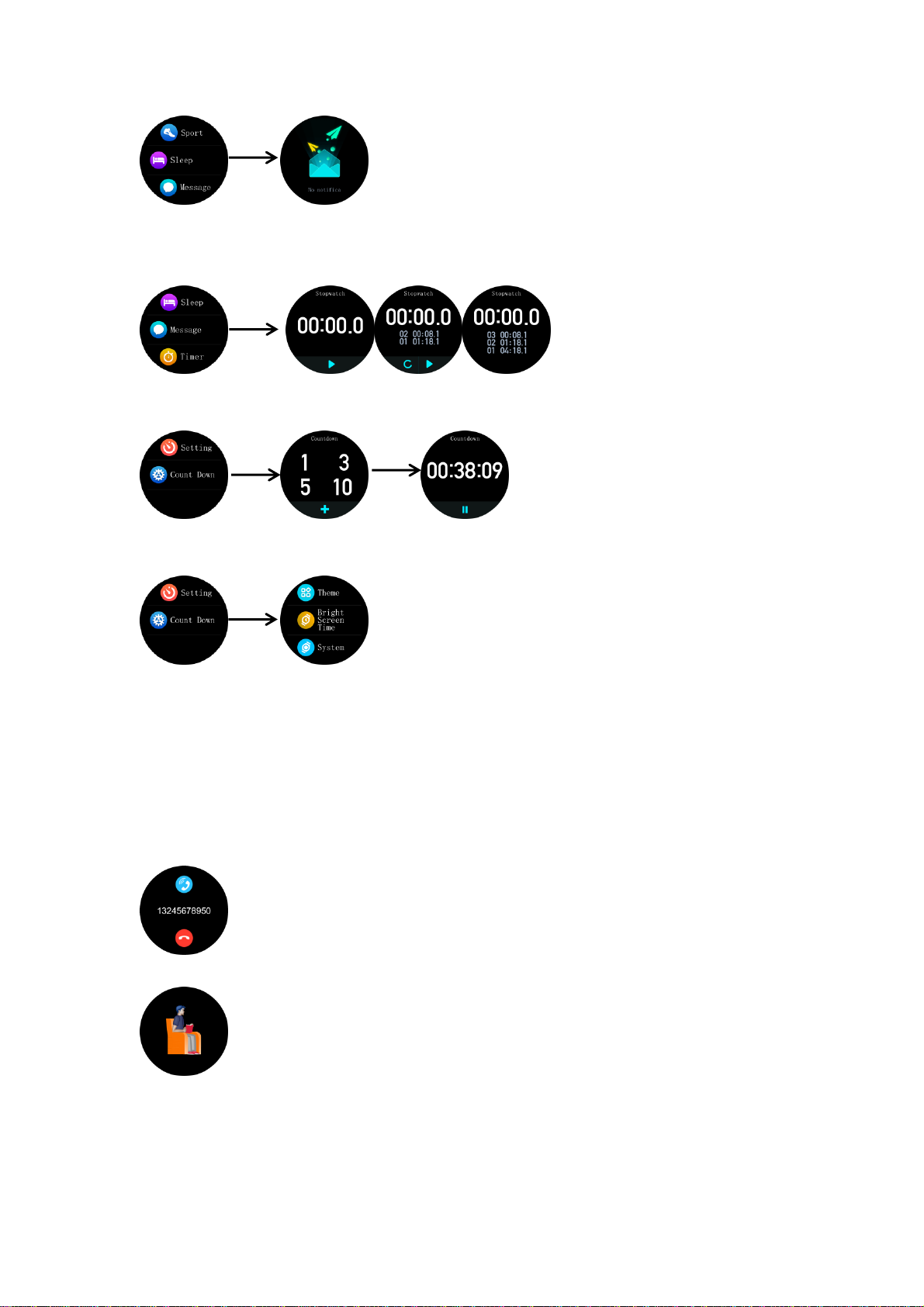

Message record

Keep three recent messages at most.

Stop watch

Single-click it to enter the stop watch interface, then click the Start key to start timing and multiple time nodes can be

recorded at the same time.

Countdown

The default of countdown is 1, 3, 5, 10 minutes, click + to set the countdown time yourself.

Setting

Swipe the screen on the home interface to quickly enter the Setting interface.

Subjects option: The home interface style can be set after entering and three built-in options are available.

Bright screen time: Set the bright screen time (5-15 s) according to your usage habits

System: You can make watch shutdown setting, restart, factory reset and watch information viewing.

Message reminder

Start Message reminder in the APP and a total of 13 APPs are available, such as Wechat, QQ, Facebook, WhatsAPP,

Twitter, Line etc., it should be noted that Message reminder can be received by the watch only when it is star ted with

connecting the watch and the phone.

Call reminder: Delay reminder, call rejection, caller name or phone number can be set after start it in the APP.

Sedentary reminder: The reminder start and end time and reminder interval can be set after start it in the APP.

Alarm reminder: It will automatically vibrate to remind you after start it in the APP.

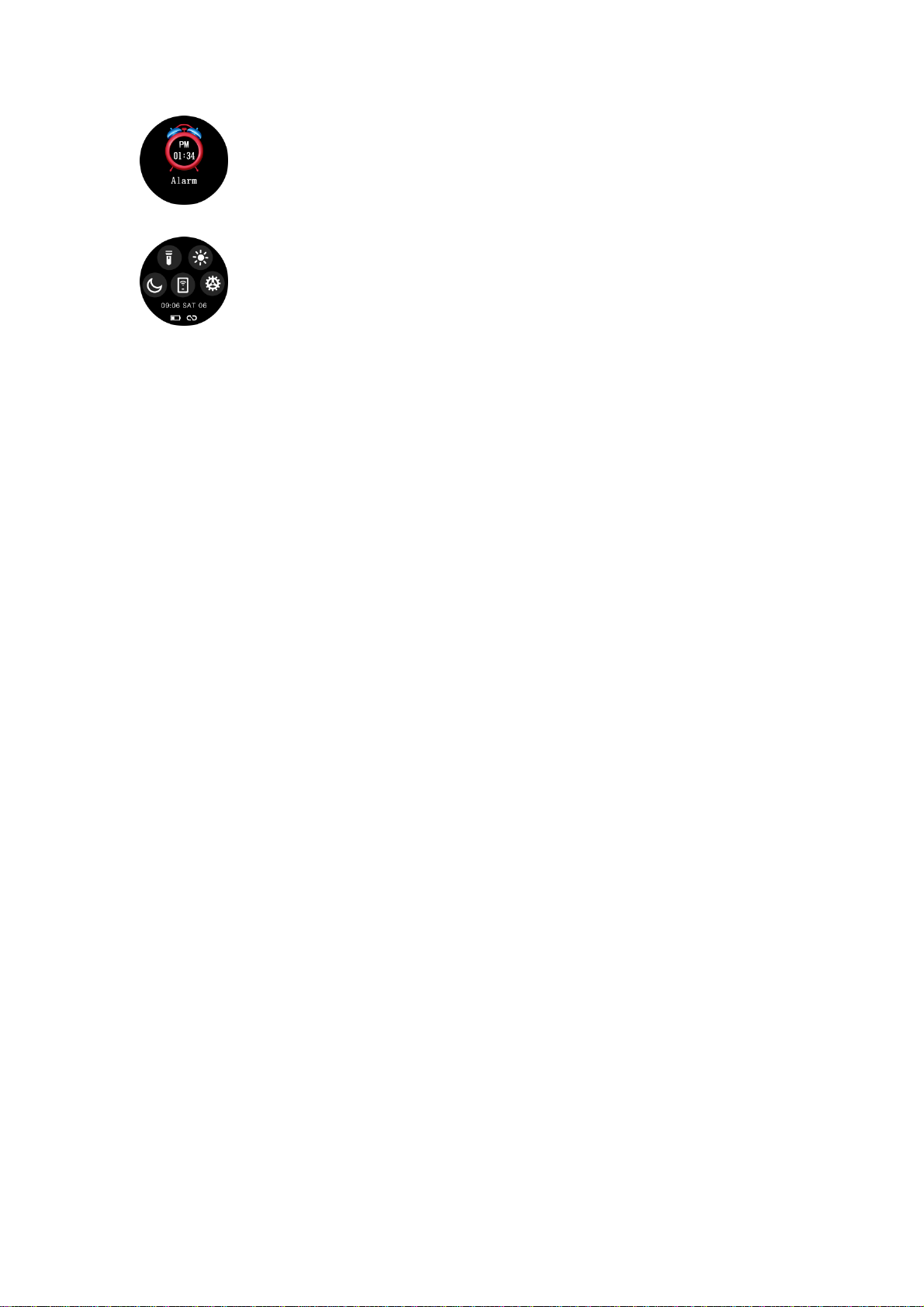

Navigation Bar

Intensity control: A total of 5 levels are available.

DND mode: The start and end time can be set after start it in the watch, and the vibration, Raise to wake and

Message reminder will be stopped.

Find my phone: Single-click to enter the Find my phone, then click the icon and the phone rings (the connection

between the watch and the phone is valid).

Other options

Raise to wake: Raise to wake will be effective after start it in the APP (its default status is on).

Shake to take pictures: Start it in the APP, then raise the watch to take pictures after 3 s.

Find my watch: The watch will vibrate when start it in the APP.

Message reminder: The phone will receive messages and the watch will remind you synchronously after start it

in the APP.

Time format: It can be set into 12-hour or 24-hour time system in the APP.

Basic parameters

Master chip: Realtek 8762C Battery capacity: 180mAh (polymer)

Display 1.3-inch IPS color touch screen Operating time: 5 - 7 days

Resolution: 240*240px Synchronization mode: BT 5.0

Weight: 86g Operating temperature: 10℃-50℃

Dimension: 44.5*9.8mm (Diameter) Packing list: main machine, magnetic charging wire and User Guide

Strap material: Calfskin from Italy Compatibility: IOS 9.0 & Android 4.4

FAQ

1. The watch can't be found or the connection can't be made when binding.

a. Please make sure that you have started your phone BT and the distance between the watch and the phone

is within 0.5 meter.

b. Please check if your watch is power off, and contact us if the problem hasn't been solved after 2 hours of

charging.

2. Why does the BT fail to work? The BT service of some phones may occasionally be abnormal when

restarting, and it usually can be solved after restarting.

3. Why it's easy to disconnect for phones powered by Android? The system memory management of Android

system can forcibly stop the background APP, and you need to stop the power saving mode or take the

APP into green background of the system housekeeper to avoid this situation. The APP must be running in

the background so that the BT will not disconnect by itself.

Notes

1. Do not severely hit the main machine.

2. Do not expose the watch to chemicals such as benzene and thinner.

3. Do not place the watch near strong magnetic field or electric shock stations.

4. Please keep the watch away from direct light or heating appliances.

5. Do not disassemble, repair or modify the watch by yourself.

6. Please properly classify and handle the used packages, batteries and electronics.

Why my watch can't receive push notification?

Android phone setting:

1. Please make sure you have started the function of push notification in the phone client.

2. Please make sure the messages can be normally displayed in the phone notification bar, by which the watch

message push is achieved; The watch can't receive message push if there is no message in the phone notification bar.

(You need to find the Notification setting in the phone setting and start the notification function of Wechat, QQ,

phone, message and the phone client).

3. Start the Auxiliary function setting in the watch client (find the Auxiliary function in the phone setting and start

the Auxiliary function setting in the watch client).

Iphone setting

1. Please make sure you have started the function of push notification in the phone client.

2. Please make sure the messages can be normally displayed in the phone notification bar. (You need to find the

Notification setting in the phone setting and start the notification function of Wechat, QQ, phone, message and the

phone client).

Disclaimer

Warning: This product is not a medical device, the watch and its apps can't be used for diagnosis, cure or

prevent diseases or conditions. If you want to change your habits such as exercise, please be sure to consult a

qualified medical professional first to avoid causing serious injury or death. We reserve the rights to modify

and improve any function described in this manual without prior notice and to continuously update our

product content, please make the object as the standard for all products.

Benutzerhandbuch

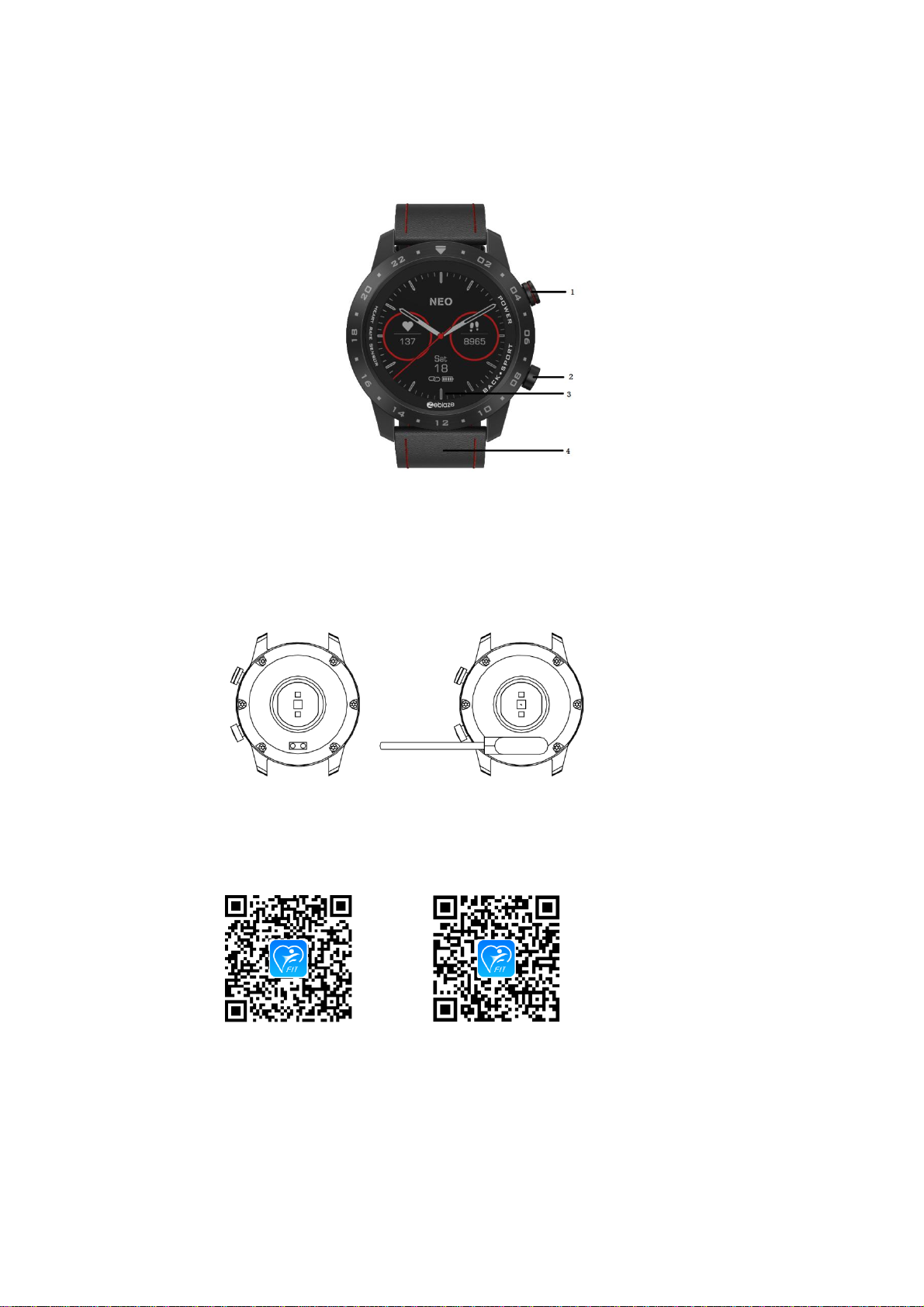

1. Ein- / Ausschalter 2. Seite-Unten-Taste 3. Display 4. Armband

Lademethode

1. Laden die Uhr zwei Stunden lang auf, bevor Sie sie zum ersten Mal verwenden, um sicherzustellen, dass sie

vollständig aufgeladen ist.

2. Magnetisches Laden: Laden mit dem Magnetdraht wie in der folgenden Abbildung gezeigt.

App installieren

Bitte scannen den entsprechenden QR-Code oder geben den "App Store" oder Google Play ein, um die

APP-Anwendung "F FIT" entsprechend Ihrem Betriebssystem herunterzuladen und zu installieren.

Google Play APP Store

Systemanforderungen: Android 4.4 und höher, IOS 9.0 und höher, Unterstützung für Telefone mit BT 4.0 und höher.

Uhr verbinden

1. Telefon BT einschalten

2. Öffnen die App, klicken auf Gerätesuche hinzufügen, klicken auf Suche zu NEO 2-erfolgreicher Verbindung.

Beim Pairing sicherstellen, dass es mit der auf der Uhr angezeigten BT-Adresse übereinstimmt.

Wechseln auf der Hauptoberfläche zur Unteroberfläche der Einstellungsoberfläche, klicken, um die BT-Adresse

anzuzeigen.

Bedienungsanleitung

.Definition von Tasten

POWER-Taste: Halten die Hauptschnittstelle 3 Sekunden lang gedrückt, um die Bestätigungsschnittstelle für das

Herunterfahren aufzurufen, und drücken kurz, um zur Hauptschnittstelle zurückzukehren.

BACK / SPORT-Taste: Kurz drücken, um den Sportauswahlmodus aufzurufen.

Bedienung: Wischen über den Bildschirm nach links oder rechts, um die Schnittstelle zu wechseln. Wenn die aktuelle

Schnittstelle über eine Unterschnittstelle verf ügt, klicken einmal auf das Symbol, um die Unterschnittstelle

aufzurufen. Wischen auf dem Bildschirm nach rechts, um zum vorherigen Menüzurückzukehren.

Synchronisationsinformationen

Wenn die Uhr und das Mobiltelefon erfolgreich verbunden sind, passt die Uhr die Uhrzeit automatisch an und

synchronisiert und zeichnet gleichzeitig Ihre Trainingsinformationen und Ihren Gesundheitszustand auf.

Hauptfunktion

Uhr, Schrittzählung, Entfernung, Kalorien, Schlaf ü berwachung, 24-Stunden-Herzfrequenz überwachung,

Anruferinnerung, Weckererinnerung, Erinnerung für langes Sitzen, Nachrichtenerinnerung und andere Funktionen.

■Ein- und Ausschalten und Wiederherstellen der Einstellungen

Zum Einschalten POWER 2S gehalten, die Hauptschnittstelle aufrufen, nach oben wischen, um die

Einstellungsoberfläche aufzurufen, auf Einstellungen klicken, die Einstellungsliste aufrufen, Einstellungen zum

Ausschalten oder Wiederherstellen auswählen.

■Hauptschnittstellenschalter

In die Uhr sind 3 Bilder eingebaut, die in den Uhreneinstellungen manuell umgeschaltet werden können.

■Sportdaten

Schritte, Entfernung und Kalorien aufzeichnen . Die Daten werden um 00:00 Uhr gelöscht und für den neuen Tag neu

berechnet. Gleichzeitig werden historische Daten gespeichert und in die APP hochgeladen.

■Herzfrequenzüberwachung

Herzfrequenzüberwachung eingeben, das Licht blinkt ständig, die Überwachungsdaten werden nach einem Intervall

von 10 S angezeigt und in der APP synchronisiert. Wischen den Bildschirm, um die Überwachung zu stoppen. Sie

können auch die kontinuierliche Herzfrequenzüberwachung in der App einstellen.
