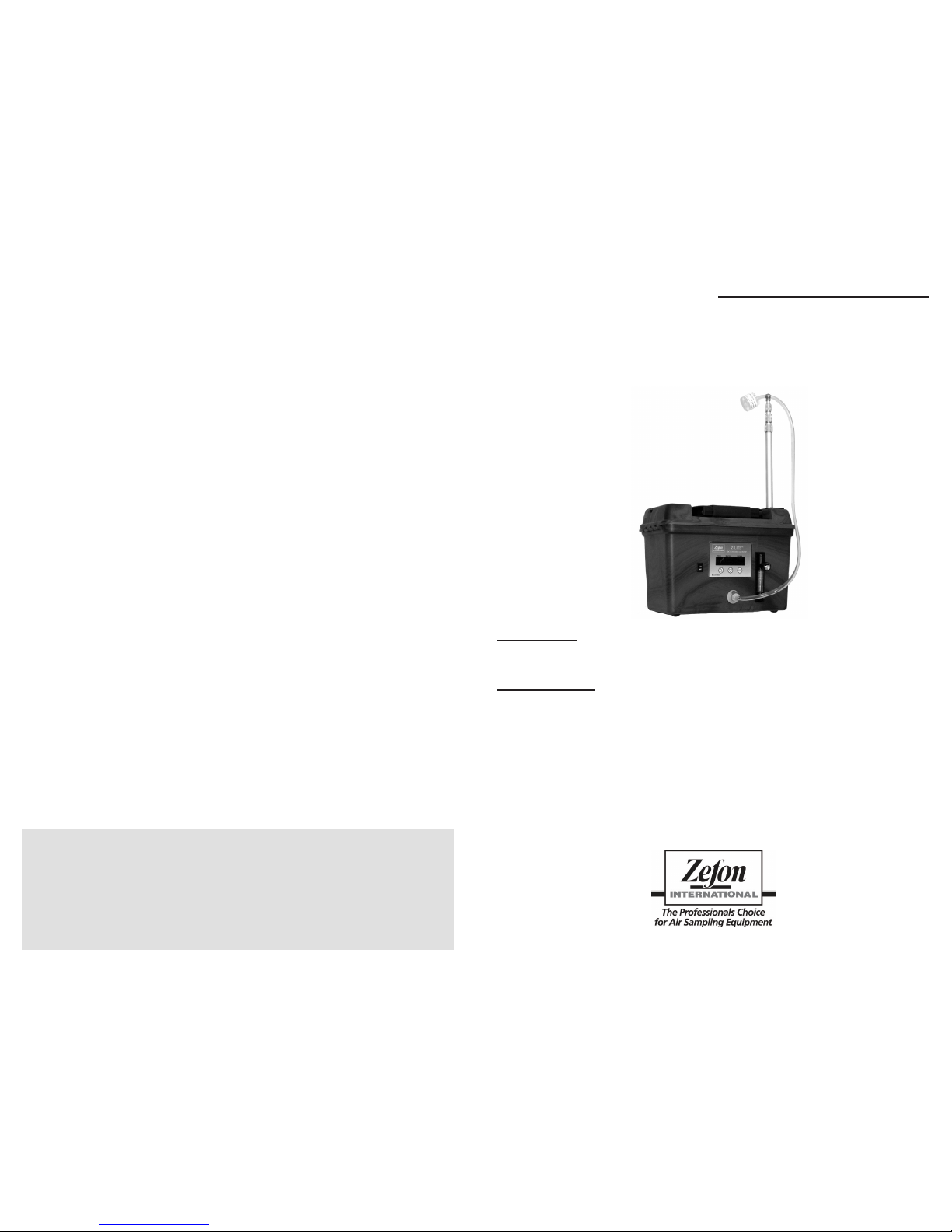

Zefon Z-Lite™
IAQ DC Powered Sampling Pump
Description
The Zefon Z-Lite IAQ DC Sampling pump is designed for use with various IAQ sampling devices at
ows of 5-20lpm
Specications
Flow Range: 5-20 lpm (low backpressure spore traps, such as Air-O-Cell, MoldSnap, or Z5)
2-8 lpm (carpet sampling cassettes)
Flow Meter: 2-30 lpm display range with +/- 2% Accuracy
Battery Run Time: 2.5 to 3 hours
Battery Charge Time: Approximately 3 hours
Battery: 12v, 7.5 Ah Sealed Lead Acid
AC Power: 100-240v 50/60Hz AC power transformer/charger
Housing Dimensions: 15” (38cm) L x 9” (23cm) W x 10.5” (27cm) H
Sampling Stand Height: Telscoping from 12.25” to 36” from the top of pump
Overall Weight: 18.8lbs (8.5kg) (including charger and sampling stand)
Operating Instructions
Cautions and Warnings
1. Do not run the pump without the tubing and quick disconnect plug installed.
2. Do not use this pump for any purpose other than sampling with low backpressure spore trap
cassettes or carpet sampling cassettes. Use of this pump for other types of sampling, such as for
asbestos, will cause premature failure and void the warranty.
3. Do not use of any AC power adapter or battery charger other than the one supplied.
4. Do not submerge the pump or subject the pump to any liquid.
5. Always follow basic safety precautions when using this product to reduce risk of injury, re or
electric shock.
Limited Warranty
Zefon International warrants this pump to be free of defects in parts or workmanship for a period of
1 year from date of purchase. Zefon will without charge repair or replace, at its option, the defective
pump or component parts upon delivery by the customer to Zefon’s repair facility.
This limited warranty covers defects in workmanship and material. It does not apply to:
1. Product damage by accident or weather related circumstances
2. Misuse or abuse of the product, including damage from impact, cord damage or water damage.
3. Lack of proper care and maintenance
4. Failure to follow instructions
5. Any type of unauthorized repair attempts or modications.
Do not remove the inner pump housing tray or attempt to make repairs. Damage may occur to the
pump and all warranties will be immediately voided.
If it should become necessary to return the pump for service, please call Zefon at 352-854-8080 for
a return authorization number and return instructions. Please be prepared to provide us a description
of the problem when calling. The sender is responsible for shipping charges, freight, insurance and
proper packaging to prevent damage in transit. A return authorization number must be issued
prior to shipment and must be marked on your shipment.
Disclaimer
Zefon shall not be liable for direct, indirect, consequential, incidental or other damages resulting
from the sale or use of any goods including lack of use due to equipment failure. Zefon’s total
liability shall be limited to repair or replacement of the product.
Zefon assumes no responsibility whatsoever to any party whosoever for any property damage,
personal injury or death received by or resulting from, in whole or in part, the improper use or
storage of this product by the user, person, rm, entity, corporation or party not adhering to the
instructions and warnings in this manual. 5350 SW 1st Lane, Ocala, FL 34474 USA
Tel: 352-854-8080; Fax: 352-854-7480; www.zefon.com
Maintenance
This pump comes equipped with an exhaust lter located on the inside tray of this unit. It is recom-
mended to replace this lter every 3 months or if a loss of performance of the pump is observed. Your
lters may last longer or need to be changed more frequently depending on the amount of use the
pump gets and the environments it is exposed to. Replacement lters may be ordered from Zefon or
a Zefon distributor under product #03879.
Proper care and maintenance of your pump is essential for a long useful life. Rough and abusive use
and/or accidental impacts may damage the unit. Zefon recommends periodically wiping down the unit
with a clean dry cloth to keep it free of dirt and debris along with regular inspections of the AC power
supply and cords to ensure it is not damaged and posing an elecrical hazard.
LA03031 Rev. 3
Setting Up the Pump for Sampling
1. Remove the sampling stand from the inside tray and screw into the top of the lid.
Adjust to the desired height.
2. Connect the tubing to the pump at the Quick Disconnect port on the pump. Attached the other
end to the top of the sampling stand.
3. Turn the pump power switch on.
4. Use the Up/Down Arrows to set the desired sampling time.
5. Press the START/STOP button to start the pump. (do not attach any lter media during this step)
6. Adjust the ow using the knob on the ow meter to the desired ow.
7. Once the ow rate is set, Press the START/STOP button to stop the pump.
8. Press and hold the START/STOP button for 3 or more seconds to reset the timer to the original
sampling time.
Taking a Sample
1. Turn the pump power switch to the ON position if it is not already on.
2. Use the Up/Down Arrows to set the desired sampling time.
3. Press the START/STOP button to begin sampling.
4. When the sample is nished, the pump will beep and the timer will reset itself to the time that
was originally set.
Charging the pump
1. When the pump battery level has dropped to a level where the pump cannot operate with
sufcient voltage to maintain ow at a sufcient ow level, the Low Battery light will illuminate.
2. To charge the battery, use the supplied AC power adapter. The POWER light on the charger
will illuminate RED and a solid GREEN light indicates the current charge capacity.
3. If the pump battery has become fully discharged, the charger will default into trickle charge
mode for the rst couple of hours until the battery has stabilized with a minimum charge level
that will safely allow fast charging.
4. Once the battery is fully charged and operating in trickle charge mode (100% light will be
solid), it is safe to leave the pump connected long term to keep in top condition or to unplug
and begin to use. The pump may optionally be used while connected to the charger to run on
AC power.
Operating Tips
1. To quickly set the timer to a 5 minute sampling time, hold the up arrow while turning on the pump.
2. To reset the pump to the most recently used sampling time, press and hold the START/STOP
button for 3 seconds.
3. If the battery voltage drops too low during sampling to maintain proper ow, the low battery light
will illuminate and the pump will stop. The remaining sampling time will be shown on the display.
Telescoping sampling stand
On/Off power switch.
Charging jack located on back side.
Control Panel with display of Hours/Minutes/Seconds,
Up/Down Arrows used to set time, Start/Stop Button and Low Battery Light.
Quick Disconnect hose connection.
Flow Meter with adjustment valve
2
6
4
1
5
Pump Overview
1.
2.
3.
4.
5.
6.
Using the Pump
Flow Rate Accuracy
Flow meters like the one installed on this pump are considered ‘secondary’
standards for measuring ow. It is recommended that the accuracy of this owme-
ter is periodically veried against a primary ow standard such as a bubble meter
or dry calibrator.
3
