Zenith DVT654 Manuale utente
SERVICE MANUAL
Product Type: 5 DISC DVD HOME THEATER
Chassis: CMR-0538
Manual Series: DVT654
Manual Part #: 3829RGN005H
Model Line: C
Product Year: 2006
GENERAL
ELECTRICAL
EXPLODED VIEWS
SPEAKER PART
REPLACEMENT PARTS LIST
1
2
3
4
5
................................................
...........................................
.................................
......................................
..................
Published March 2006
by Technical Publications
Zenith Electronics Corporation
201 James Record Road
Huntsville, Alabama 35824-1513
Copyright © 2006 by Zenith Electronics Corporation
Printed in U.S.A
Model Series:
CONTENTS
DVT654
- 1-1 -
[CONTENTS]
SECTION 1.GENERAL
• SERVICING PRECAUTIONS ................................................................................................ 1-2
• ESD PRECAUTIONS............................................................................................................. 1-4
• SPECIFICATIONS...................................................................................................................1-5
SECTION 2. ELECTRICAL
• AUDIO TROUBLESHOOTING GUIDE .................................................................................. 2-1
• DVD TROUBLESHOOTING GUIDE...................................................................................... 2-5
• DVD DETAILS AND WAVEFORMS ON SYSTEM TEST AND DEBUGGING..................... 2-13
• WIRING DIAGRAM.............................................................................................................. 2-25
• BLOCK DIAGRAMS............................................................................................................. 2-26
• AUDIO PART SCHEMATIC DIAGRAMS ............................................................................. 2-31
• DVD PART SCHEMATIC DIAGRAMS................................................................................. 2-47
• PRINTED CIRCUIT DIAGRAMS ......................................................................................... 2-53
• CIRCUIT VOLTAGE CHART................................................................................................ 2-63
SECTION 3. EXPLODED VIEWS
• CABINET AND MAIN FRAME SECTION .............................................................................. 3-1
• DECK MECHANISM EXPLODED VIEW .............................................................................. 3-3
• PACKING ACCESSORY SECTION ...................................................................................... 3-5
SECTION 4. SPEAKER PART.................................................................................. 4-1
SECTION 5. REPLACEMENT PARTS LIST ............................................................. 5-1
- 1-2 -
SECTION 1. GENERAL
SERVICING PRECAUTIONS

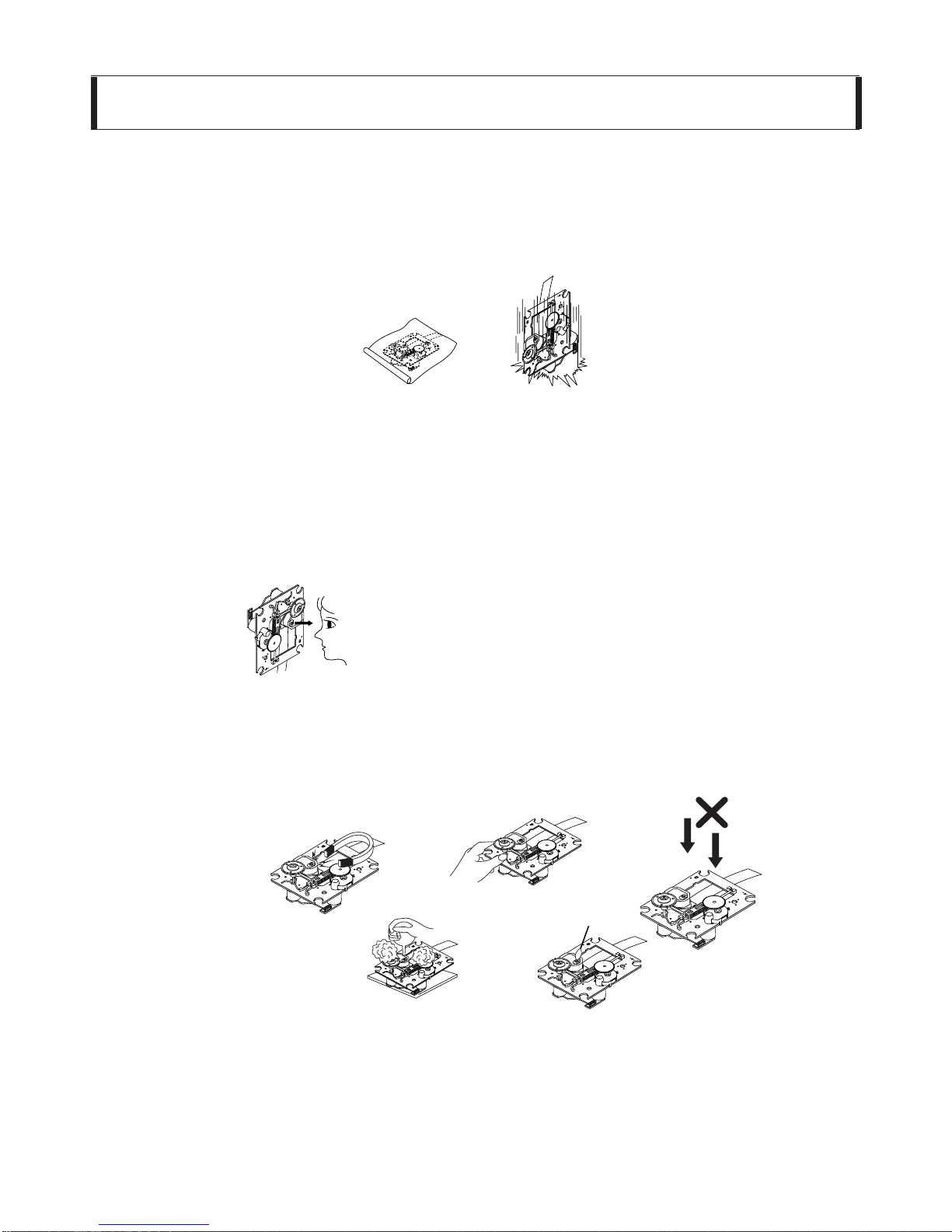

NOTES REGARDING HANDLING OF THE PICK-UP
1. Notes for transport and storage
1) The pick-up should always be left in its conductive bag until immediately prior to use.
2) The pick-up should never be subjected to external pressure or impact.
2. Repair notes
1) The pick-up incorporates a strong magnet, and so should never be brought close to magnetic materials.
2) The pick-up should always be handled correctly and carefully, taking care to avoid external pressure and
impact. If it is subjected to strong pressure or impact, the result may be an operational malfunction and/or
damage to the printed-circuit board.
3) Each and every pick-up is already individually adjusted to a high degree of precision, and for that reason
the adjustment point and installation screws should absolutely never be touched.
4) Laser beams may damage the eyes!
Absolutely never permit laser beams to enter the eyes!
Also NEVER switch ON the power to the laser output part (lens, etc.) of the pick-up if it is damaged.
5) Cleaning the lens surface
If there is dust on the lens surface, the dust should be cleaned away by using an air bush (such as used
for camera lens). The lens is held by a delicate spring. When cleaning the lens surface, therefore, a cot-
ton swab should be used, taking care not to distort this.
6) Never attempt to disassemble the pick-up.
Spring by excess pressure. If the lens is extremely dirty, apply isopropyl alcohol to the cotton swab.
(Do not use any other liquid cleaners, because they will damage the lens.) Take care not to use too much
of this alcohol on the swab, and do not allow the alcohol to get inside the pick-up.
Storage in conductive bag Drop impact
NEVER look directly at the laser beam, and don’t let
contact fingers or other exposed skin.
Magnet
How to hold the pick-up
Conductive Sheet
Cotton swab
Pressure
Pressure
- 1-3 -
NOTES REGARDING COMPACT DISC PLAYER REPAIRS
1. Preparations
1) Compact disc players incorporate a great many ICs as well as the pick-up (laser diode). These components
are sensitive to, and easily affected by, static electricity. If such static electricity is high voltage, components
can be damaged, and for that reason components should be handled with care.
2) The pick-up is composed of many optical components and other high-precision components. Care must be
taken, therefore, to avoid repair or storage where the temperature of humidity is high, where strong magnet-
ism is present, or where there is excessive dust.

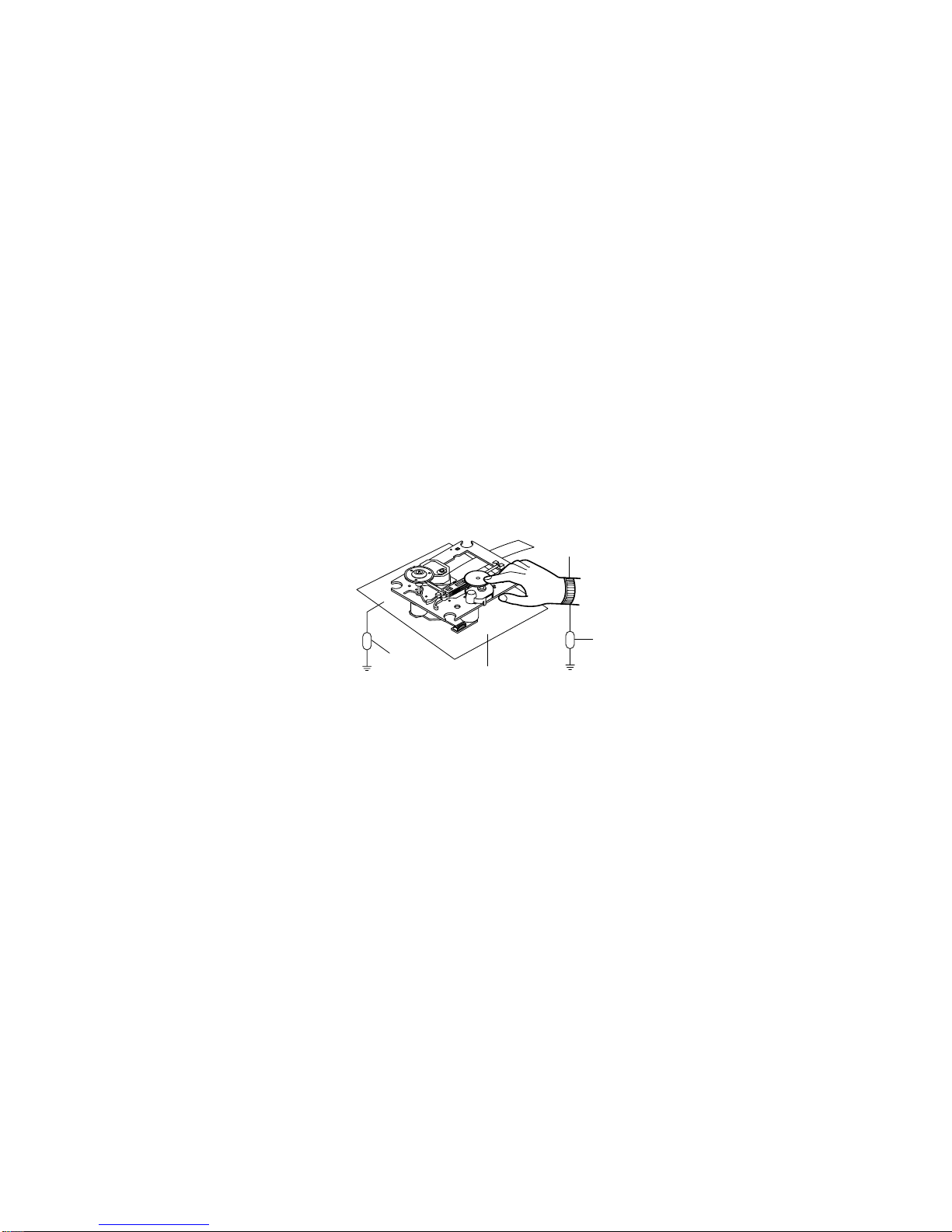

2. Notes for repair
1) Before replacing a component part, first disconnect the power supply lead wire from the unit
2) All equipment, measuring instruments and tools must be grounded.
3) The workbench should be covered with a conductive sheet and grounded.
When removing the laser pick-up from its conductive bag, do not place the pick-up on the bag. (This is
because there is the possibility of damage by static electricity.)
4) To prevent AC leakage, the metal part of the soldering iron should be grounded.
5) Workers should be grounded by an armband (1M Ω)
6) Care should be taken not to permit the laser pick-up to come in contact with clothing, in order to prevent
static electricity changes in the clothing to escape from the armband.
7) The laser beam from the pick-up should NEVER be directly facing the eyes or bare skin.
Resistor
(1 Mohm) Conductive
Sheet
Resistor
(1 Mohm)
Armband
- 1-4 -
ESD PRECAUTIONS
Electrostatically Sensitive Devices (ESD)
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components
commonly are called Electrostatically Sensitive Devices (ESD). Examples of typical ESD devices are integrated
circuits and some field-effect transistors and semiconductor chip components. The following techniques should
be used to help reduce the incidence of component damage caused by static electricity.
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off
any electrostatic charge on your body by touching a known earth ground. Alternatively, obtain and wear a
commercially available discharging wrist strap device, which should be removed for potential shock reasons
prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ESD devices, place the assembly on a conductive sur-
face such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ESD devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static" can
generate electrical charges sufficient to damage ESD devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ESD
devices.
6. Do not remove a replacement ESD device from its protective package until immediately before you are
ready to install it. (Most replacement ESD devices are packaged with leads electrically shorted together by
conductive foam, aluminum foil or comparable conductive materials).
7. Immediately before removing the protective material from the leads of a replacement ESD device, touch the
protective material to the chassis or circuit assembly into which the device will by installed.
CAUTION : BE SURE NO POWER IS APPLIED TO THE CHASSIS OR CIRCUIT, AND OBSERVE ALL
OTHER SAFETY PRECAUTIONS.
8. Minimize bodily motions when handing unpackaged replacement ESD devices. (Otherwise harmless motion
such as the brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can gener-
ate static electricity sufficient to damage an ESD device).
CAUTION. GRAPHIC SYMBOLS
THE LIGHTNING FLASH WITH APROWHEAD SYMBOL. WITHIN AN EQUILATERAL TRIANGLE, IS
INTENDED TO ALERT THE SERVICE PERSONNEL TO THE PRESENCE OF UNINSULATED “DAN-
GEROUS VOLTAGE” THAT MAY BE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF
ELECTRIC SHOCK.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE
SERVICE PERSONNEL TO THE PRESENCE OF IMPORTANT SAFETY INFORMATION IN SERVICE
LITERATURE.
- 1-5 -
SPECIFICATIONS
GENERAL
Power supply Refer to main label
Power consumption Refer to main label
Mass 5.5 kg
External dimensions (W x H x D) 435 x 54 x 350 mm
Operating conditions Temperature: 5°C to 35°C, Operation status: Horizontal
Operating humidity 5% to 85%
CD/DVD
Laser Semiconductor laser, wavelength 650 nm
Signal system NTSC 525/60
Frequency response (audio) 150 Hz to 18 kHz
Signal-to-noise ratio (audio) More than 75 dB (1 kHz, NOP -6 dB, 20 kHz LPF/A-Filter)
Dynamic range (audio) More than 70 dB
Harmonic distortion (audio) 0.5 % (1 kHz, at 1W position) (20 kHz LPF)
VIDEO
Video input 1.0 V (p-p), 75 Ω, negative sync., RCA jack x 2
Video output 1.0 V (p-p), 75 Ω, negative sync., RCA jack x 1
S-video output (Y) 1.0 V (p-p), 75 Ω, negative sync., Mini DIN 4-pin x 1
(C) 0.3 V (p-p), 75 Ω
COMPONENT VIDEO OUT (Y) 1.0 V (p-p), 75 ohms, negative sync, RCA jack x 1
(Pb)/(Pr) 0.7 V (p-p), 75 ohms, RCA jack x 2
TUNER
FM
Tuning Range 87.5 - 108.0 MHz or 65.0 - 74.0 MHz, 87.5 - 108.0 MHz
Intermediate Frequency 10.7 MHz
Signal-to Noise Ratio 60 dB (Mono)
Frequency Response 150 - 8,000 Hz
AM[MW]
Tuning Range 520 - 1,720 kHz
Intermediate Frequency 450 kHz
AMPLIFIER
Stereo mode 150W + 150W (6Ωat 1 kHz, THD 10 %)
Surround mode Front: 150W + 150W (THD 10 %)
Center*: 150W
Surround*: 150W + 150W (6Ωat 1 kHz, THD 10 %)
Subwoofer*: 250W (4Ωat 30 Hz, THD 10 %)
SPEAKERS Front/Rear Speaker Center speaker Passive Subwoofer
(LHS-75SGS) (LHS-75SGC) (LHS-75SGW)
Type 2 Way 2 Speaker 2 Way 2 Speaker 1 Way 1 Speaker
Impedance 6 Ω6 Ω4 Ω
Frequency Response 145 - 20,000 Hz 120 - 20,000 Hz 50 - 1,500 Hz
Sound Pressure Level 85 dB/W (1m) 85 dB/W (1m) 83 dB/W (1m)
Rated Input Power 150 W 150 W 250 W
Max. Input Power 300 W 300 W 500 W
Net Dimensions (W x H x D) 104 x 235 x 120 mm 220 x 115 x 120 mm 195 x 398 x 419 mm
Net Weight 1.0kg 1.0kg 6.6kg
(* Depending on the sound mode
settings and the source, there may
be no sound output.)
- 2-1 -

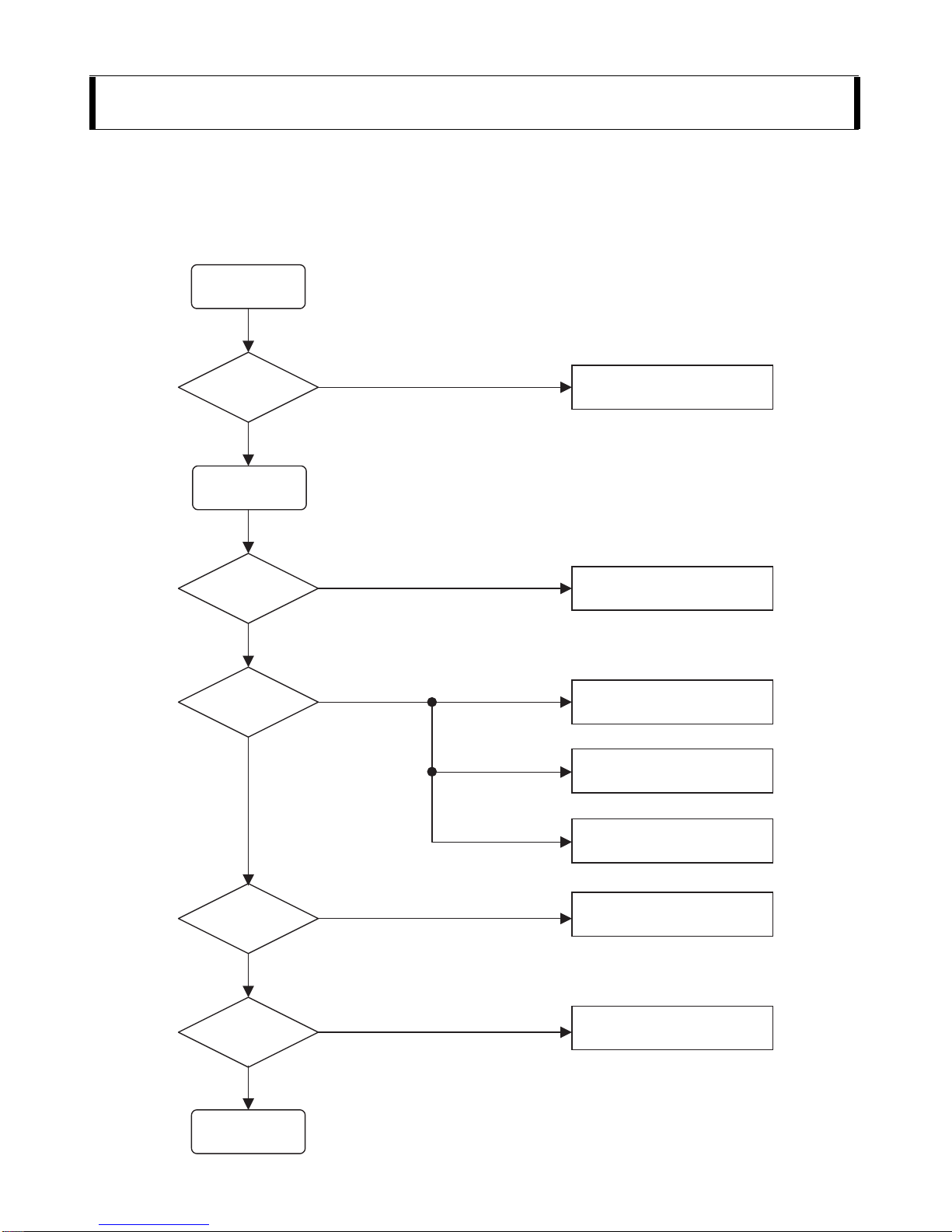

AUDIO TROUBLESHOOTING GUIDE
INSERT
POWER CORD.
RED LED
ON?
IS POWER ON?
CHECK POWER PLUG
AND POWER SUPPLY CIRCUIT
.
DOES INITIAL
READ WORK?
DOES IT PLAY?
YES
NO
YES
YES
OK
NO
YES
NO
NO
CHECK POWER SUPPLY CIRCUIT.
CHECK LASER CIRCUIT
.
CHECK TRACKING SERVO CIRCUIT.
TURN POWER ON.
CHECK FOCUS CIRCUIT.
CHECK DISC.
DOES IT OUTPUT
AUDIO?
YES
NO CHECK AUDIOCIRCUIT.
1. POWER CHECK FLOW
SECTION 2. ELECTRICAL
- 2-2 -

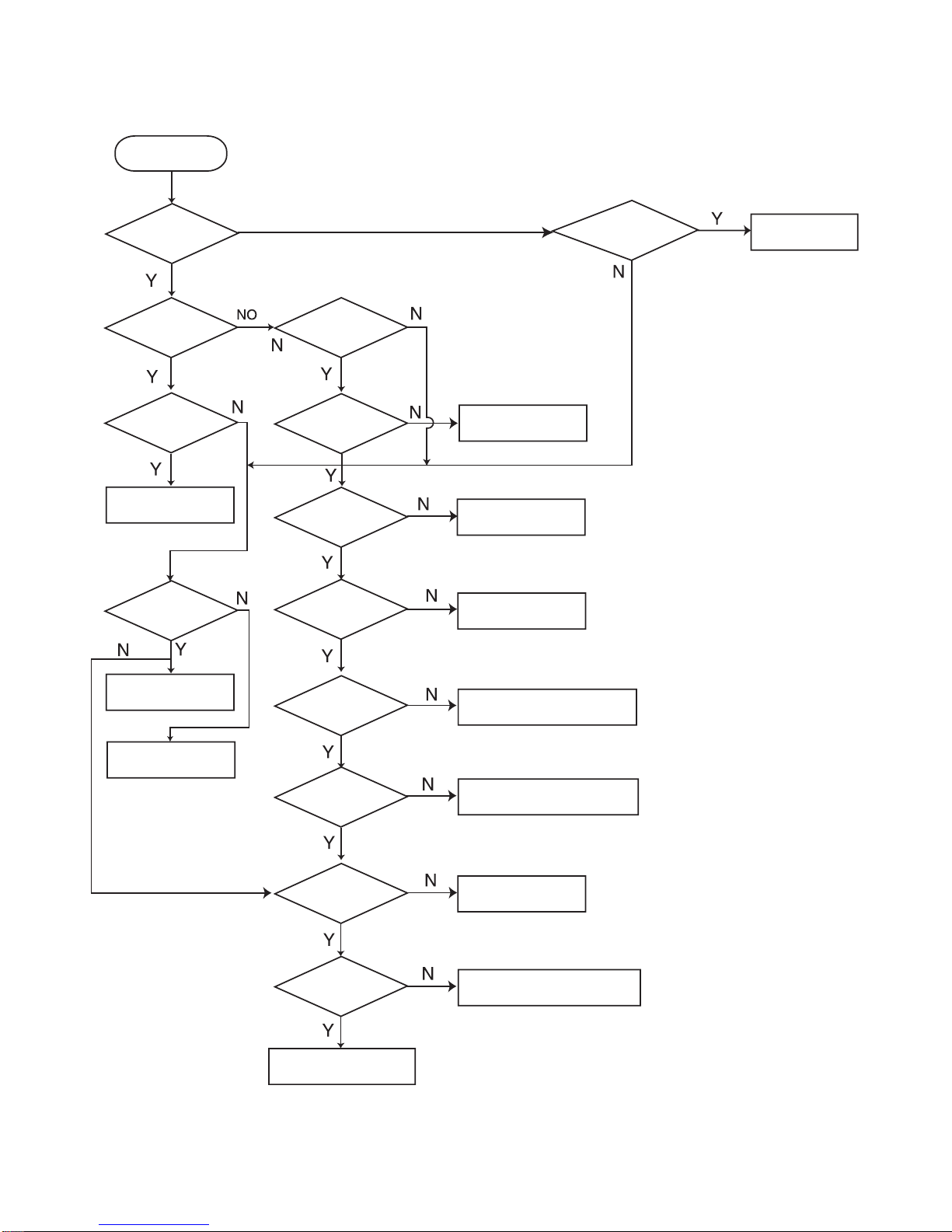

2. AUDIO µ-COM CIRCUIT
POWER ON
Does DVD Error
appear at
FLD?
Does
AV 1/2 FM87.5
appear at FLD?
Check
Connector(PN902)
Check power part
of Main B/D.
Check oscillator
of x101.
Check if IC101
PIN80 is High.
Check if IC101
PIN92 is High.
Check if IC101 PIN
31, 32, 51, 88 are high
(5V).
Check if IC101
PIN96 is High.
Replace IC101.
Does CD/DVD
appear at FLD?
Reconnect PN902.
Refer to SMPS
OK.
Refer to oscillator
Circuit.
Check DVD Reset Waveform.
Check IC101 Reset Wavefrom.
Check 5V line.
Check Power section Circuit.
Does READING
appear at FLD?
Does no Disc or
Time appear at FLD?
Check if DVD an Audio
Micom Interface is OK.
Check power.
Check DVD Module.
Check SMPS.
- 2-3 -

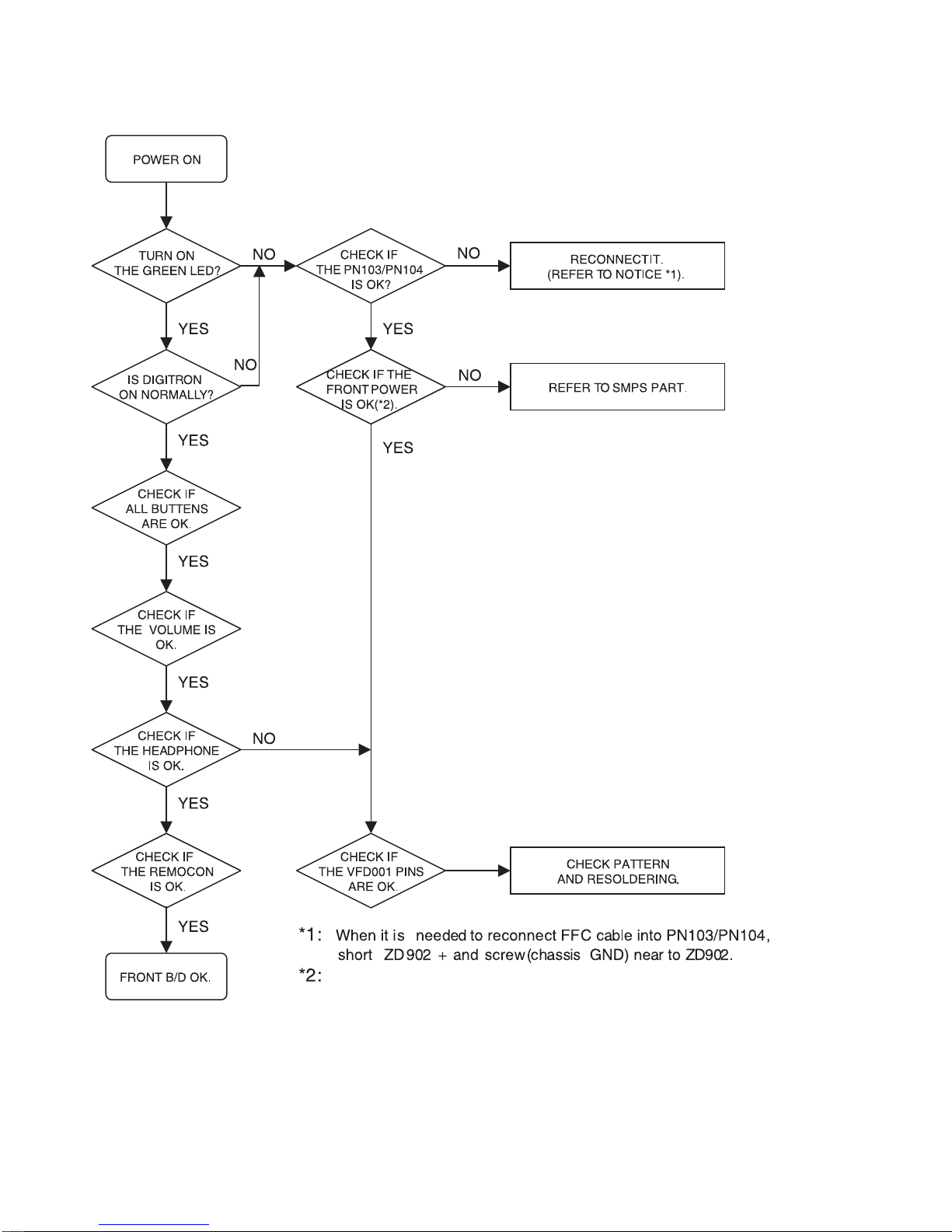

3. FRONT CIRCUIT (1/2)
PIN104 Pins
PIN : -27V
PIN 6 : -18V
PIN7 : -22V
PIN : 5V
- 2-4 -

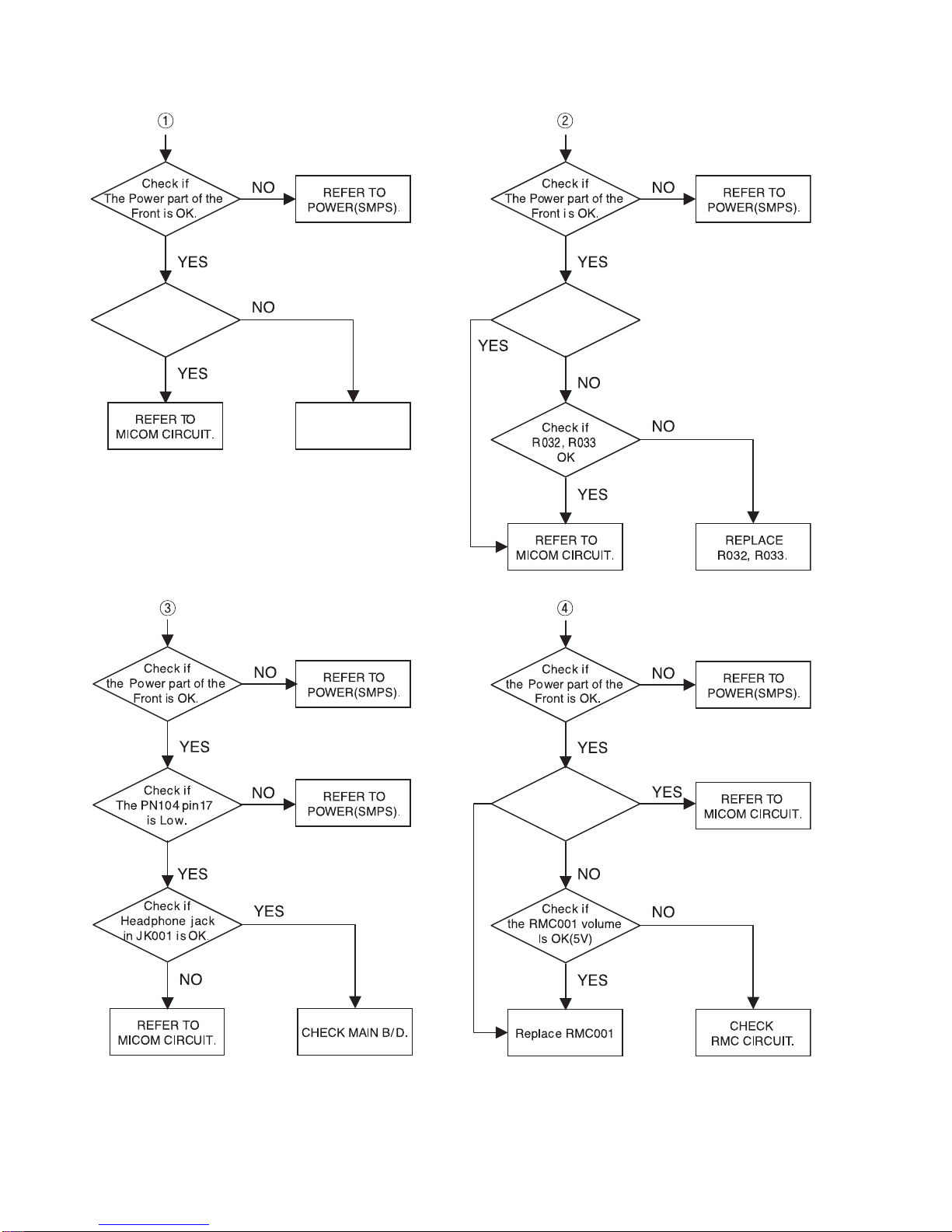

4. FRONT CIRCUIT (2/2)
CHECK
IF R029, R036~R040,
R046~R051
OK.
REPLACE R029,
R036~R040,
R046~R051
Check
if PN104 pins10, 11
Waveform OK.
Check
if the Remocon
Waveform of the
PN104 pin16
Indice
Altri manuali Zenith Sistema Home Theater
Zenith
Zenith ZH-T202SF Series Manuale utente
Zenith
Zenith DVT812 Manuale utente
Zenith
Zenith XBS341 Series Manuale utente
Zenith
Zenith DVT723 Guida all'installazione
Zenith
Zenith DVT721 - Home Theater in a Box System Manuale utente
Zenith
Zenith ZHX-313 Manuale utente
Zenith
Zenith DVT216 Manuale operativo e di manutenzione
Zenith
Zenith DVT812 Manuale operativo e di manutenzione
Zenith
Zenith DVT721 - Home Theater in a Box System Guida all'installazione
Zenith
Zenith XBS344 Series Guida all'installazione
Zenith
Zenith XBS344 Series Manuale utente
Zenith
Zenith XBS245 Series Guida all'installazione
Zenith
Zenith ZHD-311 Manuale utente
Zenith
Zenith DVT412 Manuale utente
Zenith
Zenith D35 Manuale utente
Zenith
Zenith FFH-DV25A Guida all'installazione
Zenith
Zenith DVT310 Manuale utente
Zenith
Zenith DVT316 Series Manuale utente
Zenith
Zenith XBS448 Manuale utente
Zenith
Zenith ZHD-311 Manuale utente
