Zenith IQA32M46W Series Manuale utente

machine numbers IQA56M98D IQA60M98D IQA36M46W IQA32M46W

operating guide / warranty

Thanks for

choosing Zenith!

hookup directory

index

about your trakball remote

special features you’ll want to know about

your on-screen menus

page54

page 3

page 16

page 20

page 51

RECORD YOUR MODEL NUMBER

The model and serial number of your new TV are located

on the back of the TV cabinet. For your future convenience,

we suggest that you record these numbers here:

MODEL NO.____________________________________

SERIAL NO.____________________________________

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.

REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence

of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating

and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

To prevent fire or shock hazards, do not expose this product to rain or moisture.

POWER CORD POLARIZATION:

CAUTION: To Prevent Electric Shock, match wide blade of plug to wide slot, fully insert.

ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne

correspondante de la prise et pousser jusqu’au fond.

NOTE TO CABLE/TV INSTALLER:

This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric Code

(U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be

connected to the grounding system of the building, as close to the point of the cable entry as practical.

REGULATORY INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures: •Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Do not attempt to modify this product in any way without written authorization from Zenith Electronics Corporation.

Unauthorized modification could void the user’s authority to operate this product.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

For general information about the jacks on your Entertainment Machine, go to . . . . pages 4 and 5

If you are using an antenna or have direct cable service, go to . . . . . . . . . . . . . . . . . . . page 6

If you are using a cable box, go to . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7

If you are using a VCR, go to . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 8

If you are using a DVD Player, go to . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 9

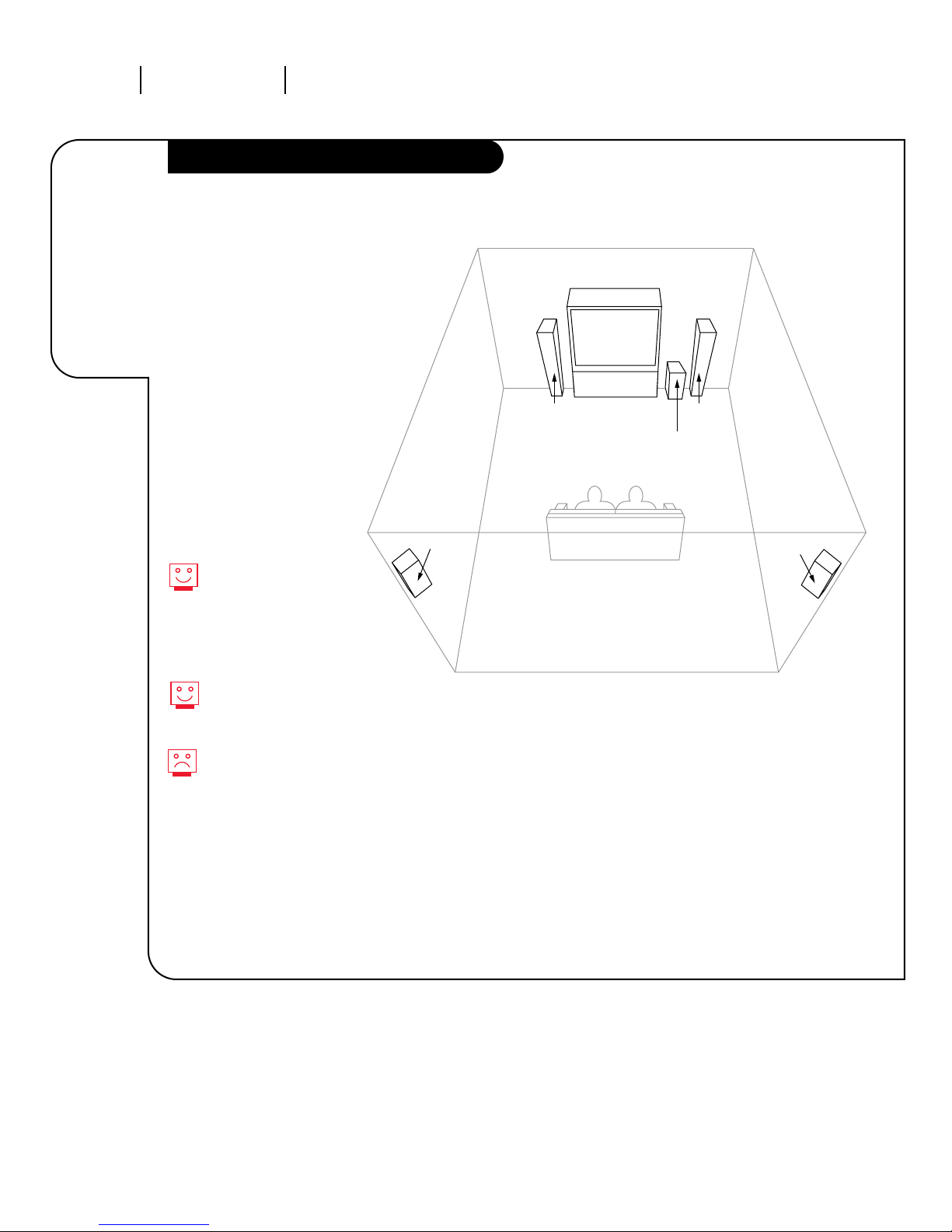

For general speaker placement advice, go to . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10

To hook up your surround sound speakers, mini tower speaker or sub-woofer, go to . . . . . page 11

To hook up your entertainment machine to an external stereo, go to . . . . . . . . . . . . . . . page 12

3357-o

INSTALLATION GETTING STARTED PAGE 3

This page will

help you

hook up your

Entertainment

Machine

properly.

Hookup Directory

IMPORTANT!! Use this page to decide where you need to begin your setup.

First, find the line below that best describes what you want to do, then go to

that page number. For a complete index go to page 54.

Antenna/Cable

Cable Box

VCR

DVD Player

About your Jacks

Audio Speakers

Speaker Placement

External Stereo

INPUT HOOKUP OPTIONS

GENERAL HOOKUP INFORMATION

AUDIO EQUIPMENT OPTIONS

For a complete Index, see page 54-55.

INSTALLATION GETTING STARTEDPAGE 4

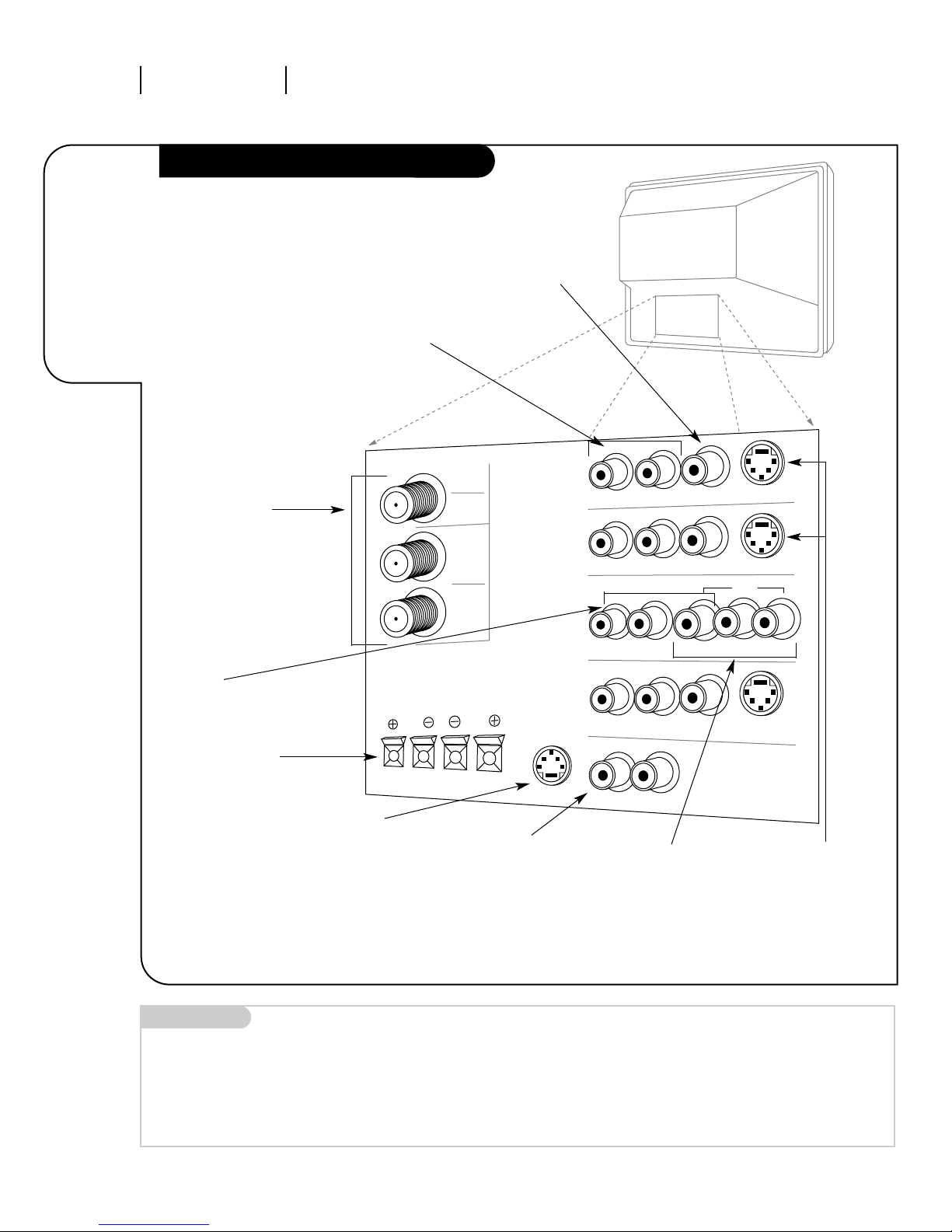

Your jack-pack

and its

various uses.

Audio Video Jacks

3357-o

ANTENNA

CABLE 1

LOOP OUT

R- AUDIO- L/MONO

VIDEO 2 S-VIDEO 2

R- AUDIO- L/MONO VIDEO S-VIDEO

R- AUDIO- L/MONO VIDEO 1 S-VIDEO 1

VARIABLE OUT

R -AUDIO- L

RIGHT LEFT

MONITOR OUT

ANTENNA

CABLE 2

INPUT

VIDEO 3/Y R-Y B-Y

DVD

DATA

PORT

SURROUND SPEAKERS

RF Connectors:

Antenna/Cable 1,

Antenna/Cable 2,

and Loop Out

Used to connect

Antenna/cable to the

television, either

directly or through your

cable box.

Right/Left Audio

Used for stereo sound

from various types of

equipment.

Video 1/2/3

Connects the video

signals from various

types of equipment.

S-VIDEO 1/2

A feature available

with some very

high-end equipment

that provides even

better picture quality.

Y, R-Y, B-Y

Some top-of-the-line DVD

players use what is

called “component video,”

for extremely accurate

picture reproduction.

Refer to your DVD manual

for further information.

Variable Out

Used to connect

either an external

amplifier, or add a

sub-woofer to your

surround sound system.

Surround Speaker

Jacks Right/Left

Used to improve your

sound by connecting

surround-sound

speakers.

Data Port

Reserved for future

use.

Mini glossary

JACK A connection on the back of a TV, VCR, or any other A/V device. This includes the RF jacks and the Audio/Video jacks

that are color-coded.

SIGNAL Picture and sound traveling through cable, or in the air, to your television screen.

Video 3

Video 3 can be used

as a composite or

component input.

INSTALLATION GETTING STARTED PAGE 5

Hooking

up temporary

equipment

to your

Entertainment

Machine.

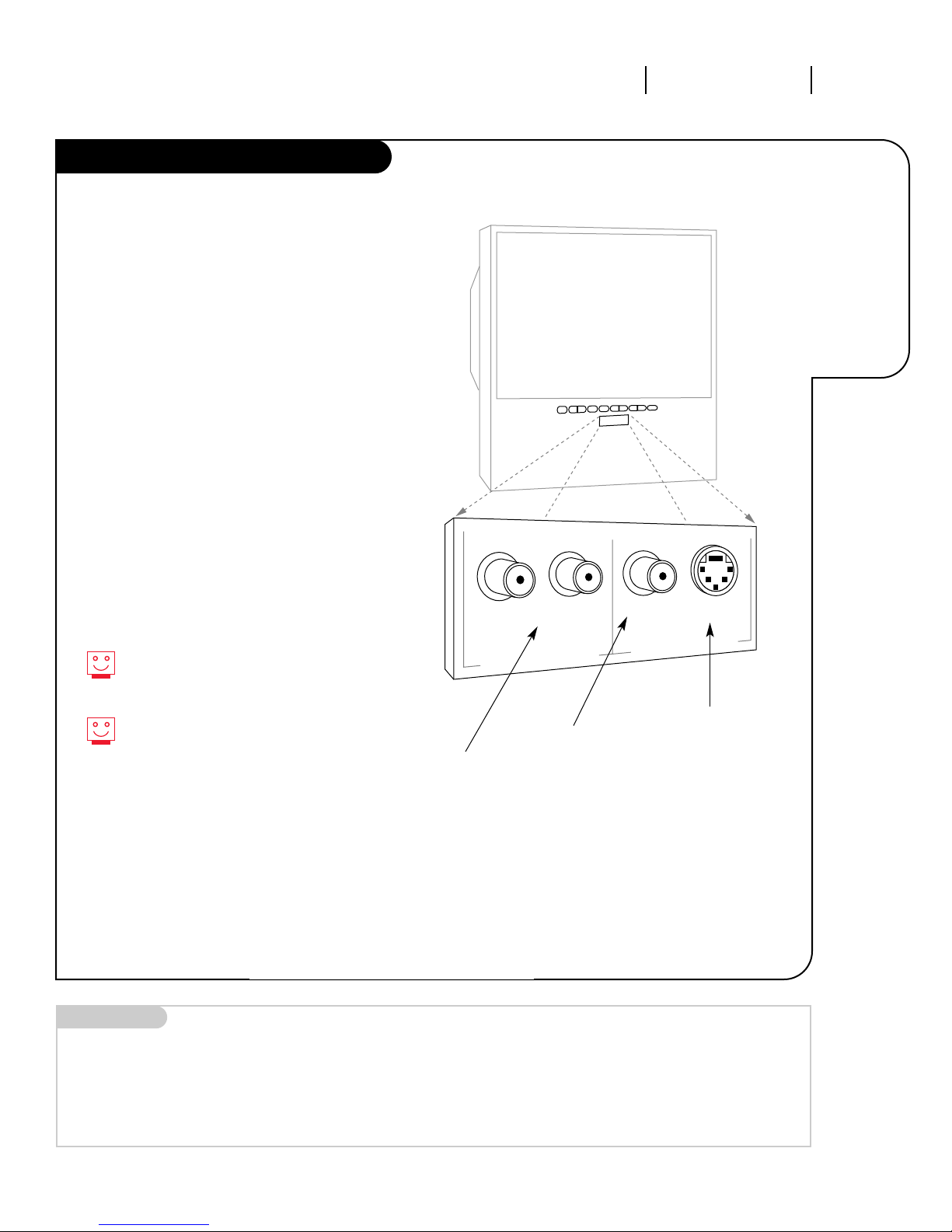

Front A/V Jacks

3357-o

S-Video

Video

Right

Left

video input

audio input

Front A/V Panel

There are four jacks on the front of

your Entertainment Machine that make

connecting Audio/Video devices like video

games and camcorders very simple.

The jacks are located behind a small door

below the buttons on the front panel.

The jacks are like those found in the jack

pack on the back of your Entertainment

Machine. Which means that any equipment

that connects to those types of jacks in

the rear jack pack, can also be connected

in front.

To use the front jacks as the signal source,

use the Source menu as described on page

22. They will be named “Frnt Video” and

“Frnt S-Video” in the Source menu, but if

you are using something else, and don’t

want to get confused, change the name

under the Source ID (see page 31).

Right/Left Audio

Used for stereo sound

from various types of

equipment.

Video

Connects the video

signals from any

piece of equipment.

S-VIDEO

A feature available

with some very

high-end equipment

that provides even

better picture quality.

When you choose Front Video

or Front S-Video, the audio is

automatically changed as well.

If you’re connecting a video game

unit, make sure to change the

picture settings with the Video

Preset option in the Video menu

(see page 36).

Mini glossary

A/V CABLES Audio/Video cables. Three cable connectors—Right audio (red), Left audio (white), and Video (yellow). A/V cables are used for stereo

playback of videocassettes and for higher quality picture and sound from other A/V devices.

A/V DEVICE Any device that produces video or sound (VCR, DVD, cable box, or television).

NOTE: The picture for the IQA36A46W will be differ-

ent than the one shown. However, the front jacks

will be the same.

Model IQA32M46W does not have front jacks.

INSTALLATION STANDARDPAGE 6

Connecting

antenna/cable

to your

Entertainment

Machine.

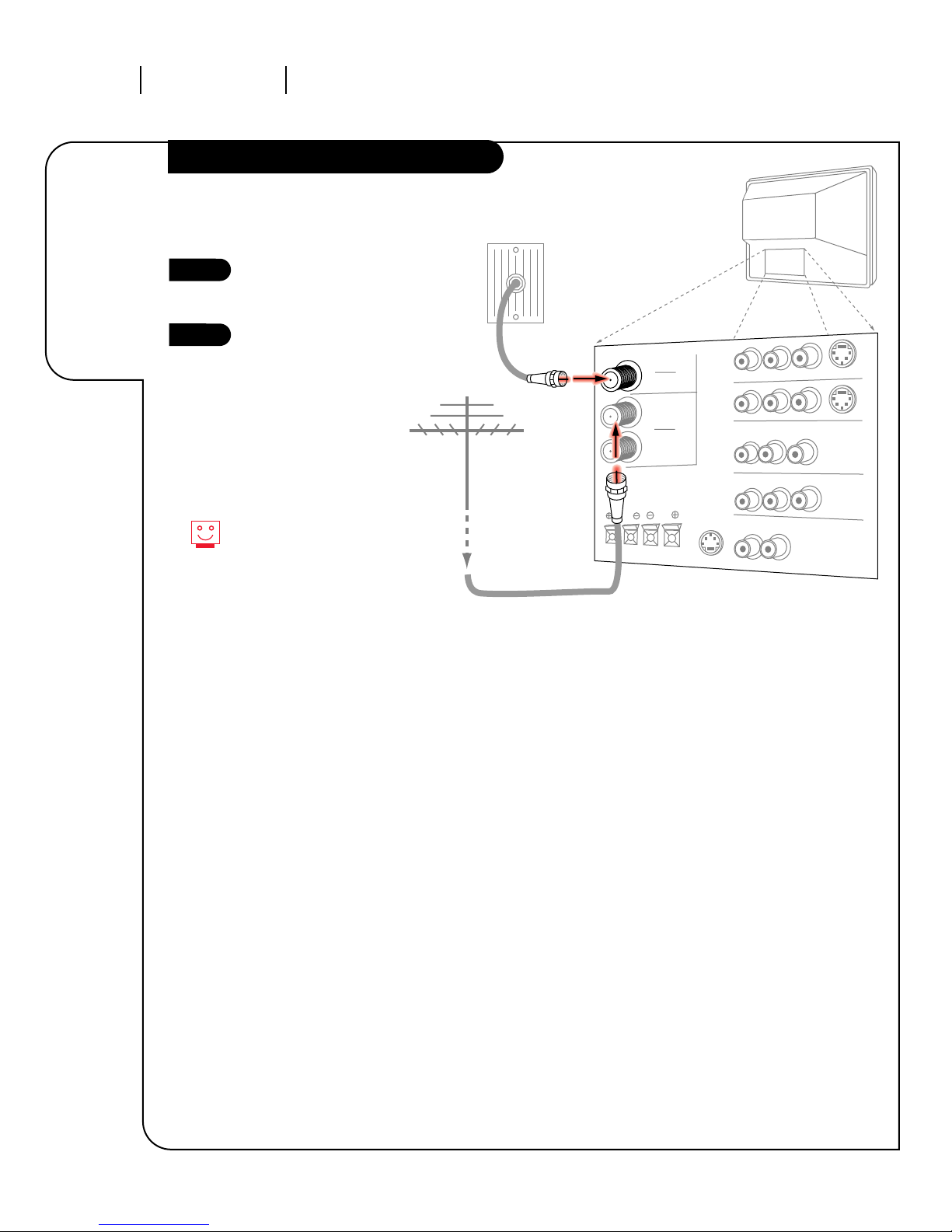

Antenna/Direct Cable TV or Cable Box

3357-o

ANTENNA

CABLE 1

LOOP OUT

VARIABLE OUT

MONITOR OUT

ANTENNA

CABLE 2

INPUT

Cable TV

wall jack

Rf coaxial wire

(75ohm)

TV back

Locate the Antenna/Cable 1 jack

on the back of your Entertainment

Machine.

Connect the cable that runs from

the wall directly to this jack.

Hooking up to Antenna/Direct Cable

Hooking up to

Antenna/Direct Cable

If you receive antenna through a

wire that is several years old and

connects with two small prongs,

you will need to purchase a 300

Ohm adapter. It should be avail-

able from your local

electronics dealer.

RF coaxial wire

(75ohm)

Antenna

INSTALLATION STANDARD PAGE 7

Using a cable

box with

the Loop

Out function.

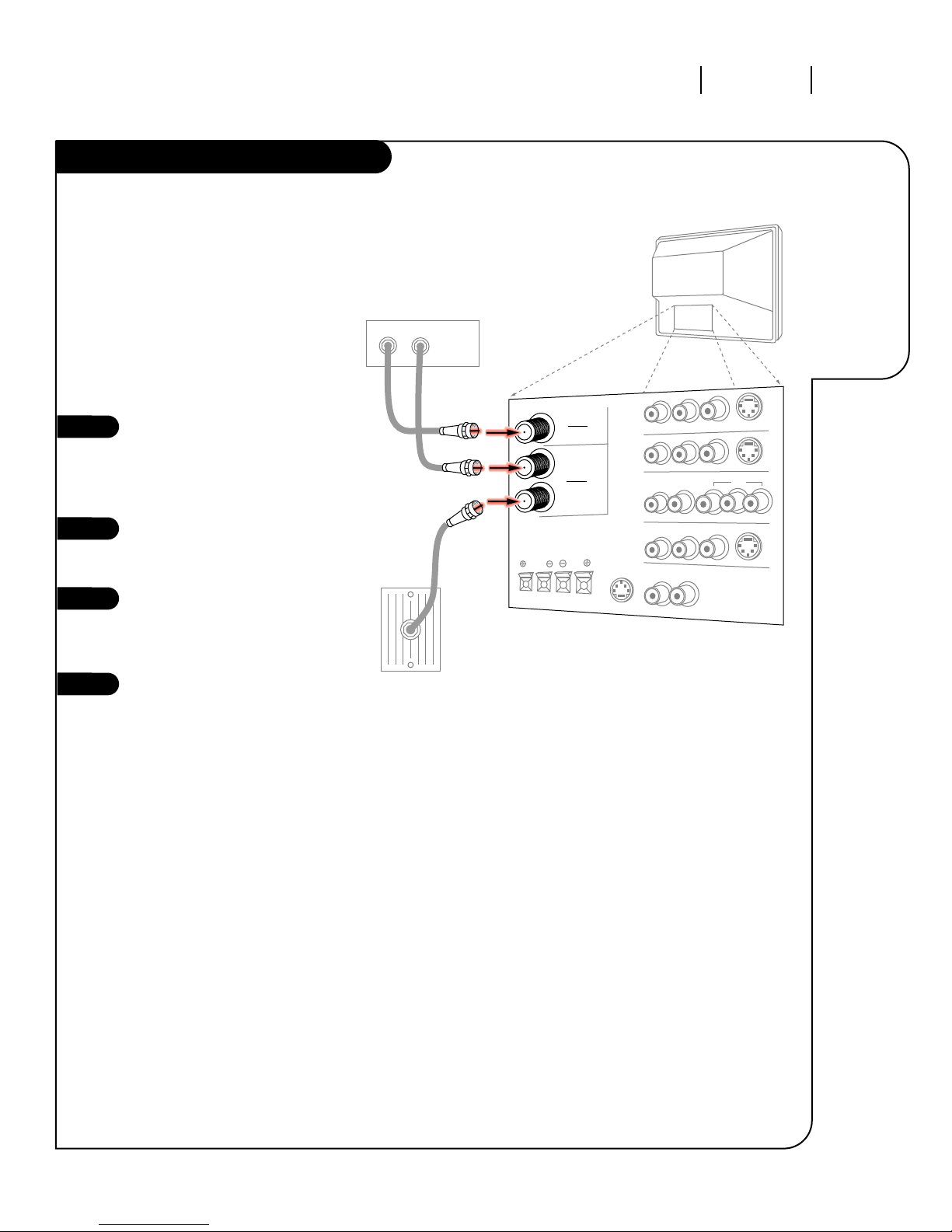

Cable Box

3357-o

Locate the Antenna/Cable 2 jack on

the back of your TV. Connect the

cable that runs from the wall direct-

ly to the jack. Now find the the

Loop Out jack.

Connect the cable from this jack to

the Input jack on the back of your

cable box.

Locate the Output jack on the back

of your cable box. Connect this to

the Antenna/Cable 1 jack on the

back of your TV.

To view the premium stations, set

the channel number on your cable

box to HBO, CINEMAX, SHOWTIME,

etc. Then go to the Source menu

and select the Antenna/Cable 1

source. See your Quick Setup Sheet,

included with this operating guide

for more information. See page 22

for information regarding Source

Menus.

To view the non premium channels

go to the Source Menu and select

Antenna/Cable 2. Then run Channel

Search to check for all available

channels and store them in its

memory.

This can be combined with any

other equipment you may want

to hook up. Hook cable directly into

the TV, then to the cable box. From

there, the cable box goes to the

next device, down the line, until

the last piece, which connects back

to the TV in the Antenna/Cable 1

jack.

Some cable services require the use of a

cable box to decode premium channels and

pay-per-view. Using the Loop Out to

Decoder option, and programming your

remote, you can connect your cable box so

that you only need your MBR Trakball

remote to control all the channels. By

connecting cable directly to your

Entertainment Machine, then running it out

to the cable box and back, you make the

cable box another source to choose from in

the Source menu (see page 22).

ANTENNA

CABLE 1

LOOP OUT

VARIABLE OUT

MONITOR OUT

ANTENNA

CABLE 2

INPUT

DVD

Cable TV

wall jack

Cable box

Out

Rf coaxial wire

(75ohm)

TV back

ANTENNA

CABLE 1

LOOP OUT

VARIABLE OUT

MONITOR OUT

ANTENNA

CABLE 2

INPUT

DVD

TV back

Out

Audio Video

3 4

VCR

Back AV panel R- AUDIO- L

A/V cables

not included

with TV

Cable TV

wall jack

Round wire

(75ohm)

VIDEO 1

INSTALLATION STANDARDPAGE 8

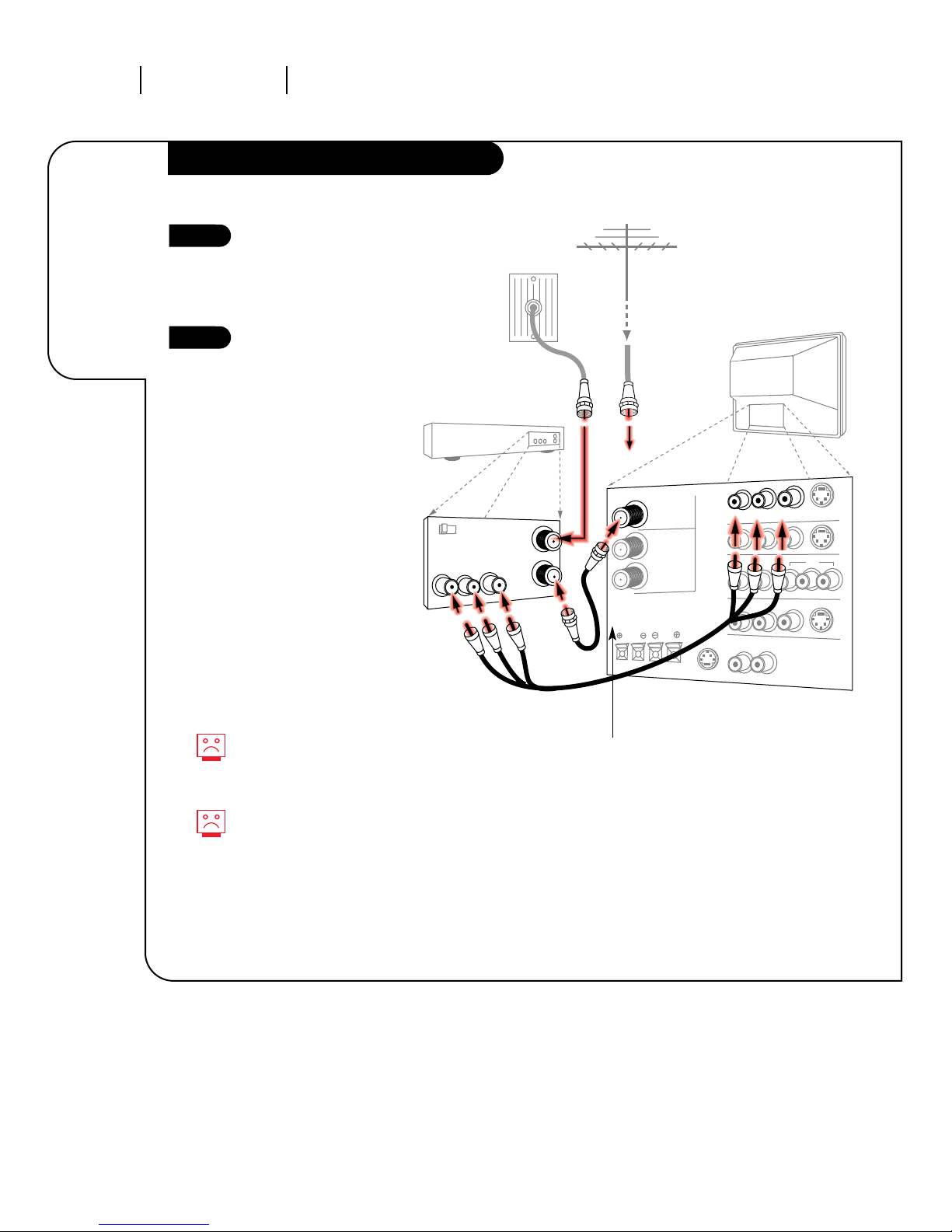

Connecting a

VCR to your

Entertainment

Machine.

VCR

3357-o

Locate the RF or VHF/UHF/CATV

In jack on the back of your

VCR. Connect the Antenna or

cable wire coming from your

wall directly to this jack.

Find the composite video or

S-Video and audio jacks on

the back of your VCR, and

connect them following

the instructions provided with

your equipment.

You may connect either the

composite video or the S-

Video cables to your

Entertainment Machine. Do

not connect both the com-

posite and the S-Video.

To hear stereo sound from

your VCR, you will need to

connect A/V cables.

If you want to receive your

signals on Channel 3 or 4

from Antenna/Cable 1, locate

the Out to TV jack. Connect a

cable from the Out to TV jack

to the Antenna/Cable 1 jack

on the back of your

Entertainment Machine.

Optional (to receive

signal on channel 3 or 4).

Cable not included.

RF coaxial wire

(75ohm)

Antenna

INSTALLATION STANDARD PAGE 9

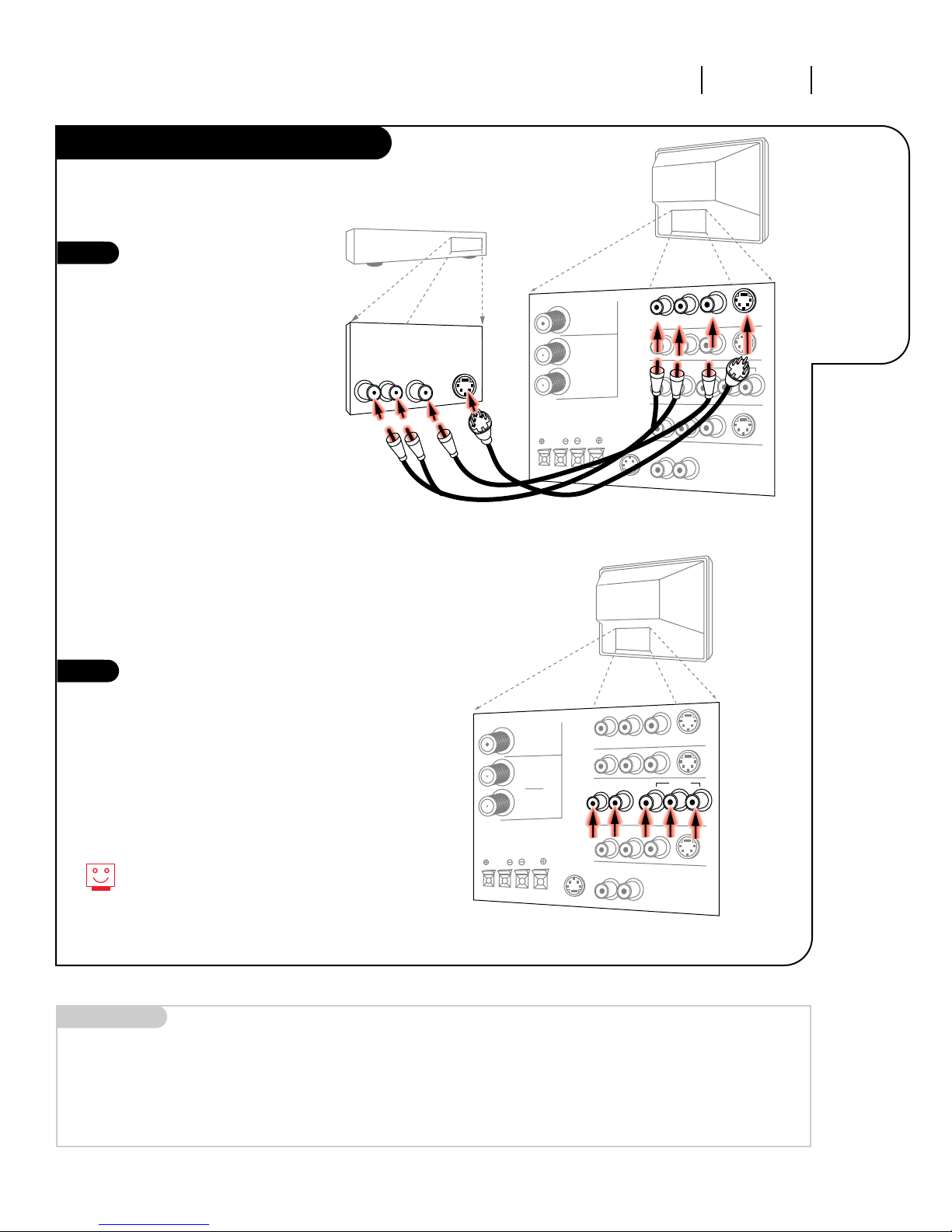

Connecting a

DVD player or

S-VHS player

to your

Entertainment

Machine.

DVD Player

3357-o

Find the audio and composite

or S-Video jacks on the back of

your DVD Player and connect

them following the instructions

provided with your equipment.

You may connect either the

composite video or the S-Video

cables to your Entertainment

Machine. Do not connect both

the composite and the S-Video.

For several pieces of equipment, edit the

names under Source ID so you don’t for-

get which is which. See page 31.

Mini glossary

COMPONENT VIDEO Some video equipment uses three separate lines (Y, R-Y, B-Y) to more precisely reproduce images. Your manual will explain

how this relates to your equipment.

ANTENNA

CABLE 1

LOOP OUT

VARIABLE OUT

MONITOR OUT

ANTENNA

CABLE 2

INPUT

DVD

TV back

Audio S-Video

DVD player

Back AV panel R- AUDIO- L S-VIDEO 1

A/V and S-Video

cables not included

with TV

L R Video

TV back

ANTENNA

CABLE 1

LOOP OUT

ANTENNA

CABLE 2

INPUT

DVD

R-AUDIO-L/ VIDEO 3/Y R-Y B-Y

Some high-end DVD players use a picture

reproduction system called “component

video.” If your DVD player has component

output, use the connectors marked “DVD”

on the jack panel. Please refer to your

DVD manual for proper installation.

INSTALLATION AUDIOPAGE 10

General

help on

designing

your home

theater

set-up.

Room Set-ups for Home Theater

3357-o

sub-woofer

right

speaker

left

speaker

surround

sound

speaker

surround

sound

speaker

This is just a general room design.

Any number of set-ups are possible,

and some changes may be needed

to maximize your sound.

A left and right speaker on either

side of the Entertainment Machine

will create a phantom “center

channel,” making the dialog sound

as though it’s coming directly from

the Entertainment Machine. The rear

surround sound speakers provide

the majority of other sounds, like

those from special effects in movies.

Your sub-woofer generates ultra-low

frequency sound, for rumbling

low-end audio.

Sound is affected by

speaker placement, so

make sure nothing is in

front of the speakers, and

that they are aimed in

appropriate directions.

You have the option of

turning on or off the internal

speakers.

If your surround sound

system is on, but there’s no

sound from the speakers,

the program you’re watching

might not be broadcast in

surround sound.

NOTE: The picture for the

IQA36A46W will be different

than the one shown. However,

the setup will be the same.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Zenith TV

Zenith

Zenith B13A03D Manuale operativo e di manutenzione

Zenith

Zenith Z27H96 Manuale operativo e di manutenzione

Zenith

Zenith Z42PT320 Istruzioni operative

Zenith

Zenith Concierge H19C34DT Manuale operativo e di manutenzione

Zenith

Zenith A25A11D Manuale operativo e di manutenzione

Zenith

Zenith H27H49S Manuale utente

Zenith

Zenith SENTRY 2 SMS1917SG Manuale operativo e di manutenzione

Zenith

Zenith Z50Z83D Manuale operativo e di manutenzione

Zenith

Zenith IQC50H94W Manuale utente

Zenith

Zenith SM3589BT Manuale operativo e di manutenzione

Zenith

Zenith Sentry 2 Z25X22 Manuale operativo e di manutenzione

Zenith

Zenith H25E37Y Manuale operativo e di manutenzione

Zenith

Zenith ZLD15A1B Manuale utente

Zenith

Zenith A25A23W Manuale utente

Zenith

Zenith C13A03D Manuale utente

Zenith

Zenith IQD27D53T Manuale utente

Zenith

Zenith IQA56M98W9 Series Manuale operativo e di manutenzione

Zenith

Zenith H27F56DT Guida all'installazione

Zenith

Zenith SYSTEM 3 Series Manuale operativo e di manutenzione

Zenith

Zenith Presentation H25C46DT Manuale operativo e di manutenzione

Zenith

Zenith SENTRY 2 SMS1943S Manuale operativo e di manutenzione

Zenith

Zenith IQB42P97G Manuale operativo e di manutenzione

Zenith

Zenith A27B41 Manuale utente

Zenith

Zenith SYSTEM 3 SY2738RK Manuale operativo e di manutenzione

Manuali TV popolari di altre marche

Philips

Philips Colour Television Manuale utente

Toshiba

Toshiba 27A10 Manuale utente

Philips

Philips 42PF9630A/37 Manuale utente

Hitachi

Hitachi 32FX48B Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuale utente

Changhong Electric

Changhong Electric uhd55b6000is Manuale utente

Philips

Philips Matchline 21CE7551 Manuale utente

Panasonic

Panasonic Genus TX-G10 Manuale utente

Toshiba

Toshiba 19A20 Manuale utente

Philips

Philips 25PT4523-16 Manuale utente

Sony

Sony XBR-100Z9D Manuale utente

Philips

Philips PR0930X3 Manuale utente

Philips

Philips Brilliance 231P4QPY Manuale utente

Samsung

Samsung 55S9 B Series Manuale utente

Philips

Philips 32HF9385D Guida alla risoluzione dei problemi

Sharp

Sharp LC-40FI5012E Manuale utente

Loewe

Loewe Table Stand Reference 55 Manuale utente

Philips

Philips 32PFH5300 Manuale utente
