1.0 ABOUT THE ZX-G2
The ZX-G2 has been designed to turn your smartphone
into a stable, smooth and lightweight 3 axis-camera. High-
precision motors and aerospace-grade aluminium arms
make this gimbal exceptionally stable. Your smartphone’s
camera can smoothly transition between portrait and
landscape while filming and the gimbal can be folded in
half and easily transported.
2.0 WHATS IN THE BOX

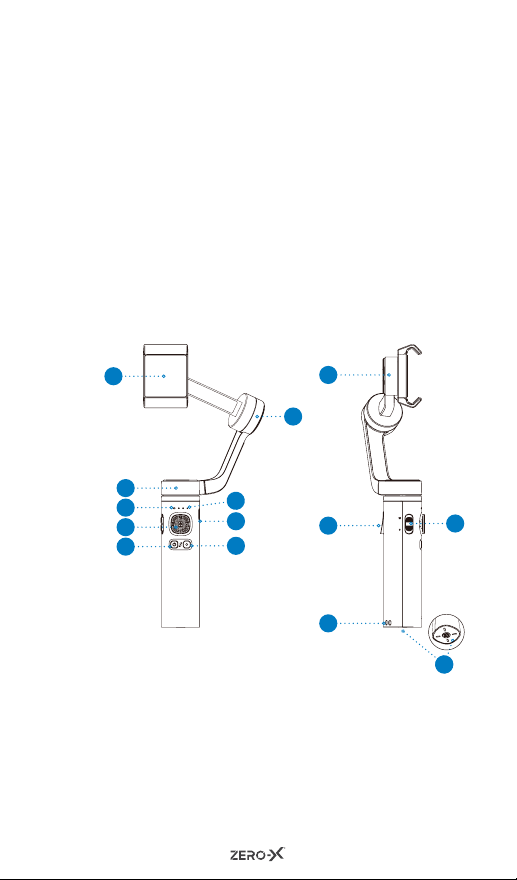

3.0 COMPONENTS
1 x ZX-G2 Gimbal
1 x USB Charging Cable
1 x Mini Tripod
1 x Quick Start Guide
1 x User Manual
1. Smartphone clamp
2. Yaw motor
3. Mode indicator
4. Joystick
5. Power/ Mode button
6. Shutter button
7. Charging port (USB Type-C)
8. Battery level indicator
9. Pitch motor
10. Roll motor
11. Trigger button
12. Lanyard Mount
13. ¼ inch threated hole
14. Zoom slider
1
2
3
411
10
12
56
14
13
7
9
8
6
4.0 GETTING STARTED
Make sure your smartphone and ZX-G2 are fully charged
and you have the App installed, running and the gimbal
and your smartphone are connected via Bluetooth (see QR
code and instructions on page 14).
UNFOLD THE ZX-G2
To operate the ZX-G2, start by unfolding it. To do this,
hold the handle with one hand as shown. Rotate the
gimbal arm by 180 degrees (as shown). It is normal for the
arm to be stiff during first use. When you hear a click, this
means the gimbal is unfolded.
FIT YOUR SMARTPHONE TO THE ZX-G2
Open the clamps and fit your smartphone to the gimbal
with the screen facing towards you and the gimbal motor
to the right. If your smartphone has a cover, please remove
it to fit your smartphone comfortably in the clamp.
CAUTION: Please ensure your smartphone is attached to the
ZX-G2 before you turn the gimbal on.

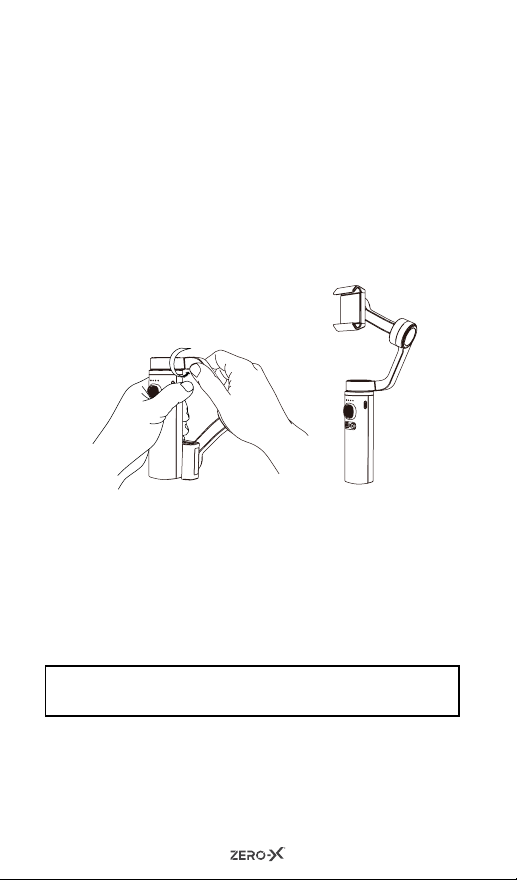

Rotate to unfold Unfolded
7
FOLDING THE ZX-G2
To fold the ZX-G2 back into position, rotate the gimbal
arm again by 180°in the direction shown. Adjust the
smartphone clamp, as necessary.
NOTE: Make sure the ZX-G2 is powered off when you fold
or unfold it.
5.0 HOW TO CHARGE YOUR ZX-G2
To charge the ZX-G2, use the USB Type-C port and the
provided USB-C charging cable. You can charge the ZX-G2
via wall charger, car charger or computer USB port. (Not
provided). The battery level will be indicated by
progressive white lights (i.e more lights more battery, less
lights less battery).
•
Charging time: 3-4 hours
(approx, with 5V 2A power adaptor).
• Operating time: 12 hours (approx).
• Charging port (USB Type-C).
5.1 TO START
1. To use the ZX-G2 gimbal you will need to unfold it
as instructed.
2. Secure your smartphone to the clamp.
Rotate to fold Folded
8
NOTE:
The clamp needs to be 5mm to the right of the centre of
your smartphone to achieve balance. The smartphone
camera should always be to the left of the clamp.
3. To turn on, press and hold the power button for
three seconds.
Your smartphone needs to be balanced for the ZX-G2
gimbal to maneuver it.
5.2 HOW TO CALIBRATE THE ZX-G2
The first time you use the ZX-G2 it is best to calibrate it.
To calibrate the ZX-G2, tap the calibration button
in the App and wait for 15 seconds. The gimbal will
automatically calibrate, turn off and restart.
6.0 ZX-G2 CONTROLS AND FUNCTIONS
6.1 POWER BUTTON / MANUAL BUTTON:
• When power is OFF, tap the ON/OFF button once
to view the gimbals battery level, which is shown by
round LED lights. If all three LED’s are on, it indicates
the gimbal is fully charged.
• When power is ON, tap the ON/OFF button once to
switch the smartphone camera between portrait
and landscape.
• Tap the ON/OFF button twice to switch between
Follow and FPV mode. You will find the ‘F’ change to
‘FPV’ (near the battery level in the top right corner of
the App) which indicates either Follow mode or FPV
mode.
• To switch to Inception Mode, tap the ON/OFF
button three times.
• Press the OFF button for three seconds to
completely turn off ZX-G2.
9
6.2 CAMERA SHUTTER BUTTON:
Depending on the chosen mode (i.e- photo or video) a
single tap will take a photo or start / stop recording.
• Double tap: Switch between the front or rear camera
(when using the App).
• Press and hold: Switch between photo / video mode.
6.3 BATTERY LEVEL INDICATOR:
The round LED lights indicate the battery level of the
gimbal. One light means the battery level is low and
three lights means the battery level is nearly full or full.
10
6.4 MODE INDICATOR
The ZX-G2’s function is indicated by flickering lights, as
set out below.
Mode
Indicator
Status
Gimbal
Mode
Triggered By
Description
Solid green
light
Follow Default
Your smartphone camera will
follow the pitch and yaw of
the ZX-G2 smoothly.
During this mode, the roll
movement is locked.
Flashing
green
light
Phone GO
Quickly press
the trigger
button once,
then press
again and
hold
Best for filming sporting
events, the ZX-G2 gimbal
will move your smartphone
quickly to record. Response
time of the gimbal will reduce
and sensitivity will increase.
Solid blue
light FPV
Double tap
the power
button
This mode is best for
first-person-view. Your
smartphone will follow the
pitch and yaw of the gimbal.
Flashing
blue light Inception
Triple tap
the power
button
This mode is best suited to
record a 360° view. The gimbal
will lock in a roll, pitch and yaw
movement. The joystick can
be used to control the pitch
and roll of the gimbal.
Solid red
light Lock
Press and
hold the
trigger button
In this mode, the camera
does not follow the
movement of the gimbal.
However, the joystick can be
used to control the pitch and
yaw of the gimbal. This mode
is used when shooting linear
movements.
Flashing
red light
Gimbal
Motor
Protection
Malfunction
button
When flickering, this is a
clear sign that the ZX-G2 is
malfunctioning. Turn off the
gimbal and reset.
