Instruction Manual
ZeroLemon Samsung Galaxy S7 Active
8500mAh Battery Case
User Manual
Thank you for purchasing our product. For optimum performance and safety, please read
instructions carefully before operating the product. Please keep this manual for future reference.
Package Contents
1 x S7 Active Battery Case
2 x U-shaped Connectors
1 x ZeroLemon Warranty Card
Specifications
Capacity
8500mAh/ (32.3Wh)
Type
Lithium-ion battery
Input
Charger to battery case: 5V/2.0A Max
9V/1.67A for pass through Quick Charge
Output
Battery case to phone (Output 1): 5V/1.2A Max
External Output for emergency use (Output 2): 0.5A
Dimensions
6.48 X 3.18 X 0.96 inches (L × W × H)
Weight
7.68 ounces
Compatible Device
Galaxy S7 Active
Features
■Optimized for Galaxy S7 Active.
■Built with 8500mAh capacity, up to 160% extra battery lifeprovided.
■The circuit protection will protect the phone from overcharging and overheating.
■4 LED Lights indicate the battery power level and chargingstatus.
Note
1. This battery case does NOT support NFC or WIRELESS CHARGING function.
2. This battery case is NOT compatible with SAMSUNG GALAXY S7 EDGE and SAMSUNG GALAXY
S7.
3. This case is not designed to provide screen protection.
Using Your S7 Active Battery Case
1. Check the power level first before charging your devices.
2. Long press the power button for 4-5 seconds to turn on the battery and start charging.
3. Recharge your battery case when there is nearly 2% power left.
For Optimal Use (IMPORTANT)
Use only certified Samsung cable and charger for optimal charging and safety. Other chargers
and cables may not be compatible and result in overheating.
How to Test the Battery Remaining Power
Discharge Indicator Status
POWER
LED1#
LED2#
LED3#
LED4#
75%～100%
●
●
●
●
50%～75%
●
●
●
○
25%～50%
●
●
○
○
0%～25%
●
○
○
○
≤5%
◎
○
○
○
●- On, ◎- Blink, ○- Off
Charging Indicator Status
POWER
LED1#
LED2#
LED3#
LED4#
100%
●
●
●
●
76%～99%
●
●
●
◎
51%～75%
●
●
◎
○
26%～50%
●
◎
○
○
0%～25%
◎
○
○
○
●- On, ◎- Blink, ○- On
Caution
1. Keep the external battery case away from high temperatures.
2. Do not disassemble the external battery case at any time.
3. Keep the battery case away from metallic objects.
4. Do not crush the battery case or expose it to liquids.
5. Keep the product out of the reach of children.

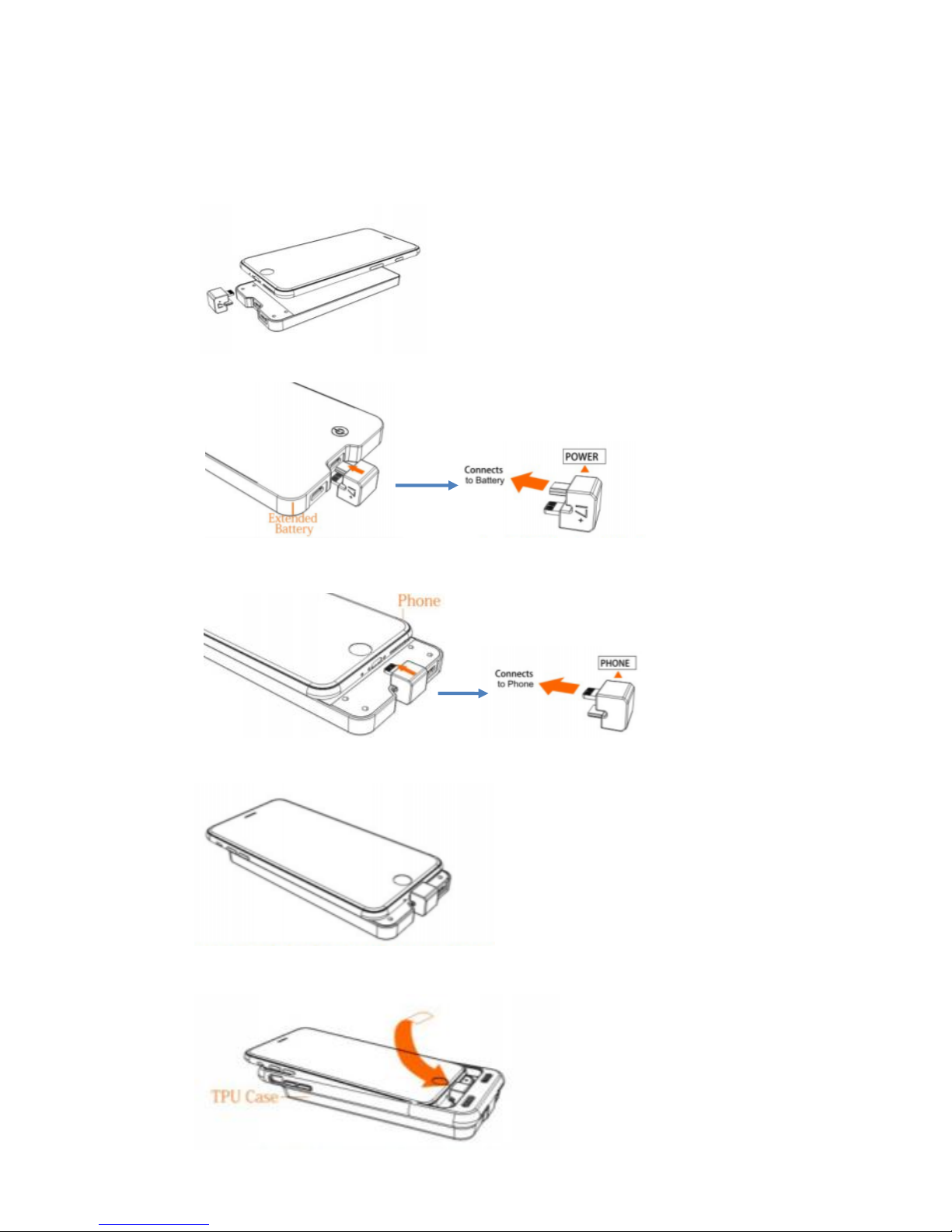

Installation Guide
1. Have the extended battery, your phone and the U-shaped connector ready.
2. Connect the "Power" printed side of the U-shaped connector to the extended battery first.
3. Connect your phone to the side of the U-shaped connector with word "PHONE" on it.
4. Make sure both sides of the U-shaped connector are installed securely.
5. Put the phone and battery into the TPU case by sliding the U-shaped connector side in first.
6. Hold power button on the back of case for 4-5 seconds to turn on the case and startcharging.
Warranty
This product is covered by a warranty of 180 days from the date of purchase.
Contact US
For any inquiries or comments concerning our products, please send an e-mail to
info@zerolemon.com or call us at 1-415-685-4343, and we will respond to you as soon as
possible.
If there is any quality-related issue with the product, you may request a replacement or refund
by submitting a request form at
https://www.zerolemon.com/support/
Statement
We are only able to provide after-sales service for purchases made directly from
ZeroLemonOffcial or our authorized resellers. If you purchased through an unauthorized
retailer, please contact them for any exchange or refundrequests.
Please note that unauthorized reselling of ZeroLemon products is prohibited.
Please review us on Amazon Product Review
Like : Please help us spread the word of our products by reviewing us at
www.amazon.com/review/create-review.
Not Like : At any time if you’re not satisfied with our products or service, please let us
know at info@zerolemon.com or call us at 1-415-685-4343, we will do our best to help you.
Your satisfaction is our number 1 priority.
Subscribe to our social media channels for more deals and news!
www.zerolemon.com
