WEEBILL-S
User Guide
ZHIYUN-EN-v1.20
Contents
■Packing List
Packing List····················································································1
■Get to Know WEEBILL-S
Get to Know WEEBILL-S·································································2
■Preparing and Charging the Batteries
Charger and Batteries Description···················································3
Charging Procedure········································································4
■Installation and Balance Adjustment
Tripod Installation ··········································································5
Battery Installation ··········································································6
Camera Installation ·······································································6
Camera Control Cable Connection ················································· 7
Balance Adjustment········································································7
■How to Use
Buttons Description ········································································9
Display Screen Description ····························································10
Menu Option Description ·······························································12
Motor Torque Adjustment································································14
Stabilizer Mode Description·····························································14
Manual Angle Lock·········································································17
■APP Operations
Download APP ············································································18
How to Connect Stabilizer to Smartphone ·······································18
Overview of the Main Functions·······················································18
■Calibration and Firmware Upgrade
When do you need to calibrate the stabilizer? ··································19
Initialization Method·········································································19
Six-side Calibration·········································································20
Motor Fine-tuning ···········································································22
Stabilizer Firmware Update······························································22
■Product Specifications
■Disclaimer and Warning
Reading Tips··················································································24
Warnings························································································24
Safe Operation Guidelines ······························································24
■Disclaimer and Warning
■Warranty Terms
Warranty Period ··············································································27
This warranty does not apply to the followings··································27
Warranty Claim Procedure·······························································27
■Contact Card
Scan the QR code to watch tutorials
1
Packing List
Packing List
The product package comes with the following items. In case any item is found missing,
please contact ZHIYUN or your local selling agent.
WEEBILL-S Stabilizer*1 Quick Release Plate*1 Tripod * 1
18650 Li-ion Battery * 2 18650 Battery Charger * 1 Camera Backing Base * 1
1/4-20 Screw*3 ZW-Micro-002 Camera
Control Cable * 1
ZW-Mini-002 Camera
Control Cable * 1
LN-MBUC-B01 Camera
Control Cable*1
ZW-Multi-002 Camera
Control Cable*1
Type-C USB Firmware
Upgrade Cable * 1
Quick Start Guide*1 Storage Case * 1
2
Get to Know WEEBILL-S

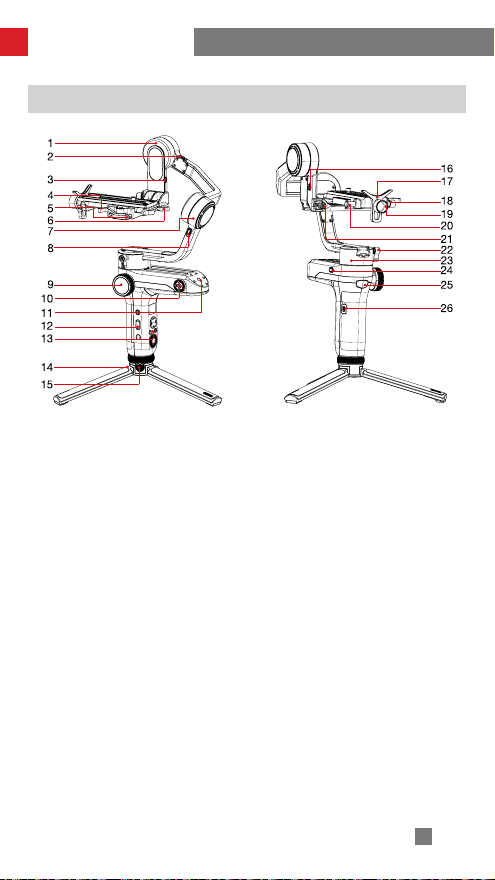

Get to Know WEEBILL-S
1. Tilt Axis Motor
2. Tilt Axis Lock Switch
3. Camera Control Interface
4. Quick Release Plate Latch
5. Safety Lock
6. Roll Axis Latch
7. Roll Axis Motor
8. Roll Axis Lock Switch
9. Focus/Zoom Control Wheel
10. 1/4" Screw Thread with Crown Gear
11. 1/4" Screw Hole
12. Side Buttons (see more on Buttons
Description)
13. Control Panel (see more on Buttons
Description)
14. Tripod
15. Tripod Lock Switch
16. Follow Focus Control Interface
17. Lens Support
18. Quick Release Lock Screw
19. Lens Support Lock Screw
20. Quick Release Plate Unleash Button
21. Tilt Axis Lock Screw
22. Pan Axis Lock Screw
23. Pan Axis Motor
24. Pan Axis Lock Switch
25. Trigger Button
26. Firmware Update Port
3
Preparing and Charging the Batteries
When using WEEBILL-S for the first time, please fully charge and activate the batteries
with the dedicated charging device contained in the package to ensure normal use of
the product.
Charger and Batteries Description
Name: 18650*2 Li-ion Battery Charger
Model: CH18650-2B
Input: 5V 2000mA
Output: 4.2V 800mA*2
The LED indicator shines solid red
when charging.
The LED indicators shines solid blue
when fully charged.
Charger Specifications
Name: 18650 Li-ion Battery
Model: IMR 18650 MP
Capacity: 2600mAh
Voltage: 3.6V
Battery Specifications
Status LED Indicator
①The stabilizer is equipped with high-energy-density batteries, which may cause
fire, economic loss or personal injury when not properly used and stored. Please
read the disclaimer and warning herein as well as the description on the battery
label carefully before using the batteries.
②Please use batteries provided or approved by ZHIYUN only. ZHIYUN will not take
any responsibility for explosion, fire and/or accidents caused by non-ZHIYUN
batteries.
When the batteries are not in use, please be sure to put them in the battery slot of the
package or in plastic storage cases (the storage case needs to be purchased separately).
4
Preparing and Charging the Batteries
①Due to the differences of the charger itself, charging the batteries may fail when
the power supply is insufficient (for instance, when the current of the adapter is
lower than 500mA). Conditions may vary depending on the specific chargers
used. It is recommended to use an adapter with a higher current capacity.
②The battery cannot be charged through the USB port on the stabilizer.
① Please use a qualified standard 5V/ ≥ 2000mA adapter for battery charging;
charging time depends on the maximum input current of the adapter.
②This stabilizer comes standard with two high-discharge-rate dedicated batteries.
Please use and charge batteries provided or approved by ZHIYUN only.
③Please make sure both the batteries are fully charged. Either battery
undercharged can lead to failure of the stabilizer.
USB Cable Adapter
Power
Supply
Charging Procedure
1. Insert the batteries into the charger in the right direction (positive/negative end)
accordingly.
2. Connect the charger to the adapter via the Type-C USB cable.
3. Plug the adapter into a power outlet to start charging.
5

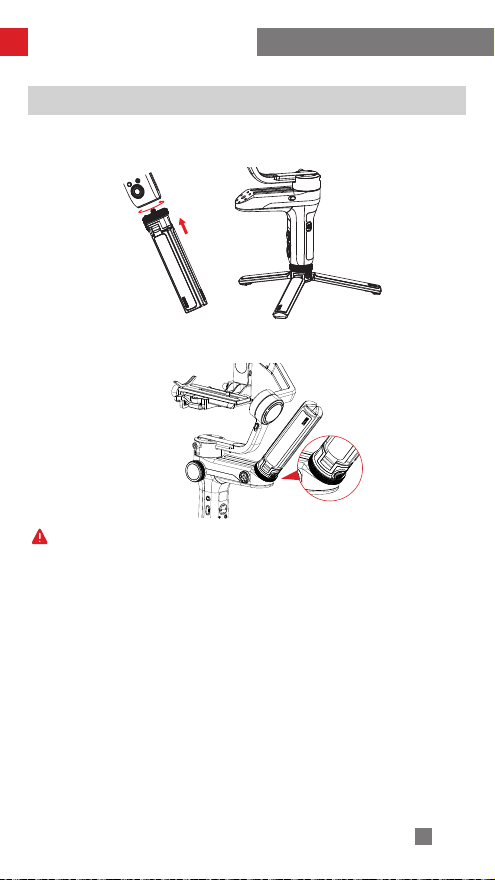

Get the tripod ready and mount it to the 1/4"-3/8" threaded hole at the bottom of the
stabilizer, then unfold the tripod on a flat surface.
Tripod Installation
You can also install the tripod onto the base of the battery compartment to enter Sling
Mode.
Please make sure to put the tripod lock switch to lock position before entering into
Sling Mode.
Installation and Balance Adjustment
6
Camera Installation
Each axis of the gimbal is equipped with a lock switch. You can use these lock
switches to lock the axes for convenient installation and storage.
1. Take out the quick release plate module and press the Quick Release Unleash
Button to take out the Arca quick release plate.
2. Mount the camera on the backing base as above, then mount it on the quick release
plate and tighten the 1/4’’ screw at its bottom.
3. Adjust the lens support on the quick release plate to support the lens and ensure it
is stable.
4. Mount the installed quick-release plate into the quick release module, and then
install and lock the whole module on the three-axis stabilizer.
安装锁定姿态 收纳锁定姿态
①Before mounting the camera, make sure it is prepared ahead of time. Remove
the lens cap and make sure the camera’s battery and memory card are already
in place.
②A backing base is required if the camera lens is getting too close to the quick-
release plate due to their large size. You can decide whether to install the
backing base according to the actual situation.
③There's a 1/4 threaded hole in the middle of the quick release plate for quickly
screw or unscrew the 1/4 screw.
Battery Installation
Slide out the cover of the battery compartment and load two ZHIYUN 18650 lithium
batteries (note the positive and negative directions).
Installation and Balance Adjustment
Lock for installation Lock for storage
