Zhone Hotwire 6205 Manuale utente

6205 ADSL USB Modem

Installation Instructions

Document Number 6205-A2-ZZ40-20

November 2005

Zhone Technologies

@Zhone Way

7001 Oakport Street

Oakland, CA 94621

USA

Introduction

Congratulations on becoming the owner of a 6205 ADSL USB Modem. You will now be able to surf the

Internet via the modem’s state-of-the-art ADSL connection.

This document will show you how to set up the 6205 ADSL Modem, and how to customize its

configuration to get the most out of this product.

Features

•The 6205 ADSL Modem offers up to 8 Mbps downstream and 800 kbps upstream.

•A plug-and-play USB port provides Internet connectivity to your PC.

•The 6205 ADSL Modem supports Windows 98FE/SE, Windows 2000, Windows Millennium, and

Windows XP.

System Requirements

In order to use the 6205 ADSL Modem for Internet access, you must have the following:

•ADSL service subscription from your Internet Service Provider (ISP).

•One computer containing a free USB (Universal Serial Bus) port.

•USB driver provided in this package

Caution:

¾Do not open the housing!

¾Use only the cables provided with this device and do not perform any

modifications on them

¾Review the Important Safety Instructions on page 13

Zhone Technologies, Inc.

6205-A2-ZZ40-20 November 2005 1

Package Contents

Your 6205 ADSL Modem package includes:

•6205 unit

•RJ11 ADSL cable

•USB Cable

•CD-ROM

2 November 2005 6205-A2-ZZ40-20

Front Panel

The front panel contains LED indicators that show the status of the unit.

LED Color Status Description

POWER Yellow On

Off

Your Modem is powered ON

Your Modem is powered OFF

WAN Yellow On

Blinking

Off

Up — Connected successfully

Handshaking — The modem is trying to connect

Down — Disconnected

DATA Yellow Blinking Data transfer over ADSL line

Rear Panel

The rear panel contains the ports for the unit's data and power connections.

Port Description

USB USB port, for connection to your PC

LINE RJ11 outlet, for connection to your ADSL line

6205-A2-ZZ40-20 November 2005 3

Connecting the Cables

1. Install the USB driver as shown in the following pages.

2. Restart your PC.

3. Connect your PC to the USB jack of the modem.

4. Connect the LINE jack to your ADSL line, or, if you will use a phone at this location:

•Unplug the phone cable from the phone jack of your phone and plug it into the WALL

jack of the Y-Line Filter.

•Plug the ADSL cable into the ADSL jack of the Y-Line Filter and the LINE jack of the

modem.

•Plug another phone cable into the PHONE jack of the Y-Line Filter and your phone.

Warning: DO NOT CONNECT THE USB CABLE INTO THE UNIT UNTIL

THE DRIVER INSTALLATION IS COMPLETE.

4 November 2005 6205-A2-ZZ40-20

USB Driver Installation

1. Insert the provided CD. The CD should automatically start the driver installation. If autorun is

disabled, double-click “Setup.exe” in the root directory of the CD.

2. Click on OK when the Information pop-up window appears.

6205-A2-ZZ40-20 November 2005 5

3. Click on Next when the modem setup windows appears.

6 November 2005 6205-A2-ZZ40-20

4. Choose the proper driver type: MPoA Bridge/Routed or PPPoA/PPPoE. Then click on Next.

6205-A2-ZZ40-20 November 2005 7

5. Click on Finish to restart your computer to complete the installation.

6. After your computer restarts, there might be a pop-up message to remind you to plug-in USB

modem. Click on OK and plug in your USB modem.

7. After you attach the USB modem to your computer, there will be a small triangle icon on the

right-bottom taskbar of your screen. If there is no ADSL connection, it will be red. If the ADSL

connection is established, it will be green.

8 November 2005 6205-A2-ZZ40-20

8. If you install PPPoA/PPPoE, there will be a dial-up icon in your desktop to connect your ISP.

Please contact your ISP to get the correct user name and password for Internet access.

6205-A2-ZZ40-20 November 2005 9

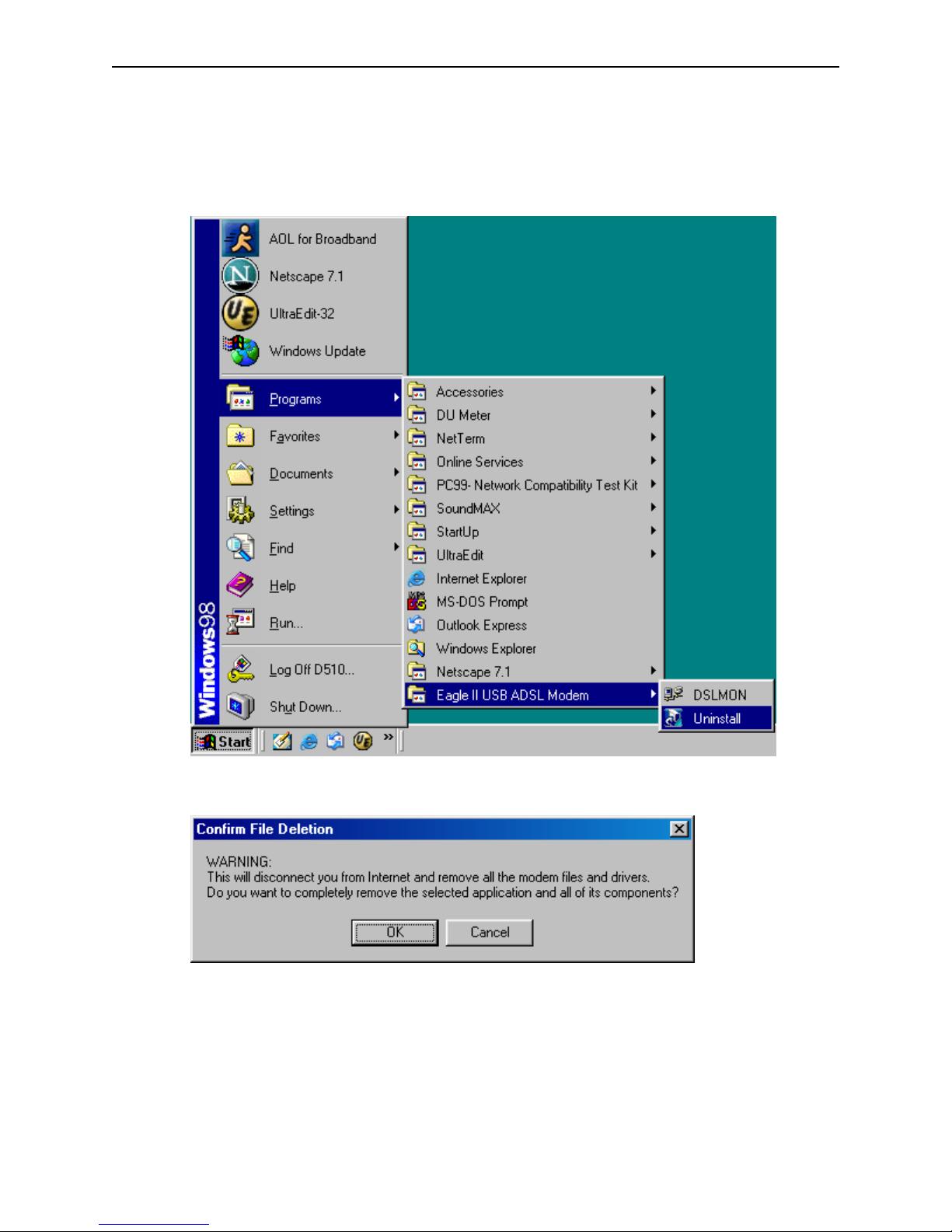

USB Driver Uninstallation

1. Click on Uninstall from Windows Start menu.

2. Keep your modem connected and click on OK.

10 November 2005 6205-A2-ZZ40-20
