Zip 801623 Manuale utente
801623 - Chilled HT User Guide - 7-15 - v2.00 Page 1 of 20
ZIP HydroTap G4
User Guide
®
• Tap Operation...................(Pages 2-6)
• LCD Screen & Menu .......(Pages 7-17)
• Maintenance.................... (Page 17-19)
• Menu Icons.......................(Page 19)
Date of Installation............./........./..........
Affix Model Number Label
Here
801623
Chilled
Commercial
model
801623 - Chilled HT User Guide - 7-15 - v2.00 Page 1 of 20
ZIP HydroTap G4
User Guide
®
• Tap Operation...................(Pages 2-6)
• LCD Screen & Menu .......(Pages 7-17)
• Maintenance.................... (Page 17-19)
• Menu Icons.......................(Page 19)
Date of Installation............./........./..........
Affix Model Number Label
Here
801623
Chilled
Commercial
model
Page 2 of 20 801623 - Chilled HT User Guide - 7-15 - v2.00

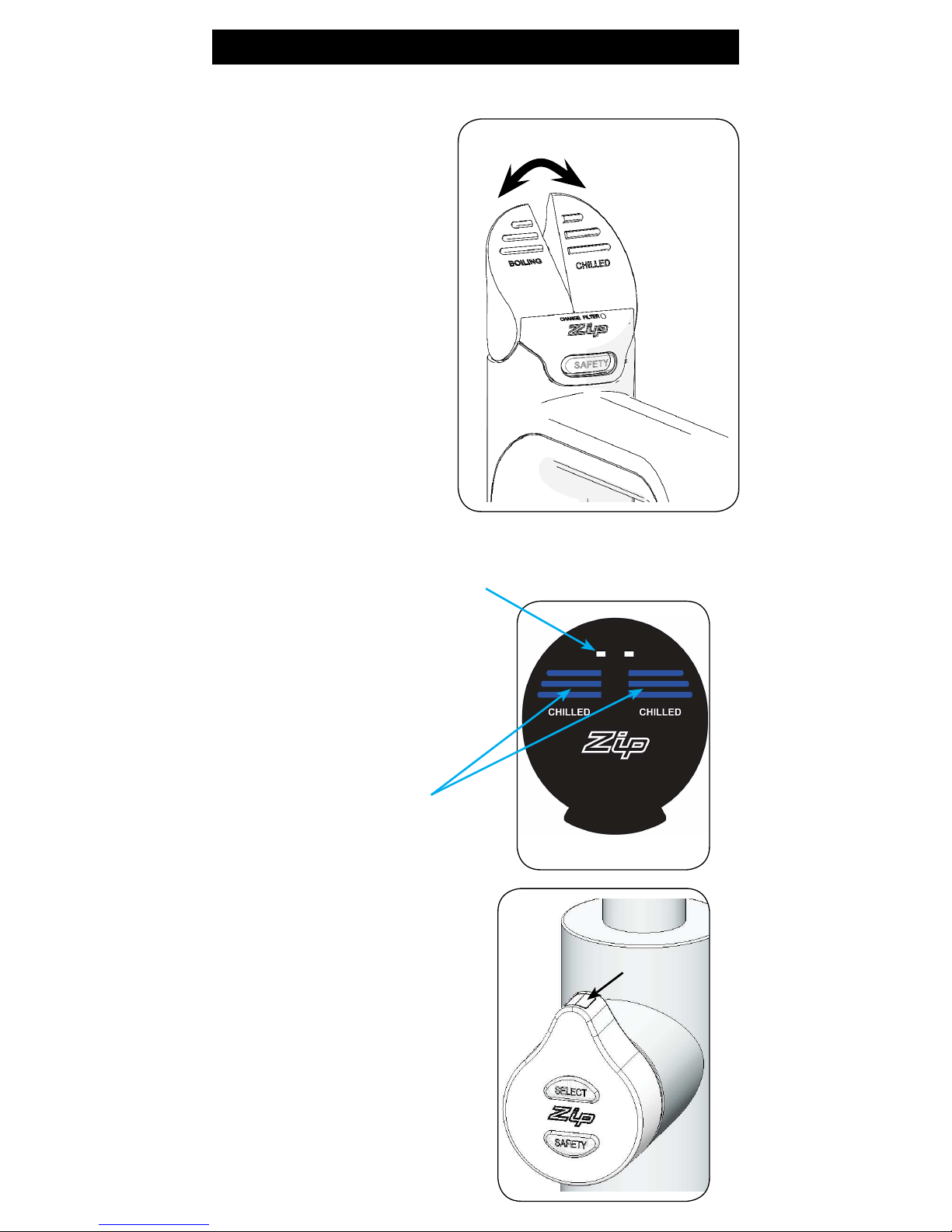

3. Tap operation
Press or pull lever
To dispense chilled water:
HydroTap Classic:
Depressing the “Blue” lever allows
the dispensing of chilled water.
Pulling forward the Blue lever
allows the tap to operate in a “no-
touch” mode. Water will flow from
between 5 and 15 seconds (This is
user adjustable). To reset, return
the handle to the “Off” position and
repeat the step. The lever has to
be manually returned to the “Off”
position.
Elite Tap:
Touching any of the chilled buttons
allows the dispensing of chilled water.
HydroTap Arc/Cube:
Rotating the control , when the chilled
indicator light is BLUE, allows the
dispensing of chilled water.
Chilled buttons
Chilled water Light
Chilled water Light
Note:
The select and safety buttons on the
Chilled Hydrotap Arc/Cube are non
functional.
(Indicator only)
Page 2 of 20 801623 - Chilled HT User Guide - 7-15 - v2.00
3. Tap operation
Press or pull lever
To dispense chilled water:
HydroTap Classic:
Depressing the “Blue” lever allows
the dispensing of chilled water.
Pulling forward the Blue lever
allows the tap to operate in a “no-
touch” mode. Water will flow from
between 5 and 15 seconds (This is
user adjustable). To reset, return
the handle to the “Off” position and
repeat the step. The lever has to
be manually returned to the “Off”
position.
Elite Tap:
Touching any of the chilled buttons
allows the dispensing of chilled water.
HydroTap Arc/Cube:
Rotating the control , when the chilled
indicator light is BLUE, allows the
dispensing of chilled water.
Chilled buttons
Chilled water Light
Chilled water Light
Note:
The select and safety buttons on the
Chilled Hydrotap Arc/Cube are non
functional.
(Indicator only)
801623 - Chilled HT User Guide - 7-15 - v2.00 Page 3 of 20
Elite Tap:
The Elite tap uses touch sensitive controls, in lieu of levers, to dispense
Chilled water. Touching any of the chilled buttons allows the dispensing of
chilled water.
Chilled Button Chilled Button
3. Tap functions
801623 - Chilled HT User Guide - 7-15 - v2.00 Page 3 of 20
Elite Tap:
The Elite tap uses touch sensitive controls, in lieu of levers, to dispense
Chilled water. Touching any of the chilled buttons allows the dispensing of
chilled water.
Chilled Button Chilled Button
3. Tap functions
Page 4 of 20 801623 - Chilled HT User Guide - 7-15 - v2.00
3. Tap functions
Rotary control
Select Button
Safety Lock
ARC & CUBE Tap:
On powerup, wait 30secs. for
the unit to calibrate. The Arc/
Cube control may be rotated in
a forward or reverse direction
to dispense Chilled water.
The rotary control is spring
loaded in the anticlockwise
direction and when released,
will return to the OFF position.
When rotated clockwise the
tap operates in a “Pot fill”
mode. Water will flow from
between 5 and 15 seconds
(This is user adjustable). To
reset, return the handle to
the “Off” position and repeat
the step. The lever has to be
manually returned to the “Off”
position.
Note:
The select and safety buttons on the Chilled Hydrotap Arc/Cube are non
functional.
(Indicator only)
Page 4 of 20 801623 - Chilled HT User Guide - 7-15 - v2.00
3. Tap functions
Rotary control
Select Button
Safety Lock
ARC & CUBE Tap:
On powerup, wait 30secs. for
the unit to calibrate. The Arc/
Cube control may be rotated in
a forward or reverse direction
to dispense Chilled water.
The rotary control is spring
loaded in the anticlockwise
direction and when released,
will return to the OFF position.
When rotated clockwise the
tap operates in a “Pot fill”
mode. Water will flow from
between 5 and 15 seconds
(This is user adjustable). To
reset, return the handle to
the “Off” position and repeat
the step. The lever has to be
manually returned to the “Off”
position.
Note:
The select and safety buttons on the Chilled Hydrotap Arc/Cube are non
functional.
(Indicator only)
801623 - Chilled HT User Guide - 7-15 - v2.00 Page 5 of 20
Chilled water Lights
3. Tap Lights
Note:
The safety button on all the Chilled Hydrotaps is non functional
Chilled Water Light: (All)
On all the time:
This indicates that the temperature of the
chilled water is within the set temperature
range.
Flashing slowly:
This indicates that the chilled water is not within
the set temperature range. When the chilled
water is at the set temperature, the light will
stop flashing. This could take several minutes.
During heavy usage, the temperature can rise
out of this range.
801623 - Chilled HT User Guide - 7-15 - v2.00 Page 5 of 20
Chilled water Lights
3. Tap Lights
Note:
The safety button on all the Chilled Hydrotaps is non functional
Chilled Water Light: (All)
On all the time:
This indicates that the temperature of the
chilled water is within the set temperature
range.
Flashing slowly:
This indicates that the chilled water is not within
the set temperature range. When the chilled
water is at the set temperature, the light will
stop flashing. This could take several minutes.
During heavy usage, the temperature can rise
out of this range.
