Installation Sheet No.: 1453 iss 01
ZP3-RDUB1 Remote Display Unit
Installation sheet 501-1453ZE-1-01
ZP3-RDUB1 Remote Display Unit Page 1 14/12/2005
Description
The ZP3-RDUB1 Remote Display Unit (Repeater
Panel) mimics the status of a host ZP3 Panel at a
remote location. Bi-directional communication
between them is via the ZP3 Serial Control Bus
(SCB), which makes use of a RS485 link.
The RDU Panel has the RDU Display and RDU Zone
Boards mounted to its door. The door has cut-outs
prepared for access to push-button switches, LED’s
and the LCD. The door is closed by a Camlock. The
Controls Key can be software enabled in the host
panel to control access to the Accept, Reset, Sound
Alarms and Silence buttons.

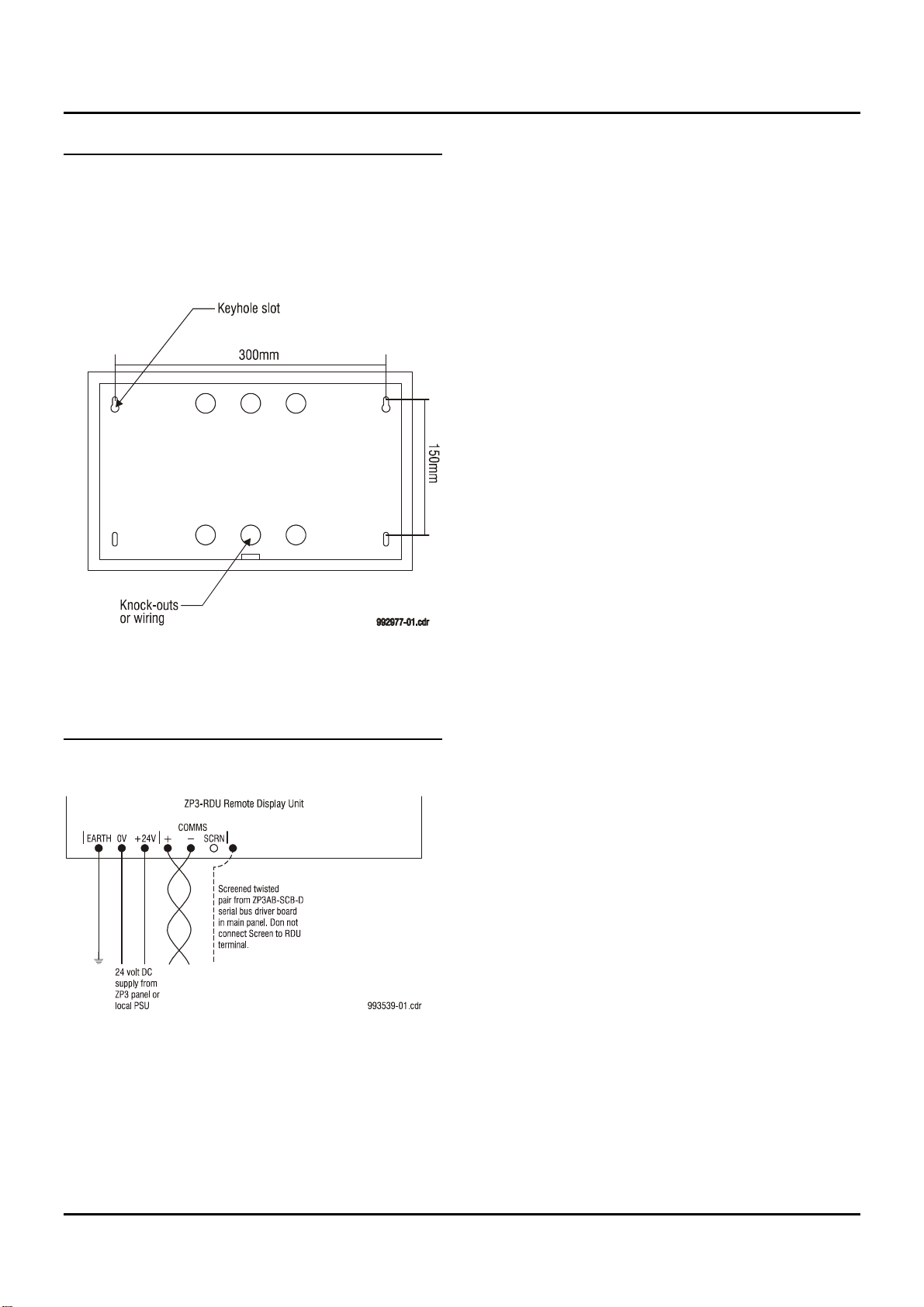

Wiring to the RDU Panel is done through the
knock-outs situated at the back of the panel.
Specification
Compatibility: ZP3 Panels
Software: SW72301.XXX, SW72201.XXX
Data Interface: ZP3 Serial Control Bus (RS485)
24V Power Supply:
Voltage 24Vdc (-20% +25%)
Current (quiescent) 150mA
Current (max) 300mA
Current (LCD 100mA
backlighting off)
Display Type: Euro 4 x 40 LED
Primary LED Common Fire, Common
indications: Fault, Common Disabled,
Other, Silence Alarms, Sound
Alarms
Secondary LED Indicators 26 LEDs
No. of Zone indications 50
Audible Alarms: On-board buzzer to
acknowledge key presses
and signal alarms.
Pushbutton Switches: 14
Keyswitches: Controls On/Off
Jumper Links:
Controls Enable (L1) Enables Accept, Reset,
Sound Alarms and Silence
Alarms
Reset Comms Resets the communications
Controller (L11) microcontroller
Reset Main Controller (L12) Resets the display
microcontroller
Buzzer Mute (L16) Kills the buzzer (only with
commissioning terminals
shorted)
Termination (L2) Terminates the RS485 line
with 120Ω
Fail-safes (L5, L6) Used together to apply a fail-
safe bias to the RS485 line
Terminals:
Earth (TB4.1) Connect to building earth
0V & +24V (TB4.2&3) 24V DC supply
Comms (TB3) RS485 connection to the
Serial Control Bus
Crls Off (TB2.1&2) Not used
Commis (TB2.3&TB5.1) Link to place RDU in
commissioning mode (buzzer
mute)
Reserved (TB5.2&3) Connection for the controls
on/off keyswitch
Dimensions: 358mm (W) x 220mm (H) x
52mm (D)
Weight: 2.7 kg
EN60529 Rating: IP30
Temperature Range: -5 to 45ºC
