ZKTeco C4DS Series Manuale utente
Quick Start Guide
Model: C4DS Series
Version: 1.1
Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between
the actual product and the written information in this manual.
English
1
Important Notes
If you have any problems, please read this manual carefully or contact the
customer care.
1.
2.
Make sure that the entered Wi-Fi password is correct while adding a new
device.
3.
Please make sure that the device is near the router for a stable network
connection.
4.
Do not mount the camera before confirming a successful network
connection and smooth live video.
5.
Installing the device near a public road should be avoided. Frequent
waking up of the camera by people and cars causes more frequent alert
notifications and significantly quicker power consumption.
6.
The device can only connect to 2.4GHz Wi-Fi networks. If you have a
dual-band router with separate 2.4GHz and 5GHz networks, make sure that
your phone is connected to the 2.4GHz network.
Make sure that the solar panel is uncovered. Remove the dust or leaves on
the panel regularly if necessary.
7.
Make sure that the camera is connected to the weatherproof cover tightly
all the way.
8.
We couldn't guarantee the exact consistency between the actual product
and the written information in this manual due to the regular app and
product updates.
9.
2
Table of Contents
*Connecting the Device to Amazon Alexa or Google Assistant........................................8
Connecting the Device to ZSmart App.............................................................................................6
Recharging the Battery.........................................................................................11
Camera....................................................................................................................................................................8
Product Overview.....................................................................................................4
Installation.................................................................................................................8
Watching the Videos from Browser.......................................................................................................7
Product Features.... ...............................................................................................12
What's in the Box......................................................................................................3
Setup...........................................................................................................................6
Solar Panel..........................................................................................................................................................10
3
What's in the Box
Camera Mounting Plate Screw Kit (for
Mounting
Plate)
USB Charging Cable Thumb Screws * 6 Screw Kit (for
Solar Panel)
Solar Panel Mounting Bracket
Quick Start Guide
Model: C4DS S eries
Version: 1.1
Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between
the actual product and the written information in this manual.
English
Quick Start
Guide
4
Product Overview
Antenna
Thumb
Screws
Working
Status LED
LED Light
Motion
Sensor (PIR)
Microphone
Power
Status LED
Front
Reset ButtonPower Button
TF Card Slot
Speaker
Type-C
Charging Port
Working Status LED Description:
Slow Blinking Red
In Pairing Mode
Rapid Blinking Red
Network Connecting
Slow Blinking Blue
Camera Online
Charging Status LED Description:
Slow Red Solid Blue
Charging CompletedCharging
5
Bottom
6
Note: If the device doesn't display the above status, press and hold the
Reset Button for 5 seconds until you hear a sound prompt “Bugu”.
Open the silicon cover at the bottom of the camera.
1.
To power on the device, press and hold the Power Button for 5 seconds
until you hear a sound prompt and the Working Status LED blinks red
slowly, indicating that Pairing Mode is active.
2.
Step 2: Power on the Device
Open the app, tap the "+" button on the top right corner of the interface,
and then select the ”Add Device” option. Select the “Smart Camera”
option and then choose the corresponding model purchased.
1.
Select "Next" if you have completed the above steps on the interface.
Select the desired Wi-Fi and enter the correct password. Then tap the
"Next" button.
2.
Step 3: Add the Device to the App
Setup
Connecting the Device to ZSmart App
Step 1: Download the App and Register Your Account
Search for the ZSmart App in Apple App Store or Google Play Store and
download the App to your smartphone.
Open the ZSmart App and log in with your account. If you do not have an
account, create an account with your phone number or Email ID.
Show the QR code towards the device lens, and the camera will scan the
QR code. Once you hear a sound prompt “Bugu” and the Status LED blinks
red rapidly, tap the "I Heard a Prompt" button on your mobile, the App will
connect the device automatically.
3.
Note: Please hold the phone about 15 to 20 cm (6 to 8 inches) away
from the camera. You can slightly move your mobile device forward
and backward for better scanning.
Once the notification "Added successfully" appears on the mobile
app, you can change the device's name manually. Tap the "Done"
button to complete the process.
4.
Note: If you failed to connect your device to Wi-Fi, press and hold the
RESET Button for 5 seconds until you hear a sound prompt “Bugu”, then
repeat the above steps.
7
Watching the Videos from Browser
Visit , and then select the corresponding https://ipc-us.ismartlife.me
data server on the top right corner of the interface.
Select the relevant device to view the live videos.
1.
Use ZSmart App to scan the QR code to login into your account.
2.
3.
8
Installation
Installation Location: The device can be put on the wall. Choose a location
with a clear, unblocked field of view and with a good wireless signal to the
device. The recommended installation height is 2.4 to 3 m (8 to 10 ft).
Camera
Installation Steps:
After confirming a successful Wi-Fi connection and smooth live video, you can
select the required position to mount the device. The installation steps are as
follows:
Drill four holes in the wall according to the hole positions of the mounting
plate, and then insert the plastic anchor into the hole; anchors are
necessary for walls that are made of hard materials such as concrete, brick
or stucco.
1.
Fix the mounting plate onto the wall with four screws.
2.
*Connecting the Device to Amazon Alexa or
Google Assistant
Tap the EDIT Button in the upper right corner of the device interface after
successfully connecting the device to the ZSmart App. To link your ZSmart
Account to Amazon Alexa or Google Assistant, select the Amazon Alexa or
Google Assistant icon and follow the on-screen instructions.
Echo, show me <device name>.
Hey Google, show me <device name>.
Note:
After completing the setup, you can use the supported voice commands
that include:
Every time you change the name of a linked device, you must identify it
again to update the name.
1.
The voice control feature is optional, only the model C4DSA can
supported.
2.
9

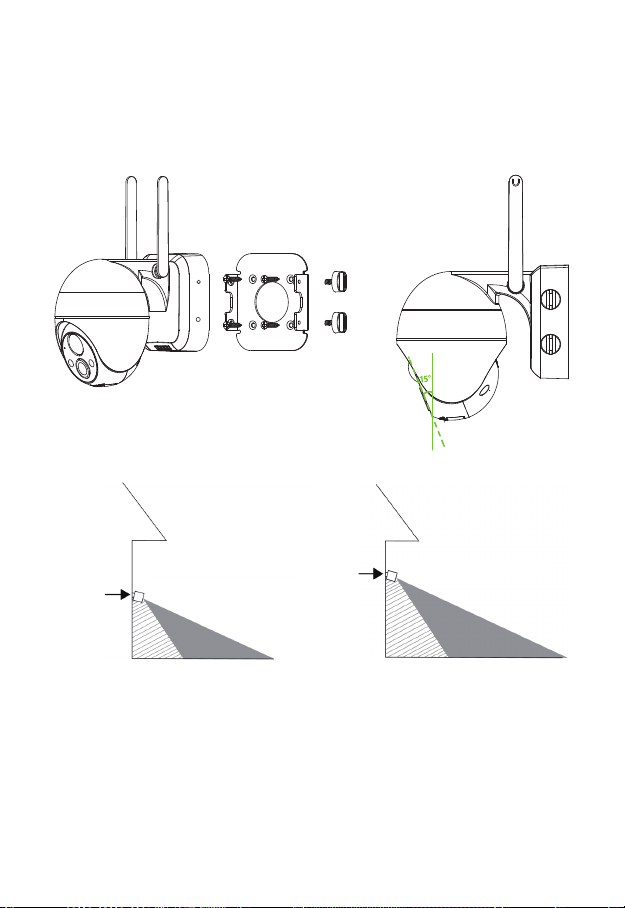

Align the mounting plate with the grooves of the camera base, and tighten
the device by four thumb screws.
3.
Adjust the viewing angle by checking the live video in the mobile app. For
the best alarm detection range, the angle of the lens should be tilted down
at a 15° inclination.
4.
Detection Coverage
Motion Sensor
Downward 15°
8.2 ft.
Height
9.8 ft.
Height Motion Sensor
Downward 15°
Detection Coverage
