ICM-2005
USER MANUAL
Thanks for your purchase. Any questions please don't hesitate to contact
us, We will handle all your problem ASAP. Your feedback is vital to us!
And we will always try to do better. For more details, please contact us
subject of the email, so that we can find your order and better assist
your issue) Or call us at (1)855-882-2333 .
MADE IN CHINA

IMPORTANT NOTICES
When using an electrical appliance, basic safety precautions should
always be followed to reduce the risk of fire, electric shock,
and/or injury, including the following:
2
1. Read all instructions before using.
2. Remove all packing material and carefully check your ice maker
to ensure it is in good condition and that there is no damage to
the ice maker or power cord and plug.
3. Before using the Ice maker for the first time, please wait 2 hours
after positioning it, and keep the transparentlidopen for at least
2hours
4. Pure water is not allowed to be used on this unit, spring water is
recommended.
5. Ensure the voltage is compliant with the voltage range stated on
the rating label, andensure the earthing of the socket is in good
condition.
6. If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoidahazard.
7. Do not upend this product or incline it over a 45℃angle.
8. To protect against risk of electric shock, do notpour water on
cord, plug and ventilation, immerse the appliance in water or any
other liquid.
9. Unplug the appliance after using or before cleaning.
10.Keep the appliance 8cm from other objects to ensure the good
heat releasing.
11.Do not use the accessories which are not recommended by
Manufacturer.
12.This appliance is not intended for use by persons (including
children)with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless theyhave been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be

3
supervised to ensure that they do not play with the appliance.
13.Do not use the appliance close by flames, hot plates or stoves.
14.Do not switch on the power button frequently (ensure 5min.
interval at least) to avoid the damage of compressor.
15.Metal sheet or other electric objects are not allowed to be
inserted into the appliance to avoid fire and short circuit.
16.Do not use outdoors.
17.Never clean with scouring powders or hard implements.
18.Please keep the instruction manual.
19.Warning: Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
20.This appliance is intended to be used in household and similar
applications such as
– staff kitchen areas in shops, offices and other working
environments;
– farm houses and by clients in hotels, motels and other
residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications
21.When positioning the appliance, ensure the supply cord is not
trapped or damaged.
22.Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the appliance
23.Children aged from 3 to 8 years are allowed to load and unload
refrigerating appliances.
24. The refrigerant and insulation blowing gas is flammable, when
disposing of the appliance, do so only at an authorized waste
disposal centre. Do not expose to flame.
25.

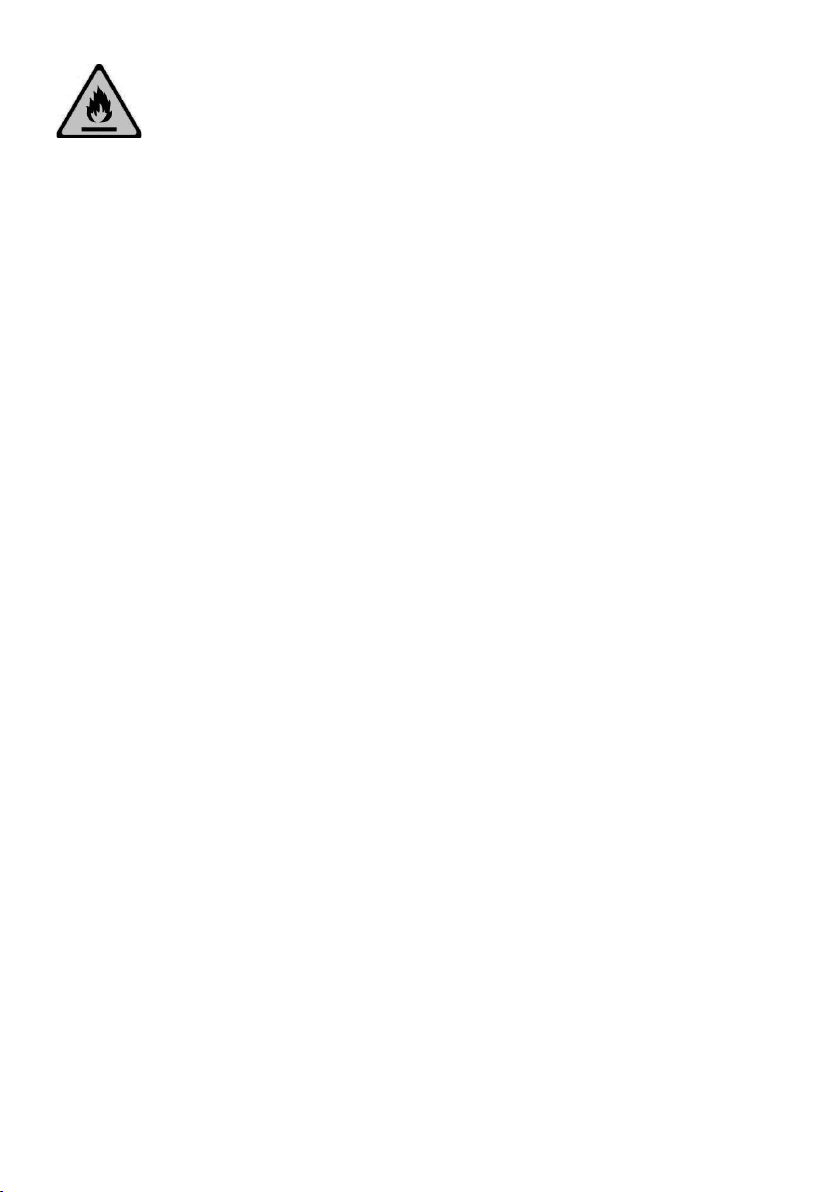

This symbol indicates the refrigerant R600a and
the non-metallic materials of the appliance are flammable.
It’s a warning symbol. Warning: Risk of fire / flammable materials.

4
Warning; Risk of fire / flammable materials.
WARNING: When positioning the appliance, ensure the supply cord
is not trapped or damaged.
WARNING: Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance.
Children aged from 3 to 8 years are allowed to load and unload
refrigerating appliances. To avoid contamination of food, please
respect the following instructions:
– Opening the door for long periods can cause a significant increase
of the temperature in the compartments of the appliance.
– Clean regularly surfaces that can come in contact with food and
accessible drainage systems.
– Clean water tanks if they have not been used for 48 h; flush the
water system connected to a water supply if water has not been
drawn for 5 days.
– If the refrigerating appliance is left empty for long periods, switch
off, defrost, clean, dry, and leave the door open to prevent mould
developing within the appliance.)

5
G.W:11.7KG
Ice making mode: big and small
Cooling agent: R600a environmental friendly refrigerant
Max overall dimensions(W X D XH):365X 270 X327mm
SPECIFICATIONS
Model Number:ICM-2005
Voltage: 110-120V~ 60Hz
Power Consumption: 120 W .
Daily Ice Output:20kg (44.09lbs)/24 hours
Ice Storage Capacity:2.0L/900 g(1.98lbs)
Water Reservoir Capacity:2.6 L
N.W:10.6KG

6
DESCRIPTION
1. Top lid
2. Viewing window
3. Ice tray
4. Evaporator
5. Ice shovel
6. Display
7. Button
8. Infrared light-receiving diode
9. Infrared light-emitting diode
10. “MAX” weter level
11. Water reservior
12. Air outlet
13. Drain plug
14. Ice basket
15. Ice scoop

7
FEATURE
Quick ice making
Two different sizes of ice can be made
Prompt when the ice is full and water is insufficient
Bullet ice
9 pcs ice can be made in 9 minutes and 30 seconds.
Automatic cleaning function
1. During transportation, do not tilt the machine more than 45
degrees, do not reverse the machine. This may damage the
compressor and the sealing system.
2. Remove all packing materials, check the machine carefully and
make sure that the machine, power cord and plug are normal.
3. The machine should be on a level surface. To ensure sufficient
ventilation, the distance of the back of ice maker to the wall should
be at least 150 mm, it should be away from the oven, radiator or
other heat source.
4. Before using the machine for the first time, place the machine and
leave the transparent cover open for at least two hours.
5. Make sure that the home voltage is consistent with the voltage
indicated by the machine.
6. Distilled water is not allowed. Mineral water is recommended.

Clean S/L On/Off
8
CONTROL PANEL OPERATION
Start/Stop:Start/Stop button S/L:Mode selection
CLEAN: CLEAN button
1. Plug in the power supply and the display will be on. The machine
will start the deicing function first. After no operation, the machine
will automatically enter the standby mode.
2. CLEAN: Cleaning function. Press the CLEAN button, and then
press the Start / Stop button. The machine will automatically
enter the cleaning function for about 150 seconds. Please do not
turn off the power during the cleaning. After the cleaning, the
machine will automatically enter the standby mode.
3. S/L: select the ice size mode, and the default mode is big ice
making mode for each startup, icon display for selected mode.
Ice making dynamic icon
Cleaning icon
Big ice icon
Small ice icon
Ice making icon
Water shortage alarm
Water full alarm

9
The production time of small ice is 8 minutes and 30 seconds.,
and that of large ice is 9 minutes and 30 seconds.
4. Start/Stop: After the power is plugged in, press the Start / Stop
button, and the machine will start the ice making function. The
default mode is big ice making mode.
5. Time display: after the machine starts to make ice, the time
starts to count. The calculation time starts in minutes. The time
displayed by the machine does not stop during the working
period of the machine. When 99:99 is displayed, the time will be
reset to zero again, and so on.
6. Water shortage alarm: during pumping, if no water flow is
sensed within 5 seconds, the water shortage icon will be
displayed and the machine will stop working.
7. ICE FULL: When the compressor of the machine is not working
and the infrared indicator is blocked for more than 5 seconds, the
ice full icon will be displayed. At the same time, the machine will
stop working and the ice full icon will flash in 1 / 4 second.
Infrared detection continues, when the detection is not blocked,
the machine continues to work.
OPERATION INSTRUCTIONS
Step 1
Open the lid and take out the basket and add water to the reservoir.
Note: There is a maximum scale MAX in the reservoir. The water
should not exceed the MAX position. If the water exceeds the
maximum scale MAX, you need to open the bottom drain plug,

10
release the excess water, and cover with a transparent cover.
Step 2
Plug in the power and press the Start/Stop button to start the
machine.
Step 3
Select the size of the ice you want to make, default big ice
1. When the indoor temperature is lower than 15 degrees, please
choose small ice. When the indoor temperature is higher than 30
degrees, it is recommended to choose big ice.
2. The three cycles used for the first time, the ice produced is small
and irregular.
3. When the ice basket is full, please take out the ice immediately, do
not let the ice overflow the ice basket.
CLEANING & USE GUIDANCE
1. Clean the inner liner, ice collecting tray, water box, ice shovel
and evaporator frequently. When cleaning, unplug the unit and
remove the ice cubes. Use a diluted solution of water and
vinegar to clean the inside and the outside surface of the Ice
maker. Do not spray Ice maker with chemicals or diluted agents
such as acids, gasoline or oil. Rinse thoroughly before starting.
