Zoom Q2HD Manuale utente
User Guide
Safety and Operation
Precautions must be read
before using the unit.
Q2HD
© ZOOM CORPORATION
Copying or reproduction of this User
Guide in part or in whole without
permission is prohibited.
1
Items included with this product
Items included with this product
• unit
• 2 AA batteries
(for testing the unit)
Install HandyShare on your computer to use it. Access the included SD card from
the computer and double-click the HandyShare installer on it. If your computer
does not already have QuickTime installed, follow the instructions that appear on
your screen after starting HandyShare to install it.
HandyShare software for video editing and sharing
• User Guide
(this manual)
• SD card
Note: Use alkaline batteries or
rechargeable NiMH batteries.
2
Part functions
Part functions
■Installing batteries
Note: Use alkaline batteries or
rechargeable NiMH batteries.
Open the case while
pressing here and then
install the batteries.

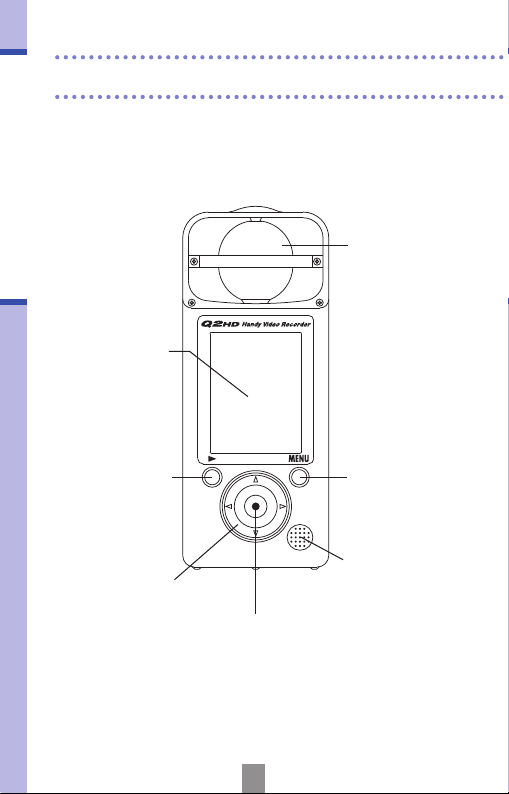

■Parts of the unit
Recording time or remaining
recordable time for video or audio
The icon appears when an SD
card is loaded in the unit (no icon
if no SD card is loaded)
Input volume level
Mic angle setting
Image size/frame rate
during video recording
Lo-cut lter setting
Recording level
setting
Sound quality when
recording audio or video
Scene setting for
video recording
Current operation
status
3
Part functions
Part functions (continued)
■Parts of the unit
Start and stop recording video
and audio. Conrm selections.
Sound from the
camera side of the
unit can be recorded
in mono or in stereo
with a maximum
width of 150º.
Play and pause
recorded video and
audio.
View video and
information about
operation.
Open various setting
menus.
Select items and adjust
the volume.
Listen to startup and
shutdown sounds
and recorded audio.
4
Part functions
Set the mic
recording level.
Output sound to
headphones or
other external
equipment.
• Connect to a computer to power the recorder and use it as
a card reader, USB mic or web camera.
• Connect to an
iPad to use as a USB mic.
• A ZOOM AD-17 AC adapter (sold separately) can also be
connected here.
Output digital
video and audio
to an HDMI TV or
other compatible
device.
Attach a strap to
help prevent acci-
dental dropping.
Delete recorded
video and audio.
Turn the power
ON and OFF.
Insert an SD,
SDHC or SDXC
card into this slot.
5
Setting the date & time
Setting the battery type
The date and time are added to recorded video and
audio les, so set it accurately before recording.
Setting the date & time
2,3,4
Set the battery type so that the amount of remaining
battery life can be shown accurately.
Setting the battery type
Note: Use alkaline batteries or rechargeable NiMH batteries.
1,5
2,3,4
1,5

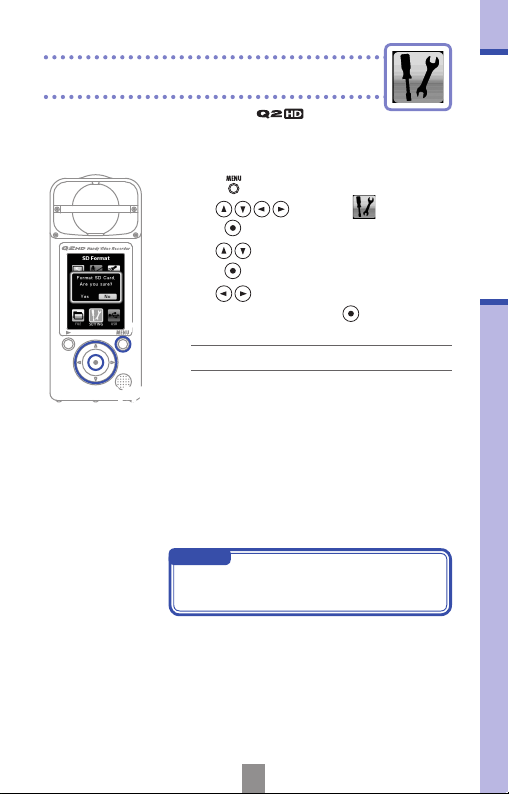

1. Press to open the Main Menu.
2. Use to select
SETTING
and
press .
3. Use to select Set Date and press .
4. Use to set the current date
and time.
5. After completing the setting, press .
1. Press to open the Main Menu.
2. Use to select
SETTING
and
press .
3. Use to select Battery and press .
4. Use to set the battery type
and press .
5. After completing the setting, press .
6
Formatting SD cards
You must format SD cards in the to make
them usable with the recorder.
Note: Formatting a card will permanently erase all
data on it.
Formatting SD cards
NOTE
If the SD card’s write-protection switch is
ON, the card cannot be formatted.
2,3,4
1
1. Press to open the Main Menu.
2. Use to select
SETTING
and
press .
3. Use to select SD Format and
press .
4. Use to select “Yes” to format or
“No” to cancel and press .
• Select “Yes” to start formatting.
• Select “No” to return to the SETTING menu.
5. After formatting completes, “Done” appears
on screen and the SETTING menu reopens.
7
Reducing noise
Turning sound monitoring on or off
Turn the low-cut lter function on to reduce wind
sounds and other noise.
Reducing noise
Turning sound monitoring on or o
Turn this on to listen to the sound being recorded
through the line/headphones and HDMI outputs.
2,3,4
2,3,4
1,5
1,5
1. Press to open the Main Menu.
2. Use to select
INPUT
and
press .
3. Use to select Sound Monitor and
press .
4. Use to select On or Off and
press .
5. After completing the setting, press .
NOTE
Use the windscreen included in the APQ-
2HD accessory package to further reduce
noise.
1. Press to open the Main Menu.
2. Use to select
INPUT
and
press .
3. Use to select Lo Cut and press .
4. Use to select On or Off and
press .
5. After completing the setting, press .
8
Adjusting the recording level
By changing the recording level gain, you can record
anything from quiet sounds to loud rock shows at
the optimal level. You can set the gain manually or
let the recorder set it automatically.
Adjusting the recording level
• Use the MIC GAIN dial to adjust the mic
sensitivity to suit the recording conditions.
1
■Using the Auto Gain setting
2,3,4
1
1. Press to open the Main Menu.
2. Use to select
INPUT
and
press .
3. Use to select Auto Gain and
press .
4. Use to set the mic sensitivity and
press .
Off
Use the MIC GAIN dial to adjust manually.
Concert
Use for band performances, concerts and
other loud situations.
Solo
Use for solo performances and other quiet
situations.
Meeting
Use for meetings and other eld recordings.
5. After completing the setting, press .
9
Video scene setting
You can set the camera light sensitivity to suit the
video recording conditions. This allows the unit to
record video optimally even in dark places and on
stages with bright lights.
Video scene setting
2,3
1,4
1. Press to open the Main Menu.
2. Use to select
SCENE
and
press .
3. Use to set the mode and press .
Auto
Adjusts to lighting conditions automatically.
Concert lighting
Best for concerts and other situations with
bright lights.
Night
Best for nighttime and other dark situations.
4. After completing the setting, press .
