Zorg 3002 Manuale utente
BEFORE INSTALLATION PLEASE READ THIS MANUAL, AFTER
INSTALLATION LEAVE WITH THE VEHICLE FOR THE END USER.
3002 & 3004 QUAD VIEW MONITOR
ALL RIGHTS RESERVED 9/9/2020
Zorg North America LLC.
1014 S. Saunders Street
Raleigh NC 27603
WWW.ZORG-NA.COM
All information, specifications, and data in this document are
checked for accuracy but are subject to change at the sole
discretion of Zorg NA at any time. Changes in product may
occur due to production or supply needs.
Controls & Features
Remote MUST be used for settings menu operation.
8. Sunshield
3004 Water Resistant Monitor Does Not Have Audio
03 04
Remote Control Menu Options
Picture:
Bright, Contrast, Color, Tint, Reset.
Volume:
Adjusts the Volume from Camera 1
Mirror:
Select Normal or Mirror image on this camera.
System:
Changes the OSD Menu Language
Clock:
Set Camera View Delay after trigger is off. Select from
Press the MENU button to enter the OSD.
Press MENU again to move to the next Option Screen.
Use the UP/Down Arrow buttons to select a option.
Use the Right/Left Arrow buttons to increase or decrease the
selected option.
0 - 10 Seconds delay for each camera input.
Before using the Remote control, remove the plastic Battery protector
from the battery compartment.
Hold the remote control a minimum of 12 inches away from the monitor
for it to function correctly.

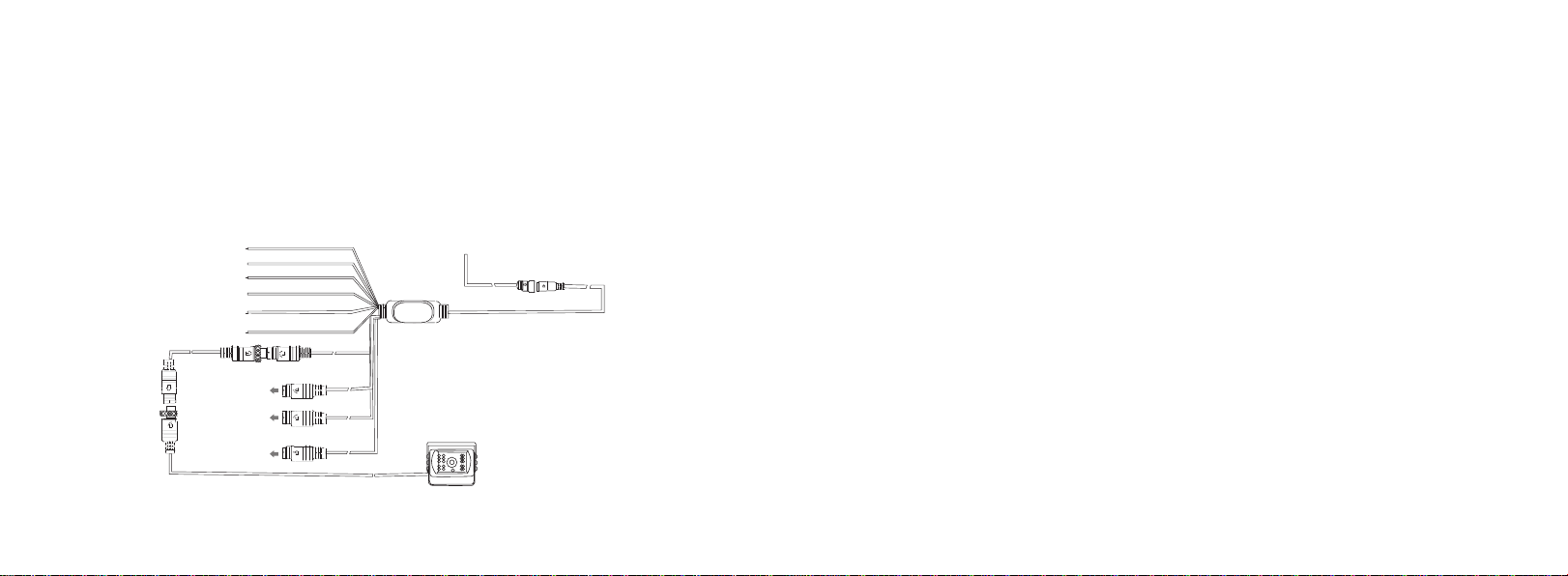

Wiring Connections
BROWN CH1 Trigger - Front
GREEN CH2 Trigger - Rear
BLUE CH3 Trigger - Left
GREY CH4 Trigger - Right
CH 1 A/V Input
CH 2 Video Input
CH 3 Video Input
CH 4 Video Input
RED + 12-24 Vdc
BLACK - Ground
USE CH 1 FOR REVERSE
CH1 supports Audio in
only on Model 3002

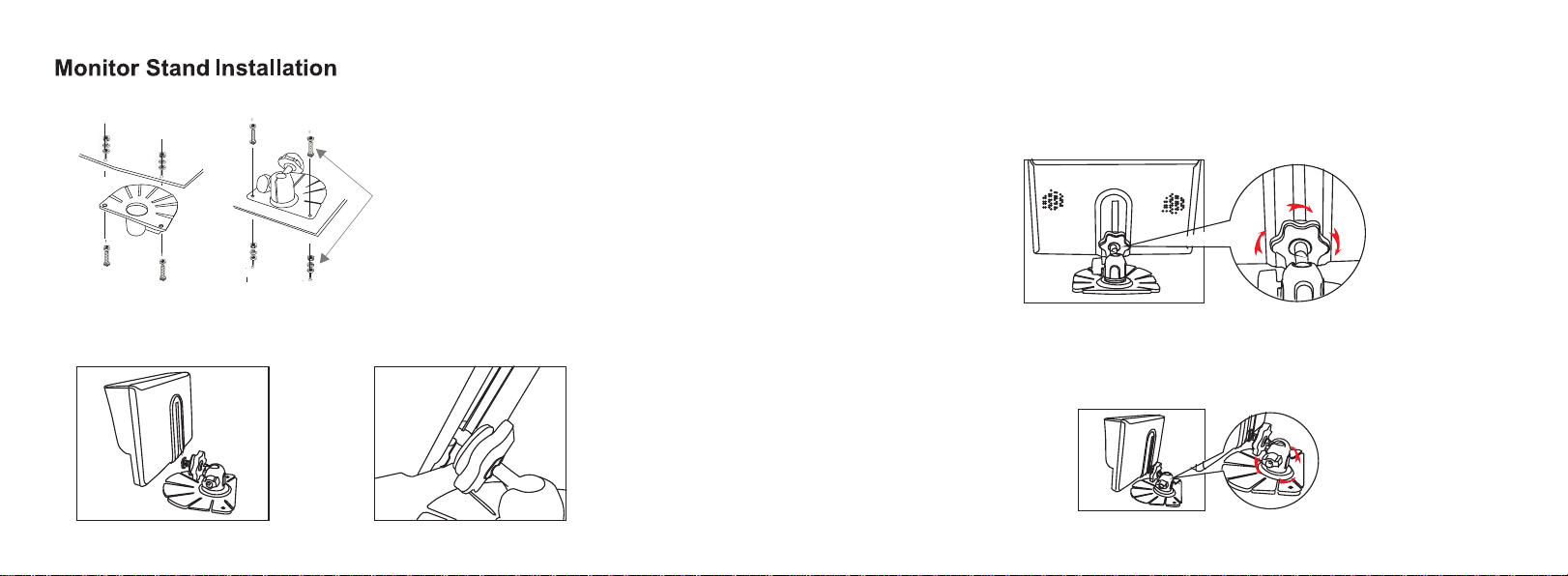

1: Find a location for the mount, Zorg NA does not recommend using mounts with double
sided
tape only on monitors. The Monitor may come loose and be a hazard or get damaged.
If
using this type of mount, use screws to securely attach the base.
Self tapping Screws
or nuts and bolts are recommended
2: Slide the T-Bolt into the slot in the
rear of the monitor. 3: Adjust To the required level.
0605
4: Turn the thumb screw clockwise to tighten into place at the desired height.
5: Adjust to the desired viewing angle and tighten the base thumb screw to secure.
08
Contents
1. Monitor
08
WARNINGS
Zorg North America is not responsible for incorrect installation, damage to the
vehicle, or accidents due to improper installation or use. Camera systems are one of
many safety features and tools but the driver has the ultimate responsibility to back
carefully avoiding obsticals. Consult a licensed, trained professional for installation to
insure you meet all local and federal laws. This device is not covered under the
vehicle OEM warranty. Return to the place of purchase for warranty service.
4. Mounting Stand 1 PCS 5. Camera RCA Adapter 1 PCS
