ZOSI ZG1883M Manuale utente
1

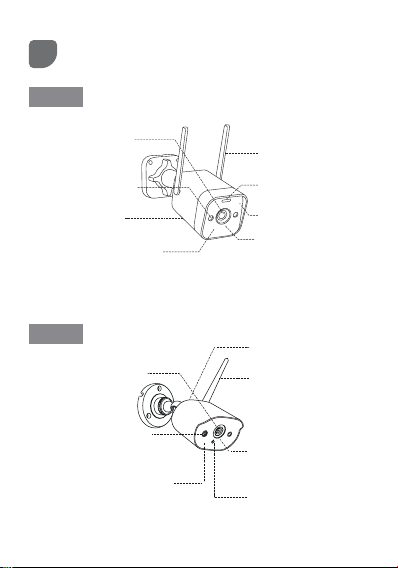

Camera
01
①Lens ⑦Antenna
⑥ Speaker
⑤Microphone
④CDS
②Spotlights*2
③IR-LEDs*4
①Lens ⑦Antenna
⑤Microphone
④CDS
⑧Warning Light
⑥Speaker
③IR-LEDs
②Spotlights*2
C188:
C302:
2

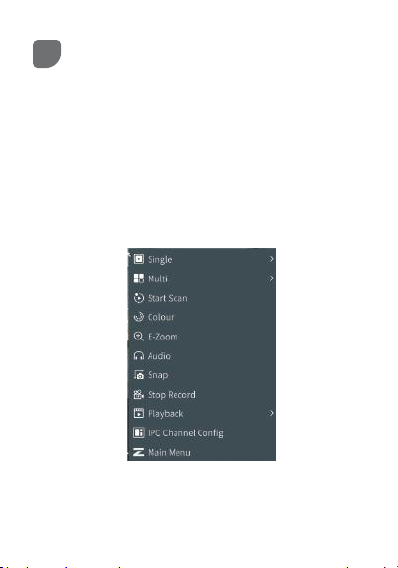

1. Right click the mouse, the main menu will come out.
2.Select and enter IPC Channel Config page.

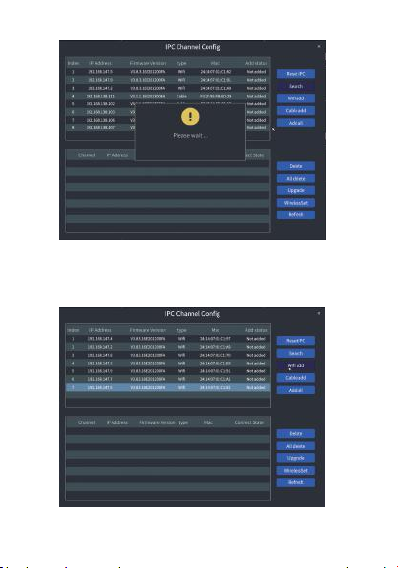

3.Click the Search on the IPC Channel Config page to search for the
corresponding IPC.
02 New Camera Pairing
It is recommended that users conduct a power-on test before
installaon to ensure that each camera can work normally. If it fails,
please contact our customer service.
If you want to add a new camera or reset the camera, please follow
the following steps. Take out the camera (install the antenna),
connect NVR and camera with a network cable. Make sure that NVR
can display normally on the monitor, and then perform the following
operaons:
3
4.Double-click the searched cameras, or ck the camera and click
WiFi Add. The status of IPC connected shows at the boom of the
page, and the corresponding monitoring video will display.
4
03 Camera Installaon Steps
1. Adjust the camera antenna to keep it vercal to get the best
recepon.
2. Drill screw holes on the wall according to the mounng hole
template, and insert the rubber plugs into the holes.
3. Align the camera with the rubber plugs on the wall, and screw it
into the rubber plugs.
4. Adjust the camera to a proper angle.
NOTE: If all eight IPC channels have been connected and you need
to connect other cameras, then you will need to delete one or more
channels to add other cameras.
C188:
5

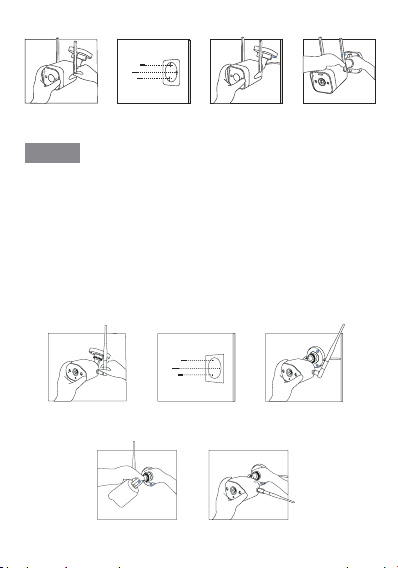

1. Screw the antenna onto the camera. Please keep the antenna vercal
for best recepon.
Note: fold the camera bracket before installing the antenna so you can
easily install the antenna as shown in the picture.
2. Drill a hole on the wall according to mounng template, and insert wall
plugs into the hole.
3. Align the mounng hole of the camera with the wall plugs, and then
ghten screws into the wall plugs.
4. Loosen the bracket screw and adjust the camera to a proper angle.
5. Tighten the screws.
1. Mount the antenna 3. Install the camera 4. Adjust the angle
2. Insert wall plugs into
the holes
4. Adjust the angle 5. Tighten screws
1. Mount the antenna 3. Install the camera
2. Insert wall plugs into
the holes
C302:
6
Please refer to the picture down below for the ideal installaon.
It is recommended to place the camera at least 7 feet (2.1m) above
the ground and lted slightly downward towards the monitoring
area, excluding any high-traffic areas. (E.g. sidewalks or roadways).
1.Ensure that the camera’s view is open and free of obstrucons.
2.Place the camera at no more than 20 feet (6.1m) to ensure that
the area you want to monitor is within the field of view.
3.Install the camera within the receiving range of the recorder.
4.The camera can be used outdoors (protecon rang IP66).
NOTE: This camera is only compable with ZOSI NVR.
Installaon Tips
04
