ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM

User’s Manual

No part of this manual, including the products and software described in it, may

be reproduced, transmitted, transcribed, stored in a retrieval system, or translated

into any language in any form or by any means, except documentation kept by the

purchaser for backup purposes, without the express written permission of ZOTAC.

Products and corporate names mentioned in this manual may be registered

trademarks or copyrights of their respective companies, and are used for identication

purposes only. All trademarks are the property of their respective owners.

Every effort has been made to ensure that the contents of this manual are correct and

up to date. However, the manufacturer makes no guarantee regarding the accuracy of

its contents, and reserves the right to make changes without prior notice.

CAUTION:

Risk of explosion if the battery is replaced with an incorrect type. Batteries should be

recycled where possible. Disposal of used batteries must be in accordance with local

environmental regulations.

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM

Table of Contents

Product specications ----------------------------------------------------------------------------------------3

Safety information ---------------------------------------------------------------------------------------------- 5

Setting up your system-------------------------------------------------------------------------------------5

Care during use ----------------------------------------------------------------------------------------------5

Welcome -----------------------------------------------------------------------------------------------------------6

Package contents -------------------------------------------------------------------------------------------6

Getting to know your ZOTAC GAMING MEK ULTRA PC Gaming System--------------------7

Top view--------------------------------------------------------------------------------------------------------7

Rear view ------------------------------------------------------------------------------------------------------8

Installing the glass side cover------------------------------------------------------------------------------ 10

Installing a new graphics card for GU3080C7R1B (i7+RTX3080) ------------------------------- 12

Installing Killer Control Center -----------------------------------------------------------------------------15

Congure your ZOTAC GAMING MEK ULTRA PC Gaming System ----------------------------19

Conguring a wireless connection ----------------------------------------------------------------------19

Conguring a wired connection --------------------------------------------------------------------------19

Using a static IP----------------------------------------------------------------------------------------------19

Conguring audio output-----------------------------------------------------------------------------------20

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM

Product specications

For GU3080C7R1B (i7-RTX3080)

qMicroprocessor Support

vIntel Core i7-9700 (eight-core 3.0GHz, up to 4.7GHz)

qOnboard Graphics Support

vNVIDIA RTX3080 w/ 10GB GDDR6X for GU3080C7R1B

qInternal Expansion:

v32GB DDR4 OC 3200MHz

v4TB 3.5“ SATA hard drive

v512 GB M.2 NVMe SSD

q Networking

vGigabit LAN (10/100/1000Mbps)

vKiller AX1650 WiFi 6

vBluetooth 5

qAudio

vOnboard 7.1 Channel Digital Audio with optical output

qI/O

v3x DisplayPort 1.4a, 1x HDMI 2.1

vMic/Headphone

v2x USB 3.1 Gen 2 Ports (1x Type-C, 1x Type-A), 6x USB 3.0 Ports, 2x USB 2.0 Ports

qPower Supply

v1000W 80+ Gold Power Supply

qOS Pre-installed

vWindows 10 Home Edition, 64-bit

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM

For GU3070C7R1B (i7-RTX3070)

qMicroprocessor Support

vIntel Core i7-9700 (eight-core 3.0GHz, up to 4.7GHz)

qOnboard Graphics Support

vNVIDIA RTX3070 w/ 8GB GDDDR6 for GU3070C7R1B

qInternal Expansion:

v16GB DDR4 OC 3200MHz

v2TB 3.5“ SATA hard drive

v512 GB M.2 NVMe SSD

q Networking

vGigabit LAN (10/100/1000Mbps)

vKiller AX1650 WiFi 6

vBluetooth 5

qAudio

vOnboard 7.1 Channel Digital Audio with optical output

qI/O

v3x DisplayPort 1.4a, 1x HDMI 2.1

vMic/Headphone

v2x USB 3.1 Gen 2 Ports (1x Type-C, 1x Type-A), 6x USB 3.0 Ports, 2x USB 2.0 Ports

qPower Supply

v1000W 80+ Gold Power Supply

qOS Pre-installed

vWindows 10 Home Edition, 64-bit

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM

Safety information

Your ZOTAC GAMING MEK ULTRA PC Gaming System is designed and tested to meet the latest

standards of safety for information technology equipment. However, to ensure your safety, it is

important that you read the following safety instructions.

Setting up your system

vRead and follow all instructions in the documentation before operating your system.

vDo not use this product near water or a heat source such as a radiator.

vSet up the system on a stable surface.

vOpenings on the chassis are for ventilation. Do not block or cover these openings. Make sure

you leave plenty of space around the system for ventilation. Never insert objects of any kind into

the ventilation openings.

vUse this product in environments with ambient temperatures between 0℃and 35℃.

 If you use an extension cord, please use the UL listed cord and make sure that the total

ampere rating of the devices plugged into the extension cord does not exceed its ampere

rating.

Care during use

vDo not walk on the power cord or allow anything to rest on it.

vDo not spill water or any other liquids on your system.

vWhen the system is turned off, a small amount of electrical current still ows. Always unplug all

power, modem, and network cables from the power outlets before cleaning the system.

vIf you encounter the following technical problems with the product, unplug the power cord and

contact a qualied service technician or your retailer.

¾The power cord or plug is damaged.

¾Liquid has been spilled onto the system.

¾The system does not function properly even if you follow the operating instructions.

¾The system was dropped or the cabinet is damaged.

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM

Welcome

Congratulations on your purchase of the ZOTAC GAMING MEK ULTRA PC Gaming System. The

following illustration displays the package contents of your new MEK ULTRA PC Gaming System. If

any of the below items is damaged or missed, contact your retailer.

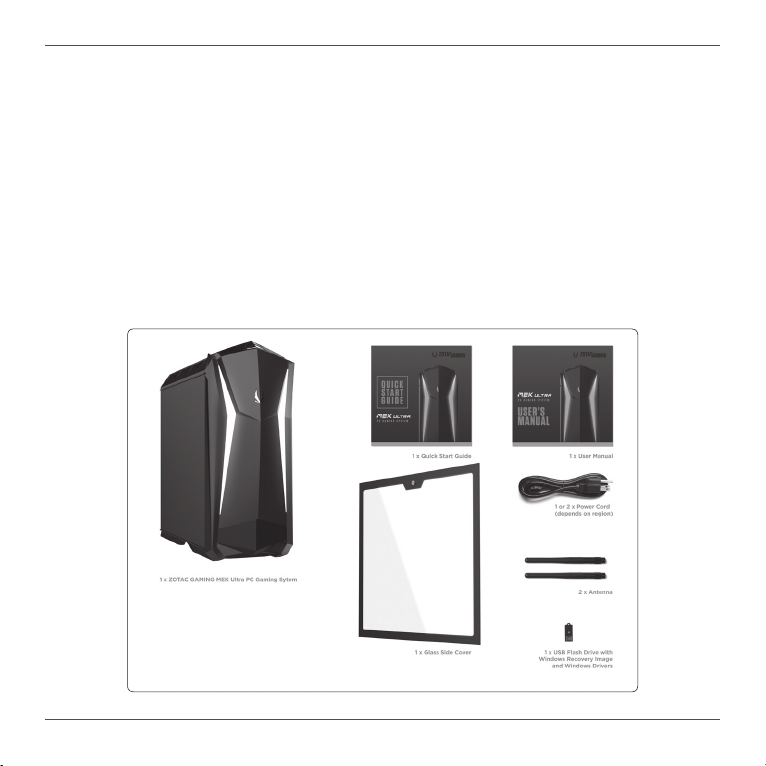

Package contents

• 1 x ZOTAC GAMING MEK ULTRA PC Gaming System

• 1 x Glass Side Cover

• 1 or 2 x Power Cord (depends on region)

• 2 x WiFi Antenna

• 1 x USB Flash Drive with Windows Recovery Image and Windows Drivers

• 1 x Quick Start Guide & Warranty Card

• 1 x User Manual (optional)

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM

Getting to know your ZOTAC GAMING MEK ULTRA PC Gaming

System

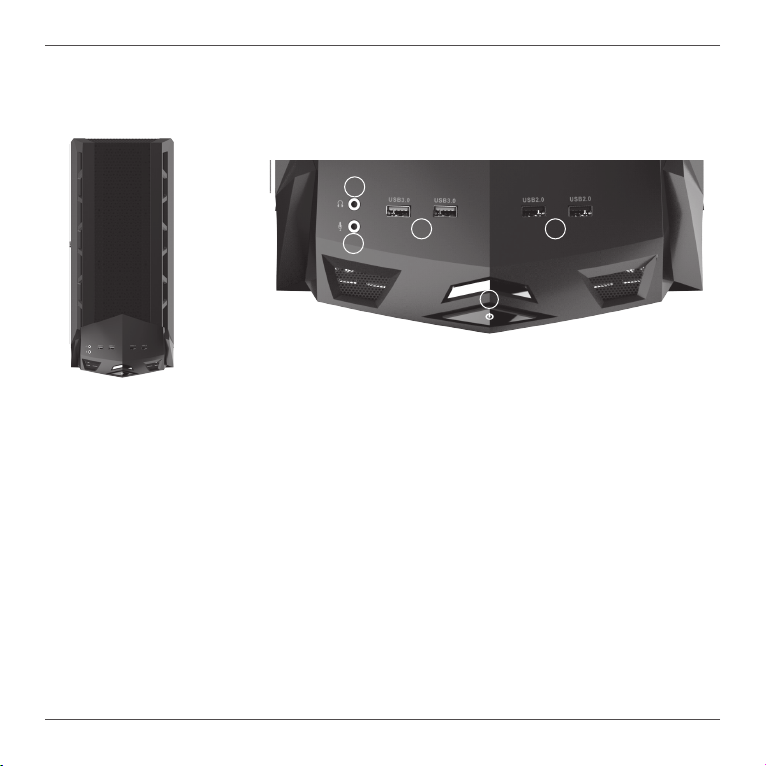

Top view

Refer to the diagram below to identify the components on this side of the system

1. Headphone/Audio Out jack

The stereo headphone jack (3.5mm) is used to connect the system’s audio out signal to

gaming headset.

2. Microphone jack

The microphone jack is designed to connect the microphone used for easy connection with

gaming headset.

3. USB 3.0 ports

The USB 3.0 port supports the SuperSpeed USB 3.0 devices and is backwards compatible

with USB 2.0/1.1 devices. Use this port for USB 3.0 devices for maximum performance with

USB 3.0 compatible devices.

4. USB 2.0 ports

The USB (Universal Serial Bus) port is compatible with USB devices such as keyboards,

mice, cameras and hard disk drives.

5. Power button

The power button turns the system ON and OFF.

23 4

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM

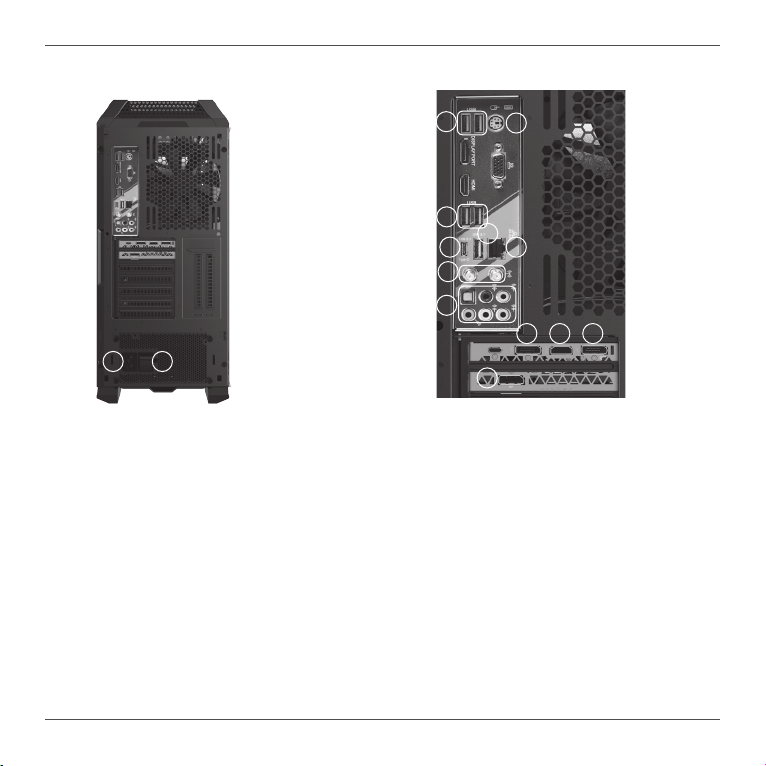

Rear view

1. USB 3.0 ports

The USB 3.0 port supports the SuperSpeed USB 3.0 device. Use this port for USB 3.0 devices

for maximum performance with USB 3.0 compatible devices.

2. PS2 keyboard/mouse port

The PS/2 port is used to connect with keyboard/mouse.

3. USB 3.1 Type-C port / USB Type-C (3a, Standard Display Connector) on select models

The USB 3.1 port supports the SuperSpeed USB 3.1 devices. Use this port for USB 3.1

devices for maximum performance with USB 3.1 compatible devices.

4. USB 3.1 port

The USB 3.1 port supports the SuperSpeed USB 3.1 devices. Use this port for USB 3.1

devices for maximum performance with USB 3.1 compatible devices.

5. LAN port

The eight-pin RJ-45 LAN port support standard Ethernet cables for connection to a local

network.

ZOTAC GAMING MEK ULTRA PC GAMING SYSTEM

6. WiFi antenna connectors

The WiFi antenna connector supports the included WiFi antenna.

7. Audio ports with SPDIF-out

Use the ve audio ports to connect audio devices. The pink jack is for microphone. The green

jack is for front speaker out signal. The blue jack is for side speaker out signal. The orange

jack is for rear speaker out signal. The black jack is for center/subwoofer signal. The optical

S/PDIF output enables connectivity with digital audio receivers and speakers for crystal clear

digital audio and surround sound from compatible soundtracks.

8. DisplayPorts

DisplayPort supports both external (box-to-box) and internal (laptop LCD panel) display

connections.

9. HDMI port

The HDMI (High Denition Multimedia Interface) port supports a UHD device such as an LCD

TV or monitor to allow viewing on a larger external display.

10. Power input (IEC C20 or C14, standard power cord connection)

Connected with power cord to mains for AC input.

11. Power switch

The Power switch turns the power supply ON (|) and OFF (O).

12. Initial setup

Follow the on-screen instructions to complete the initial setup of Windows.

This process may take several minutes.

Do not block ventilation outlet for warm air exhaust.
