Zte N850 Manuale utente

N850

Quick Start Guide

LEGAL INFORMATION

No part of this publication may be quoted, reproduced,

translated or used in any form or by any means, electronic or

mechanical, including photocopying and microfilm, without

the prior written permission of ZTE Corporation.

ZTE Corporation reserves the right to make modifications on

print errors or update specifications in this guide without prior

notice.

The Bluetooth®trademark and logos are owned by the

Bluetooth SIG, Inc. and any use of such trademarks by ZTE

Corporation is under license. Other trademarks and trade

names are the property of their respective owners.

We offer self-service for our smart terminal device users.

Please visit ZTE official website (at www.zte.com.cn) for

more information on self-service and supported product

models. Information is subject to the website.

Version No.: R1.0

Edition Time : 2012.11.12

Manual No. : 079584505123

Phone Overview

Camera

Key

Headset Jack

Home Key

Power Key

Earpiece

Touchscreen

Back Key

Menu Key

LED Indicator

Search Key

Keys Explained

Key

Function

Power Key

Press and hold to turn on or off Silent or

Airplane mode, or to power off.

Press to switch your phone to Sleep

mode.

Press to wake up your phone.

Home Key

Touch to return to the Home Screen from

any application or screen.

Touch and hold to see recently used

applications.

Charger/

USB Jack

Volume Up

Volume Down

Back

Cover

Camera Lens

Flash

Speaker

Key

Function

Menu Key

Touch to get the options for the current

screen.

Back Key

Touch to go to the previous screen.

Search Key

Touch to search information on the current

screen or application.

Volume Keys

Press or hold to turn the volume up or down.

Installing the microSD Card and

Battery

1. Remove the back cover.

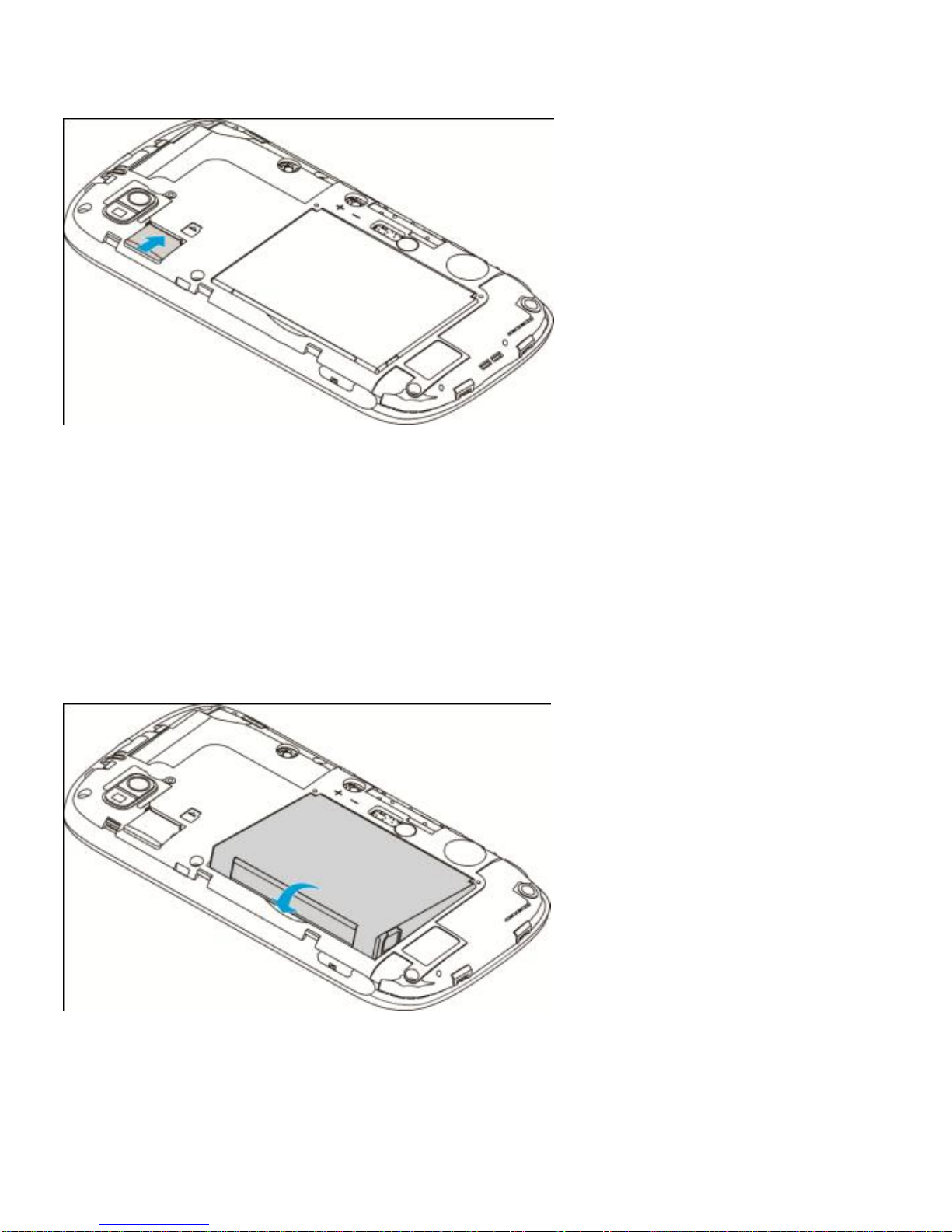

2. Hold your microSD card with the metal contacts facing

down and slide it in.

NOTE: microSD is a trademark of the SD Card

Association.

3. Insert the battery by aligning the gold contacts on the

battery with the gold contacts in the battery compartment.

Gently push down on the battery until it clicks into place.

4. Press the cover gently back into place until you hear a

click.

Charging the Battery

Although the battery comes partially charged, it is

recommended you fully charge the battery before using your

phone for the first time.

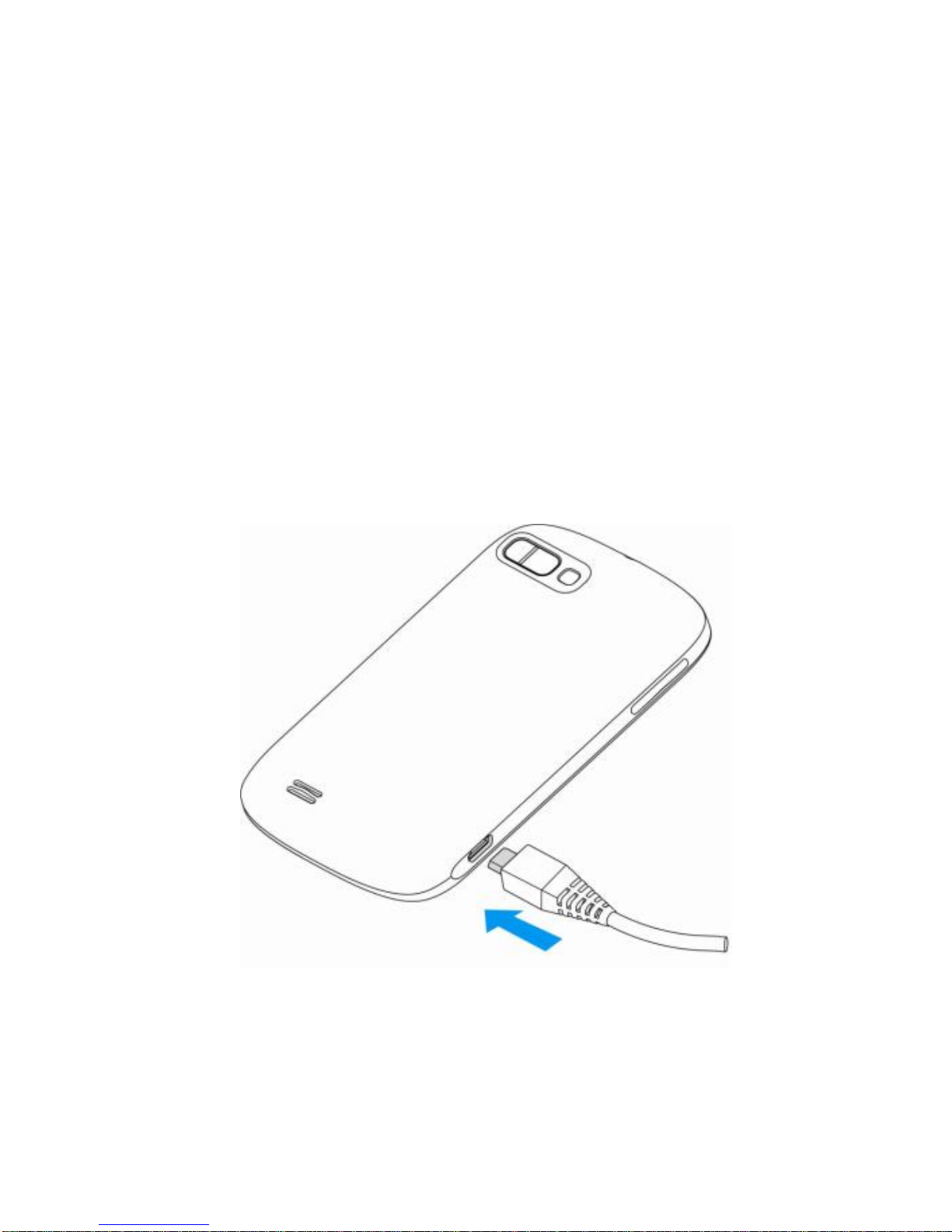

1. Connect the adapter to the charger jack. Ensure that the

adapter is inserted with the correct orientation. Do not

force the connector into the charger jack.

2. Connect the charger to a standard AC wall outlet.

3. Disconnect the charger when the battery is fully charged.

NOTE: Use only ZTE-approved batteries and chargers with

your phone. The failure to use a ZTE-approved battery and

charger may increase the risk that your phone will overheat,

catch fire or explode, resulting in serious bodily injury, death

or property damage.

Turning Your Phone On

1. Make sure the battery is charged.

2. Press and hold the Power Key to switch on your phone.

Turning Your Phone Off

To switch it off, press and hold the Power Key to get the

phone options. Touch Power off, and then touch OK.

Unlocking Your Phone Screen

To unlock your phone screen, drag the icon to the right.

NOTE: If you have set an unlock pattern, PIN or password for

your phone, you’ll need to draw the pattern or enter the

PIN/password to unlock your screen.

Switching to Spanish Menus

You can change the language of your phone’s operating

system in two simple steps.

1. Touch the Home Key > Menu Key > Settings >

Language & keyboard > Select language.

2. Select a language from the list given.

Making Calls

Calling From the Dialer

1. Touch the Home Key > > Dialer or touch on the

Home Screen.

2. Enter the phone number with the on-screen keypad.

Touch to delete wrong digits.

3. Touch .

TIP: To make international calls, touch and hold to

enter the “+”.

Calling From Your Contacts

1. Touch the Home Key > > Contacts.

2. Slide your finger to scroll the contacts list and touch the

contact you want to call.

TIP: You can search for a contact by touching the Search

Key.

3. Touch next to the number you want to call.

Contacts

You can import or export contacts from or to your microSD

card. This is especially useful when you need to transfer

contacts between different devices.

1. Touch the Menu Key > More > Import/Export from the

Contacts Screen.

2. Choose Import from SD card or Export to SD card.

For import, you should have vCard files saved in the

microSD card. If there’s more than one vCard file, you

need to select the vCard file and touch OK.

For export, the phone will prompt you with the name of

the vCard file. Touch OK to create the file in the

microSD card.

Messaging

Sending a Text Message

1. Touch the Home Key > > Messaging.

2. Touch New message.

3. Touch the To field to enter the recipient’s number or

name. As you type, matching contacts will appear. Touch

a suggested contact to add as a recipient.

4. Touch the Type to compose field and enter your
