Zte TELSTRA T809 Manuale utente

Telstra

T809

Mobile Phone

User Manual

LEGAL INFORMATION

No part of this publication may be quoted, reproduced,

translated or used in any form or by any means, electronic or

mechanical, including photocopying and microfilm, without the

prior written permission of ZTE Corporation.

ZTE Corporation reserves the right to make modifications on print

errors or update specifications in this guide without prior notice.

The Bluetooth®trademark and logos are owned by the Bluetooth

SIG, Inc. and any use of such trademarks by ZTE Corporation is

under license. Other trademarks and trade names are the

property of their respective owners.

This product supports expandable memory up to 32GB

microSD(HC) card as an optional accessory. External memory

card is not included in the box.

The microSD logo is a trademark of the SD Card

Association.

Ver. 1.4 August 2014

This product is user-upgradeable. Please check for updates at

zte.com.au or call the service hotline on 1300 789 475 for

technical support during office hours, 9am to 5pm AEST.

The worst case SAR value for this device is 0.807 W/Kg

Contents

Device Overview ......................................................5

Making Calls using the Phone app.......................25

Connect to Networks and Devices.......................36

Contacts .................................................................48

Messaging..............................................................55

Accounts ................................................................59

Email.......................................................................60

GmailTM ...................................................................64

Calendar .................................................................67

Hangouts................................................................69

Google+ ..................................................................71

Google Location access........................................71

Camera....................................................................74

Gallery.....................................................................77

Music.......................................................................80

Google ‘Play Music’...............................................83

Video Player ...........................................................85

FM Radio.................................................................86

Sound Recorder.....................................................87

More Apps ........................................................88

Play Store ...............................................................89

Settings...................................................................90

Troubleshooting and Support...............................98

For Your Safety - General Safety........................102

Technical Specifications.....................................113

Declaration of RoHS Compliance.......................114

Disposal of Your Old Device...............................115

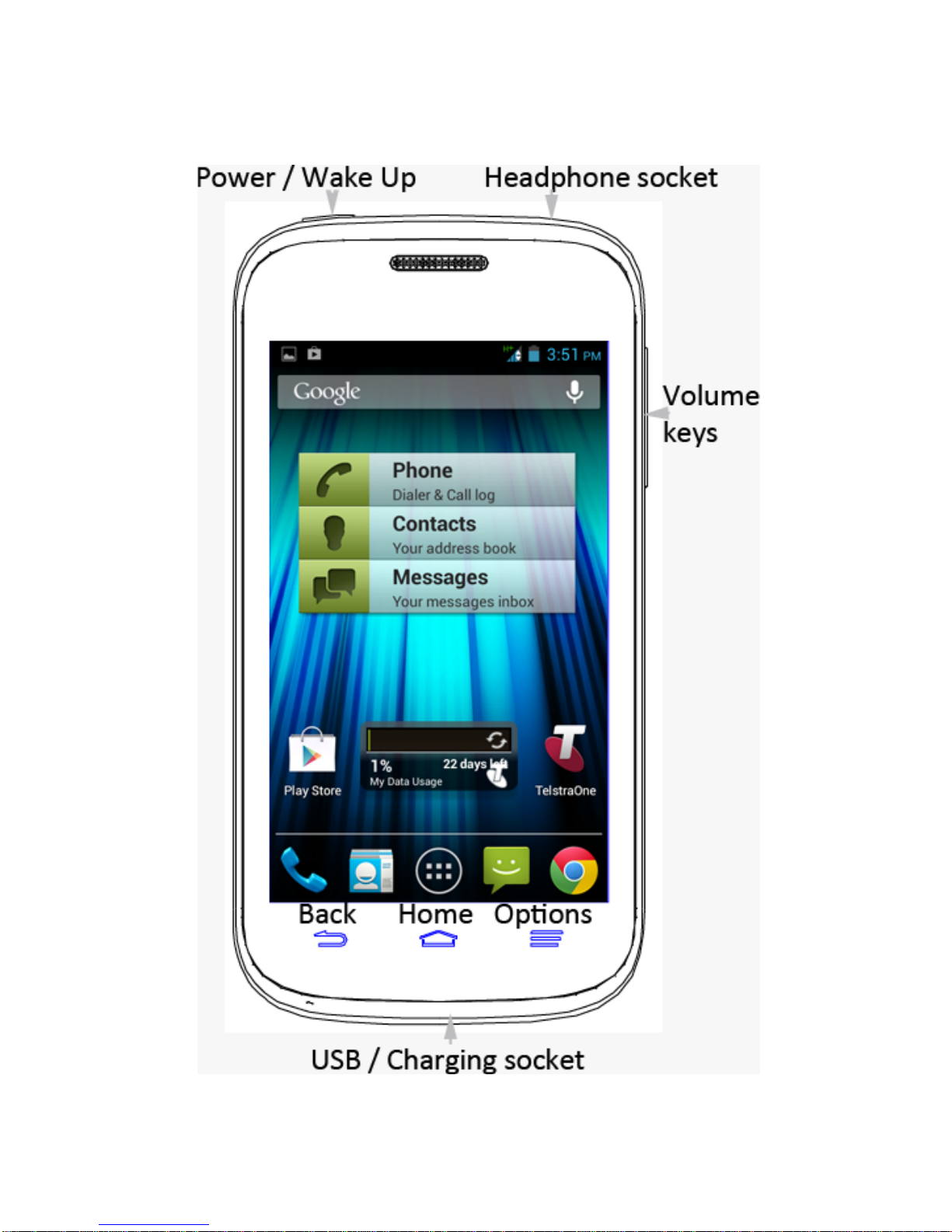

Device Overview

Key Functions

Key

Function

Power Key •

Press to wake up your phone.

•Press and hold to select Silent, Vibrate or

Flight mode, or to power on and off.

•Press to switch your phone to Sleep mode.

Back

Touch to go to the previous screen.

Home

Touch to return to the Home Screen from any

application or screen.

Options

Press for Options.

Press and hold to view recent apps.

Volume Keys

Press or hold to turn the volume up or down.

Apps

Access the device Applications menu.

Status LED indicator

Red Less than 10% charge

Orange

Between 10 – 70%

Green

More than 70% charge

LED Flashing

Message or Missed Call Notification

Installing the SIM Card, microSD Card*,

and Battery

Switch off your phone before installing or replacing the battery, SIM

card or microSD card* (optional accessory)

1. Remove the back cover by opening from the thumb catch:

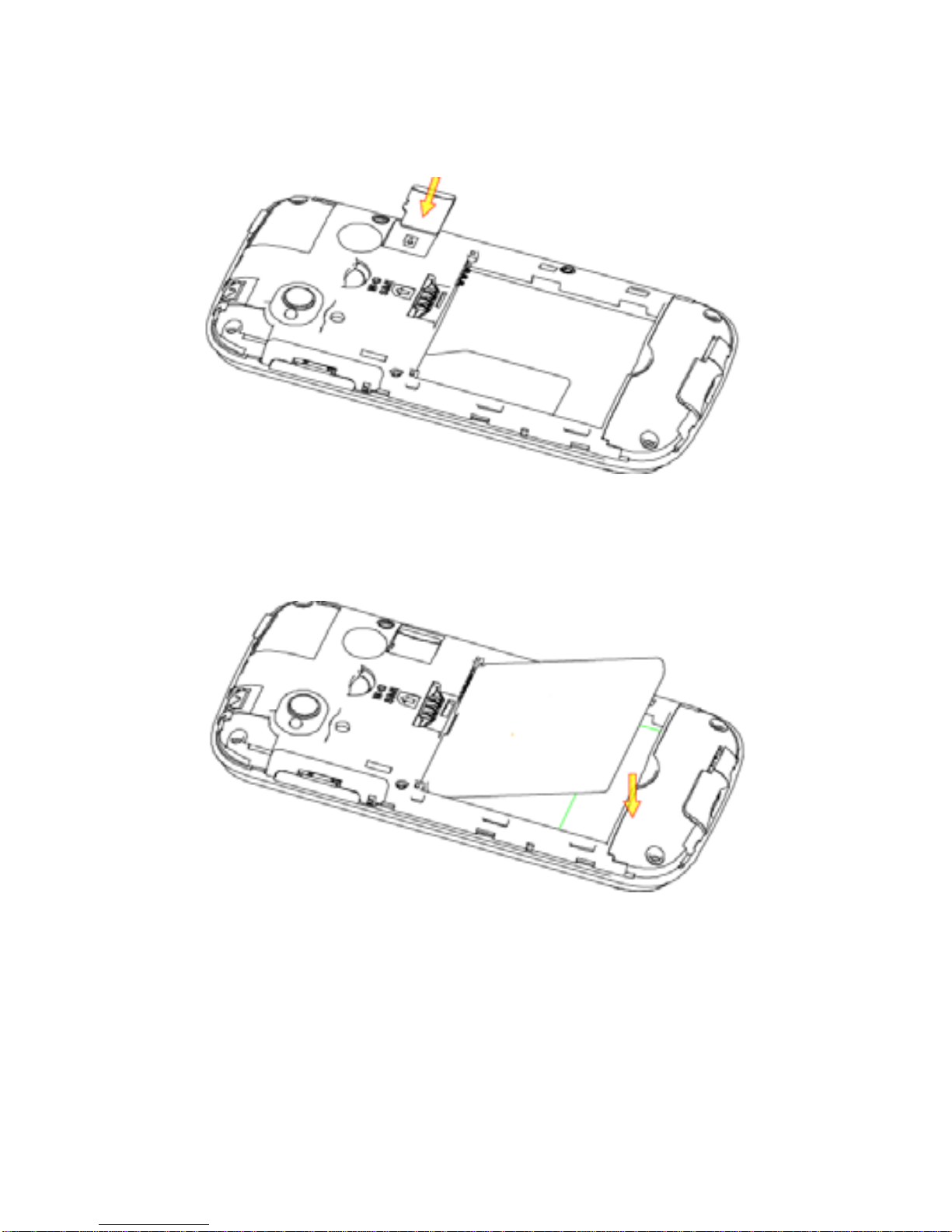

2. Hold the SIM card with the cut corner as shown and slide it

into the card holder. This device uses the standard mini SIM

type, also known as 2FF. Do not insert a micro SIM (3FF)

3. If you wish to increase the memory capacity insert a microSD

card (optional) with the metal contacts facing down as shown

4. Insert the battery by aligning the gold tabs on the battery with

the gold springs in the battery compartment. Gently push

down on the battery until it clicks into place.

5. Press the cover gently back into place until you hear a click.

* The microSD card is not included in the box The SD Card is not

hot swappable, so you need to power cycle the device to read a

new SD card, and choose Unmount before removing the SD

card.

Charging the Battery

When you first get your new phone you’ll need to charge the

battery.

1. Insert the charger lead carefully. Ensure that the plug is

inserted with the correct orientation. Do not force the

connector into the charger jack.

2. Connect the charger to a standardAC wall outlet.

3. Disconnect the charger when the battery is fully charged.

How much charge have you got?

If the battery is low, there will be a pop-up message on the

screen. As you charge your phone, the screen will tell you the

battery level each time you wake up your phone.

If the phone is on, you’ll see the charging icon / on the

status bar.

View battery information and show charge level

From the Home screen press Options >System settings >

Battery to see what has been consuming battery power. Also

you can select the Battery Percentage check box to display the

exact charge level on the Status Bar.

System Reset

You can press the Emergency Call button from any lock screen,

enter the code *983*987# into the dialler to reset your phone.

Battery and Charging Tips

•Only use the AC charger and USB lead supplied. Insert the

charger lead carefully.

•Be careful to avoid tripping over or pulling on the lead whilst it

is plugged in.

•Physical damage to the charging port is NOT covered by

warranty.

•The phone can also be charged by connecting it to a

computer using the USB lead supplied.

•Avoid high temperatures and direct sunlight. The battery will

not charge above 45°C

•Do not leave the battery in a discharged state. Charge the

battery promptly when flat.

•Keep your handset cool. High temperatures degrade the

battery more quickly.

•Normal charge time is 3-4 hours. Do not leave on charge for

more than 24hrs.

•After 2-3 charge/discharge cycles the battery life will improve.

From then on use top up charging to recharge frequently and

always charge promptly when flat.

•When not using the phone for long periods charge to approx

40% and remove the battery.

•With poor network conditions (less than 2 bars) battery life is

reduced, turn off Bluetooth and Wi-Fi when not in use to

extend battery life.
