Zte txtster CDMA 1X EVDO Manuale utente
ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation http://www.zteit.com
.
ZTE CDMA 1X Card
User Guide
（Version: V4.2C-TY）
This user guide applies to the ZTE CDMA 1X card of MC315/MC315+, MG166, and
MG466.
ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation http://www.zteit.com
Copyright Statement
Copyright © 2005 by ZTE Corporation
The copyright of this User Manual belongs to ZTE Corporation and under the protection of
Copyright Law of the People’s Republic of China and other relative laws.
No part of this publication may be excerpted，reproduced, translated or utilized in any form
or by any means (electronic or mechanical，including photocopying and microfilm) without prior
written permission from ZTE Corporation.Any violation behavior will be punished.
The information in the document is subject to change without notice. At the same time we
reserve the right to revise or recall the User Manual.
If there is anything unclear in this manual, please contact us or our agent or seller.
ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation http://www.zteit.com
Contents
1. Introduction...............................................................................................................................1
2. Specifications............................................................................................................................1
3. Care for your card.....................................................................................................................1
4. Features.....................................................................................................................................2
5. Setup and Uninstall...................................................................................................................3
5.1 System Requirements.........................................................................................................3
5.2 Setup for Windows 2000....................................................................................................3
5.2.1 Setup.........................................................................................................................3
5.2.2 Uninstall...................................................................................................................8
5.3 Setup for Windows XP........................................................................................................9
5.3.1 Setup.........................................................................................................................9
5.3.2 Uninstall.................................................................................................................13
6. The Main Window and Icons..................................................................................................15
7. Connect/Disconnect................................................................................................................16
8. Connection Record..................................................................................................................17
9. Voice call.................................................................................................................................18
10. Call History.............................................................................................................................19
11. Send Short Messages ..............................................................................................................20
12. Read Short Messages..............................................................................................................21
13. Phone Book.............................................................................................................................22
14. Settings....................................................................................................................................23
15. Trouble Shooting.....................................................................................................................24
ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation page1 http://www.zteit.com
1. Introduction
ZTE CDMA 1X card fits into a standard Type II PC Card slot (available on most notebook PCs)
and can function as a wireless network card, a modem, and a mobile phone. This card allows you
to connect to the Internet, send and receive SMS messages, and make phone calls, without the
need of a network cable or phone line.
With the design of the R-UIM card separate from the body, ZTE CDMA 1X card can make the
operation more flexible.
2. Specifications
Model
Item MC315 MC315+ MG166 MG466
Transmit Frequency 824~849MHz 824~849MHz 1850~1910MHz 452.5~457.5MHz
Receive Frequency 869~894MHz 869~894MHz 1930~1990MHz 462.5~467.5MHz
Freq. Stability FA±300Hz
Dimension 86*54*5 mm
Weight 33g
Data Transmission MAX 153.6 kbps
Voltage 3.3V from PCMCIA Slot
Current Dormancy: 90mA Maximum: 850mA
Transmitter Power 200mW
3. Care for your card
¾Protect the card from liquids, dust, and excessive heat.
¾Optimal signal strength is usually obtained when the antenna is perpendicular to the card.
The antenna should bend easily. Do not forcefully bend the antenna or plugs the antenna in
and out ZTE CDMA 1X card frequently. ZTE shall not be held responsible for the loss due to
user’s disoperation.
¾The ZTE CDMA 1X card should fit easily into your PC slot. Forcing the card into a slot may
damage connector pins.
¾Do not operate the ZTE CDMA 1X card near any equipment which may be susceptible to
electromagnetic interference.
ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation page2 http://www.zteit.com
4. Features
Your ZTE CDMA 1X card may need R-UIM card. Contact your provider to get the information
about if your ZTE CDMA 1X card need or need not the R-UIM card. Please insert the R-UIM
card to your ZTE CDMA1X card if it needs.

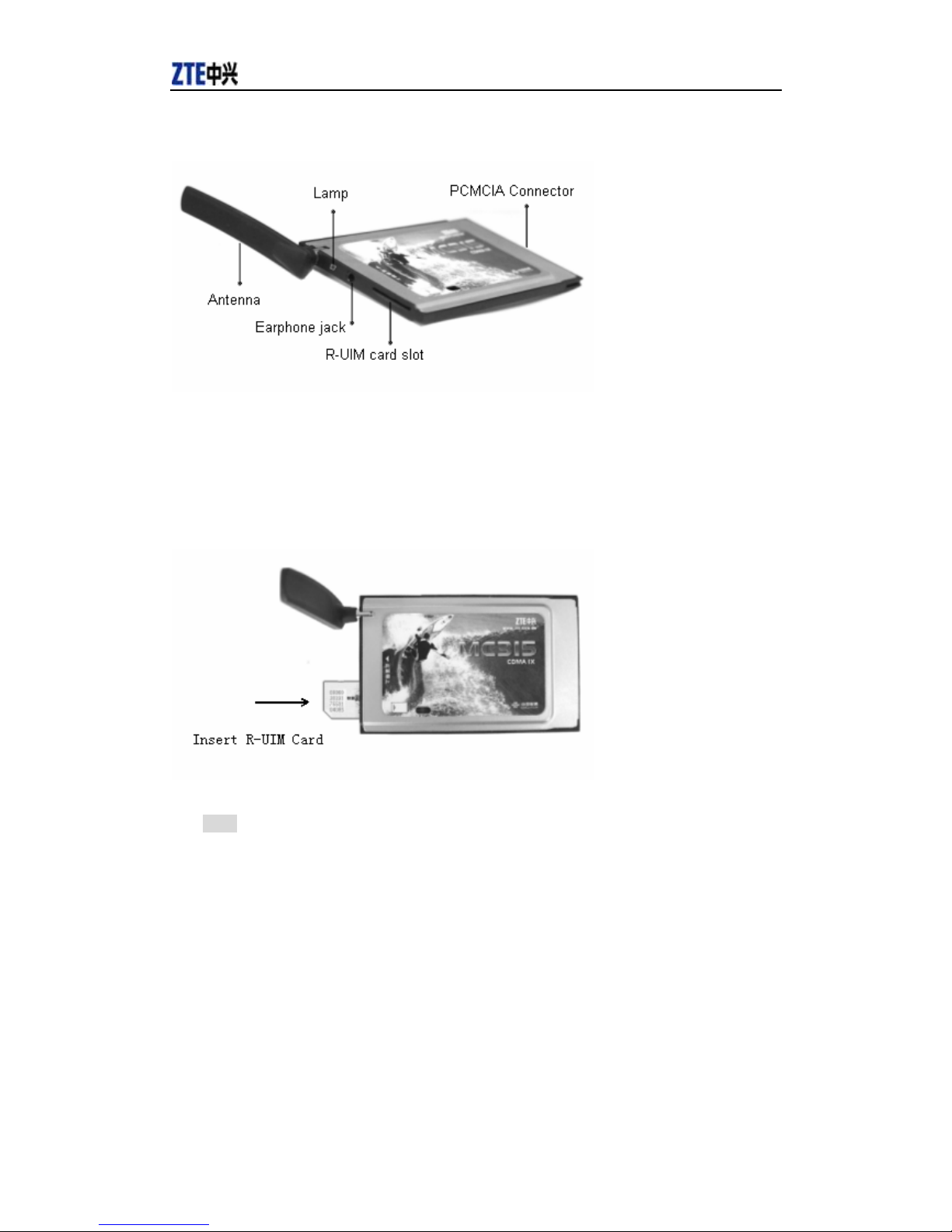

Insert R-UIM card to ZTE CDMA1X card (only for those who need R-UIM card)
Note:
When ZTE CDMA 1X card is started, the lamp is in YELLOW. After a few seconds, the ZTE
CDMA 1X card will ready to work, the lamp is in GREEN.
If you want to remove ZTE CDMA 1X card from your computer, press the ejector to remove
ZTE CDMA 1X card from the slot,do not pull the card out by the antenna.
ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation page3 http://www.zteit.com
5. Setup and Uninstall
5.1 System Requirements
The ZTE CDMA 1X card is supported on:
• Windows 98
• Windows 2000
• Windows Me
• Windows XP
To install the ZTE CDMA 1X card, you will require these system resources at the minimum:
CPU Pentium-II/233MHz
Card Slots 1 Type II PCMCIA (PC Card) Slot
Disk Drive CD-ROM (for installation only)
Memory 64 MB
Disk Space 30 MB
5.2 Setup for Windows 2000
5.2.1 Setup
Note:
Don’t insert the ZTE CDMA1X card before setup.
1. Please find “autosetup.exe” first in ZTE CDMA 1X card CD, and double click the icon of
autosetup.exe, then choose “English” when the picture displayed in the screen.
ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation page4 http://www.zteit.com

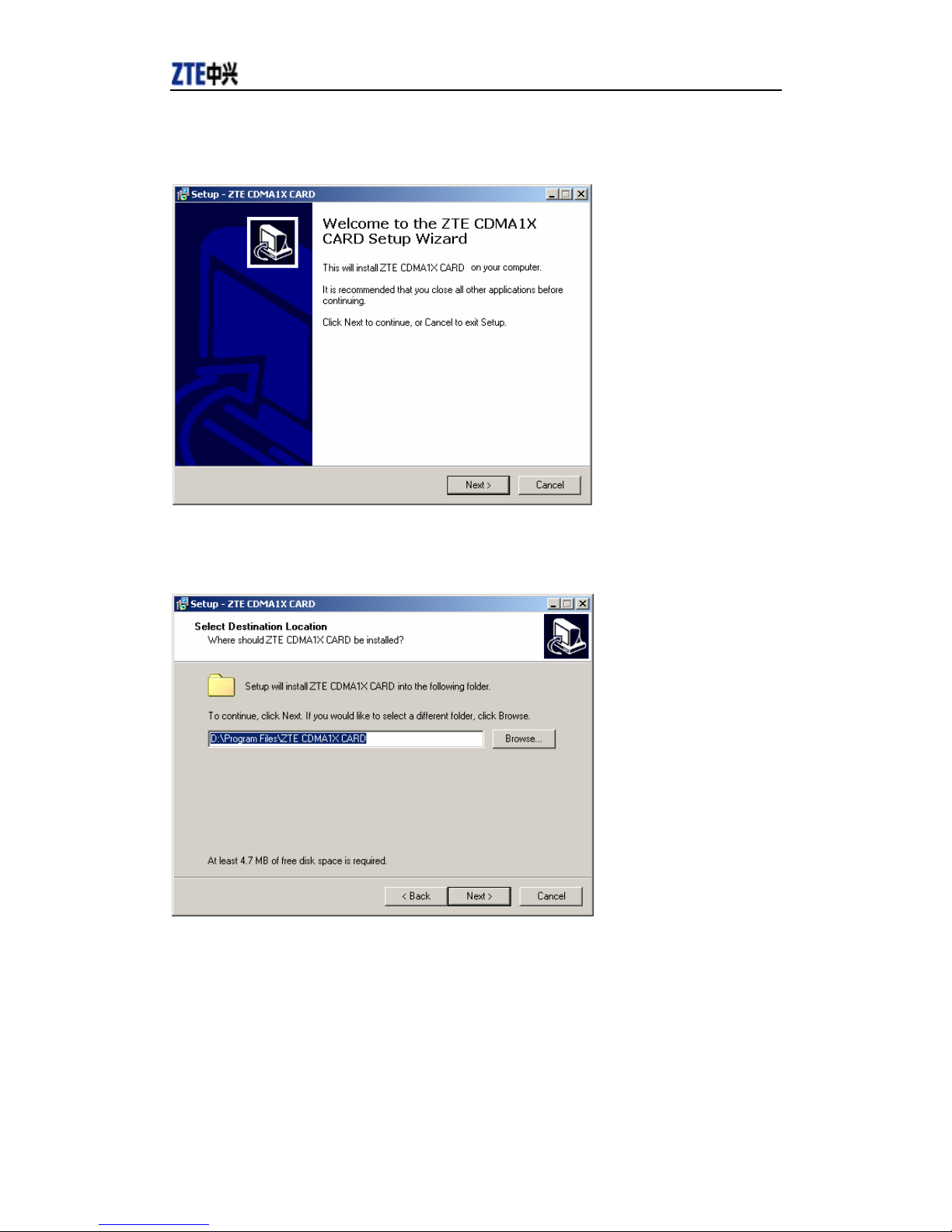

2. When you see this window, please click “Next”.
3. Select the location where the program is to be installed, then click “Next”.
ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation page5 http://www.zteit.com
4. Select start menu folder, then click “Next”.
5. When you see this window, please click “Install”.
ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation page6 http://www.zteit.com
6. Please wait.
7. Please insert the ZTE CDMA1X card. (If your card is in the slot, please insert the card again)
8. Please wait for updating the driver.
ZTE CDMA 1X Card User Guide 2005-6-16
ZTE Corporation page7 http://www.zteit.com

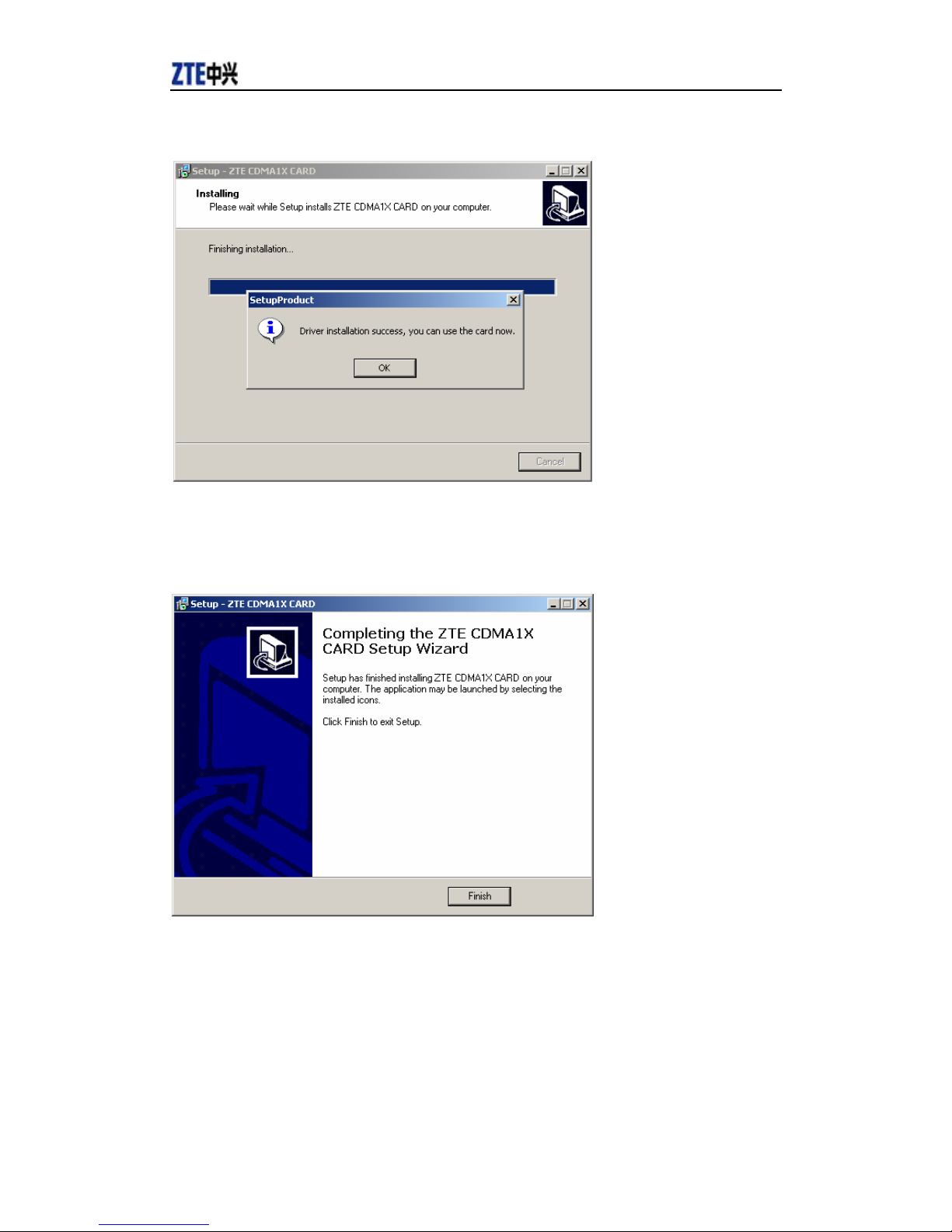

9. You can see the window when driver installed successfully. Click “OK”.
10. Click “Finish” to close the last screen of the wizard. Now you can start the application for ZTE
CDMA 1X card.
