Zte MF30 Manuale utente

No.55, Hi-tech Road South, ShenZhen, P.R.China

Postcode : 518057

Service Hotline:+86-755-26779999

http://www.zte.com.cn

E-mail: [email protected]

SmarSmar

Smart Brt Br

t Brt Br

t Bro Deo De

o Deo De

o Device User Guidevice User Guide

vice User Guidevice User Guide

vice User Guide

(ZTE MF30)(ZTE MF30)

(ZTE MF30)

Table of Contents:

I. Overview

Product Overview

What’s in the Box?

Led Indicators of the Smart Bro Device

II. Using the Smart Bro Device

Setting Up the Smart Bro Device

- Setting Up

Inserting the Smart Bro SIM Card into the Smart Bro De-

vice

Charging the Smart Bro Device using the USB Cable and

inserting the Micro SD Card.

Closing the back cover of the Smart Device.

Powering ON the Smart Bro Device

System Requirements

- Connecting to the Internet

- Disconnecting from the Internet

Logging into the Smart Bro Device

III. Troubleshooting the Smart Bro Device

I. Overview

A. Product Overview

The Smart Bro Device is an easy-to-install portable WiFi router for

broadband connection that can be shared anytime and anywhere.

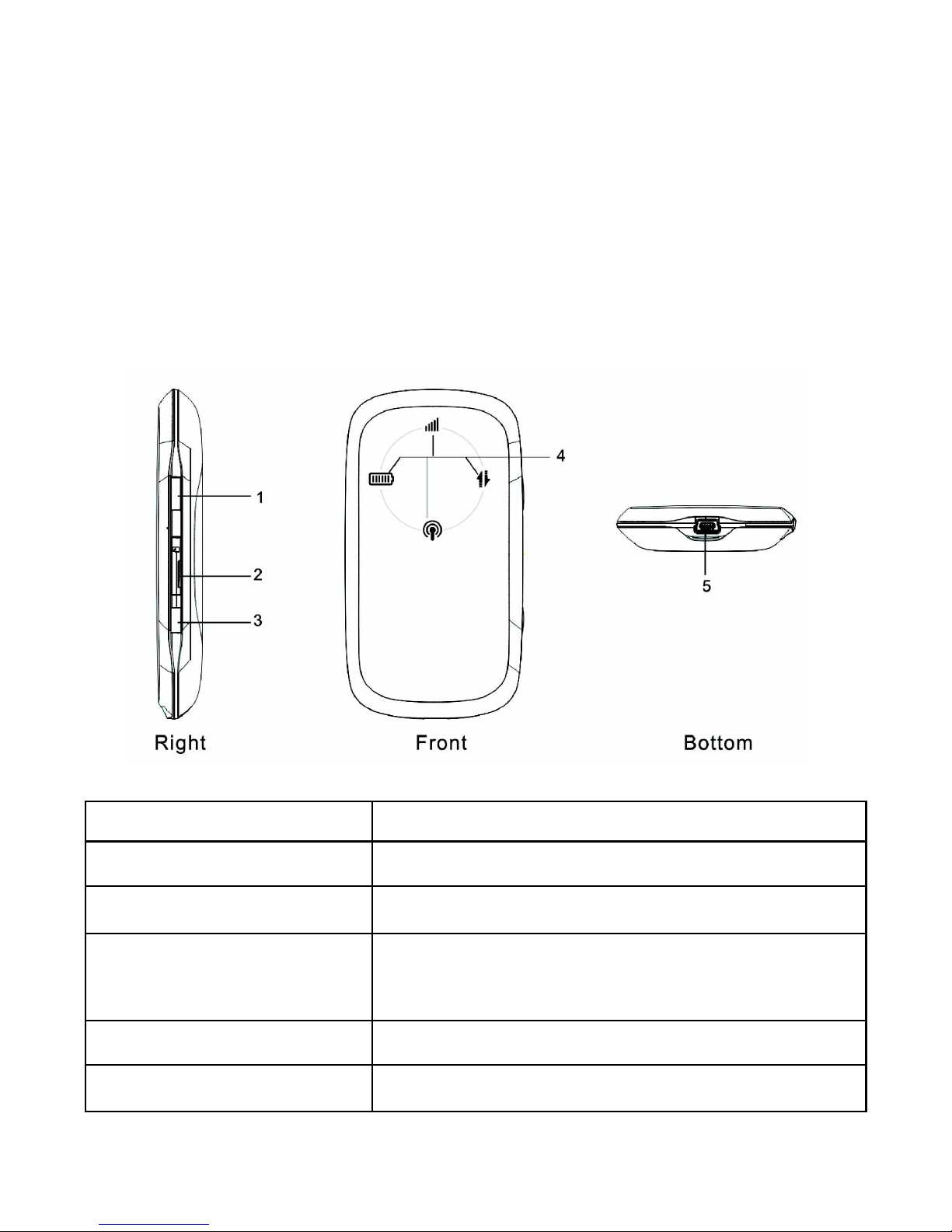

Description

Power Key

Memory card slot

WPS - This button used to start Wi-Fi

Protected Setup authentication process.

Power Indicator

Charger / Mini USB port

Item

B. What’s in the Box?

Smart Bro Device

Description

3G Wireless Router

Smart Bro Device Quick

Start Guide / User Guide

USB Data Cable

Guide in setting up the Smart

Bro Device

The USB Data Cable can be

used in charging the device

and using it as a modem.

C. Led Indicators of the Smart Bro Device

Indicator Description

Please charge

Voltage of battery is low

Charging

Voltage of battery is high

Status

Red glittering

Red bright

Green glittering

Green bright

Battery

indication

Indicator Description

ERROR or NO signal

Signal is ok

Signal is good

WIFI is active

WPS is active

2G Modem data transferring

3G Modem data transferring,

Status

Red bright

Green glittering

Green bright

Blue glittering

Blue bright

RED glittering

RED bright

GREEN glittering

GREEN bright

Network

indication

WIFI

indication

Signal

strength

indication

II. Using the Smart Bro Device

Setting Up the Smart Bro Device

Note: Please make sure that the Smart Bro Device is turned OFF

before inserting the Smart Bro SIM Card. Inserting the Smart Bro

SIM Card while the router is turned ON would lead to probable dam-

age on the SIM Card and/or on the Smart Bro Device.

A. Inserting the Smart Bro SIM Card into the Smart Bro Device

1. Open the back cover of the Smart Bro Device and take out the

battery. The SIM slot can be found once the battery is taken out.

Follow the diagram below:

2. Inserting the Smart Bro SIM Card into the

Smart Bro Device.

Note: Make sure that the Smart Bro SIM is pushed all the way down

as shown in the diagram above.

3. Close the back cover of the Smart Device.

B. Charging the Smart Bro Device using the USB Cable and In-

serting the Micro SD Card.

1. Charging the Smart Bro Device using the USB Cable.

Connect the USB Cable as seen in the diagram below.

Initial charging time is 2hrs to 3 hrs.

Note:

Insert the charger lead carefully with the plug arrow facing the

bottom of the device.

The plug only fits one way. Do not use excessive force to insert

the plug.

Check if the plug is lined up correctly against the device; then

insert it gently.

2. Inserting the Micro SD.

Slowly open the cover of the Micro SD slot

Ensure that your Micro SD is facing the right way before inserting

it into the slot

Note: There is no Micro SD bundled with the Smart Bro Device.

C. Powering ON/OFF the Smart Bro Device

Press and hold the Power Button for five seconds to switch the

device ON or OFF.

D. System Requirements

PC Type Operating

System

Web

Browser

Non-Mac

Hardware

A. Pentium III or Higher

B. 512MB of RAM or

Higher

C. LAN Card (Optional)

D. At least 10GB of hard

disk space

E. With WiFi Capability

Windows,

Ubuntu

Internet

Explorer,

Mozilla,

Firefox,

Maxthon,

etc.

PC Type Operating

System

Web

Browser

Hardware

MAC

A. Power PC G3, G4,

G5 processor.

B. 256MB RAM

C. At least 3GB of

hard disk space

Tiger, Leopard,

Snow Leopard Safari, etc.

Note: The Smart Bro Device should be used with a WiFi cable PC/

Laptop and/or with WiFi capable gadgets.

E. Connecting/Disconnecting to the Internet

1. Preparation

Before connecting to the internet, please make sure that the:

- The Smart Bro SIM card is properly inserted into the Smart

Bro Device.

- The Smart Bro Device is charged.

2. Connecting/Disconnecting from the Internet

Note: Please make sure that the WiFi of your Laptop/PC/Other WiFi

capable devices is/are turned ON.

In your computer, kindly access the “wireless connection” and

click on “search for nearby wireless connections”.

The default SSID of the Smart Bro Device is Smartbro_XXXXXX

(the Xs is the MAC Address of the Smart Bro Device. E.g.

Smartbro_09E123). The SSID is the name of the router that you

will see when you “search for nearby wireless connections”.

Click on Smartbro_XXXXXX and then click on Connect; OR,

you can double click on the name Smartbro_XXXXXX to con-

nect to the router and internet. The steps in connecting your com-

puter to the Smart Bro Device and to the internet may vary de-

pending on the computer/device type, operating system and wire-

less connection software being used.

Once the connection to the Smart Bro Device is established, you

can now browse the internet.

To disconnect from the internet, go to your wireless connection

and click on Smartbro_XXXXXX. After clicking Smart Bro, click

on the disconnect button.
