Zte MF65M Manuale utente
1
MF65M
Quick Start Guide
ZTE CORPORATION
NO. 55, Hi-tech Road South, ShenZhen, P.R.China
Postcode: 518057
2
Getting to Know Your Device
Appearance
The following gure is for your reference only.
1. LED Indicators
2. Power Key
3. WPS Key
4. Charging/micro-USB Jack
5. (U)SIM Card Slot
6. microSDHC Card Slot
NOTE:
The microSDHC™ logo is a trademark of
SD-3C, LLC.
3
Getting to Know Your Device
Indicators
When the device is powered on, the following icons
may be lighting. For a description of the icons, refer to
the following table.
Indicator Status Description
Network
Red solid
Error status. Not reg-
istered to the mobile
network, no (U)SIM card
inserted or no network
service available.
Green solid Registered to the mobile
network.
Green
blinking
Connected to the mobile
network and data is
being transferred.
Wi-Fi
Blue solid Wi-Fi is active.
Blue blinking WPS is active.
off Wi-Fi is off or your
device is in sleep mode.
4
Getting to Know Your Device
SMS
Blue solid You have unread
messages.
Blue blinking You have new
messages.
off No unread messages.
Battery
Red solid /
blinking
The battery is low.
Please charge the
battery.
Green blinking
The battery is being
charged or in standby
mode.
Green solid The battery level is
middle or high.
off
Your device is not being
charged, or the battery
is not inserted.
5
Getting to Know Your Device
Connection Scenarios
The device can access the Internet in two ways and
it allows multiple clients to surf on the Internet at the
same time. The following gures are for your reference
only.
• 3G Mode: A (U)SIM card can be used to access
the Internet.
•Internet Wi-Fi Mode: Your device can be connect-
ed to a WLAN device (such as a hotspot device or
wireless router) through Wi-Fi to access the Inter-
net. The WLAN device must be already connected
to the Internet.
NOTE: Your device and the WLAN device must be
in different subnets.
6
Getting to Know Your Device
Installing Your Device

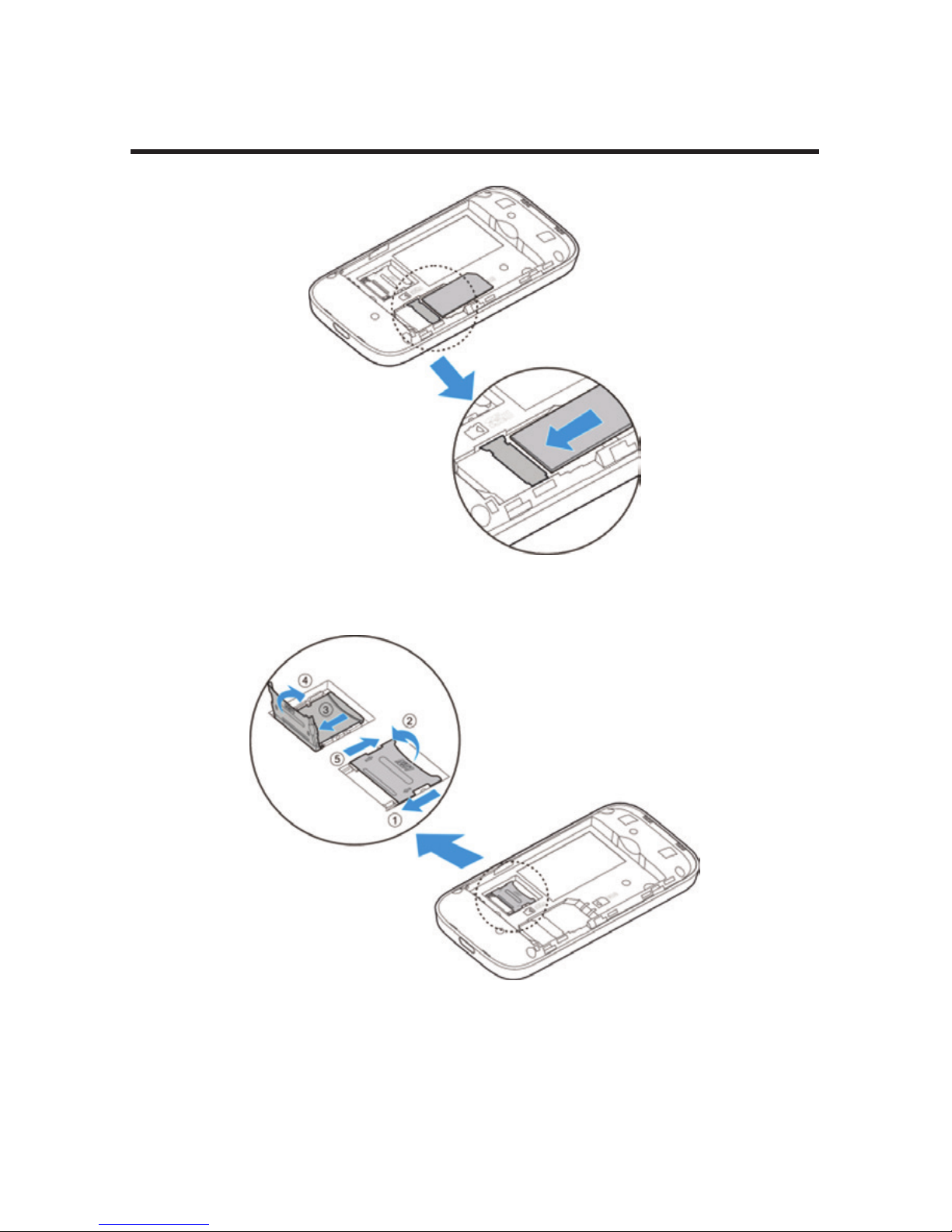

1. Slide the back cover and remove it.
NOTE: Do not remove the cover rudely.
2. Install a (U)SIM card to the (U)SIM card slot.
WARNING!
Your device does not support the micro-SIM and
nano-SIM card or any other non-standard SIM cards. To
avoid damaging the device, do not use those cards or
any card holders.
7
Installing Your Device
3. Install the microSDHC card if necessary.
8
Installing Your Device
4. Install the battery.
5. Close the back cover.
9
Connecting to Your Device
Using Wi-Fi
1. Power on your device.
2. Make sure your computer or other client devices
have enabled Wi-Fi, and search for available
wireless networks.
NOTE:
Refer to your Wi-Fi-enabled client device manual for
further details on how to search for wireless networks.
If you use a computer, you need to set your computer
to obtain an IP address automatically.
3. Select the Wi-Fi name (SSID) of your device, and
click Connect.
4. Enter the Wi-Fi password if necessary, and click
OK.
NOTE:
Refer to the chapter Getting to Know the Wi-Fi SSID
and Password to get the default Wi-Fi SSID and
password.
5. Wait until the client device is connected to your
device successfully.
10
Connecting to Your Device
Using a USB Cable
1. Connect a computer to your device with a USB
cable.
2. Power on your device. The operating system
detects and identies new hardware, and automati-
cally installs the hardware.
NOTE:
If the system does not automatically launch instal-
lation, you can click the device installation icon in
My Computer to install the software.
3. Wait until the computer is connected to your device
successfully.
Getting to Know the Wi-Fi SSID and
Password
You can view the label on the device to get the default
Wi-Fi SSID and password.
