ZyXEL Communications DMA-1000W Manuale utente

DMA-1000W

802.11 Wireless Digital Media Adaptor

Quick Start Guide

Version 1.00

3/2007

Edition 1

CONTENTS

ENGLISH 2

DEUTSCH 20

ESPAÑOL 42

FRANÇAIS 62

ITALIANO 82

РУССКИЙ 102

ENGLISH

Use your DMA-1000W to play audio, video and photo files on your TV instead of your

computer monitor. The files can be on computers or a USB memory stick or hard drive.

The following figure shows the DMA-1000W connected to an Ethernet switch (S) and a TV.

Computers A~C are connected to the Ethernet switch. In this figure, the DMA-1000W lets

the TV play files stored on wireless clients A and B.

"If you are using Windows Vista, see the Windows Vista Media Server

appendix in the Users Guide (on the included CD) to let the DMA-1000W

play files stored on your computer.

Install the included media server software to let the DMA-1000W play files stored on your

computer. This software requires Windows XP. If you do not have Windows XP or do not

want to install software, you can put your files on a USB stick. The USB stick connects

directly to the DMA-1000W without need of the media server software or a computer.

You need an HDMI cable if you will connect

the DMA-1000W to a HDMI connector on

your TV.

USB

DMA-1000W

ENGLISH

Use the following sections in this guide (in the listed order) to view files on computers or on

a USB stick.

1 Install the Media Server Software

You must install the media server software on each computer that you will use to share

files with the DMA-1000W.

"You can only install the media server software on a Windows XP computer.

See Requirements for more details.

1Put the CD into your CD-ROM. Click Setup in the following screen.

VIf this screen does not display, locate and double-click setup.exe.

Viewing Files on Computers

1 Install the Media Server Software

2 Connect Your DMA-1000W

3 Configure Wireless Settings

4 Share Your Files

5 Play Your Files

Viewing Files on a USB Stick

2 Connect Your DMA-1000W

5 Play Your Files

ENGLISH

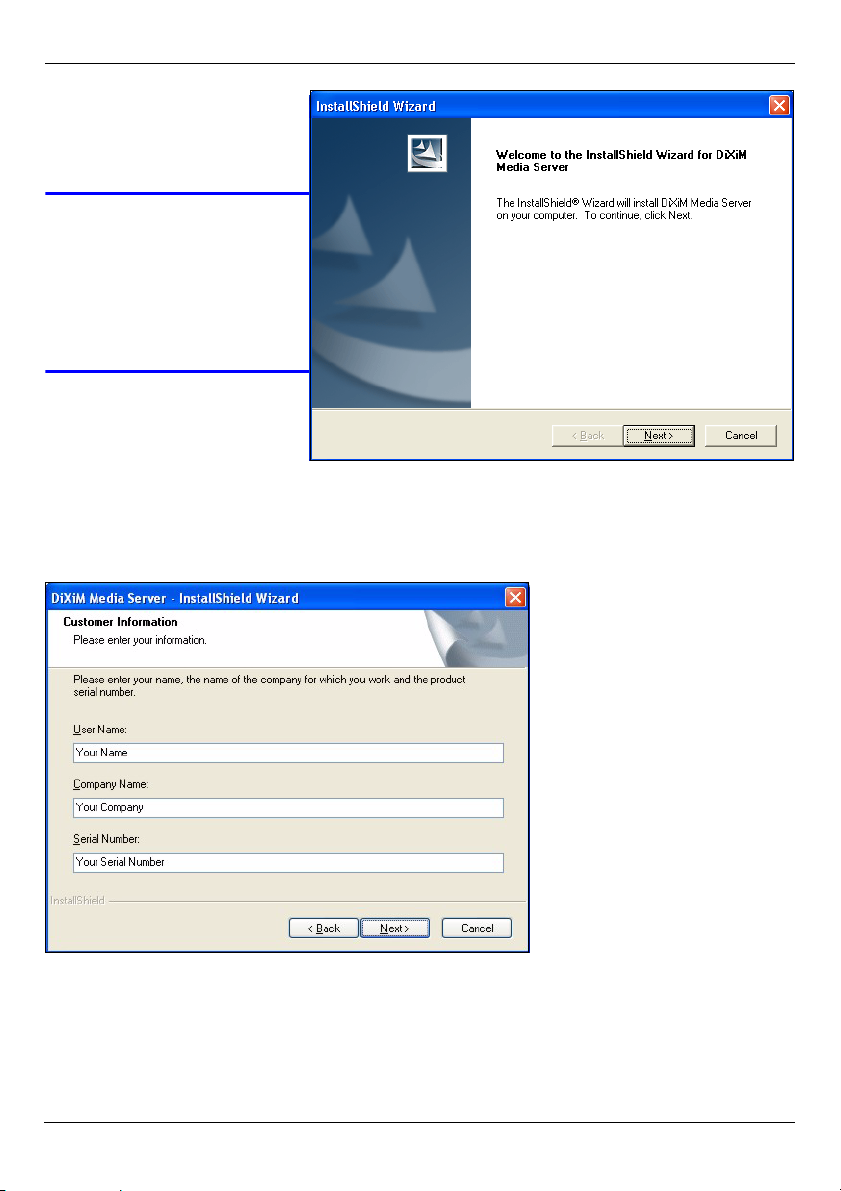

2The installation wizard

appears. Follow the

directions to install the

software.

VSee the

requirements

section if you have

trouble installing or

using the media

server.

3Enter your information in

this screen. Enter a user

name (up to 64 ASCII

characters recommended). The company name is optional (up to 64 ASCII characters

recommended). Click Registration in the screen that opened when you inserted the

CD-ROM (see page 3). Then click Media Server Serial Number to open a text file with

a serial number. Copy and paste the serial number into the Serial Number field in the

screen shown here.

ENGLISH

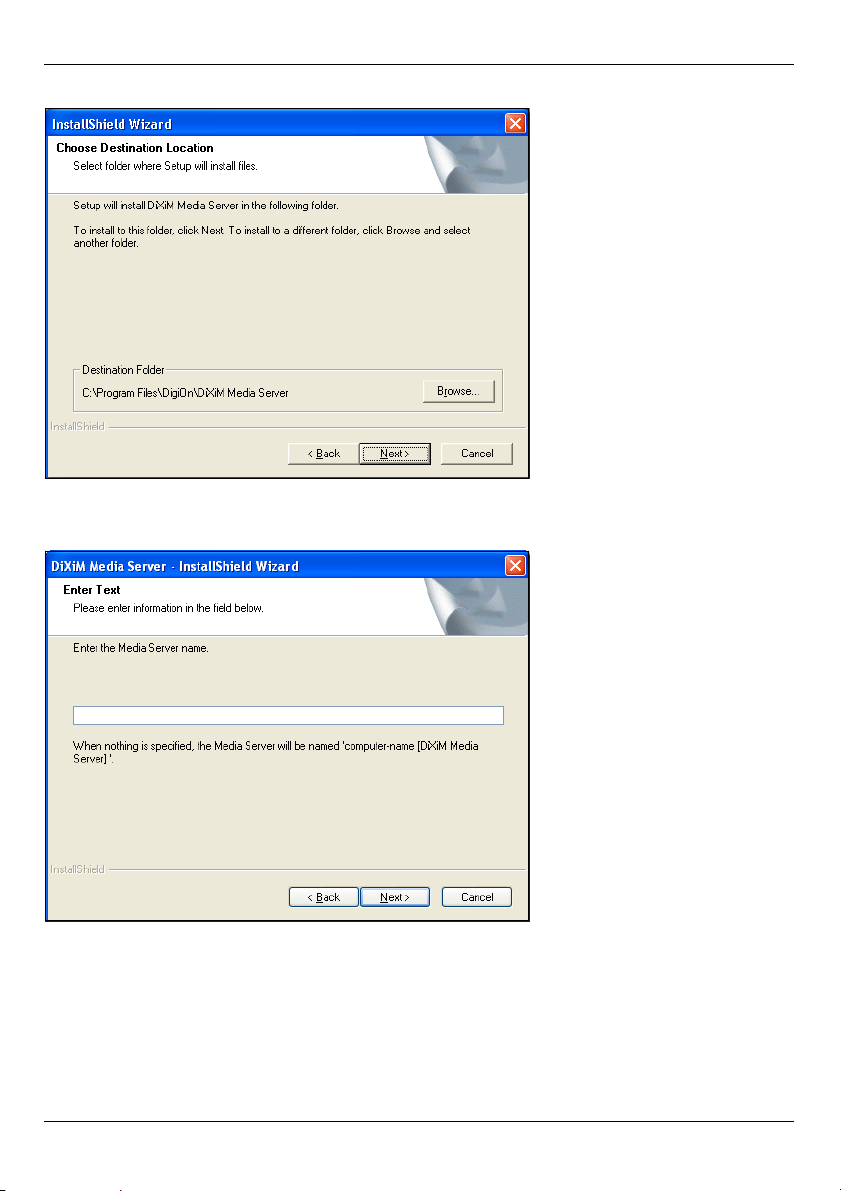

4Select a destination for the software (or just leave the default).

5You can specify a name for the media server that the DMA-1000W displays on your TV.

It is helpful to use unique names if you install the media server on multiple computers.

Up to 34 ASCII characters recommended.

ENGLISH

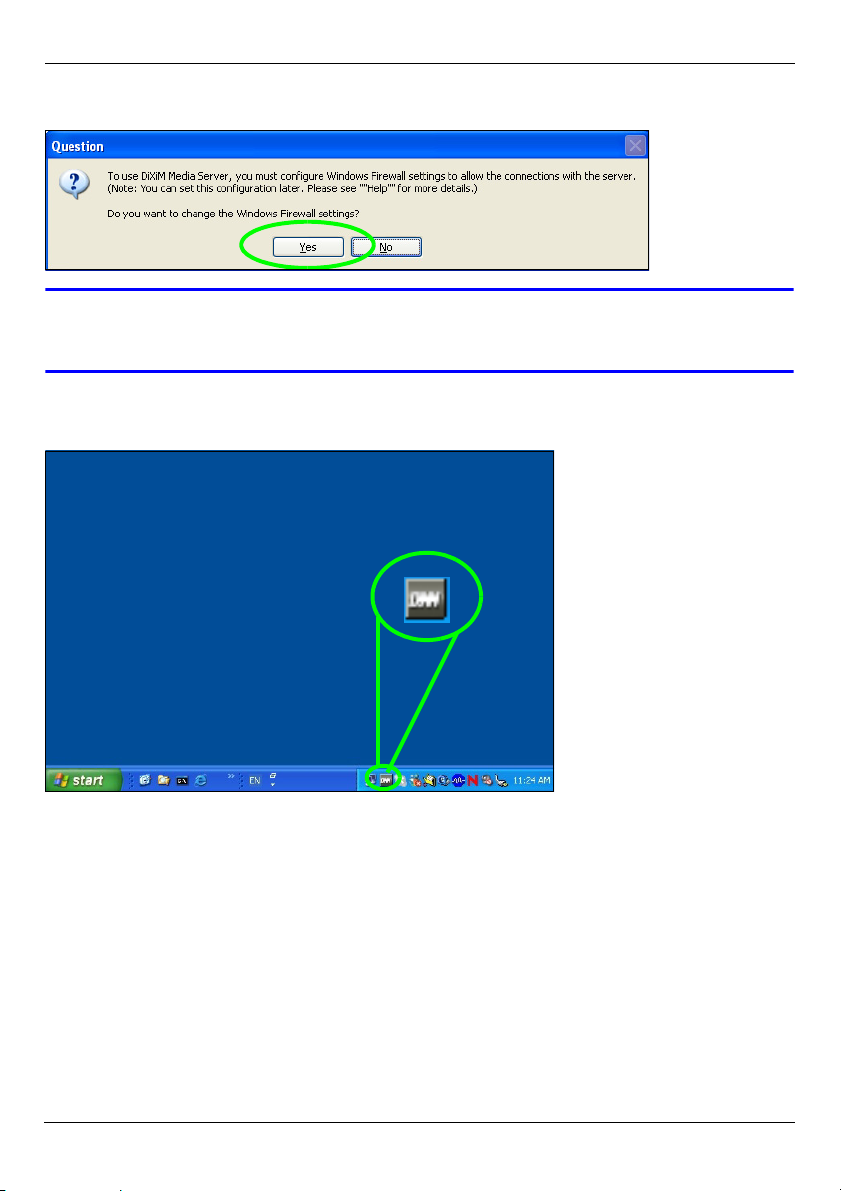

6If you see a screen asking about configuring the Windows XP firewall, click Yes. This

allows the DMA-1000W to access the files on your computer that you share.

VRefer to the User’s Guide if your computer has another software firewall

(like ZoneAlarm for example) that you need to configure.

7This icon displays in the system tray (usually in the bottom right corner) after the

installation is done. Double-click the icon to open the server configuration screens.

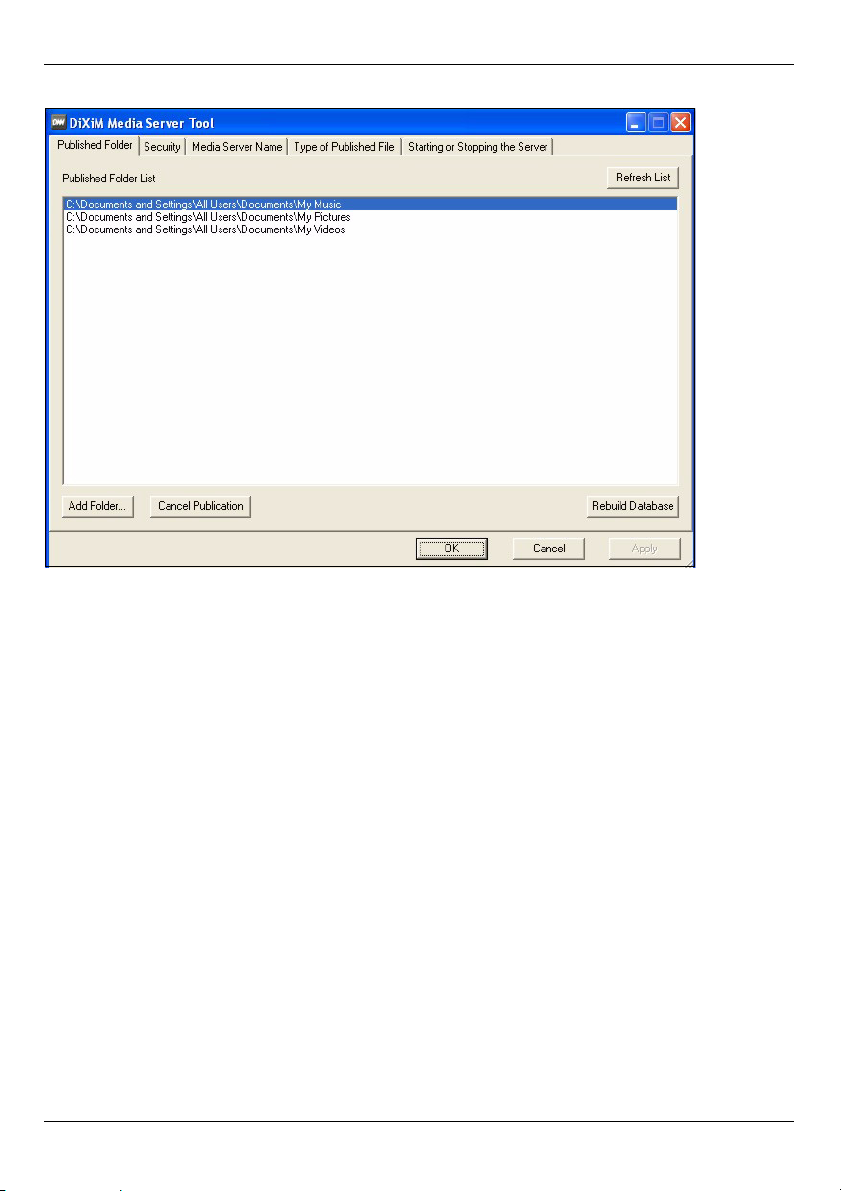

8The Published Folder List lists folders of files that your computer will share with the

DMA-1000W.

•YourMy Music, My Pictures and My Videos folders are included by default.

• To share other files, click the Add Folder button and browse to select a folder that

you want to share.

ENGLISH

• To remove a folder from the list, click it and then click Cancel Publication.

ENGLISH

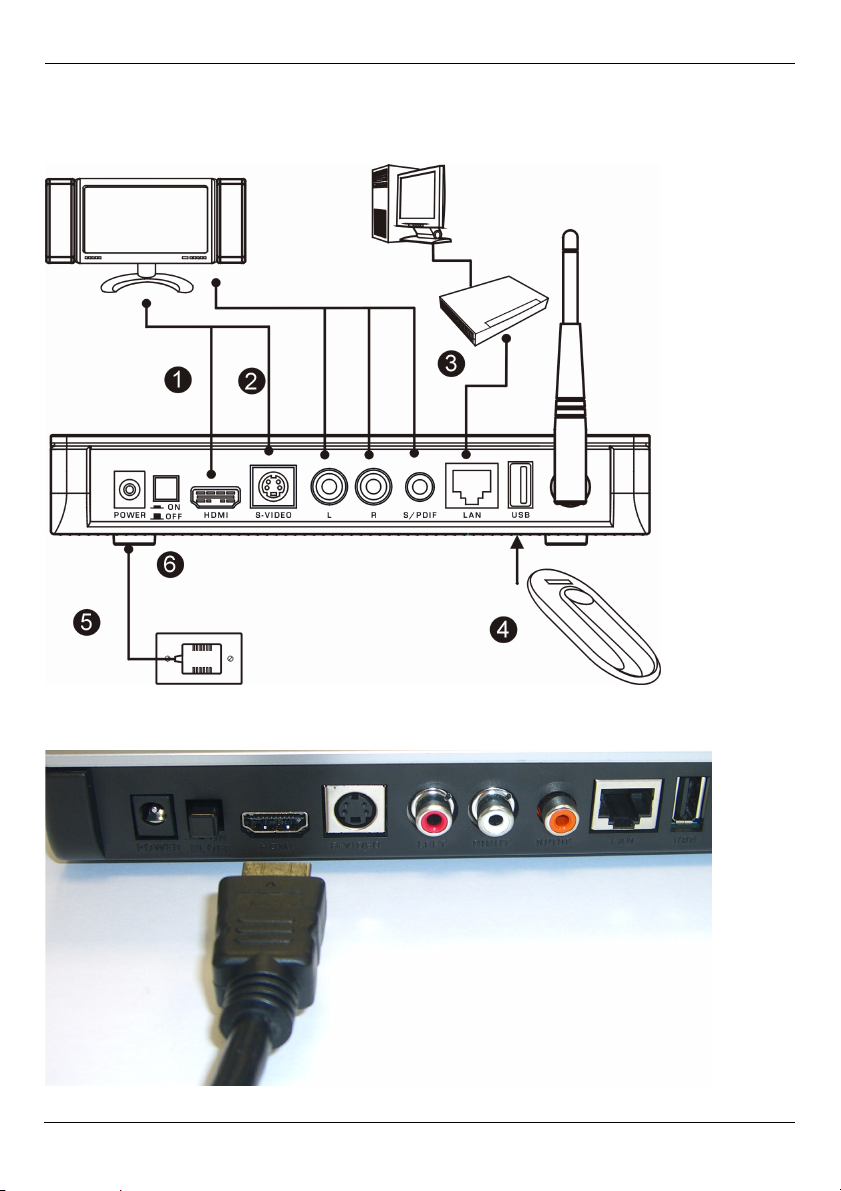

2 Connect Your DMA-1000W

Turn off your TV before you connect the DMA-1000W.

1If your TV has a HDMI connector, use an HDMI cable to connect the DMA-1000W’s

HDMI connector (shown) to the TV.

ENGLISH

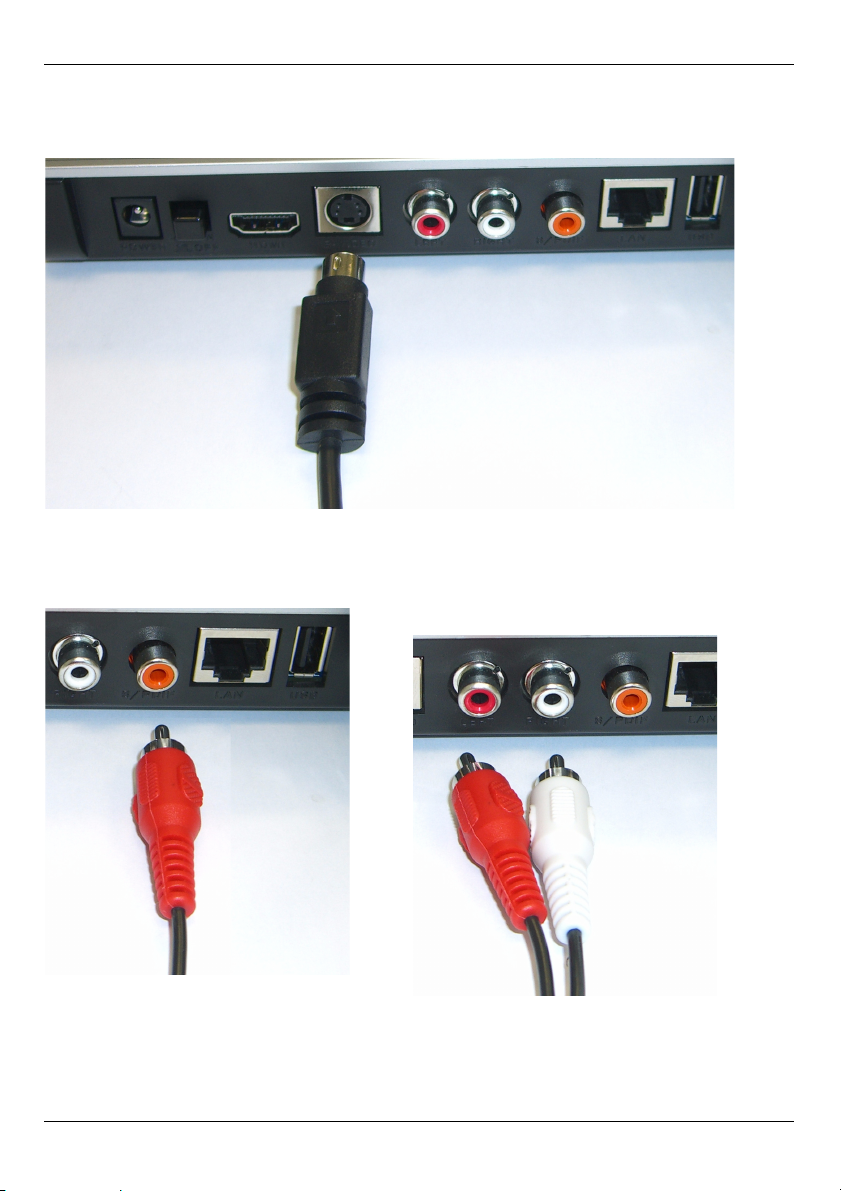

2If your TV does not have an HDMI connector:

AUse an S-video cable to connect the DMA-1000W’s S-VIDEO connector (shown) to

the TV.

BIf your TV or audio system has a

coaxial S/PDIF jack, use an RCA

cable to connect it to the DMA-

1000W’s S/PDIF jack (shown).

CIf your TV or audio system does not

have a coaxial S/PDIF jack, use RCA

cables to connect it to the DMA-

1000W’s LEFT and RIGHT jacks

(shown).

ENGLISH

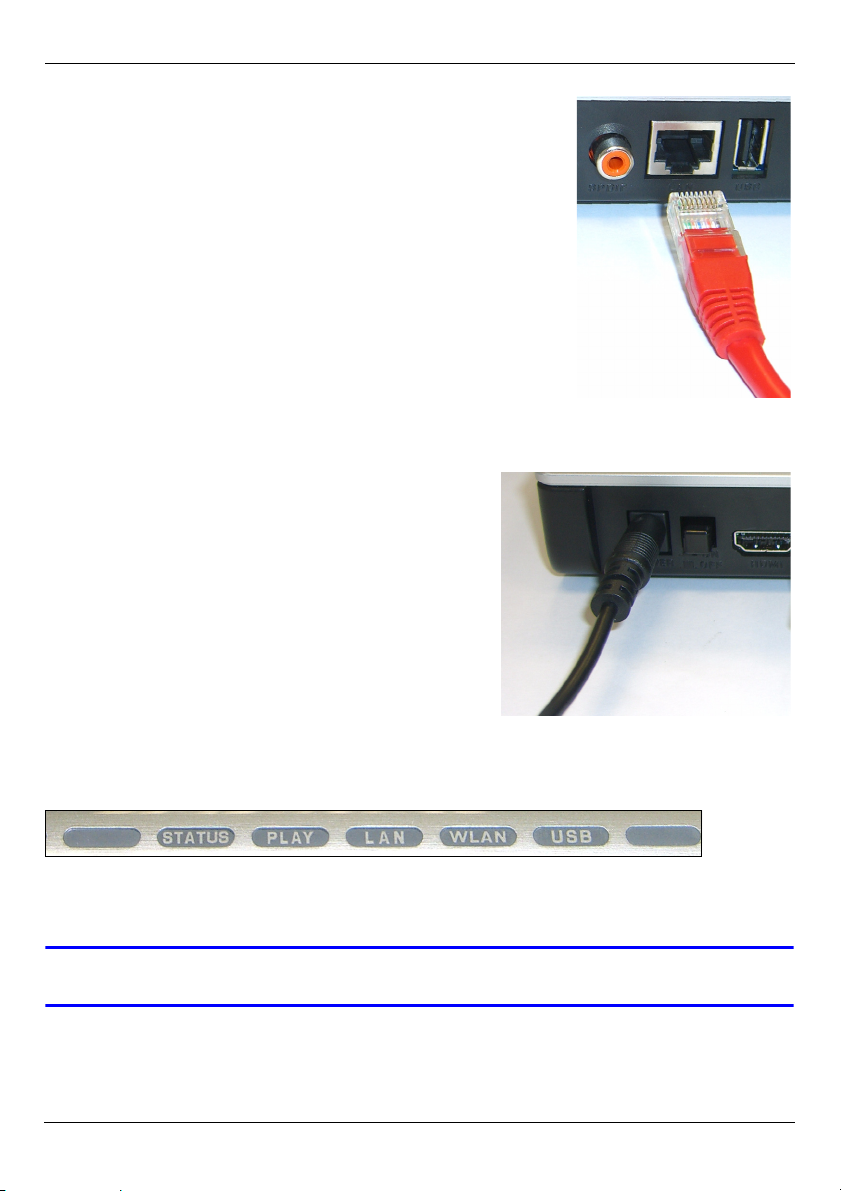

2.1 Check the LEDs (Lights)

Look at the front of the device.

1The STATUS LED comes on.

2The LAN light and/or the USB light turn on.

VCheck your connections if the lights do not come on.

3Use this step if you want to use a wired connection instead

of a wired connection (the DMA-1000W only supports one

type at a time). Refer to the User’s Guide to configure

wired LAN settings. Skip to the next step if you will use a

wireless connection. Connect the DMA-1000W’s LAN port

if your content files are on your computer. The media

server software should already be installed. Skip to the

next step if you will only play files from a USB stick.

• Use the straight-through Ethernet cable (gray at the

time of writing) to connect to an Ethernet switch, router

or hub.

• Use the cross-over Ethernet cable (red at the time of

writing) to connect directly to your computer.

4If you want to play files from a USB memory stick, connect

it to the DMA-1000W’s USB port. This is optional if you use the wired or wireless

connection to connect to your computer.

5Connect the POWER socket to a power source

using only the included power adaptor.

6Point the antenna towards the ceiling. You will

also need to configure the wireless settings to

have the DMA-1000W connect to your computer

or wireless Access Point (AP). See section 3.

7Your computer should already be turned on. Turn

on the TV and the DMA-1000W.
