ENGLISH

Overview

The ZyWALL 2 Plus is a firewall with VPN, bandwidth management, content filtering and

many other features. You can use it as a transparent firewall and not reconfigure your

network nor configure the ZyWALL’s routing features. This guide covers the initial

connections and configuration needed to start using the ZyWALL in your network.

See the User’s Guide for more information on all features.

You may need your Internet access information.

This guide is divided into the following sections.

1 Hardware Connections

You need the following.

1Hardware Connections

2Accessing the Web Configurator

3Bridge Mode

4Internet Access Setup and Product

Registration

5Firewall

6VPN Rule Setup

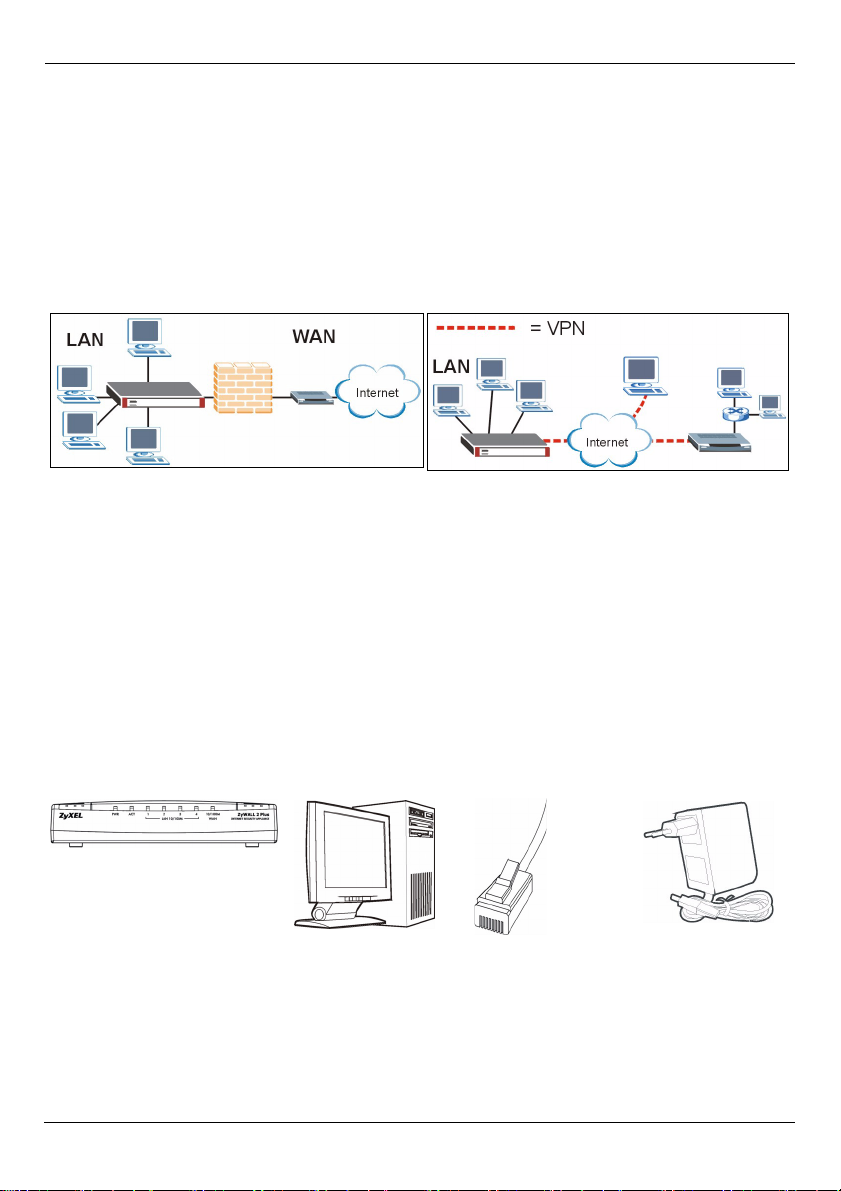

ZyWALL Computer Ethernet Cables Power Adaptor

ENGLISH

Do the following to make hardware connections for initial setup.

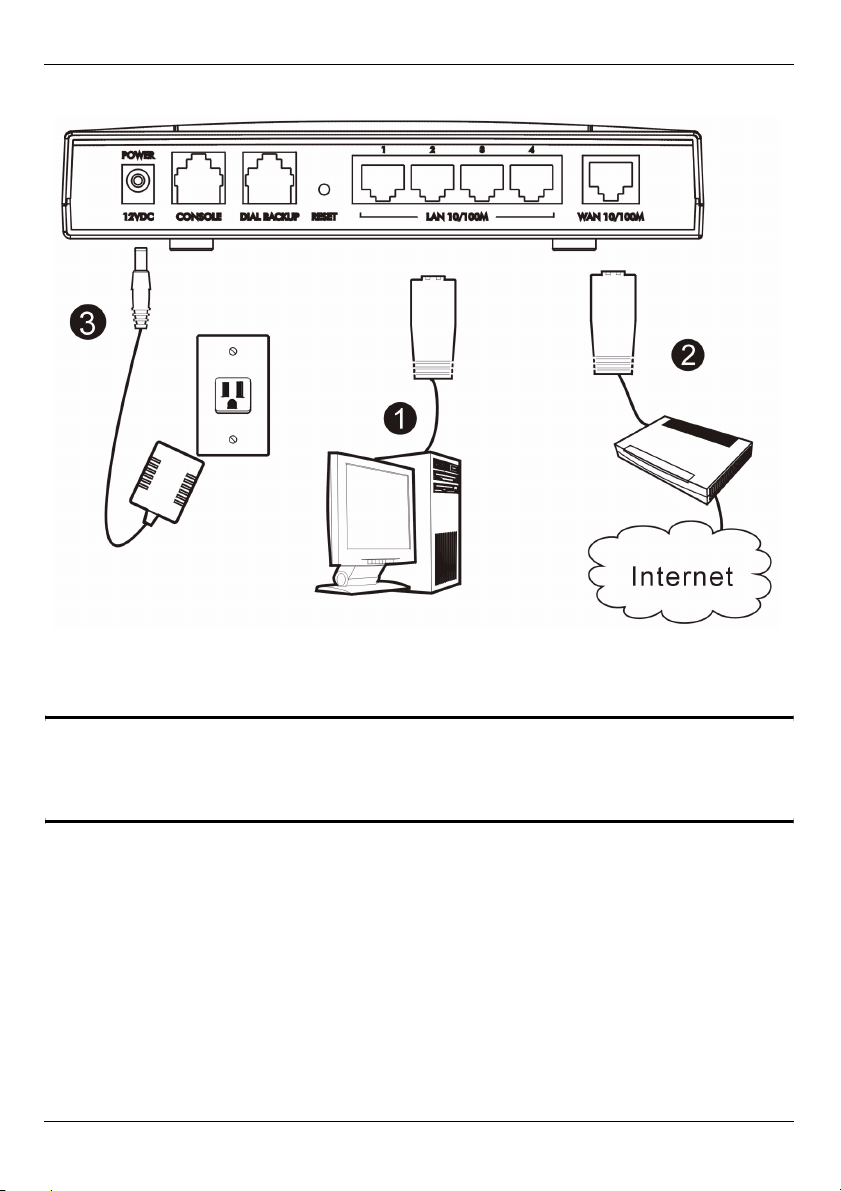

1Use an Ethernet cable to connect a LAN port to a computer.

2Use an Ethernet cable to connect the WAN port to your broadband modem or router.

"Use the blue console cable if you want to connect the CONSOLE port to

your computer. Use the black dial backup cable if you want to connect the

DIAL BACKUP port to an analog modem.

3Use the included power adaptor to connect the power socket (on the rear panel) to a

power outlet.

ENGLISH

4Look at the front panel. The PWR LED blinks during start-up and stays green once the

ZyWALL is ready. The ACT, LAN and WAN LEDs turn on and stay on if the

corresponding connections are properly made.

VIf none of the LEDs are on, check your connections, and inspect your

cables for damage. Make sure that you have the power adaptor connected

to the ZyWALL and plugged in to an appropriate power source. Make sure

the power source is turned on. If the LEDs are still off, contact your local

vendor.

2 Accessing the Web Configurator

Use this section to configure the WAN interface for Internet access.

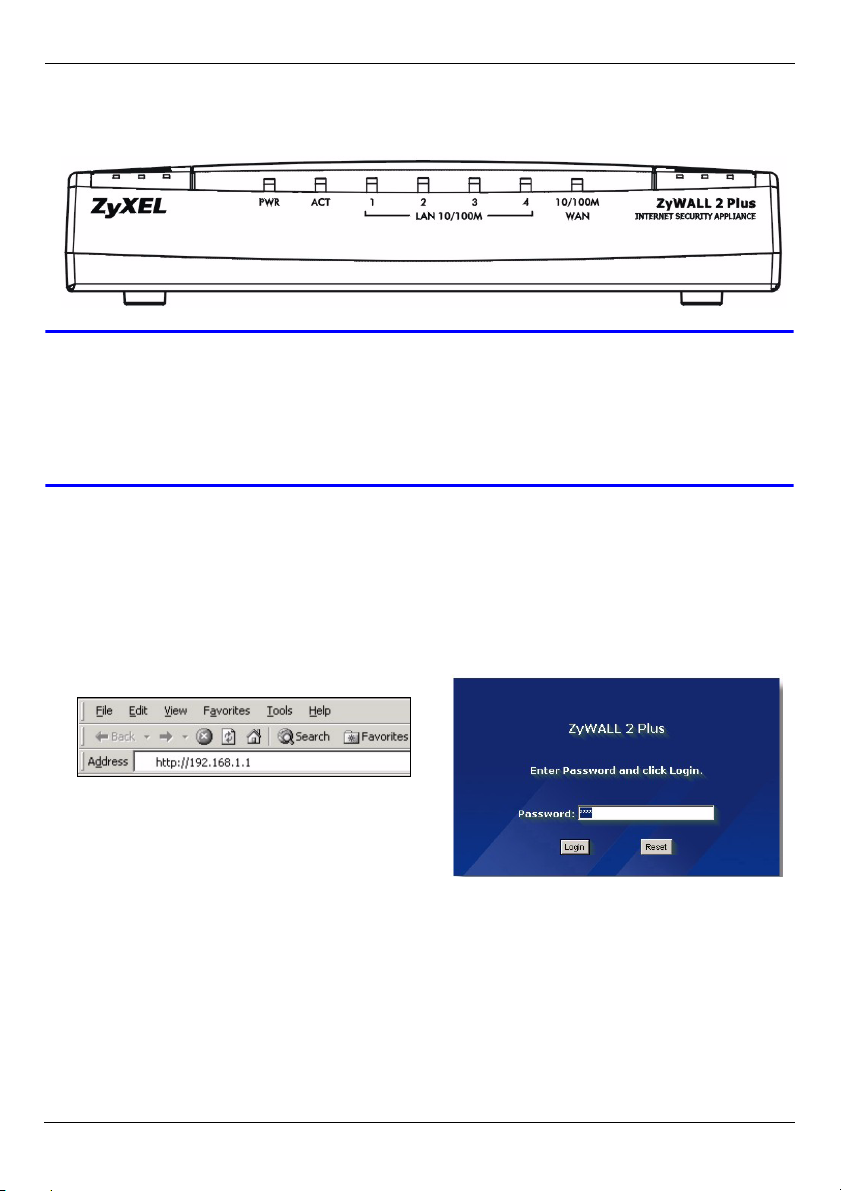

1Launch your web browser. Enter

192.168.1.1 (the ZyWALL’s default IP

address) as the address.

2Click Login (the default password 1234

is already entered).

ENGLISH

VIf the login screen does not display, check your browser’s security settings

and make sure your computer’s Ethernet card is installed and functioning

properly.

Your computer should be also set to get an IP address automatically from a

DHCP server. See Set Up Your Computer’s IP Address for more

information.

VIf you changed the password and have forgotten it, you need to return the

ZyWALL to the defaults (password is 1234, LAN IP address is 192.168.1.1,

etc.). Press the RESET button (on the rear panel) until the PWR LED starts

to blink, then release it.

5The HOME screen opens.

The ZyWALL is in router mode by default. Continue to the next step if you want to use

routing features such as NAT, DHCP and VPN.

Go to Section 3if you prefer to use the ZyWALL as a transparent firewall.

6Check the network status table. If the WAN status is not Down and there is an IP

address, go to Section 5.

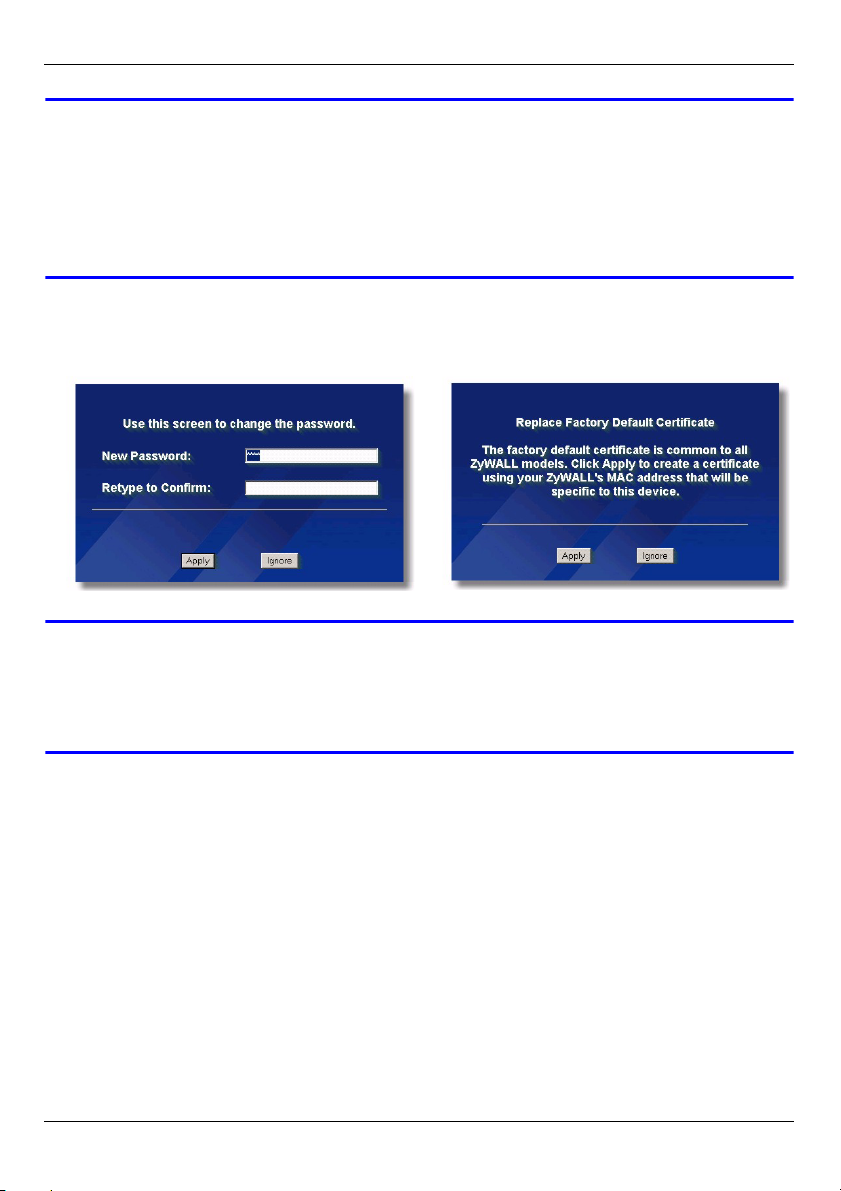

3Change the login password by entering a

new password and clicking Apply.

4Click Apply to replace the ZyWALL’s

default digital certificate.

ENGLISH

If the WAN status is Down (or there is not an IP address), click the wizard icon and use

Section 4to configure the WAN.

3 Bridge Mode

When you set the ZyWALL to bridge mode, it functions as a transparent firewall. Do the

following to set the ZyWALL to bridge mode.

4 Internet Access Setup and Product Registration

1Click the wizard icon in the HOME screen and then the Internet Access Setup link to

open the Internet access wizard.

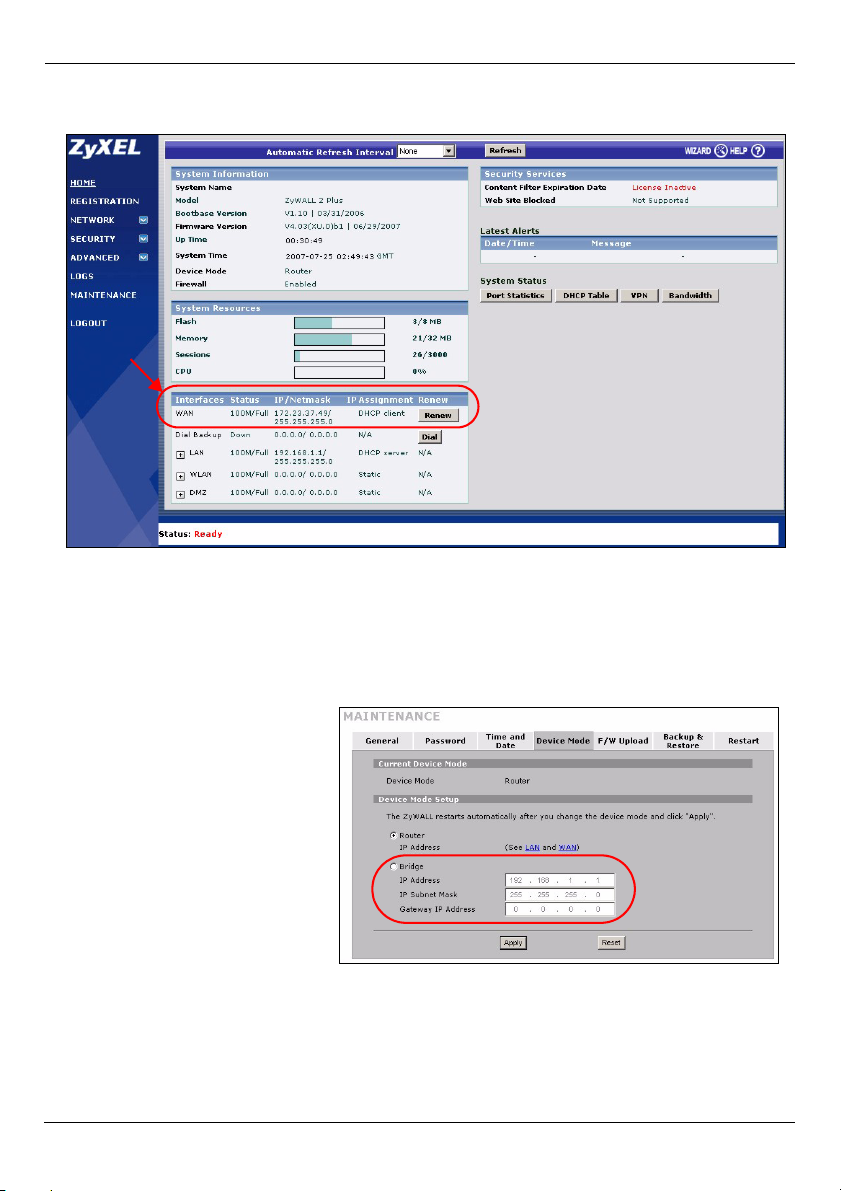

1Click MAINTENANCE in the

navigation panel and then

Device Mode.

2Select Bridge and configure a

(static) IP address, subnet

mask and gateway IP

address. These apply to the

ZyWALL’s LAN and WAN

interfaces.

3Click Apply. The ZyWALL

restarts.

ENGLISH

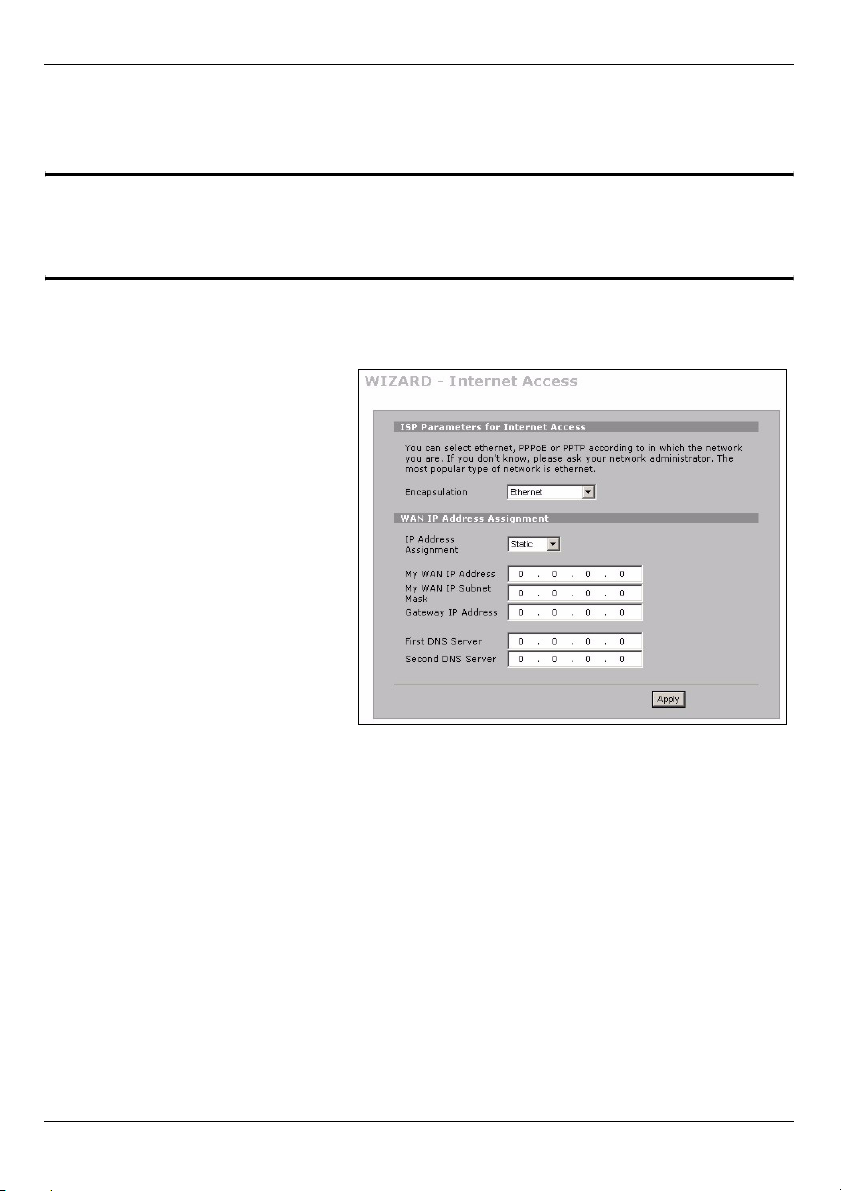

Enter the Internet access information exactly as given to you.

If you were given an IP address to use, select Static in the IP Address Assignment drop-

down list box and enter the information provided.

"The fields vary depending on what you select in the Encapsulation field.

Fill them in with the information provided by the ISP or network

administrator.

Click Apply when you are done.

•PPP over Ethernet or PPTP Encapsulation

Select Nailed-Up when you want your connection up all the time (this could be expensive

if your ISP bills you for Internet usage time instead of a flat monthly fee).

•Ethernet Encapsulation

Configure a Roadrunner service in

the NETWORK WAN screens (use

the WAN tab).

ENGLISH

To not have the connection up all the time, specify an idle time-out period (in seconds) in

Idle Timeout.

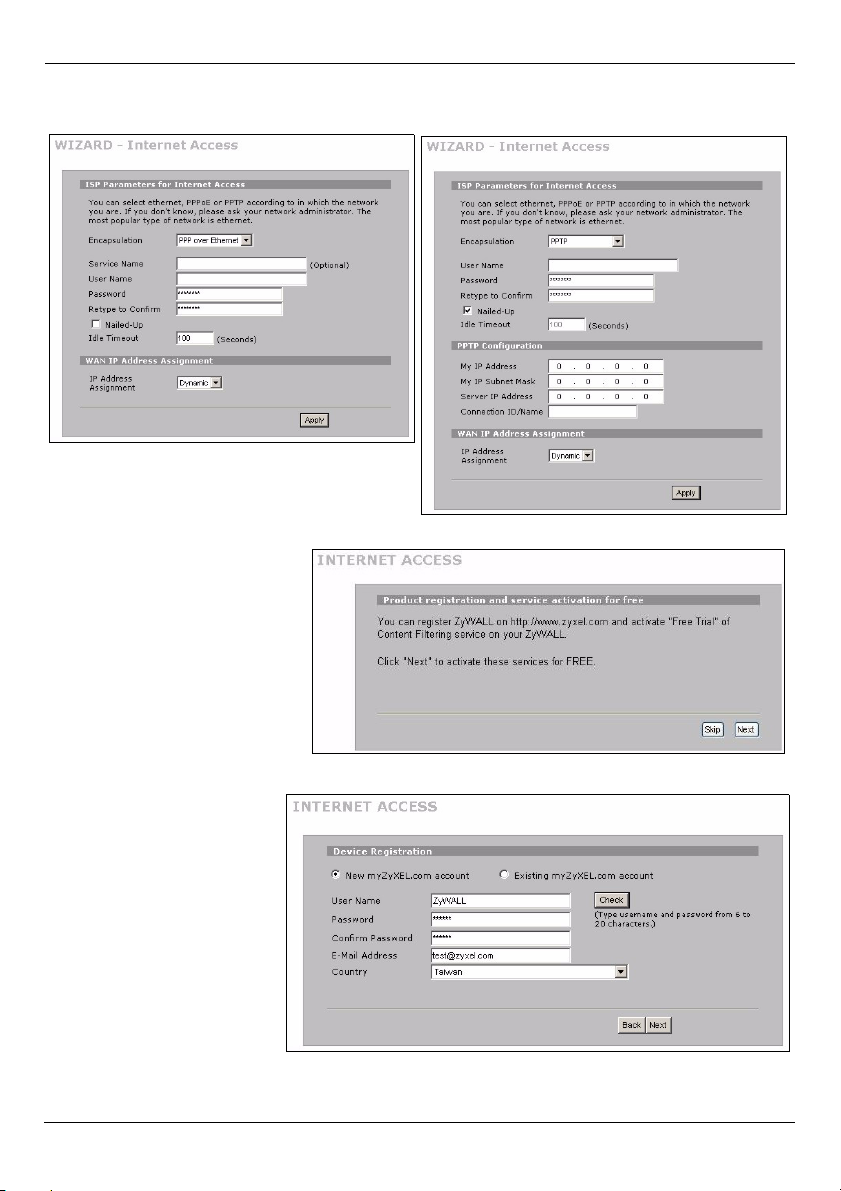

2Click Next to display the

screen where you can

myZyXEL.com (ZyXEL’s

online services center)

and activate the free

content filtering trial

application. Otherwise,

click Skip and then Close

to complete Internet

access setup.

3If you already have an

account at

myZyXEL.com, select

Existing

myZyXEL.com

account and enter

account information.

Otherwise, select New

myZyXEL.com

account and fill in the

fields below to create a

ENGLISH

new account and register your ZyWALL. Click Next.

4Wait for the registration

progress to finish.

5The following screen

displays if the registration

was not successful. Click

Return to go back to the

Device Registration screen

and check your settings.

6Click Close to leave the

wizard screen when the

registration and

activation are done.

"If you want to activate a standard service with your iCard’s PIN number

(license key), use the REGISTRATION Service screen. See the user’s

guide for details.

VIf you cannot access the Internet, check the ZyWALL’s connection to the

Ethernet jack with Internet access. Make sure the Internet gateway device

(such as a DSL modem) is working properly. Click WAN in the navigation

panel to verify your settings.

ENGLISH

5 Firewall

You can use the ZyWALL without configuring the firewall.

The ZyWALL’s firewall is pre-configured to protect your LAN from attacks from the Internet.

By default, no traffic can enter your LAN unless a request was generated on the LAN first.

6 VPN Rule Setup

A VPN (Virtual

Private Network)

tunnel gives you

a secure

connection to

another computer

or network.

A gateway policy

identifies the

IPSec routers at

either end of a

VPN tunnel.

A network policy specifies which devices (behind the IPSec routers) can use the VPN

tunnel.

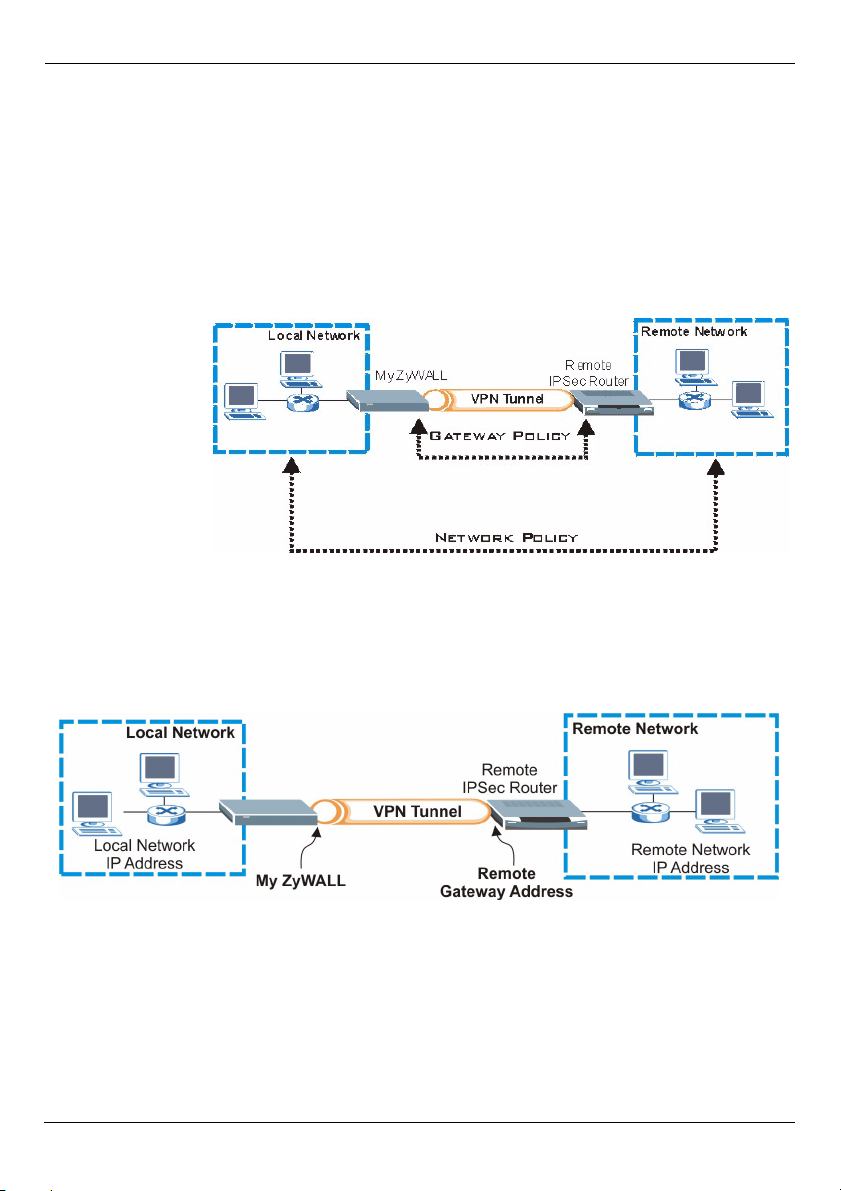

This figure helps explain the main fields in the wizard screens.

1Click the wizard icon in the HOME screen and then the VPN Setup link to open the VPN

wizard.
