ZyXEL Communications ADSL 2+ Security Gateway Manuale utente

ZyWALL 2 Plus

Internet Security Appliance

Quick Start Guide

Version 4.00

4/2006

Edition 1

Table of Contents

ENGLISH 2

DEUTSCH 16

ESPAÑOL 32

FRANÇAIS 46

ITALIANO 60

РУССКИЙ 74

SVENSKA 90

繁體中文 104

ENGLISH

Overview

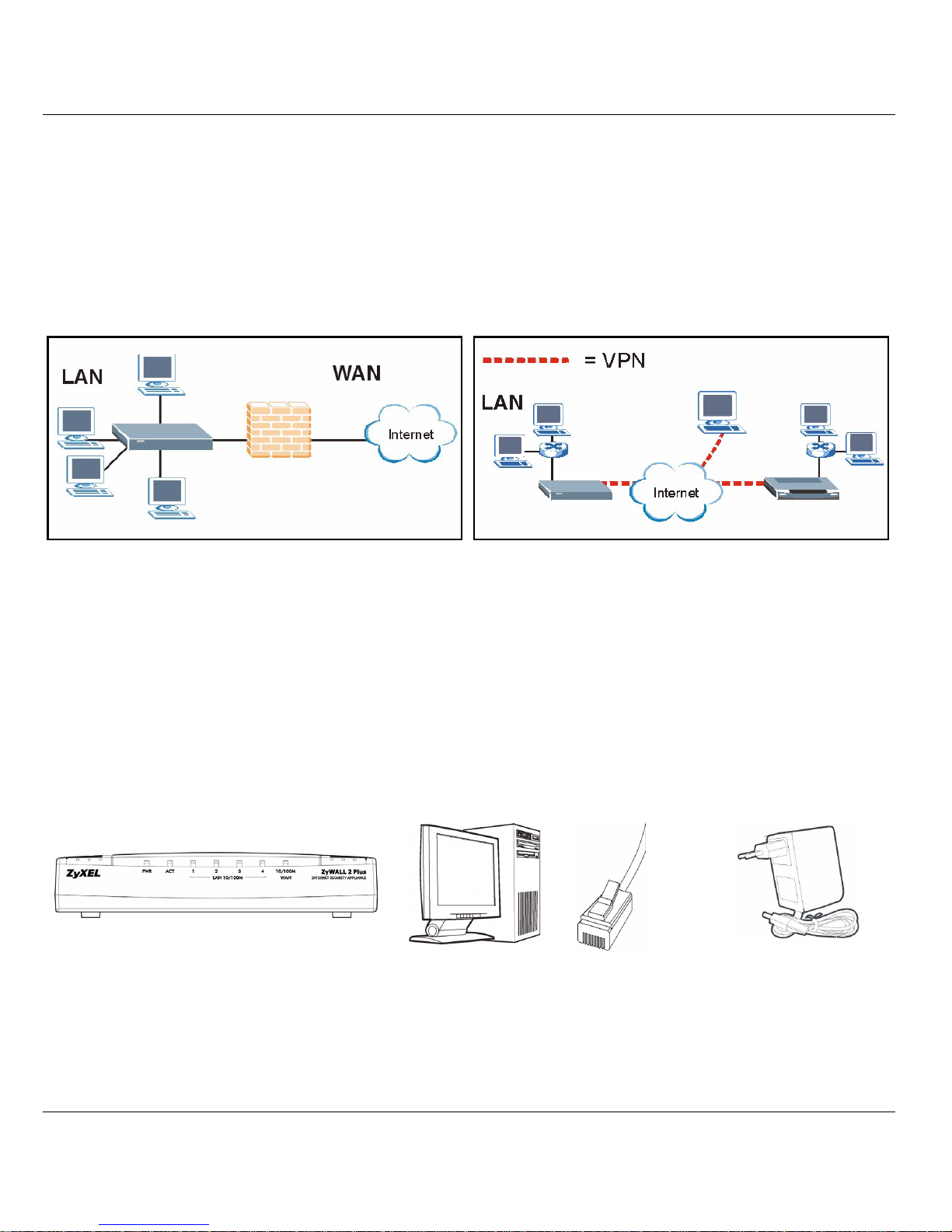

The ZyWALL 2 Plus is a firewall with VPN, bandwidth management, content filtering and many other features.

You can use it as a transparent firewall and not reconfigure your network nor configure the ZyWALL’s routing

features. This guide covers the initial connections and configuration needed to start using the ZyWALL in your

network.

See the User’s Guide for more information on all features.

You may need your Internet access information.

This guide is divided into the following sections.

1 Hardware Connections

You need the following.

1Hardware Connections

2Accessing the Web Configurator

3Bridge Mode

4Internet Access Setup and Product Registration

5NAT

6Firewall

7VPN Rule Setup

8Troubleshooting

ZyWALL Computer Ethernet Cables Power Adaptor

ENGLISH

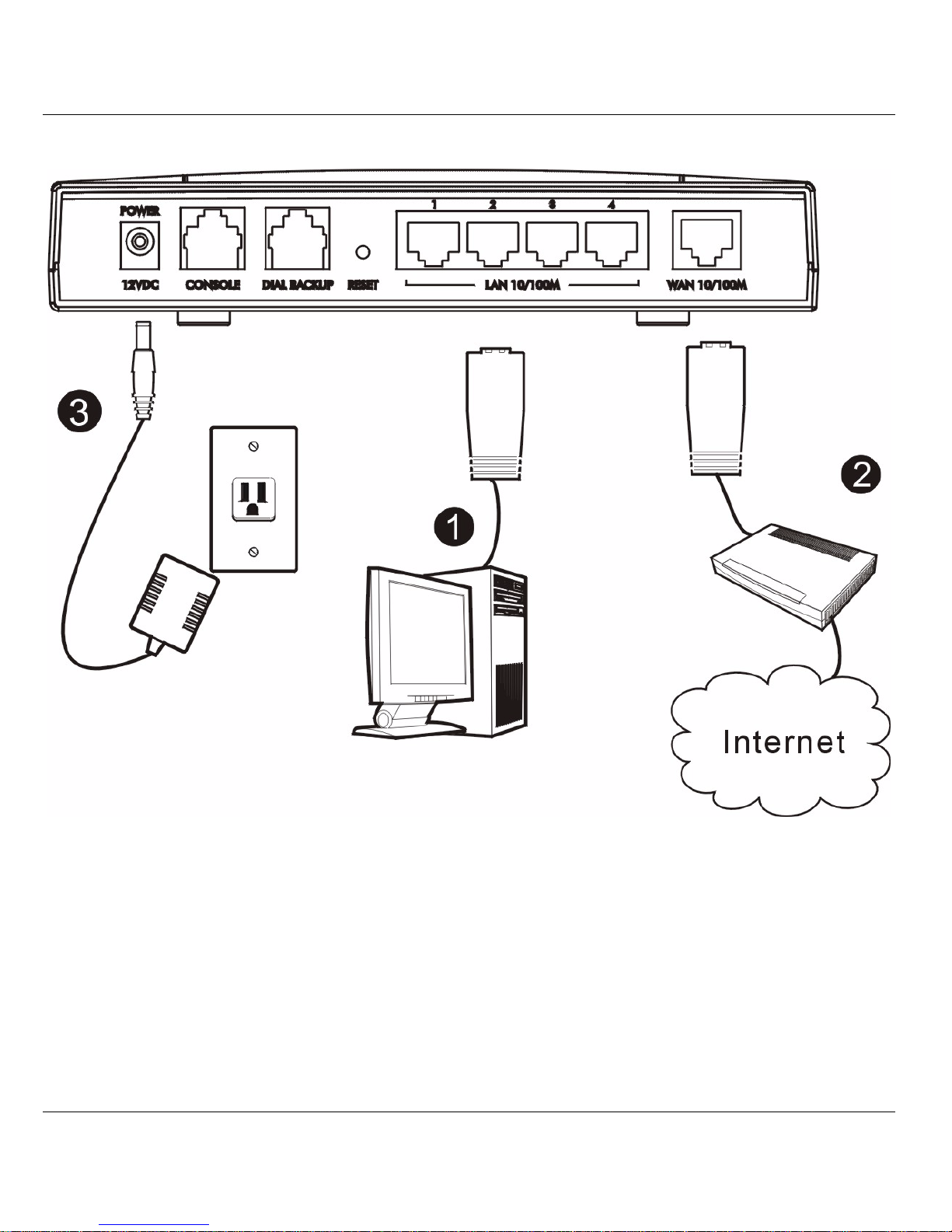

Do the following to make hardware connections for initial setup.

1Use an Ethernet cable to connect a LAN port to a computer.

2Use another Ethernet cable to connect the WAN port to an Ethernet jack with Internet access.

Note: Use the blue console cable if you want to connect the CONSOLE port to your computer. Use the

black dial backup cable if you want to connect the DIAL BACKUP port to an analog modem.

ENGLISH

3Use the included power adaptor to connect the power socket (on the rear panel) to a power outlet.

4Look at the front panel. The PWR LED turns on. The ACT, LAN and WAN LEDs turn on and stay on if the

corresponding connections are properly made.

2 Accessing the Web Configurator

Use this section to configure the WAN interface for Internet access.

1Launch your web browser. Enter 192.168.1.1 (the

ZyWALL’s default IP address) as the address.

If the login screen does not display, see Section

7.1 to set your computer’s IP address.

2Click Login (the default password 1234 is already

entered).

3Change the login password by entering a new

password and clicking Apply.

4Click Apply to replace the ZyWALL’s default

digital certificate.

ENGLISH

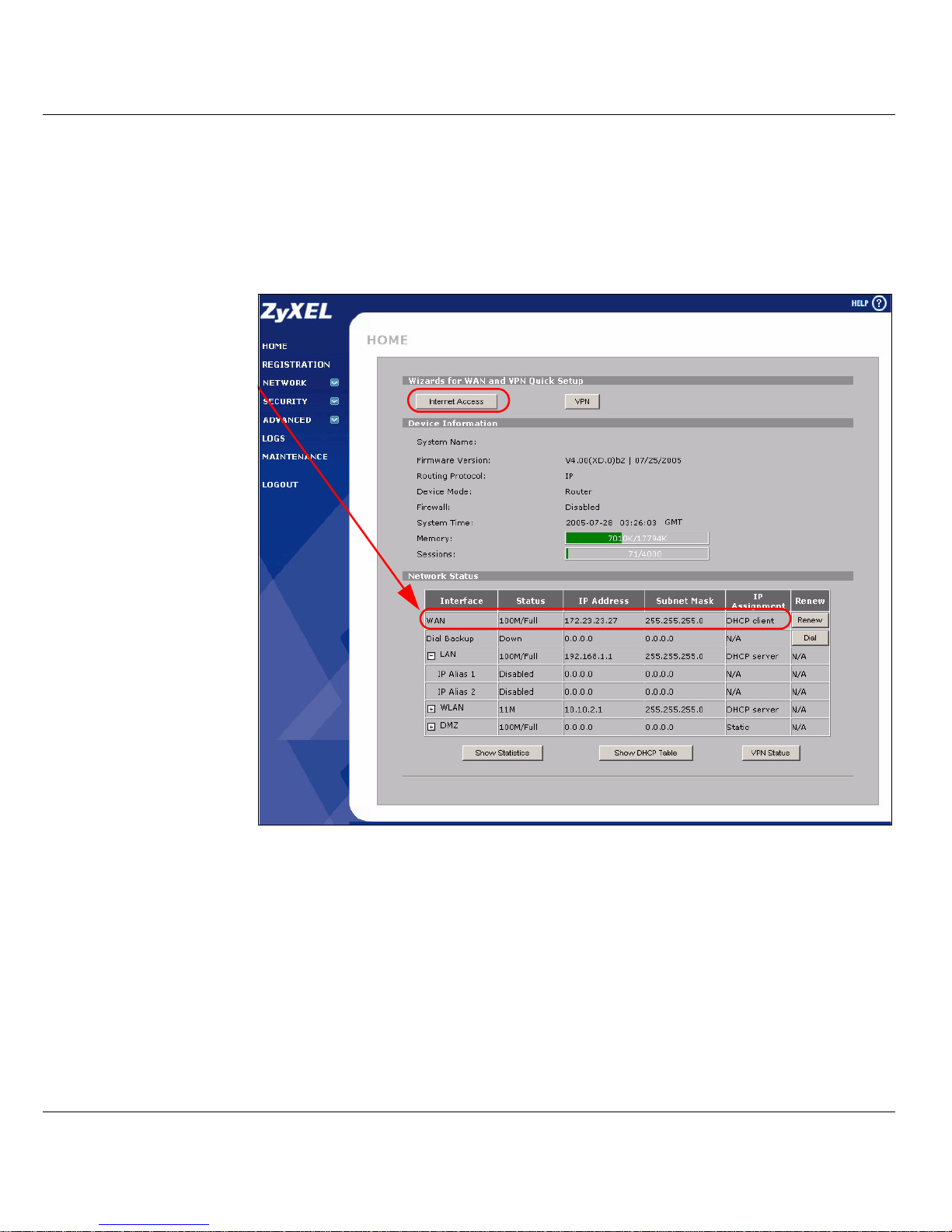

5The HOME screen opens.

The ZyWALL is in router mode by default. Continue to the next step if you want to use routing features

such as NAT, DHCP and VPN.

Go to Section 3 if you prefer to use the ZyWALL as a transparent firewall.

3 Bridge Mode

When you set the ZyWALL to bridge mode, it functions as a transparent firewall. Do the following to set the

ZyWALL to bridge mode.

6Check the Network

Status table. If the

WAN status is not

Down and there is an

IP address, go to

Section 5.

If the WAN status is

Down (or there is not

an IP address), click

Internet Access and

use Section 4 to

configure WAN.

ENGLISH

4 Internet Access Setup and Product Registration

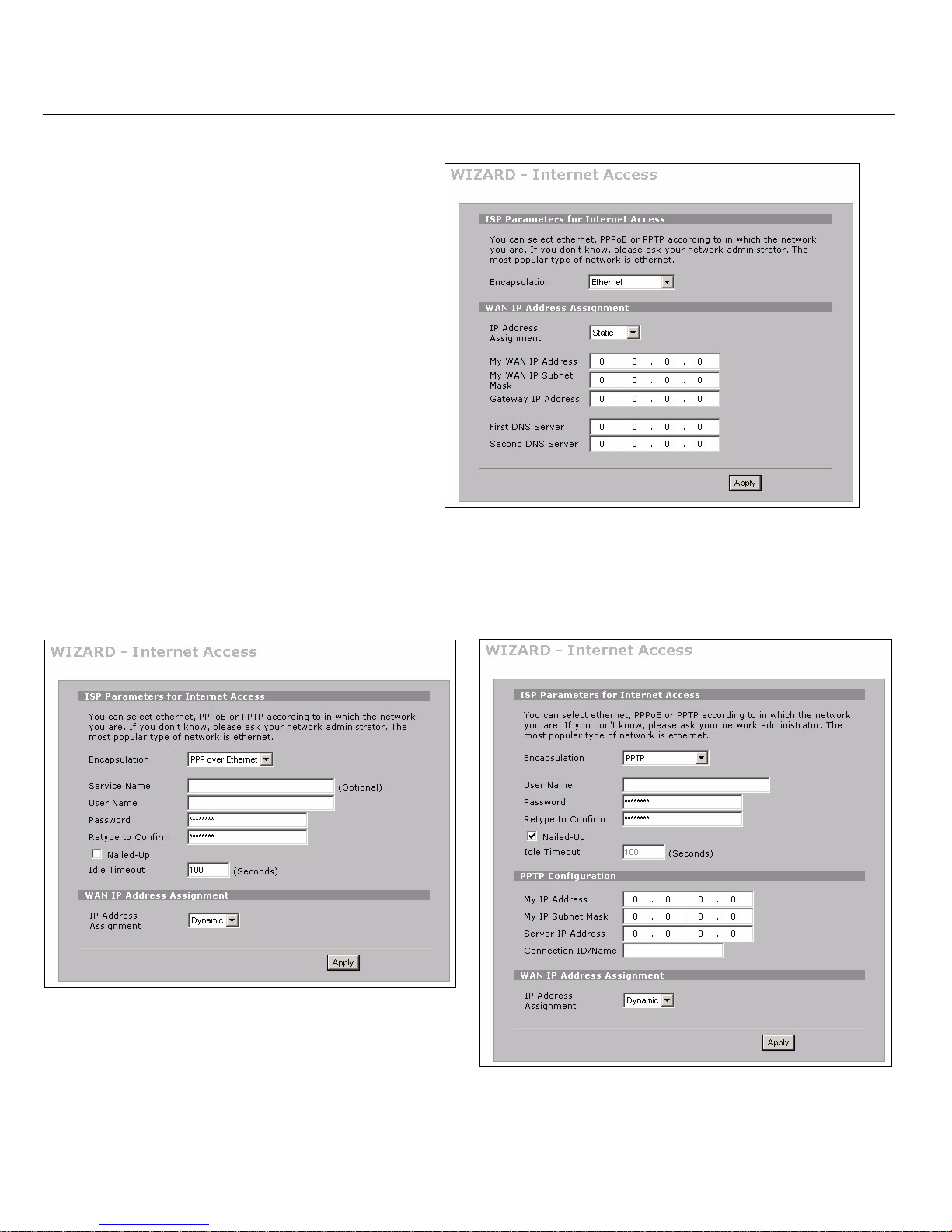

1Click Internet Access in the HOME screen to open the Internet access wizard.

Enter the Internet access information exactly as given to you.

If you were given an IP address to use, select Static in the IP Address Assignment drop-down list box and

enter the information provided.

Note: The fields vary depending on what you select in the Encapsulation field. Fill them in with the

information provided by the ISP or network administrator.

Click Apply when you are done.

1Click MAINTENANCE in the

navigation panel and then

Device Mode.

2Select Bridge and configure a

(static) IP address, subnet

mask and gateway IP

address. These apply to the

ZyWALL’s LAN and WAN

interfaces.

3Click Apply. The ZyWALL

restarts.

ENGLISH

•PPP over Ethernet or PPTP Encapsulation

Select Nailed-Up when you want your connection up all the time (this could be expensive if your ISP bills you

for Internet usage time instead of a flat monthly fee).

To not have the connection up all the time, specify an idle time-out period (in seconds) in Idle Timeout.

•Ethernet Encapsulation

Configure a Roadrunner service in the

NETWORK WAN screens (use the WAN tab).

ENGLISH

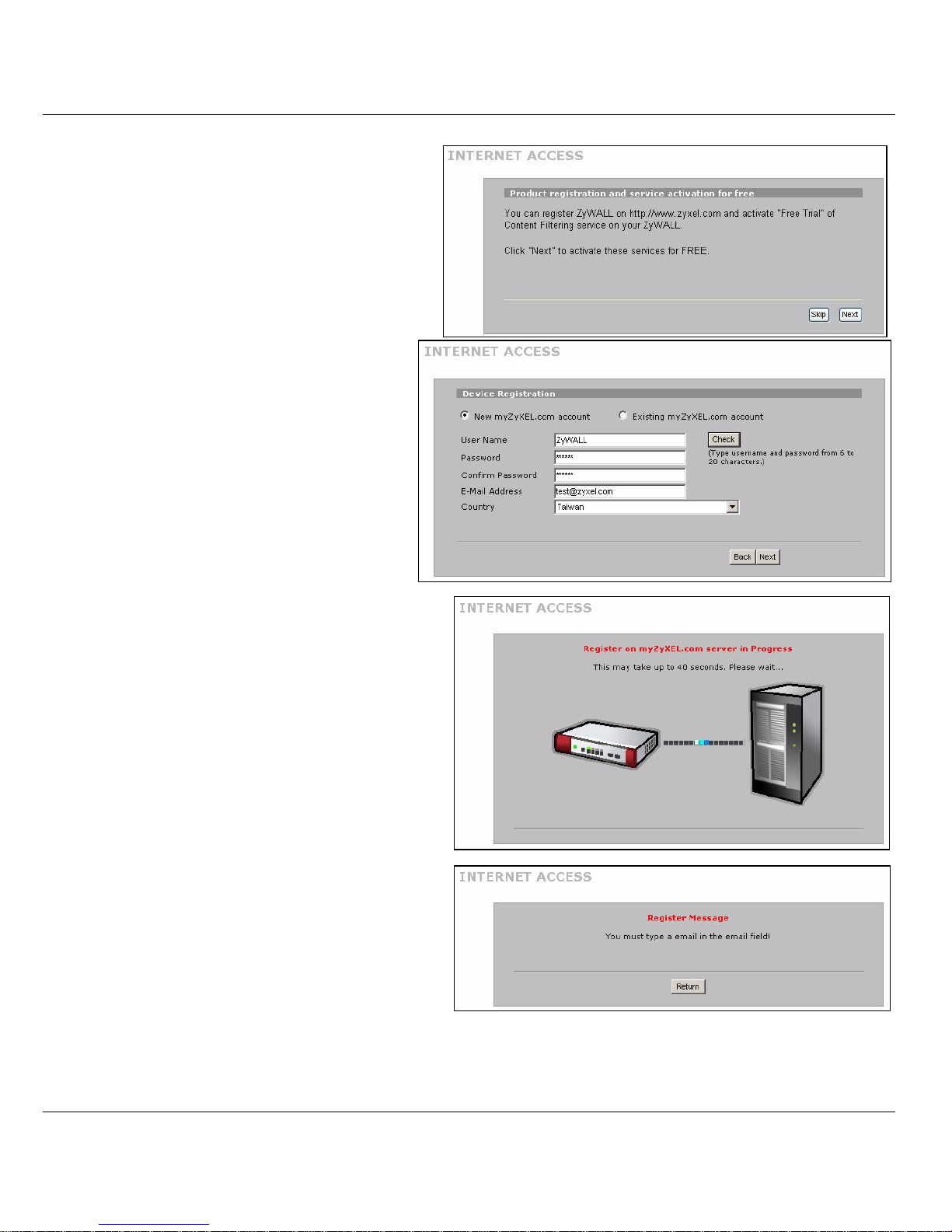

2Click Next to display the screen where you

can register your ZyWALL with myZyXEL.com

(ZyXEL’s online services center) and activate

the free content filtering trial application.

Otherwise, click Skip and then Close to

complete Internet access setup.

3If you already have an account at

myZyXEL.com, select Existing

myZyXEL.com account and enter account

information. Otherwise, select New

myZyXEL.com account and fill in the

fields below to create a new account and

4Wait for the registration progress to finish.

5The following screen displays if the registration

was not successful. Click Return to go back to

the Device Registration screen and check your

settings.

ENGLISH

6Click Close to leave the wizard screen when

the registration and activation are done.

Note: If you want to activate a standard

service with your iCard’s PIN number

(license key), use the

REGISTRATION Service screen.

See the user’s guide for details.

5 Firewall

You can use the ZyWALL without configuring the firewall.

The ZyWALL’s firewall is pre-configured to protect your LAN from attacks from the Internet. By default, no

traffic can enter your LAN unless a request was generated on the LAN first.

If you are using the ZyWALL in router mode, continue with the next section. For bridge mode, skip to Section

6 VPN Rule Setup

A VPN (Virtual Private

Network) tunnel gives you a

secure connection to another

computer or network.

A gateway policy identifies the

IPSec routers at either end of a

VPN tunnel.

A network policy specifies

which devices (behind the

IPSec routers) can use the

VPN tunnel.

ENGLISH

This figure helps explain the main fields in the wizard screens.

1Click VPN in the HOME screen (you may need to scroll up to see the link) to open the VPN wizard.

Note: Your settings are not saved when you click Back.

2Use this screen to configure the gateway policy.

Name: Enter a name to identify the gateway policy.

Remote Gateway Address: Enter the IP address or

domain name of the remote IPSec router.

3Use this screen to configure the network policy.

Leave the Active check box selected.

Name: Enter a name to identify the network policy.

Select Single and enter an IP address for a single IP

address.

Select Range IP and enter starting and ending IP

addresses for a specific range of IP addresses.

Select Subnet and enter an IP address and subnet

mask to specify IP addresses on a network by their

subnet mask.
