ZyXEL Communications P-792H Istruzioni per l'installazione

Prestige 792H

G.SHDSL 4-port Security Gateway

Compact Guide

Version 3.40(BZ.0)

March 2004

Prestige 792H

Table of Contents

1 Introducing the Prestige ................................................................................................................. 3

1.1 Certifications............................................................................................................................. 3

2 Hardware......................................................................................................................................... 4

2.1 Rear Panel Connections ............................................................................................................ 4

2.2 The Front Panel LEDs............................................................................................................... 5

3 Setting Up Your Computer’s IP Address...................................................................................... 6

3.1 Windows 95/98/Me................................................................................................................... 7

3.2 Windows 2000/NT/XP.............................................................................................................. 9

3.3 Checking/Updating Your Computer’s IP Address.................................................................. 11

3.4 Testing the Connection to the Prestige.................................................................................... 11

4 Configuring Your Prestige ........................................................................................................... 11

4.1 Accessing Your Prestige Via Web Configurator..................................................................... 12

4.2 Common Screen Command Buttons....................................................................................... 13

4.3 Internet Access Using the Wizard........................................................................................... 13

4.4 Test Your Internet Connection................................................................................................ 19

5 Advanced Configuration .............................................................................................................. 19

5.1 Network Address Translation Overview................................................................................. 19

5.2 Configuring SUA Server......................................................................................................... 19

5.3 Firewall Overview................................................................................................................... 21

5.4 Enabling the Firewall .............................................................................................................. 22

5.5 Procedure for Configuring Firewall Rules .............................................................................. 22

5.6 Configuring Source and Destination Addresses...................................................................... 26

6 Troubleshooting ............................................................................................................................ 27

Prestige 792H

1 Introducing the Prestige

The Prestige 792H G.SHDSL 4-port Security Gateway is a cost effective DSL solution designed for

medium sized business networks connecting to the Internet or remote office networks. Key features

of the Prestige include high-speed Internet access, robust firewall security, VPN (Virtual Private

Network) support, auto fail-over and fail-back WAN dial backup solution and effective network

bandwidth management. See your User’s Guide for more details on all Prestige features.

You should have an Internet account already set up and have been given most of the following

information.

INTERNET ACCOUNT INFORMATION

Your device’s WAN IP Address (if given): __________________

DNS Server IP Address (if given): Primary __________________, Secondary _________________

Virtual Path Identifier (VPI): ____________

Virtual Channel Identifier (VCI): ____________

Multiplexing (VC-based or LLC-based): VC LLC

Encapsulation:

Transfer Rate:

Standard Mode: (Select one of the choices below)

 RFC 1483

 ENET ENCAP Ethernet Encapsulation Gateway IP Address: ____________________

 PPPoA User Name: ____________ Password: ____________

 PPPoE Service Name: ____________

User Name: ____________ Password: ____________

1.1 Certifications

1. Go to www.zyxel.com

2. Select your product from the drop-down list box on the ZyXEL home page to go to that

product's page.

3. Select the certification you wish to view from this page.

Prestige 792H

2 Hardware

2.1 Rear Panel Connections

Figure 1 P792H Hardware Connections

Table 1 Prestige Rear Panel Description

LABEL DESCRIPTION

POWER Connect to a power source using the power adapter for your region (see your User’s

Guide).

RESET You only need to use this button if you’ve forgotten the Prestige’s password. It returns the

Prestige to the factory defaults (password is 1234, LAN IP address 192.168.1.1, see your

User’s Guide for details).

LAN 10/100

Ethernet Ports

Connect computers or hubs to these ports with Ethernet cables. These ports are auto-

negotiating (can connect at 10 or 100Mbps) and auto-crossover (automatically adjust to

straight-through or crossover Ethernet cable.

Prestige 792H

Table 1 Prestige Rear Panel Description

LABEL DESCRIPTION

CON/AUX switch

CON/AUX port

Only connect this port if you want to configure the Prestige using the SMT via console port

or set up a backup WAN connection; see your User’s Guide for details.

Set this switch to the “CON” side to use the CON/AUX port as a console port for local

device configuration and management. Connect the Rj-45 of the console cable to the

console port of the Prestige and the 9-pin female end to a serial port (COM1, COM2 or

other COM port) on your computer. Your computer should have a terminal emulation

communications program (such as HyperTerminal) set to VT100 terminal emulation, no

parity, 8 data bits, 1 stop bit, no flow control and 9600 bps port speed.

Set this switch to the “AUX” side to use the CON/AUX port as an auxiliary dial-up WAN

connection. Connect the RJ-45 end of the console cable to the CON/AUX port and use the

9-pin end of the cable to connect to a modem or TA.

DSL Connect to a telephone jack using a telephone wire.

2.2 The Front Panel LEDs

Turn on the Prestige by pressing the ON/OFF button.

The PWR/SYS LED turns on when you connect the power. The PWR and SYS LED blinks while

performing system testing and then stays on if the testing is successful. The PPP/ACT, DSL and

four LAN LEDs turn on if they are properly connected. Refer to the User’s Guide for more detailed

LED descriptions.

Figure 2 P792H Front Panel LED Description

Table 2 P792H Front Panel LED Description

LED COLOR STATUS DESCRIPTION

PWR/SYS Green On The Prestige is receiving power and functioning properly.

Prestige 792H

Table 2 P792H Front Panel LED Description

LED COLOR STATUS DESCRIPTION

Blinking The Prestige is rebooting.

Red On Power to the Prestige is too low.

Off The system is not ready or has malfunctioned.

On The Prestige is linked successfully to a DSLAM.Green

Blinking The Prestige is initializing the G.SHDSL line.

DSL

Off The G.SHDSL link is down.

Green Blinking The Prestige is sending/receiving non-PPP data.

On The Prestige has a PPP (PPPoA or PPPoE) connection.Amber

Blinking The Prestige is sending/receiving PPPoA or PPPoE traffic.

PPP/ACT

Off The system is ready, but is not sending/receiving data.

On The Prestige has a successful 10Mb Ethernet connection.Green

Blinking The Prestige is sending/receiving data.

On The Prestige has a successful 100Mb Ethernet connection.Amber

Blinking The Prestige is sending/receiving data.

LAN 1 ~ 4

Off The LAN is not connected.

3 Setting Up Your Computer’s IP

Address

Skip this section if your computer is already set up to accept a dynamic IP

address. This is the default for most new computers.

The Prestige is already set up to assign your computer an IP address. Use this section to set up your

computer to receive an IP address or assign it a static IP address in the 192.168.1.2 to 192.168.1.254

range with a subnet mask of 255.255.255.0. This is necessary to ensure that your computer can

communicate with your Prestige.

Your computer must have an Ethernet card and TCP/IP installed. TCP/IP should already be installed

on computers using Windows NT/2000/XP, Macintosh OS 7 and later operating systems.

Prestige 792H

3.1 Windows 95/98/Me

1. Click Start, Settings, Control Panel and double-click the Network icon to open the Network

window.

2. The Network window Configuration tab displays a list of installed components. You need a

network adapter, the TCP/IP protocol and Client for Microsoft Networks.

3. In the Network window Configuration tab,

select your network adapter's TCP/IP entry and

click Properties.

Prestige 792H

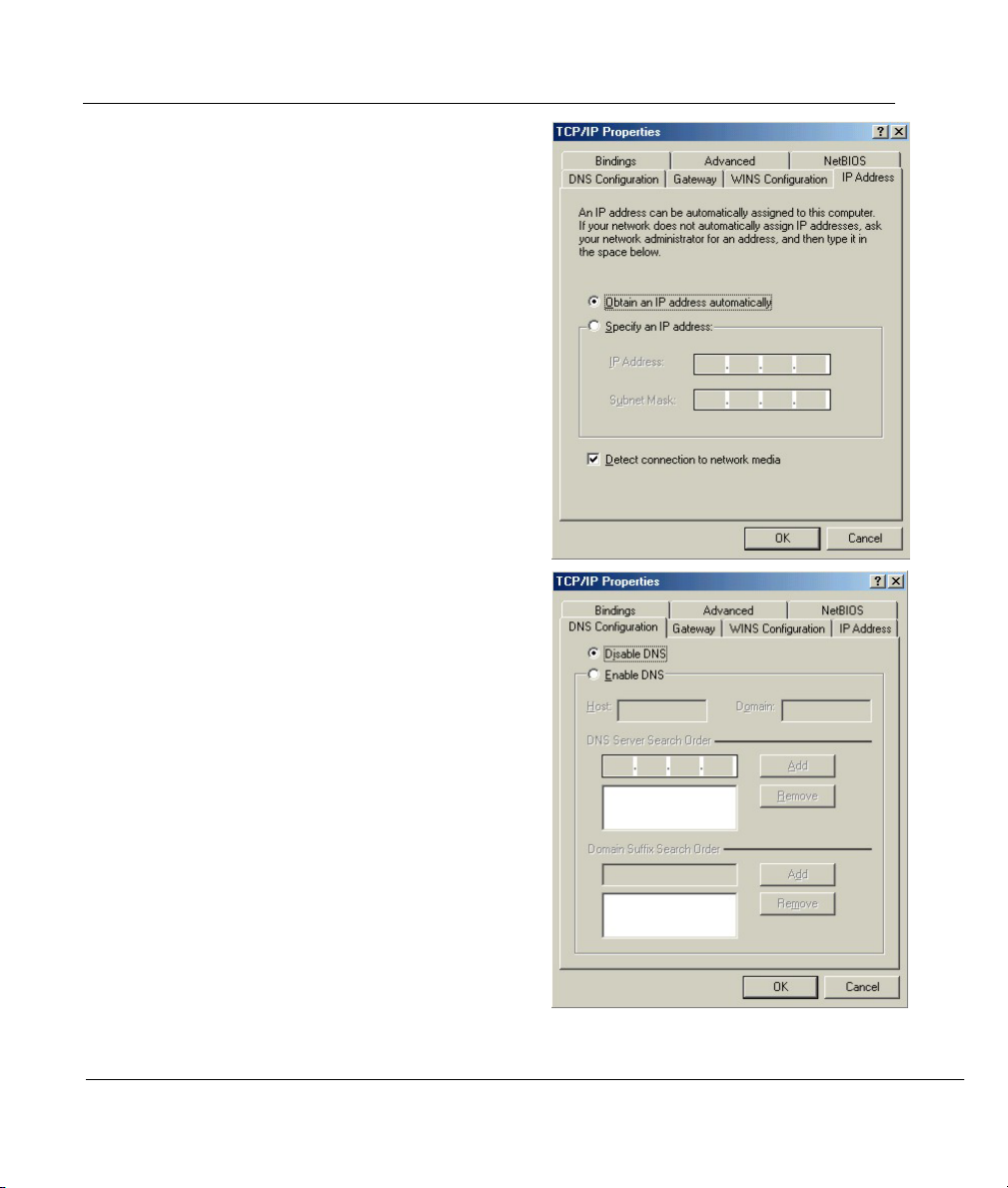

4. Click the IP Address tab.

-If your IP address is dynamic, select Obtain an IP

address automatically.

-If you have a static IP address, select Specify an IP

address and type your information into the IP

Address and Subnet Mask fields.

5. Click the DNS Configuration tab.

-If you do not know your DNS information, select

Disable DNS.

-If you know your DNS information, select Enable

DNS and type the information in the fields below (you

may not need to fill them all in).

Prestige 792H

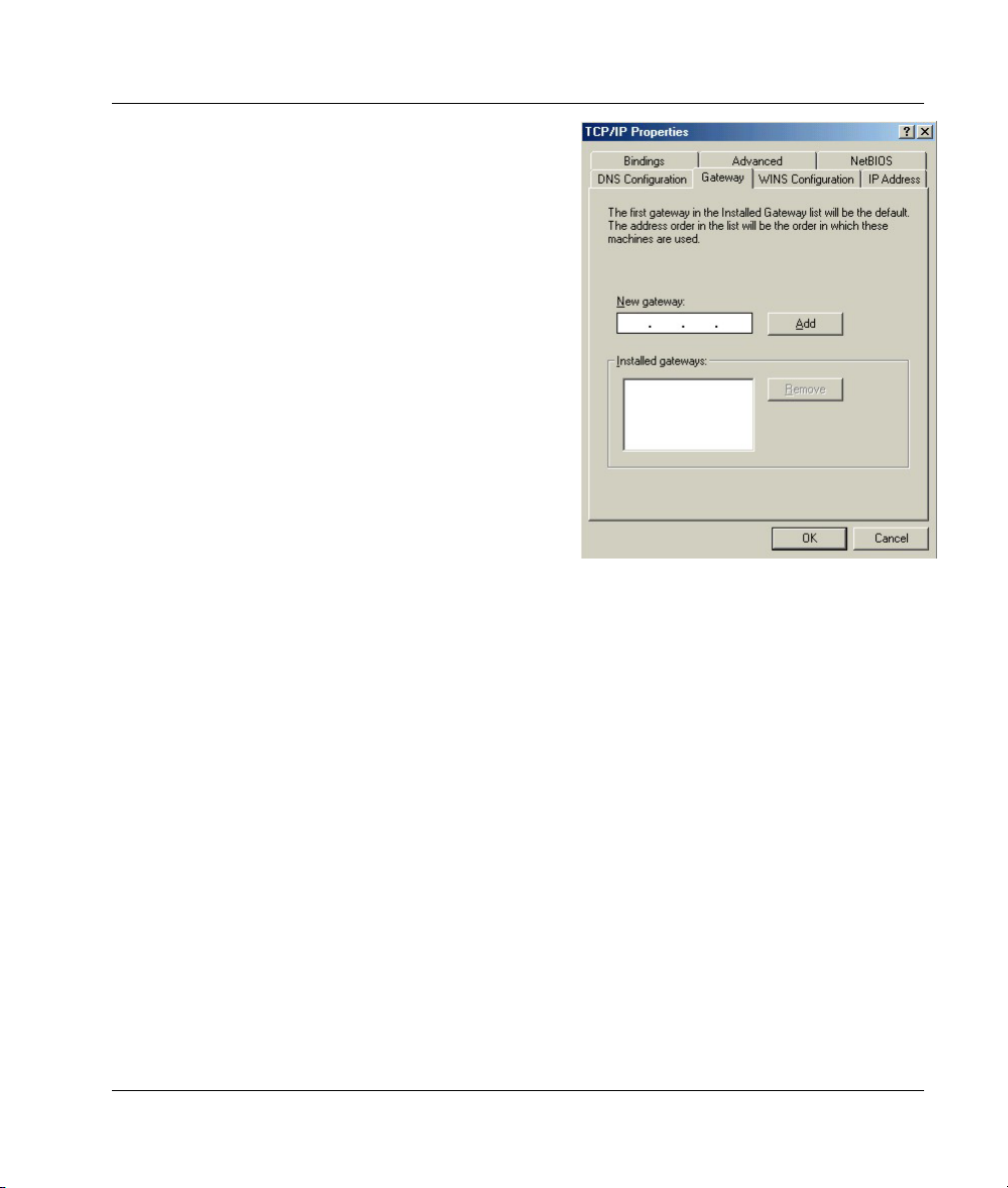

6. Click the Gateway tab.

-If you do not know your gateway’s IP address,

remove previously installed gateways.

-If you have a gateway IP address, type it in the New

gateway field and click Add.

7. Click OK to save and close the TCP/IP Properties window.

8. Click OK to close the Network window. Insert the Windows CD if prompted.

9. Turn on your Prestige and restart your computer when prompted.

Verifying Your Computer’s IP Address

1. Click Start and then Run.

2. In the Run window, type "winipcfg" and then click OK to open the IP Configuration window.

3. Select your network adapter. You should see your computer's IP address, subnet mask and default

gateway.

3.2 Windows 2000/NT/XP

1. In Windows XP, click start, Control Panel. In Windows 2000/NT, click Start, Settings, Control Panel.

2. In Windows XP, click Network Connections.

In Windows 2000/NT, click Network and Dial-up Connections.

3. Right-click Local Area Connection and then click Properties.

4. Select Internet Protocol (TCP/IP) (under the General tab in Win XP) and click Properties.

Prestige 792H

5. The Internet Protocol TCP/IP Properties screen opens (the

General tab in Windows XP).

- To have your computer assigned a dynamic IP address, click

Obtain an IP address automatically.

If you know your DNS sever IP address(es), type them in the

Preferred DNS server and/or Alternate DNS server fields.

-To configure a static IP address, click Use the following IP

Address and fill in the IP address (choose one

from192.168.1.2 to 192.168.1.254), Subnet mask

(255.255.255.0), and Default gateway (192.168.1.1) fields.

Then enter your DNS server IP address(es) in the Preferred

DNS server and/or Alternate DNS server fields.

If you have more than two DNS servers, click Advanced, the

DNS tab and then configure them using Add.

6. Click Advanced. Remove any previously installed gateways in

the IP Settings tab and click OK to go back to the Internet

Protocol TCP/IP Properties screen.

7. Click OK to close the Internet Protocol (TCP/IP) Properties

window.

8. Click OK to close the Local Area Connection Properties

window.

Altri manuali per P-792H

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ZyXEL Communications Portale

ZyXEL Communications

ZyXEL Communications P-660HW-D Series Manuale utente

ZyXEL Communications

ZyXEL Communications Prestige 660H Series Manuale utente

ZyXEL Communications

ZyXEL Communications P-870HN-51D Manuale utente

ZyXEL Communications

ZyXEL Communications P-660HW-Tx v3 Series Manuale utente

ZyXEL Communications

ZyXEL Communications P-660HNU-T1 Manuale

ZyXEL Communications

ZyXEL Communications ZyXEL ZyWALL 50 Manuale utente

ZyXEL Communications

ZyXEL Communications P-660HW-D Series Manuale utente

ZyXEL Communications

ZyXEL Communications G-4100 v2 Manuale utente

ZyXEL Communications

ZyXEL Communications Broadband Security Gateway P-312 Manuale utente

ZyXEL Communications

ZyXEL Communications ZyXEL ZyWALL 10W Manuale utente

ZyXEL Communications

ZyXEL Communications P-660HN-5x Series Manuale utente

ZyXEL Communications

ZyXEL Communications ADSL 2+ Security Gateway Istruzioni per l'installazione

ZyXEL Communications

ZyXEL Communications VSG1435-B101 Manuale utente

ZyXEL Communications

ZyXEL Communications VMG3625-T20A Manuale utente

ZyXEL Communications

ZyXEL Communications EMG3425-Q10A Manuale utente

ZyXEL Communications

ZyXEL Communications P-660HNT1 Manuale utente

ZyXEL Communications

ZyXEL Communications p-870hw series Manuale utente

ZyXEL Communications

ZyXEL Communications ZyXEL ZyWALL 2WE Manuale utente

ZyXEL Communications

ZyXEL Communications P-660HW-Tx v3 Series Manuale utente

ZyXEL Communications

ZyXEL Communications P-793H 601156 Manuale utente

ZyXEL Communications

ZyXEL Communications ZyWALL 70 Manuale utente

ZyXEL Communications

ZyXEL Communications P-873HNUP-51B Manuale utente

ZyXEL Communications

ZyXEL Communications EX5510-B0 Manuale utente

ZyXEL Communications

ZyXEL Communications P-661HNU Series Manuale utente

Manuali Portale popolari di altre marche

LST

LST M500RFE-AS Manuale utente

Kinnex

Kinnex Media Gateway Manuale utente

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuale utente

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuale utente

Telsey

Telsey CPVA 500 - SIP Manuale utente

RTA

RTA 460A-NNA4 Scheda tecnica

Shaw

Shaw Gateway HDPVR Manuale utente

ABB

ABB VSN900 Guida rapida

Commander

Commander Pulse Manuale utente

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuale utente

NETGEAR

NETGEAR C6300BD Manuale utente

Amit

Amit CDW531AM Manuale utente

HMS

HMS Netbiter EasyConnect EC150 Manuale utente

Huawei

Huawei EchoLife HG620 Manuale utente

AT&T

AT&T U-verse 3801 Manuale per l'uso e la cura

Logic IO

Logic IO RTCU MX2 turbo Manuale utente

Suttle

Suttle MediaMAX MXM-521 Manuale utente

RTA

RTA 460MCBC-N2E Scheda tecnica
