ZyXEL Communications SHG222 Manuale utente

Smart Telehealth

Gateway SHG Series

SHG222

Smart Home solution platform

Designed for smart home applications, such as remote health monitoring,

energy management as developed in future

Always on, no interruption

Failover between fixed and mobile Broadband connection

Battery backup with alert notification

Flexible connectivity option

Offers sensor interface with IEEE 11073 healthcare devices

Future interface with Zigbee devices

Smart TeleHealth Gateway for Fixed or Mobile Internet access

Benefits

ZyXEL’s Smart Home Gateway (SHG) is the heart of your home- or remote-based telehealth solution.

The SHG is designed to be a flexible solution bringing Internet access into the home using multiple

Internet technologies to ensure the device will be able to provide connectivity no matter where it's

deployed.The SHG can connect using common DSL or cable modem connections, by using dial-up

Internet over any phone line, or by using 3G or 4G wireless technology. Multiple connectivity

options can be combined to provide a fail-over solution for deployments that can’t risk down time.

ZyXEL’s SHG also offers a built-in battery backup, allowing it to be used even in cases of power

failure or when traveling.The SHG can be configured to send an e-mail alert to the user when

battery power is low or when the SHG switches from its primary to secondary Internet connection.

ZyXEL’s SHG is designed to be the gateway to your telehealth solution, providing aggregation

capability for multiple in-home medical devices. These devices can be connected directly to the

SHG via Ethernet or USB, or it can be connected wirelessly using WiFi, Bluetooth, or Zigbee.This

flexibility allows the SHG to be used in any telehealth application regardless of the monitoring

devices used.

brands, product names,or trademarks mentioned are the property of their respective owners.All specifications are subject to change without notice.

For more product information, visit us on the web www.us.ZyXEL.com

ZyXEL Communications Inc.

1130 North Miller Street

Anaheim, CA 92806-2001

Phone: (714) 632-0882

Fax: (714) 632-0858

e-mail: [email protected]

Smart Telehealth

Gateway SHG Series

Hardware Specification

• Two Fast Ethernet RJ 45 connectors for

WAN-LAN or Dual LAN

• Two USB 2.0 type A connectors

• Wireless On/Off button

• Power On/Off button

• Reset button

WAN /LAN Configuration

• Ethernet WAN (DSL/Cable) or USB WAN (3G)

• Dual WAN fail-over (Ethernet-USB)

• Configurable to dual LAN while USB WAN enabled

USB connectivity

• Compatible 3G Broadband USB adapter, supporting

EVDO/HSPA services**

• Bluetooth medical device using customized protocols

• Zigbee compliant energy management & home

sensor device**

Wi-Fi

• 802.11n compatible with connection rate up to 150 Mbps***

• 802.11b/g auto rate up to 54 Mbps

• Wi-Fi Protected setup (WPS for easy Wi-Fi configuration)

• WEP, WPA/WPA2-PSK for wireless security

Routing & IP management

• PPPoE/PPTP/L2TP for wired broadband

(DSL/cable modem)

• DHCP client/server

• Static IP

Internet Security

• SPI firewall

• DoS attack prevention

• Configurable firewall rules based on IP address

• Built-in security features such as SPI firewall and

WPA2 wireless encryption help with adherence

to HIPAA guidelines

Management

• Web GUI management

• SNMP remote management

• Alert management

• Configuration backup and restore

• Firmware upgrade

3G Data Usage Management

• Monthly monitoring data allowance

• Customized maximum data allowance

• E-mail alert when maximum data allowance

has been exceeded

Power Design

• External power adapter

- 5VDC 2A output

- Certified by Energy Star (Level V)

• Built-in battery

- User replaceable and rechargeable lithium battery

- Lithium ion type

- Capacity: 3000 mAh

• Optional in-vehicle power adapter accessory

System Requirements

• DSL/Cable Broadband service or activated mobile

broadband service with compatible mobile adapter enabled.

• Computer with properly-installed IEEE 802.11 b/g/n

2.4 GHz Wi-Fi adapter or Ethernet adapter

• Microsoft Windows 7,Vista, XP, 2000 and other OS running

TCP/IP protocol stacks

• Internet Explorer 6.0, Firefox 2.0 or above

Environmental Specification

• Temperature

- Storage : -22º~158ºF (-30 ºC ~ 70 ºC)

- Operating : 32º~113ºF (0 ºC ~ 45 ºC)

• Humidity range

- Storage : 90% non-condensing

- Operating : 90% non-condensing

Dimensions & Weight

• Device dimension: 4.11" L x 3.1" W x 1.02" H

• Device weight: 5.33 oz

Specifications

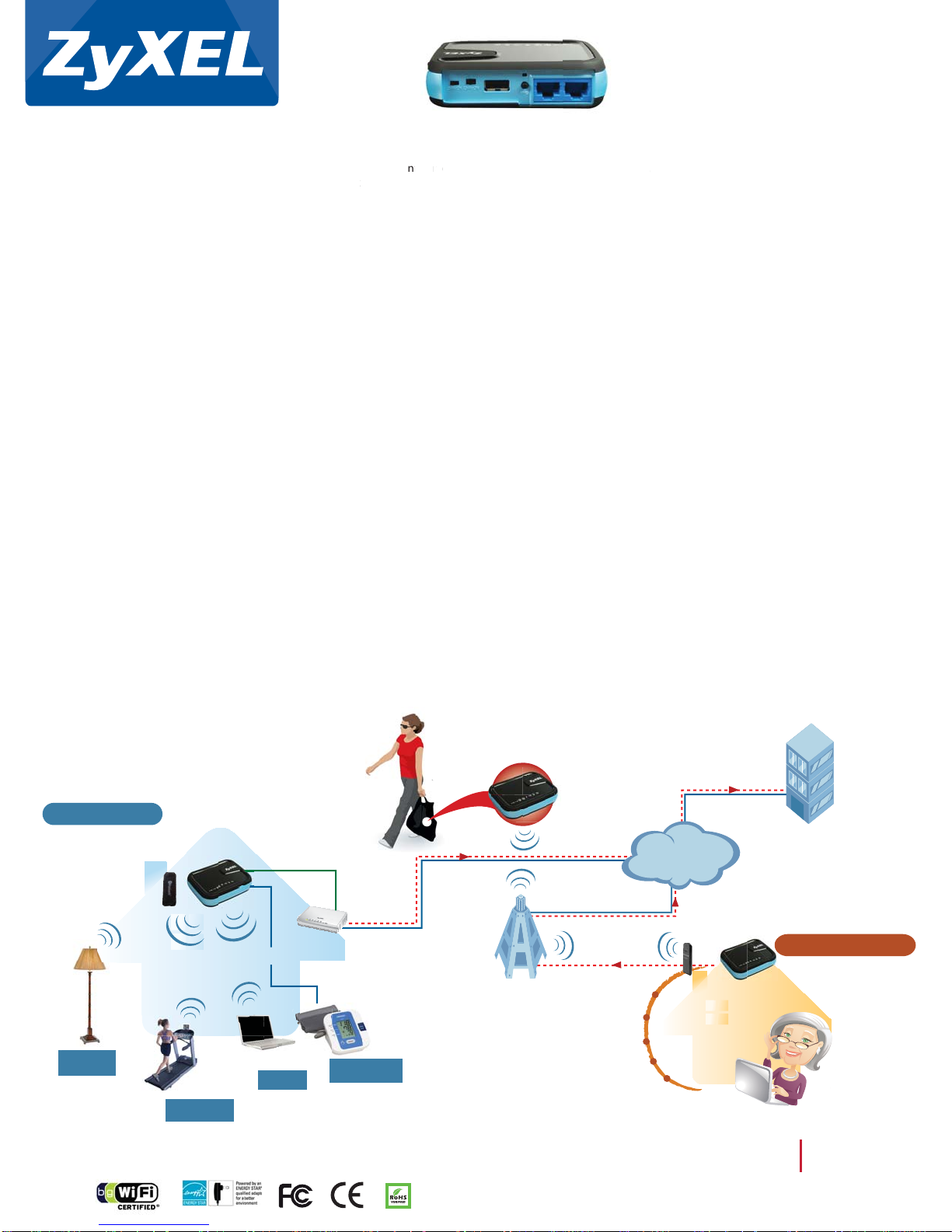

Application diagram

Family Home

Patient’s Home

Pulse Monitor

Blood pressure

Pedometer

Gas/water sensor

Bed pressure

(Sleep)

Zigbee

Bluetooth

Wi-Fi USB

Health Care

Service Provider

Disclaimer:

** Consult compatibility list of supported adapters: http://www.us.zyxel.com/3gmodemsupportlist

* Future upgradable. But support list depends on project requirement or regional demands. Please consult the compatibility list: www.zyxel.com/mobilebroadband.htm

*** The theoretical maximum data transfer rate is 150 Mbps,The actual data transfer rate will vary depending on the network environment.

SHG

rDa

Broadband

Modem

Treadmill with

Bluetooth

Lamp with

Zigbee Laptop

Ethernet Cable

Blood

pressure cuff

Internet

SHG

Sensor Data Mobile

Adapter

3g Network

Enjoy portable Hot Spot capabilities

/se

•
