ZyXEL Communications VMG4380-B10A Manuale utente

www.zyxel.com

Wireless N VDSL2 4-port Bonding Combo

WAN Gigabit Gateway with HPNA

Wireless N VDSL2 4-port Bonding Combo

WAN Gigabit Gateway with USB

Firmware Version 1.00

Edition 1, 10/2012

VMG4380-B10A

VMG4325-B10A

DEFAULT LOGIN DETAILS

IP Address: http://192.168.1.1

User Name: admin

Password: 1234

ZyXEL Communications Corporation

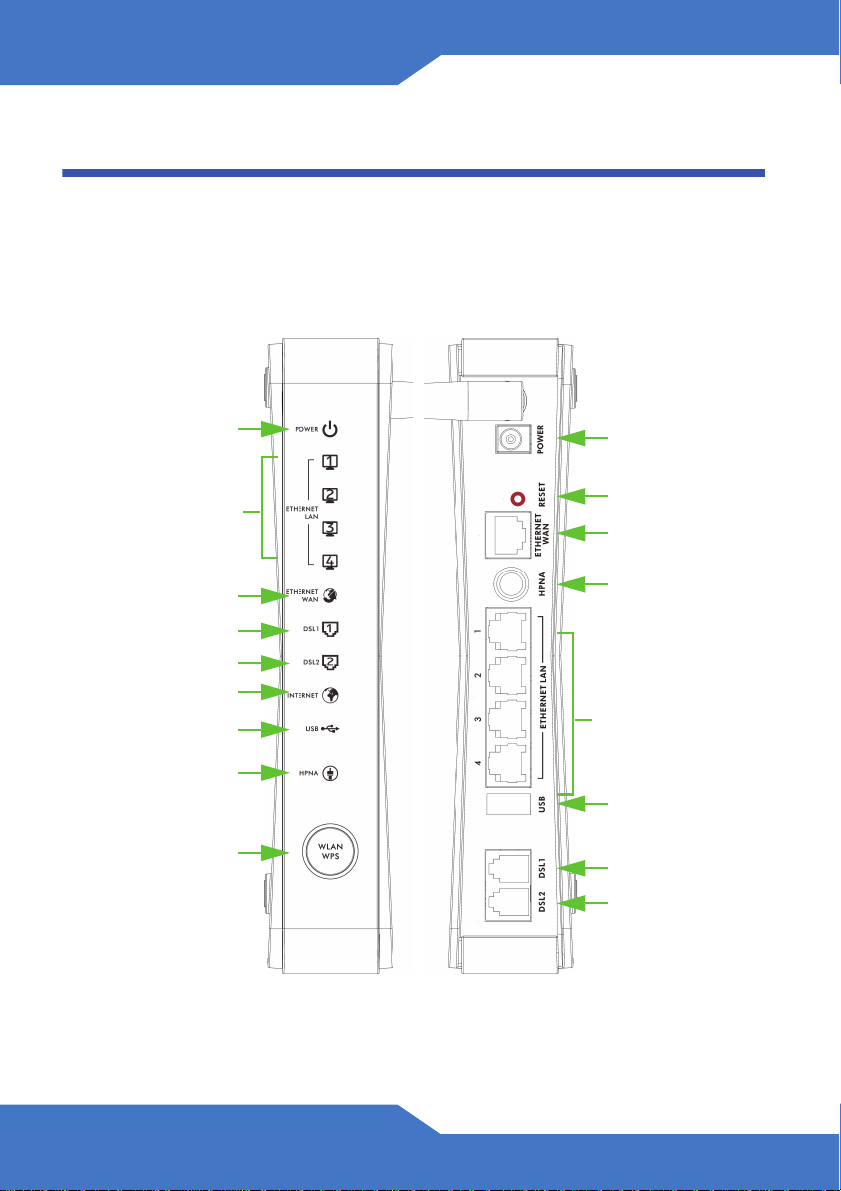

Device Panels

POWER

ETHERNET 1-4

USB

WLAN/WPS

ETHERNET WAN

INTERNET

DSL 1

HPNA

POWER

ETHERNET 1-4

USB

ETHERNET WAN

HPNA

RESET

DSL 2

DSL 1

DSL 2

(VMG4380-B10A only)

VMG4380-B10A / VMG4325-B10A

Requirements

Make sure you have the following things before you start:

• INTERNET ACCESS: You need an Internet account with an ISP (Internet

Service Provider) and information such as your user name, password, and

so on.

• WEB BROWSER: Internet Explorer 6.0 and later versions, with JavaScript

enabled, or Mozilla Firefox 3 and later versions, or Safari 2.0 and later

versions. The browser will be used to access the Internet and/or access

the Device’s Web Configurator.

Hardware Setup

Place the Device flat on a desk or table or on the stand for a vertical installation.

Remove the Device’s clear plastic covers before using it.

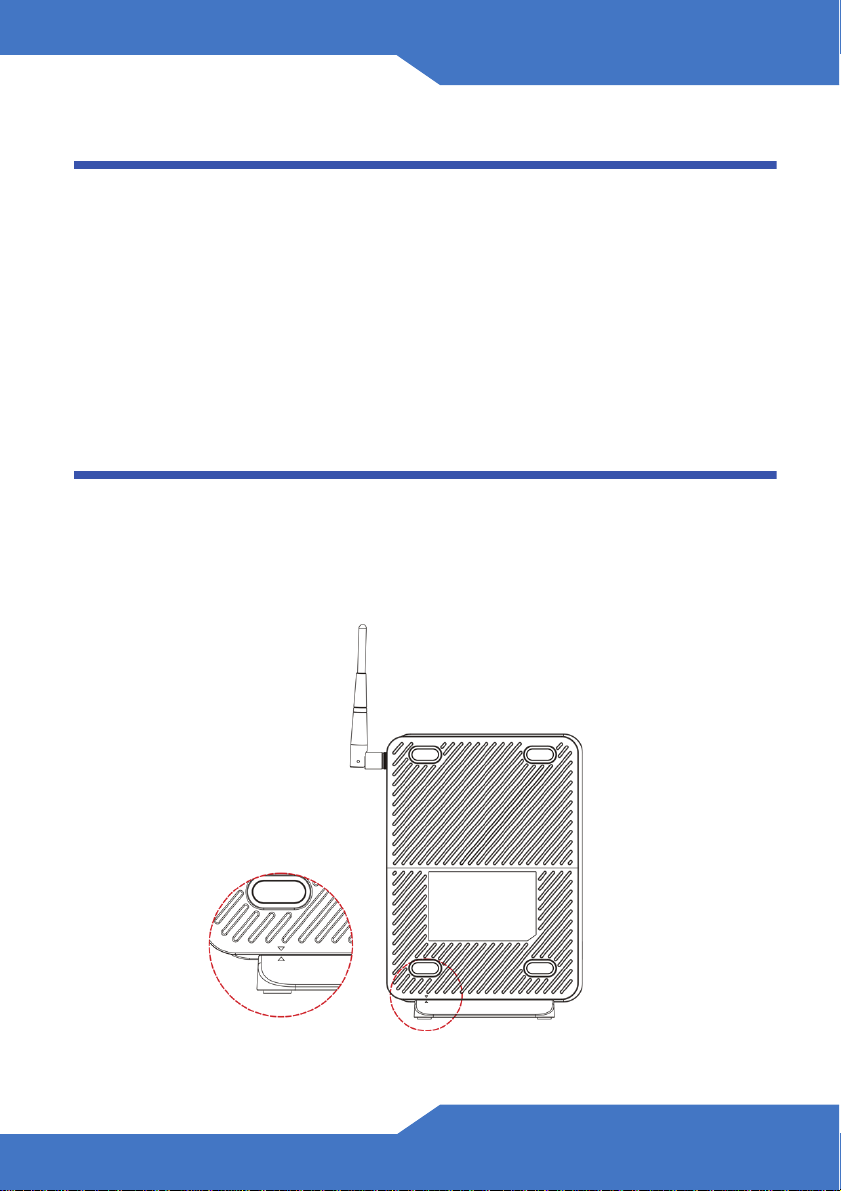

To connect the stand, line up the arrow on the stand with the arrow on the

bottom of the device as shown.

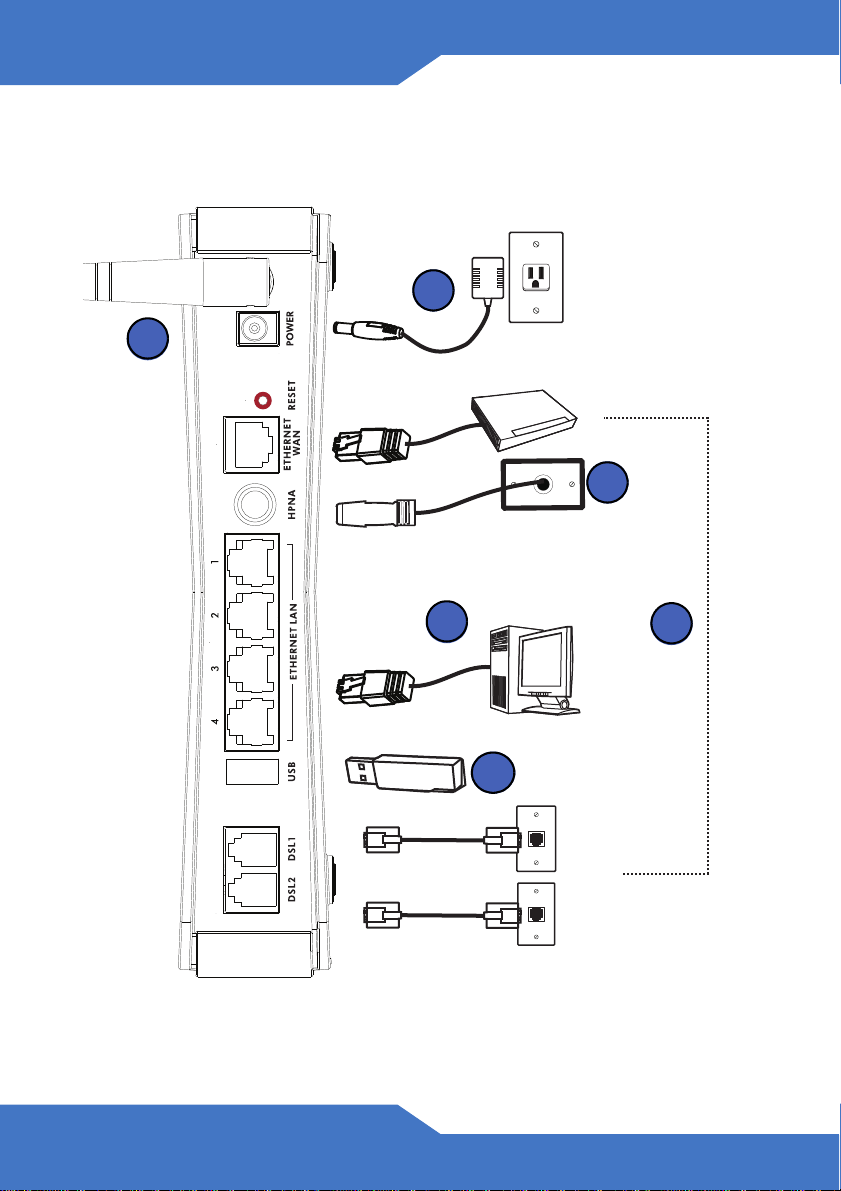

To connect your Device:

(VMG4380-B10A only)

VMG4380-B10A / VMG4325-B10A

1. Attach the antenna and point it up.

2. Do one of the following for your Internet connection:

a. DSL 1,2: Use a telephone cable to connect your Device’s DSL1 port to a

telephone jack (or the DSL or modem jack on a splitter if you have one).

b. If the DSLAM at your ISP supports DSL bonding function, you can

connect DSL1 and DSL2 to two seperate telephone jacks. This provides

increased throughput at longer distances. You will need to access the

Web Configurator and enable the DSL Bonding function in the

Broadband > DSL screen. See the User’s Guide for more information.

c. ETHERNET WAN: If you already have a broadband router or modem, use

an Ethernet cable to connect the ETHERNET WAN port to it for Internet

access.

3. ETHERNET: Use an Ethernet cable to connect a computer to an Ethernet

port for initial configuration and/or Internet access.

4. HPNA: (VMG4380-B10A only) Use a coaxial cable to connect to a coaxial

outlet and relay Internet traffic throughout your house through coaxial

cabling.

5. USB: Connect a USB (version 2.0 or lower) memory stick or a USB hard

drive for file sharing. Use a USB extension cable if the stick is too big to fit.

6. POWER: Use the provided power adaptor to connect the POWER socket to

an appropriate power source. Make sure the power at the outlet is on. After

connecting the power adaptor, look at the lights on the front panel.

• The POWER light blinks while your Device starts up and then stays on

once it is ready.

• Each LAN light stays on if the corresponding Ethernet port is properly

connected and blinks when there is traffic.

• The ETHERNET WAN light stays on if the ETHERNET WAN port is

properly connected and blinks when there is traffic.

• The USB light turns on when your Device detects a connected USB

device.

• The HPNA light (VMG4380-B10A only) stays on if the HPNA port is

properly connected and blinks when there is traffic.

• The DSL1,2 lights are green when your Device has an ADSL connection.

They are orange when you have a VDSL connection. If you are not using

DSL bonding function, only DSL1 light will be on.

• The WLAN / WPS light flashes green when WLAN is activated and orange

while WPS is in process. It stays on green when the wireless LAN is ready

and blinks when there is traffic.

• The INTERNET light turns on when the gateway is able to access the

Internet and will blink when your Device is sending or receiving data.

If the lights do not come on, check your connections and inspect your cables for

damage. If the lights are still off, contact technical support.

Set Up a Wireless Network

You can set up a wireless network using the following methods:

Using Wireless Protected Setup (WPS)

Press the WPS button on the Device’s front panel for more than 5 seconds to

turn the WPS function on.

VMG4380-B10A / VMG4325-B10A

Follow these steps to add a WPS-enabled device to the wireless network using

the WPS/WLAN button.

Set Up a Wireless Network Manually

The wireless LAN on your Device is enabled by default. To add a wireless client

to the network, use the settings found on the side panel of your Device, which

will look similar to the following example:

Configure wireless devices that you want to connect to the wireless network to

use the same wireless settings as the Device.

The default wireless settings vary for each Device. Refer to the side panel

of your device and use the provided information.

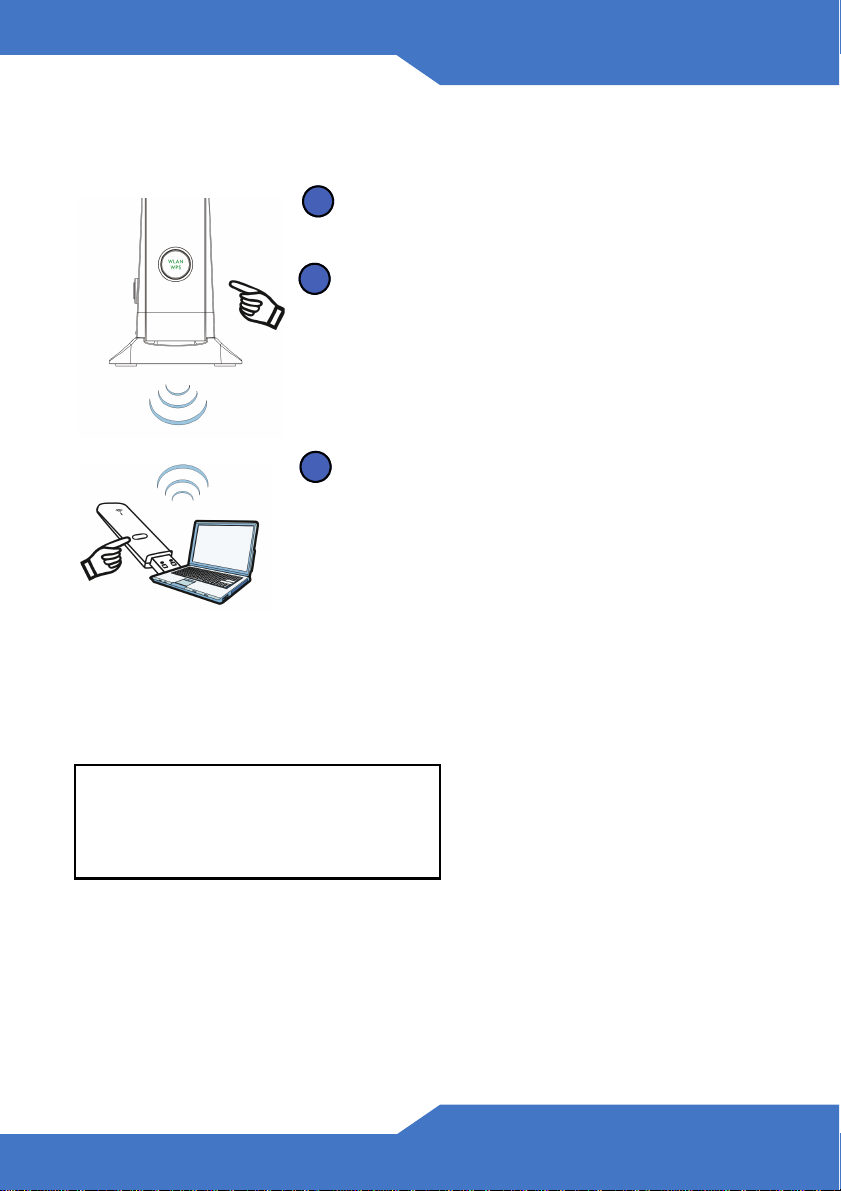

Place the devices you want to connect near one

another.

Press the WPS button on the Device.

The WPS light blinks green and orange.

Press the WPS button on a compatible device

within 2 minutes of pressing the button on the

Device.

The WPS light on the Device shines steadily

when connected.

SSID: ZyXEL00561

Security Mode: WPA2-PSK

Pre-Shared Key: FB373BD356

The Web Configurator

The Web Configurator is a web browser tool that allows you to configure the

Device. The computer and the Device need to be in the same IP address range

to use this tool.

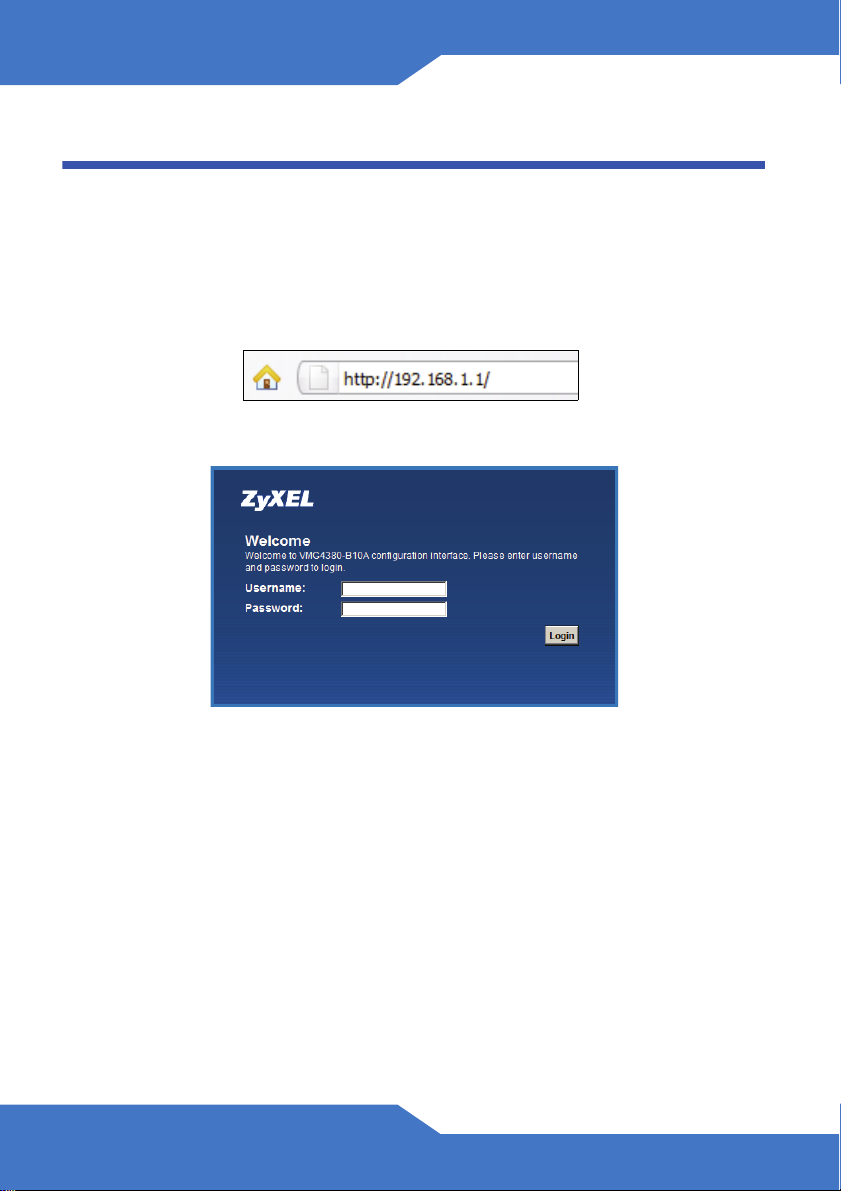

1. Open your browser and enter http://192.168.1.1 (the Device’s default IP

address) as the address.

2. Enter the default user name admin and password 1234. Click Login.

If the login screen does not open, make sure you allow web browser

pop-up windows, JavaScript and Java permissions. Your computer

should be also set to get an IP address automatically from a DHCP

server. See the appendices in your User’s Guide for more

information.

VMG4380-B10A / VMG4325-B10A

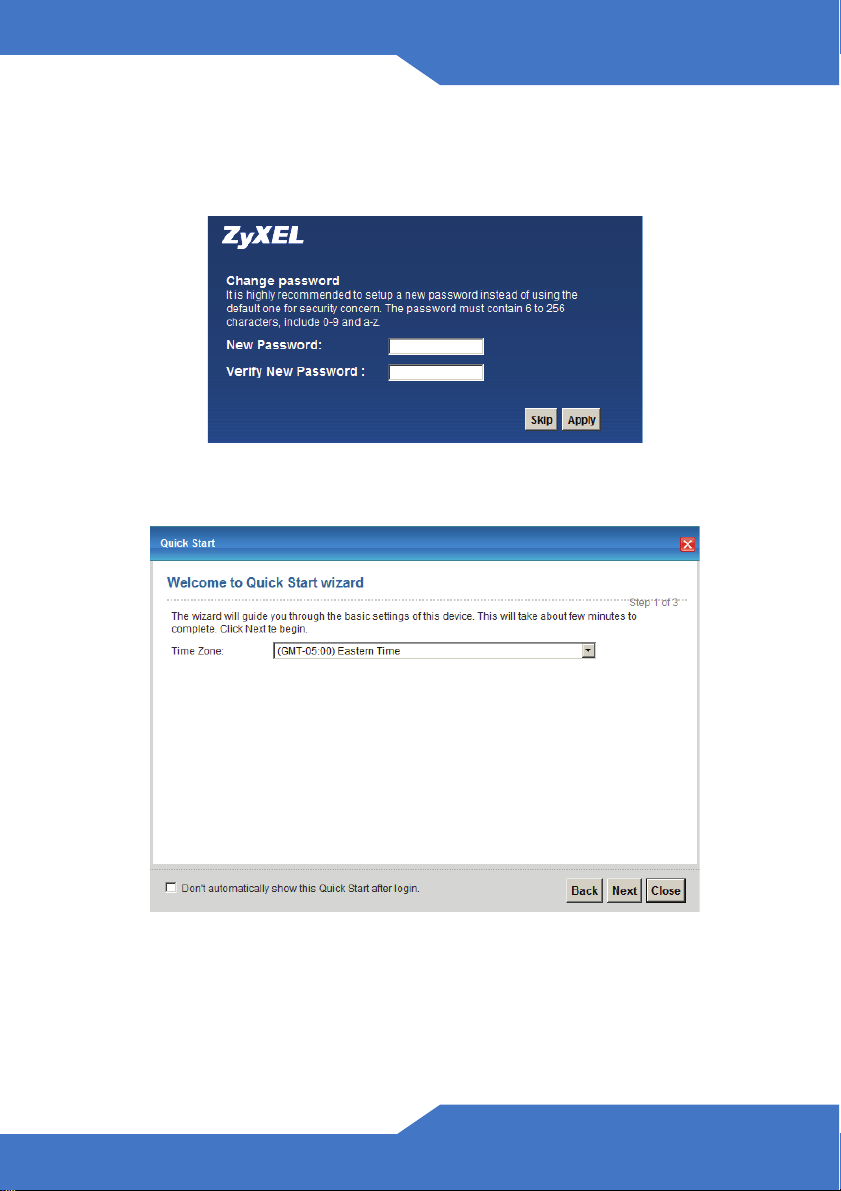

3. In the next screen, you can change the login password. This is

recommended. Enter your new password in the New Password field. Re-

type your new password in the second field and then click Apply. If you

prefer not to change the password, leave the two fields blank and click Skip.

4. The Quick Start Wizard screen appears. Follow the directions to configure

the Device’s time zone, Internet access, and wireless settings.

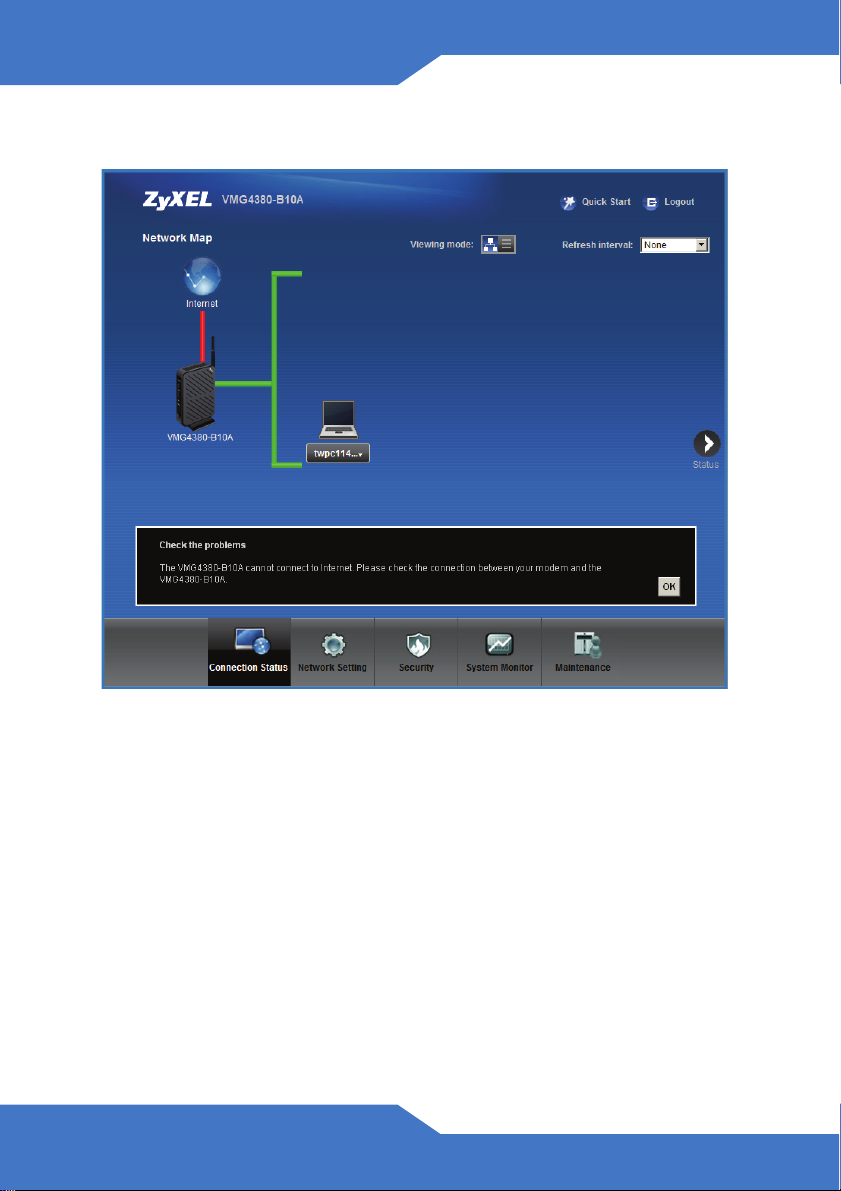

5. The Network Map page appears. This shows whether the Device and

computers/devices connected to it have Internet access.
