ZyXEL Communications PoE12 Series Manuale utente

PoE12 Series

802.3af/802.3at

PoE Injector

PoE12 Series

802.3af/802.3at

PoE Injector

Ł

IEEE 802.3af and IEEE 802.3at

Power over Ethernet (PoE)

standards compliant

Ł

Install anywhere taking

advantage of PoE technology

Ł

Superior safety with

overloading and short-circuit

protection

Empower Easy Power over

Ethernet Connectivity

The ZyXEL PoE12 Series is a PoE injector designed to support the increasing power demands

of the latest-generation N wireless Access Points (APs) as well as the pan, tilt or zoom

functions of IP surveillance cameras.The PoE12 Series consists of two models: PoE-12 and

PoE12-HP.The PoE-12 and PoE12-HP are single-port PoE injectors that deliver both power

and data to other PoE devices via a single CAT-5 Ethernet cable without extra power supply.

The PoE-12 enables 100 Mbps data transmissions and provides power up to 15.4 W, while

the PoE12-HP allows data transmitted at 1000 Mbps and delivers power up to 30 W.

Benefits

Industry standard compliance and investment protection

PoE is a standard-based technology that specifies how power is distributed along with data on

standard Ethernet LAN cables.The standard specifies IEEE 802.3af providing up to 15.4 W of power

per device and IEEE 802.3at providing up to 30 W per device. Complying with the IEEE 802.3af and

IEEE 802.3at standards, the ZyXEL PoE12 Series offers interoperability and compatibility with other

standard-based PoE devices.

Trouble-free installation

With PoE technology, the PoE12 Series enables users to place devices such as wireless LAN APs,IP

surveillance cameras and IP phones exactly where they are needed. Since the devices are directly

powered through Ethernet cables, there is no need to have separate power supplies or to have

costly electrical engineers putting AC power sockets on ceilings or roof spaces.

Plug and Play—ease of use

The PoE12 Series is easy to use and needs no configuration. Since only simple inbound and

outbound cable plugs are required, the installation is very straightforward and can be performed

by users having no electrical wiring experience without spending extra cost.

5-100-01011004 06/11

For more product information, visit us on the web at www.ZyXEL.com

ZyXEL Communications Corp. All other brands, product names, or trademarks mentioned are the property of their

respective owners. All specifications are subject to change without notice.

ADSL/Cable

Modem

Non-PoE Switch

PoE AP

PoE IP Camera

Power Outlet

PoE-12

802.3af PoE

Injector

Power Outlet

PoE12-HP

802.3at PoE

Injector

Internet

CAT-5 Cable (Data)

Power Cable (Power)

PoE12 Series

802.3af/802.3at PoE Injector

PoE12 Series

802.3af/802.3at PoE Injector

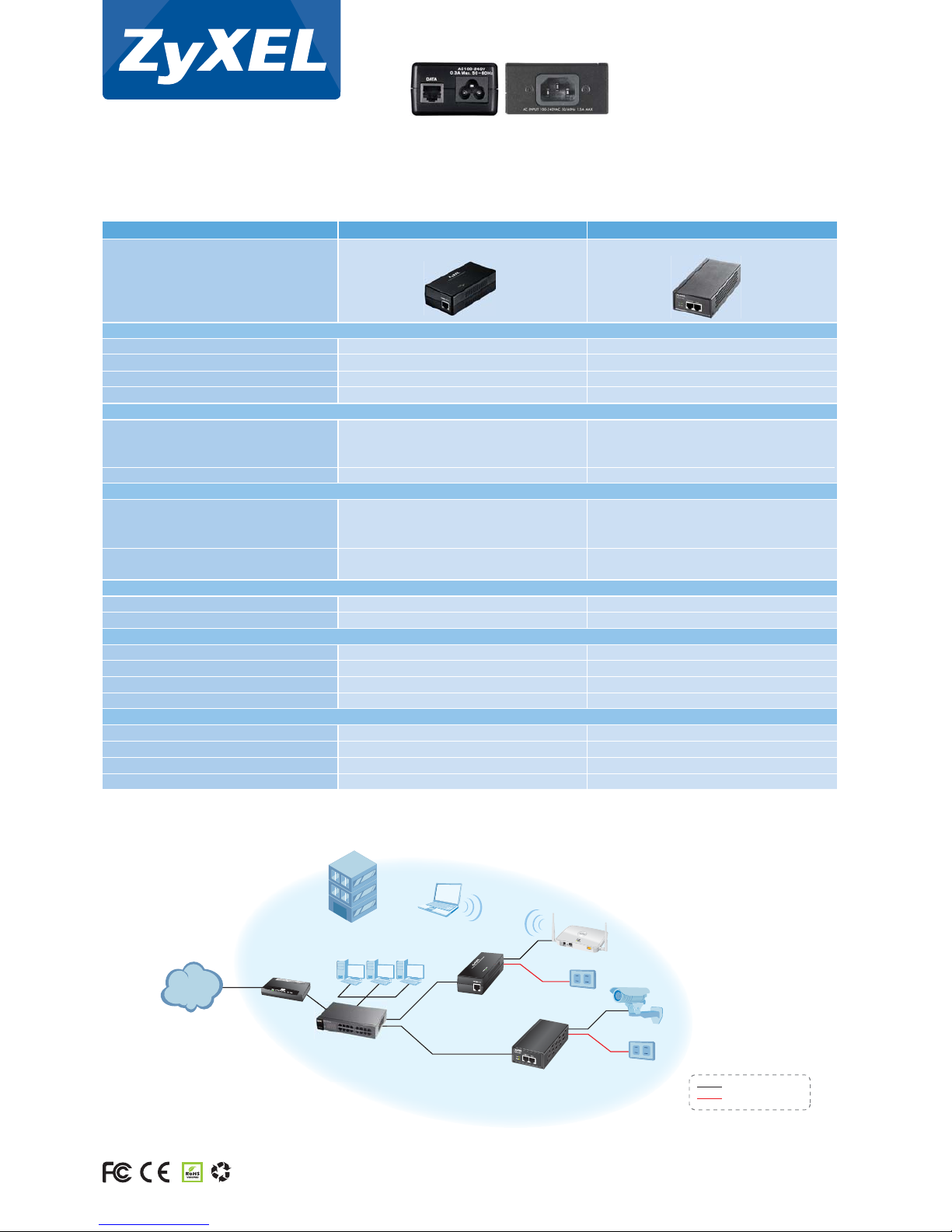

Specifications

Application Diagram

Note: *1: 10/100 or 10/100/1000Base-T (Data),for connection to the passive hub or switch

*2: 10/100 or 10/100/1000Base-T (Power/Data),for connection to the PoE devices (PD)

Model PoE-12 PoE12-HP

　 802.3af PoE Injector 802.3at PoE Injector

Product Name

Ports

10/100Base-T (Data)*1 1 -

10/100Base-T (Power/Data)*2 1 -

10/100/1000Base-T (Data)*1 - 1

10/100/1000Base-T (Power/Data)*2 - 1

Standard Compliance

IEEE 802.3 10Base-T Ethernet IEEE 802.3 10Base-T Ethernet

Ethernet IEEE 802.3u 100Base-Tx Ethernet IEEE 802.3u 100Base-Tx Ethernet

IEEE 802.3ab 1000Base-T

PoE IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet

Certification

UL 60950-1 EN 60950-1

Safety EU RoHS Compliant CSA international

EU RoHS Compliant

Emission (EMC) FCC Part15 (Class B) FCC Part15 (Class B)

CE EMC (Class B) CE EMC (Class B)

Power Requirement

Input voltage 100 - 240 V AC, 50/60 Hz, 0.3 A 100 - 240 V AC, 50/60 Hz, 1.5 A max

Power consumption (Watt) 17.3 42.1

Physical Specifications

Item dimensions (WxDxH)(mm/in.) 117 x 60 x 35/4.61 x 2.36 x 1.38 155 x 74 x 36/6.10 x 2.91 x 1.42

Item weight (g/lb.) 177/0.26 396/0.87

Packing dimensions (WxDxH)(mm/in.) 201 x 133 x 54/7.91 x 5.24 x 2.13 202 x 155 x 69/7.95 x 6.10 x 2.72

Packing weight (g/lb.) 500/1.10 780/1.72

Environmental Specifications

Operating temperature 5°C to 45°C/41°F to 113°F 0°C to 50°C/32°F to 122°F

Operating humidity 10% to 90% (Non-condensing) 10% to 95% (Non-condensing)

Storage temperature -20°C to 55°C/-4°F to 131°F -40°C to 70°C/-40°F to 158°F

Storage humidity 5% to 95% (Non-condensing) 5% to 95% (Non-condensing)
