Benefits

16/24-port Unmanaged

Rackmount Ethernet

Switch

es-1016b/

es-1024b

Easy and Efficient Fast Ethernet

Connectivity for SMB

16/24 autosensing 10/100 full

duplex ports

Full wire-speed store-and-forward

technology support

Auto-MDI/MDI-X functions support

Better Performance and Efficiency

The full range of Rackmount Unmanaged Ethernet Switch, with 16/24-ports, is designed to boost your

network with better performance and efficiency.With the N-Way auto-negotiation function, the ES-

1016B/1024B connects the network counterparts with the highest possible network speed and activates

duplex mode automatically.

Transmission Reliability

Unlike shared 10/100Mbps networks, the ZyXEL Rackmount Ethernet Switch series,the ES-1016B/1024B,

eliminates congestion by providing dedicated bandwidth. Its duplex mode doubles the effective

bandwidth by enabling two-way communications. Store-and-forward service brings low latency and error-

free packet delivering.The plug-and-play and multiple network protocol compatibility of ES-1016B/1024B

make the installation and management easier and faster than ever.

Industrial Size Fits Your Working Environment

The 19" size fits into your rack environment due to included rack mount brackets.No matter how intensive

your network demands,ZyXEL’s 16/24-port rackmount unmanaged Ethernet switch support your needs

with an affordable and reliable network solution designed especially for Small office and Medium business.

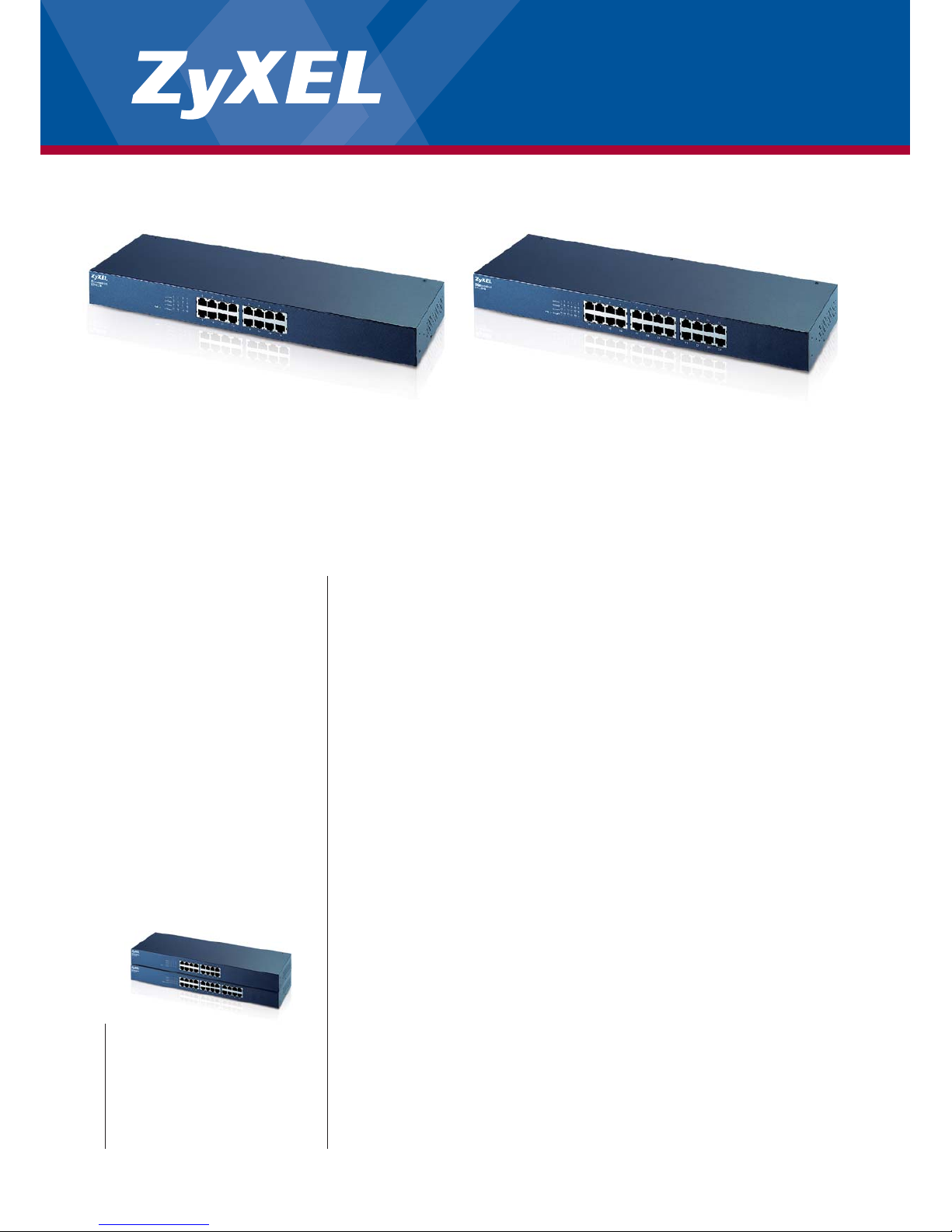

ES-1016B

16-port Unmanaged Rackmount Ethernet Switch

ES-1024B

24-port Unmanaged Rackmount Ethernet Switch

Specifications

Standards

• IEEE802.3 10BASE-T Ethernet

• IEEE802.3u 100BASE-TX Fast Ethernet

• ANSI/IEEE802.3 Auto-negotiation

• IEEE802.3x Flow Control

Data Transfer Rates

• Ethernet 10M/20Mbps (half/full duplex)

• Fast Ethernet 100M/200M (half/full duplex)

Interface

• ES-1016B: 16 10/100BASE-T Ethernet ports

• ES-1024B: 24 10/100BASE-T Ethernet ports

Network Cables

• 10BASE-T:UTP Cat.3, 4, 5 (100 max.)

EIA/TIA-586 100-ohm STP (100 max.)

• 100BASE-TX: UTP Cat.5 (100 m max.)

EIA/TIA-568 100-ohm STP (100 max.)

Media Interface Exchange

• MDI-II/MDI-X auto-adjustment for each port

System Requirement

• Network card for each PC

• Network Cables

Status LED

• System: power

• Per Port: Link/Activity

Back Plane

• Non-Blocking full wire-speed forwarding rate

- ES-1016B: 3.2Gbps

- ES-1024B: 4.8Gbps

• Packet Forwarding Rate

- 14880PPS for 10BASE-T

- 148800PPS for 100BASE-TX

Switching Method: Store-and-

forward

• Data Buffer: 1.25Mb

• MAC Address Table:8K entries

Power Requirement

• Power supply: 100 - 240VAC 50/60Hz internal

universal power supply, 3.3V 4A

Power Consumption

• ES-1016B: 6.44W (max)

• ES-1024B: 7.26W (max)

Environment Specification

• Operating temperature: 0˚C ~ 50˚C

(32˚C ~ 122˚C)

• Operating humidity: 10% to 90%

(Non-condensing)

Physical Specification

Model Name Weight Dimensions

ES-1016B 1370g 444.5 x 130 x 42

(L x W x H) mm

ES-1024B 1448g

444.5 x 130 x 42

(L x W x H) mm

Certification

• FCC Class A

• CE

• C-Tick

65-100-101602G 06/05

product names, or trademarks mentioned are the property of their respective owners. All specifications are subject to change without notice.

For more product information, visit us on the web www.ZyXEL.com

Corporate Headquarters

ZyXEL Communications Corp.

Tel: +886-3-578-3942

Fax: +886-3-578-2439

Email: [email protected]

http://www.zyxel.com

http://www.zyxel.com.tw

Tel: +7 (095) 542-8920

Fax: +7 (095) 542-8925

Email: [email protected]

http://www.zyxel.ru

ZyXEL Russia

Tel: +1-714-632-0882

Fax: +1-714-632-0858

Email: [email protected]

http://www.us.zyxel.com

ZyXEL North America

Tel: +45 39 55 07 00

Fax: +45 39 55 07 07

Email: [email protected]

http://www.zyxel.dk

ZyXEL Denmark A/S

Tel: +380 44 494 49 31

Fax: +380 44 494 49 32

Email: [email protected]

http://www.ua.zyxel.com

ZyXEL Ukraine

Tel:

+33 (0)4 72 52 97 97

Fax:

+33 (0)4 72 52 19 20

Email: in[email protected]

http://www.zyxel.fr

ZyXEL France SARL

Tel: +36-1-336-1646

Fax: +36-1-325-9100

Email: [email protected]

http://www.zyxel.hu

ZyXEL Hungary ZyXEL Sweden A/S

Tel: +46 (0) 31 744 77 00

Fax: +46 (0) 31 744 77 01

Email: [email protected]

http://www.zyxel.se

Tel: +420 241 091 350

Fax: +420 241 091 359

Email: [email protected]

http://cz.zyxel.com

ZyXEL Czech s.r.o.

Tel: +47 22 80 61 80

Fax: +47 22 80 61 81

Email: [email protected]

http://www.zyxel.no

ZyXEL Norway A/S

Tel:

+358-9-4780 8400

Fax:

+358-9-4780 8448

Email: [email protected]

http://www.zyxel.fi

ZyXEL Finland Oy

Tel: +49 (0) 2405-6909 0

Fax: +49 (0) 2405-6909 99

Email: [email protected]

http://www.zyxel.de

ZyXEL Germany GmbH. ZyXEL Kazakhstan

Tel: +7-327-2-590-699

Fax: +7-327-2-590-689

Email: [email protected]

http://www.zyxel.kz

ZyXEL Spain

Tel: +34 902 195 420

Fax: +34 913 005 345

Email: [email protected]

http://www.zyxel.es

ZyXEL UK Ltd.

Tel: +44 (0) 1344 303044

Fax: +44 (0) 1344 303034

Email: [email protected]

http://www.zyxel.co.uk

Feature MatrixFeature Matrix

Fast Ethernet Switch Gigabit Ethernet Switch

-1124 E

-1024B E

-1016B

-1124 G

-1116

x 1

000

e-T 24 x 1

000

x 1

000

e-T

x mini-GBIC (s

are

) 2 x mini-GBIC (s

are

)

x mini-GBIC (s

are

8K 8

8.8G

ps 4.8G

ps 3.2G

ps 48G

440 x 161 x 44

(

1U, 19"

)

44.5 x 130 x 42

(

1U, 19"

)

444.5 x 130 x 42

(

1U, 19"

)

40 x 224 x 44

(

1U, 19"

)

40 x 224 x 44

(

1U, 19"

)

Port Number 10/100 RJ45

Port Number 100/1000

Gigabit Fiber

802.3/802.3u Compliant

802.1p CoS

Jumbo Frame

All Ports MDI/MDI-X

full/half Duplex Auto Negotiation

VLAN packet pass through

MAC Address Table

Switching Capability

Packet Buffer

Dimension W x D x H (mm)

Rack mountable

Internal Switching Power

Unmanaged Ethernet SwitchUnmanaged Ethernet Switch
