ZyXEL Communications ES-3124F Manuale

RSTP and MVR

(Rapid Spanning Tree Protocol + MVR)

Ring work as the Aggregation Layer

Ethernet Switch

ZyNOS 3.7

Support Notes

Version 3.70

December 2006

RSTP and MVR Support Note II

Overview of RSTP

ZyXEL Management Switch uses IEEE 802.1w RSTP (Rapid Spanning Tree

Protocol) that allows faster convergence of the spanning tree than STP (while

also being backwards compatible with STP-only aware bridges). In RSTP,

topology change information is directly propagated throughout the network

from the device that generates the topology change. In STP, a longer delay is

required as the device that causes a topology change first notifies the root

bridge and only then notifies the network. Both RSTP and STP flush unwanted

learned addresses from the filtering database. In RSTP, the port states are

Discarding, Learning, and Forwarding.

(Rapid) STP detects and breaks network loops and provides backup links

between switches, bridges or routers. It allows a switch to interact with other

(R)STP -compliant switches in your network in order to ensure that only one

path exists between any two stations on the network.

Note: "STP" refers to both STP and RSTP on ZyXEL Management Switch.

Overview of MVR

Multicast VLAN Registration (MVR) is designed for applications (such as

Media-on-Demand (MoD)) that use multicast traffic across an Ethernet

ring-based service provider network.

MVR allows one single multicast VLAN to be shared among different

subscriber VLANs on the network. While isolated in different subscriber VLANs,

connected devices can both subscribe to and unsubscribe from the multicast

stream in the multicast VLAN. This improves bandwidth utilization with

reduced multicast traffic in the subscriber VLANs, and simplifies multicast

group management.

RSTP and MVR Support Note II

Scenario of RSTP + MVR (Ring works as the aggregation later)

In the following section, we will provide an example to illustrate how to create a

multicast network with IGMP Router (IGMP L3 Switch), IGMP Snooping L2

Switch on a ring using RSTP, and MVR L2 Switch with IGMP Snooping

Enabled. In this scenario, the Video Servers are located in VLAN200. Thus,

the Multicast VLAN is going to be VLAN200.

There are two clients subscribing the Multicast Video. One of them is located in

VLAN 5 and the other one is located in VLAN 10. IGMP Route is enabled on

the IGMP L3 Switch. RSTP, IGMP Snooping is enabled on the Aggregation

layer L2 Switches which located in the ring. MVR is enabled on the Access

Layer L2 Switches which are used for connecting with the clients.

Action to perform in this scenario:

1. Create and activate VLAN and IGMP Route on the L3 Switch.

2. Create and activate VLAN, RSTP, IGMP Snooping on the Aggregation

Layer Switches

3. Create and activate VLAN, IGMP Snooping, MVR on the Access Layer L2

Switches

Illustration of this scenario

RSTP and MVR Support Note II

Configuration using the Web GUI - ZyXEL L3 Management

Switch

1. Connect port 1 with a PC or Notebook via the RJ45 Cable.

2. By default, the MGMT IP of the out-band port is 192.168.0.1/24

3. Set your NIC to 192.168.0.100/24

4. Open an Internet browser (e.g. IE) and enter http://192.168.0.1 in the

URL field.

5. By default, the username for the administrator is “admin” and the

corresponding password is “1234”.

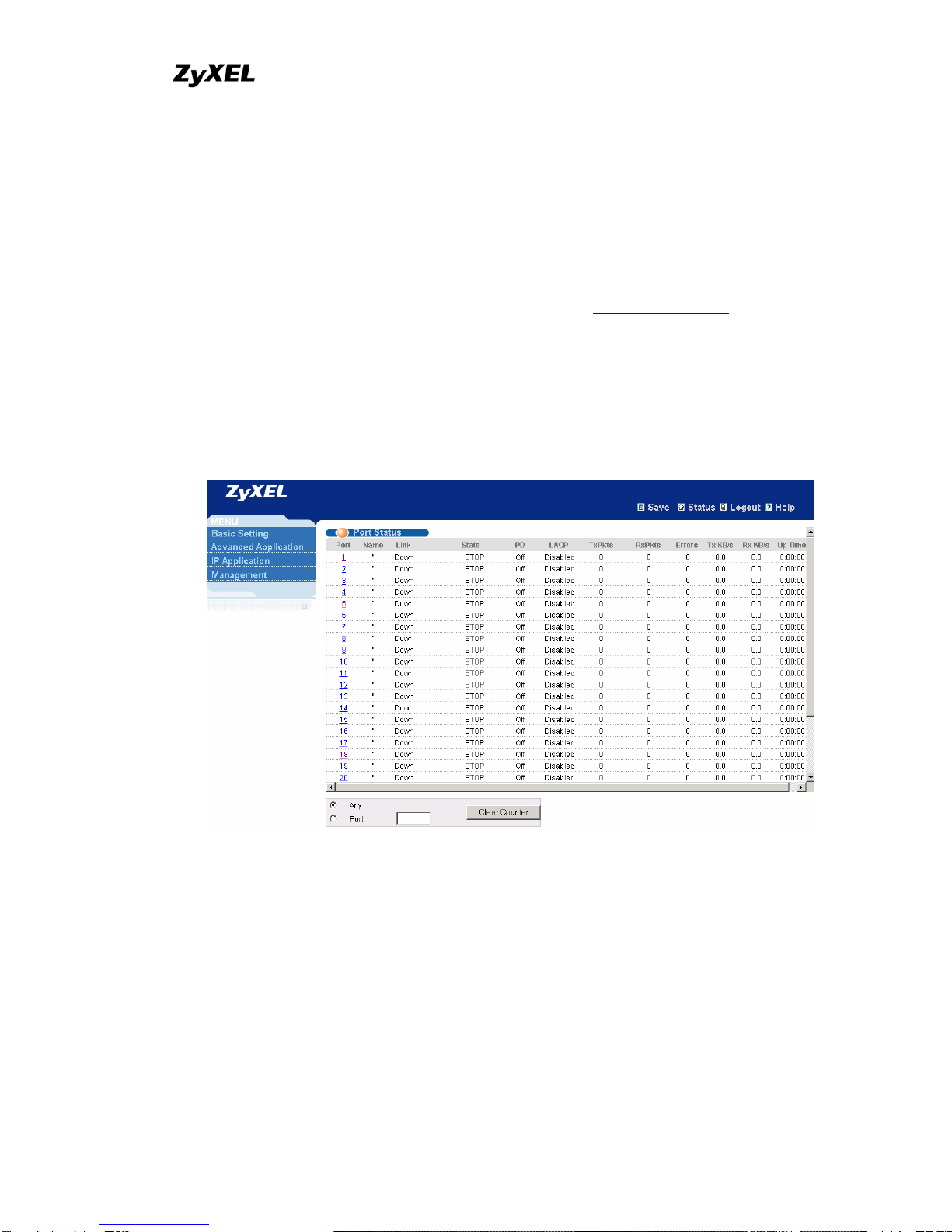

6. After successful login you will see a screen similar to the one on the

screenshot below.

7. First of all, the IP domain of the video servers is 192.168.10.1/24. The

video servers will be put under VLAN200, so we will need to create

VLAN200 as well as the IP domain on the Switch first. To do so, click

RSTP and MVR Support Note II

“Advanced Application” Æ“VLAN”.

8. Click the “Static VLAN” to create the VLAN first.

9. Now, tick the “Active” check box to activate the VLAN. Give it a name

as well as its VID (200 in our case). Since the Video Servers are

connected to port 10 through another L2 VLAN unaware Switch, we

need to take away the “Tx Tagging” and let the Switch to take away the

VLAN tag during Egress. Port 12 should be joined to the VLAN200

since it is used to connect to the first MVR L2 Switch. Finally click

“Add” to create this VLAN.

RSTP and MVR Support Note II

10.When the task is finished, go back to the VLAN Status screen and click

“VLAN Port Setting” to modify the PVID.

11.For PVID, it is necessary to assign the port 10 with PVID200 since all

the packets coming from the video servers are untagged. This Switch

should apply the VID200 tag to all those packets in order for them to

go into VLAN 200. Click “Apply” to apply your changes.

RSTP and MVR Support Note II

12.Second, since the VLAN is ready now, we need to create the

corresponding IP domain for this VLAN. To create a new IP domain,

click “IP Setup” under “Basic Setting”.

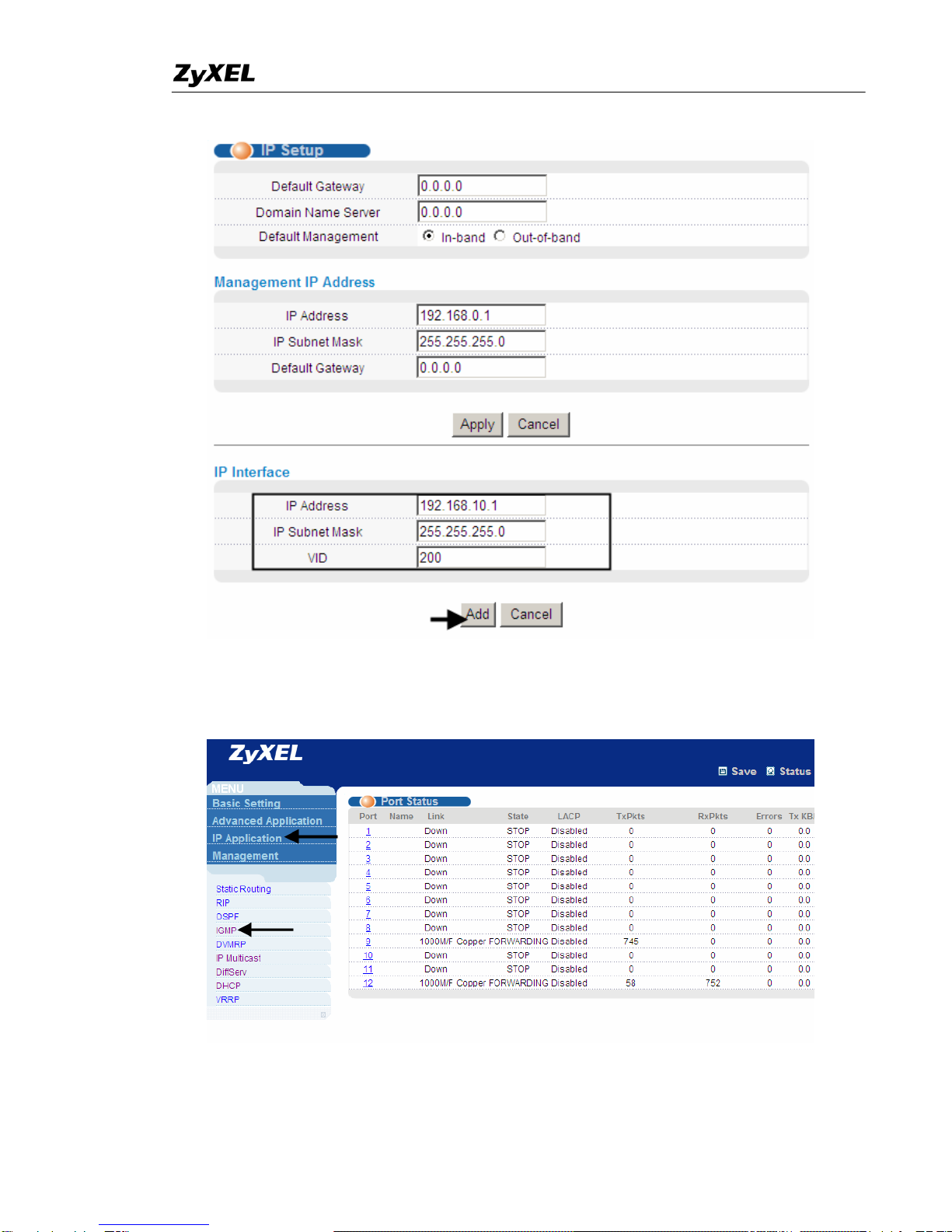

13.Since we will give the same IP domain as the video server, use

192.168.10.1 /24 again, and again, make it belong to VLAN 200. Click

“Add” to add this VLAN.

RSTP and MVR Support Note II

14.Now, the last step is to activate IGMP Route V2 in our newly created

IP Domain. To do so we click “IP Application” Æ“IGMP”.

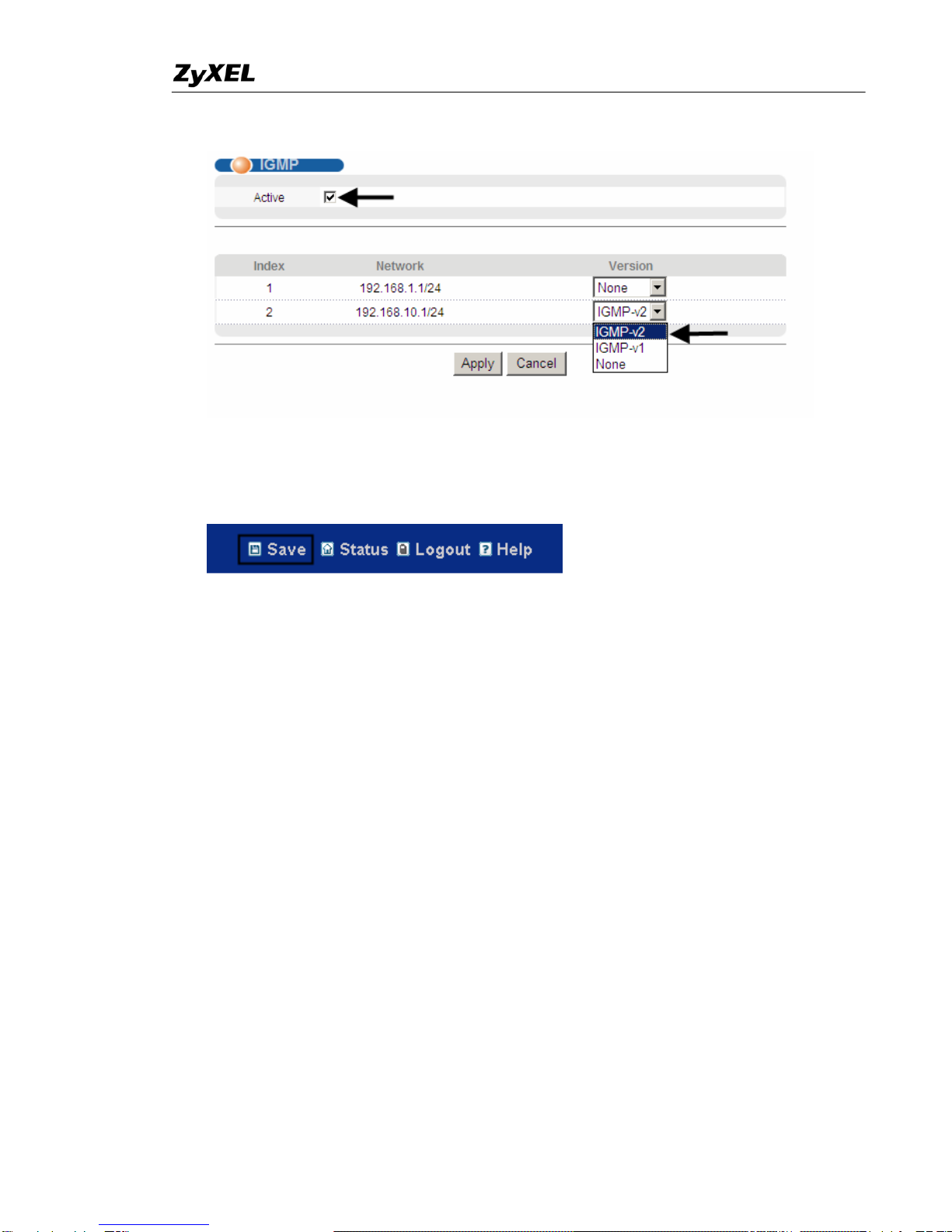

15.First, tick the check box and assign “IGMP v2” to the IP domain

192.168.10.1/24.

RSTP and MVR Support Note II

16.Finally, in the upper right corner, click “Save” to write all the changes to

the memory. At this point everything is done on this Switch.

RSTP and MVR Support Note II

Configuration using the Web GUI - IGMP L2 Management

Switch [The first L2 Switch on the top of the ring]

1. Connect the port 1 with a PC or Notebook via the RJ45 Cable.

2. By default, the MGMT IP of the out-band port is 192.168.0.1/24

3. Set your NIC to 192.168.0.100/24

4. Open an Internet browser (e.g. IE) and enter http://192.168.0.1 in the

URL field.

5. By default, the username for the administrator is “admin” and the

corresponding password is “1234”.

6. After successful login you will see a screen similar to the one on the

screenshot below.

7. First, we are going to create the multicast VLAN 200 on this switch.

Also, RSTP is needed in our case to build the Aggregation layer ring

(3x IGMP L2 Switches) for case of physical wire being disconnected.

To enable the RSTP, click “Advanced Application” Æ“Spanning Tree

Protocol”.
