ENGLISH
1
Overview
The NPS-520 is a print server and comes with one Ethernet
port and one USB (v2.0) port. You can use the USB port to
share a printer with the computers in the network to which the
NPS-520 (labeled NPS in the following graphic) is connected.
Through the NPS-520, the printer works as if it is connected
directly to your computer.
"You should have already installed the driver
(and utility if there is one) for the printer
(connected to the NPS-520) on your computer.
Refer to your printer documentation for more
information.
This guide shows you how to:
1Install the hardware.
2Install and use the ZyXEL utility (Windows users only).
ENGLISH
2
ENGLISH
3Use the web configurator to manage the NPS-520.
Windows users can use the utility or web configurator to
configure the NPS-520. Macintosh and Linux/UNIX users can
use the web configurator to configure the NPS-520. See page
16 for a list of system requirements.
"If your computer operating system version is
older than Windows 2000 SP4, you can only
print on a printer even if the printer provides
print, copy, fax and/or scan functions.
1 Hardware Connection

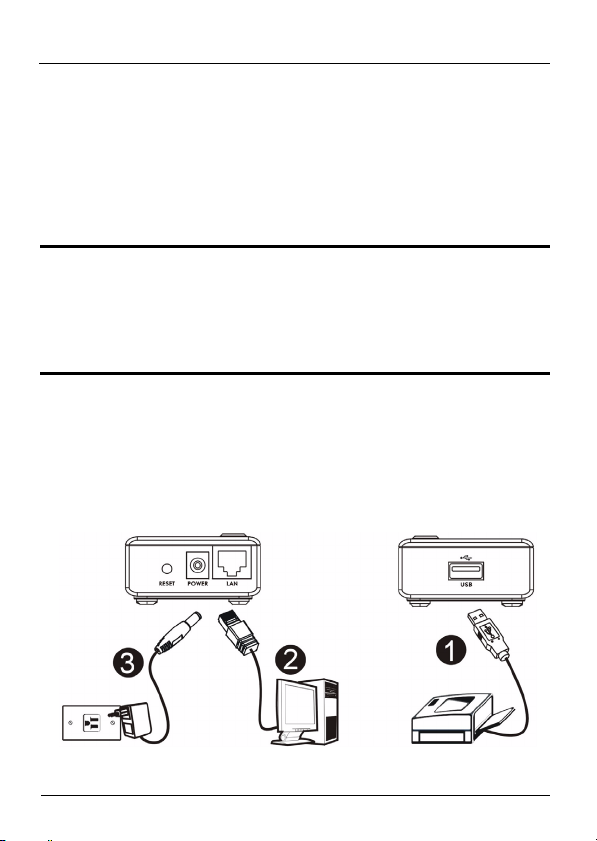

Follow the steps below to connect the NPS-520 to your
network.
ENGLISH
3
1Connect the USB port to a USB v2.0 compliant printer
using a USB cable.
2Connect the LAN port to your local network using an
Ethernet cable.
3Use the included power adaptor to connect the power
socket on the NPS-520 to an appropriate power source.
1.1 LEDs

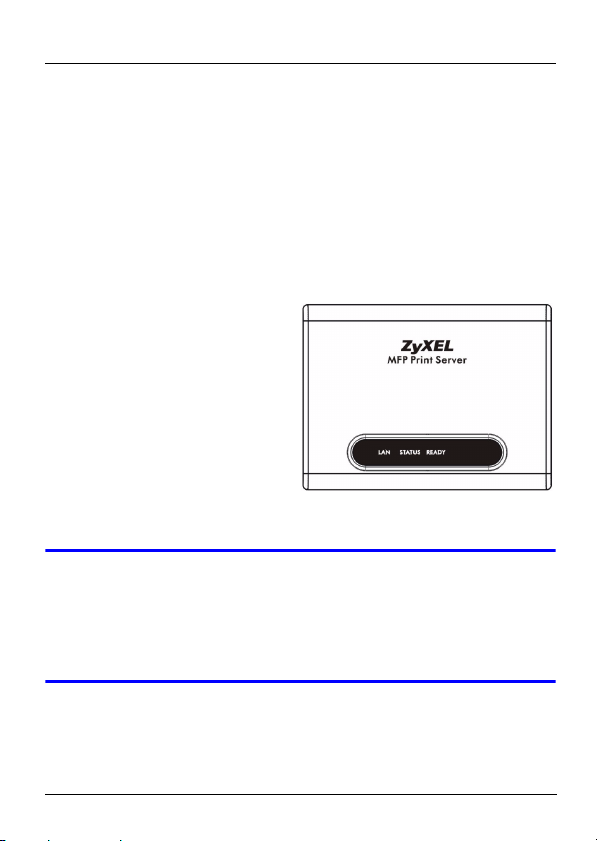

Look at the LEDs (lights) on
the top panel.
The READY LED stays on
when the system is ready.
The LAN LED stays on if the
LAN port is properly
connected and blinks when
there is traffic.
VIf none of the LEDs are on, check your
connections, and inspect your cables for
damage. If the LEDs are still off, contact your
local vendor.
4
ENGLISH
2 ZyXEL Utility
Use the utility to install and associate your printer driver as
well as manage the NPS-520.
2.1 Utility Installation on Windows
"The NPS-520’s default IP address is
192.168.1.6.
The installation procedures are similar for all supported
Windows versions.

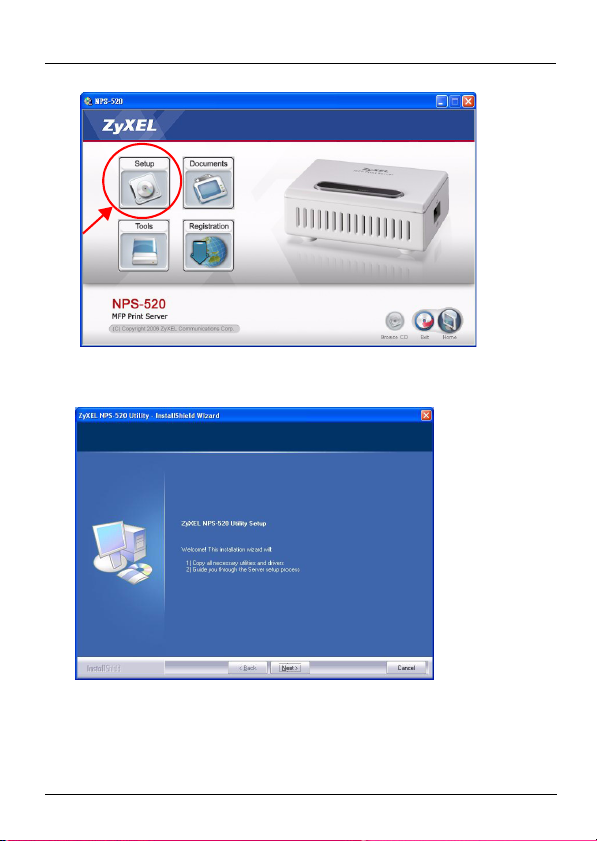

1Insert the included CD into the CD-ROM drive on your
computer (that is connected to the NPS-520 directly or
connected to your network). When the following screen
displays, click Setup.
VIf the screen does not display, locate and
double-click autorun.exe on the CD.
ENGLISH
5
2Select your preferred language and click OK.
3The following screen displays. Click Next.
6
ENGLISH

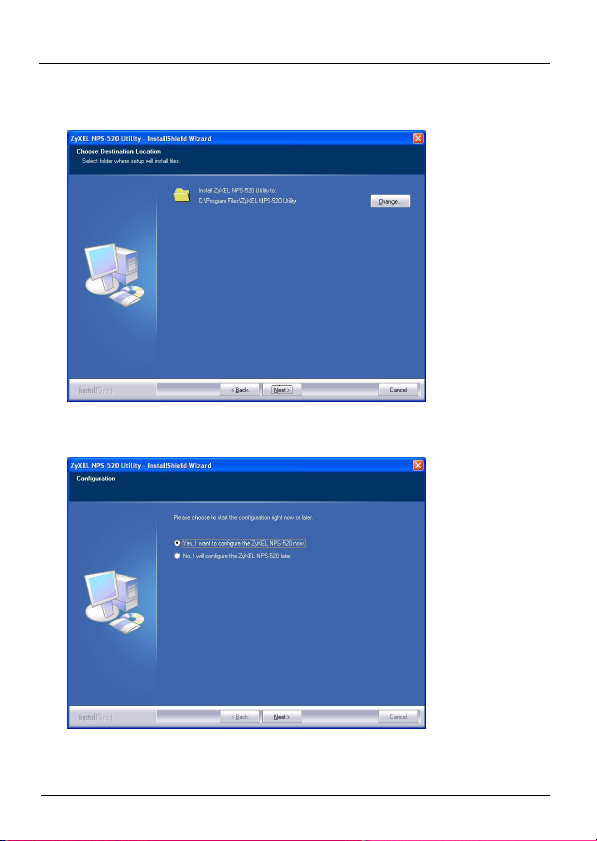

4Click Next to accept the default file location or click
Change to select an alternate folder.
5Select Yes, I want to configure the ZyXEL NPS-520 now
and click Next to configure the NPS-520 now.
ENGLISH
7

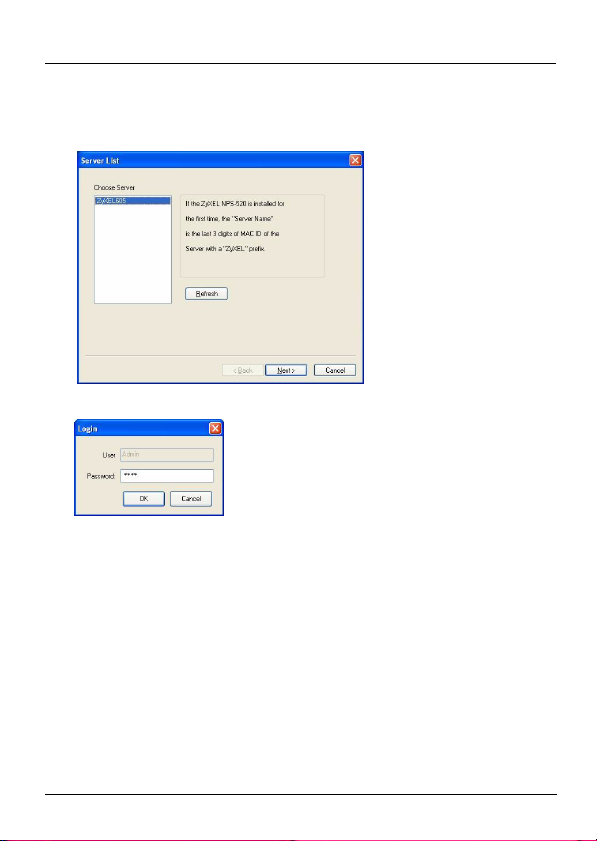

6Your unique NPS-520’s device name automatically
displays in the text box. If it does not show up, click
Refresh to update this screen. Click Next.
7Enter the default password (1234) and click OK.

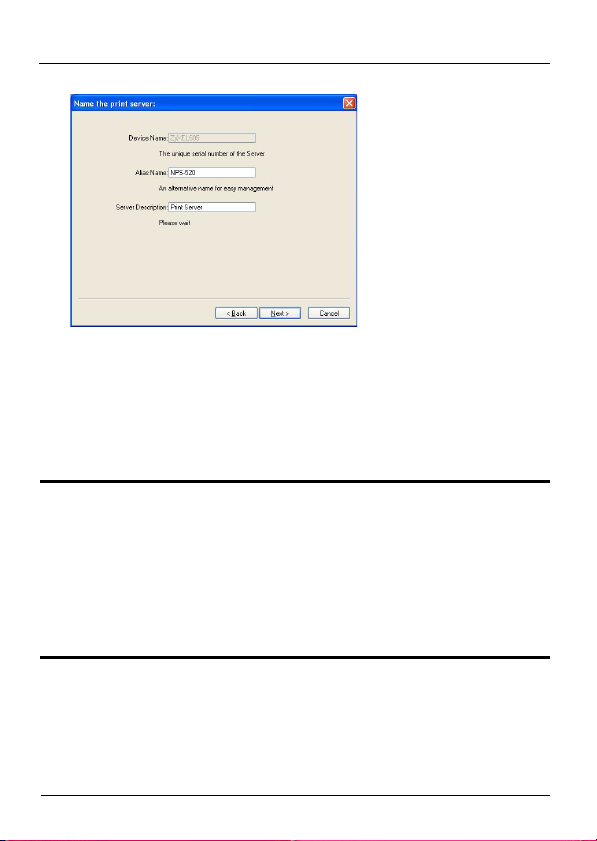

8Replace the unique generated device name with a more
friendly recognizable name with additional descriptive text
if you want. Alternatively, leave the fields at the default
settings. Click Next.
8
ENGLISH

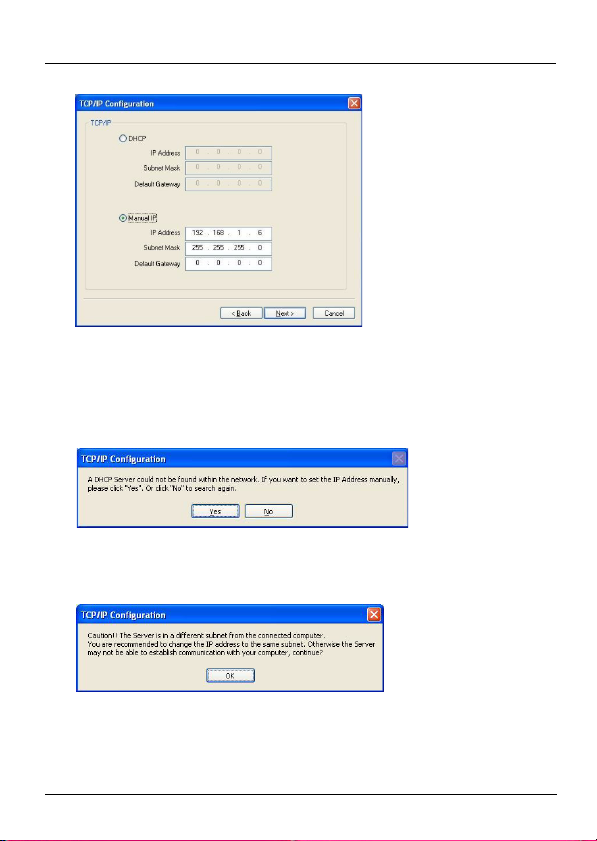

9If the NPS-520 is connected to a network that has a DHCP
server, select DHCP to have the DHCP server assign
TCP/IP information (such as IP address and subnet mask)
to your NPS-520. Otherwise, select Manual IP and enter
an IP address (in the same subnet as your network),
subnet mask and the gateway’s IP address. Click Next.
"We recommend you give the NPS-520 a static
IP address or configure your DHCP server to
always give it the same IP address (static
DHCP). If the NPS-520’s IP address changes,
you need to uninstall and reinstall the ZyXEL
utility on each computer that uses it.
ENGLISH
9
If you selected DHCP in the previous screen but there was
no DHCP server found in your network, the following screen
displays. Click Yes to go back to the TCP/IP configuration
screen or click No to have the NPS-520 search for the DHCP
server again.
If your computer and the NPS-520 are not in the same
subnet, the following screen pops up. Click OK (or Yes) to
continue.
10This read-only screen shows the current settings. Check
whether what you have configured is correct and click
