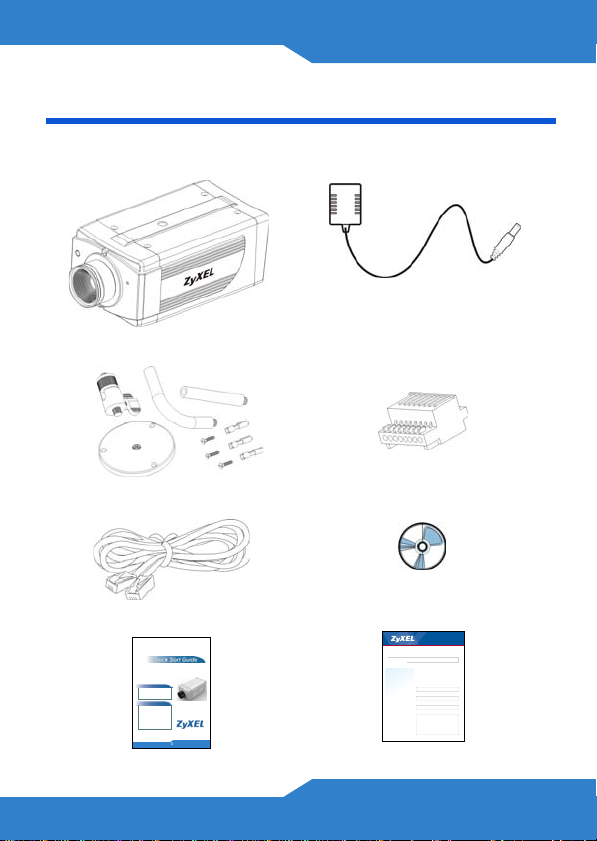

Package Contents
• IP Camera • Power Adapter
• Mounting Kit • GPIO Connector
• Ethernet Cable (RJ-45) • Installation CD
• Quick Start Guide • Warranty Card
www.zyxel.com
CAM5525 IP Camera
IP Camera
Version1. 00
Edition1, 11/2010
DEFAULTLOGIN DETAILS
IP Address DHCP assignedor
192.168.0.30
Username: admin
Password: 1234
CONTENTS
ENGLISH 3
DEUTSCH 17
ESPAÑOL 31
FRANÇAIS 45
ITALIANO 59
ɊɍɋɋɄɂɃ 73
ㆶ։ѣᮽ 101
䷩橼㔯 109
2010ZyXEL Communications Corporation
C
ZyXELWarranty information
Thankyou for purchasing a ZyXEL
product!Wetake great pride in our
quality,value and performance and
believethat this product should oer
youtrouble-free operation throughout
itslifetime. If you do experience any
problemswith your product, please
contactZyXEL Communications
Corporationoffices worldwide.
Forfurther information on our warranty
regulationsand liability in your country
pleasevisit the ZyXEL web site:
http://www.zyxel.com/warranty
Warrantyform
Incertain countries, the seller has to fill out, sign and stamp
thefollowing warranty information in order for the ZyXEL
warrantyto be valid.
Warranty
Productmodel number:
Productserial number:
Dateof purchase:
Seller’sstamp and signature:
Card
ENGLISH
4
Hardware Overview
LIGHT
RESET
LENS FOCUS RING
MOUNTING
SCREW
HOLE
SENSOR
INTERNAL
LENS FOCUS LOCK
MOUNTING
SCREW
HOLE
ETHERNET
POWER
SOCKET
LINK
LIGHT
POWER
LIGHT
MICROPHONE
IN SPEAKER
OUT
MICROPHONE
PORT
SD CARD
SLOT
GENERAL PURPOSE
INPUT/OUTPUT
PINS
ENGLISH
5
O
N
SO
N
S
O
N
S
Connections
General Connection (without PoE)
1. Use an Ethernet cable to connect the camera to an
Ethernet switch or router on your network with
Internet access.
2. Use the provided power adapter to connect the
camera to an appropriate power supply.
12
6
Power over Ethernet (PoE)
1. Use an Ethernet cable to connect the camera to a
PoE-enabled Ethernet switch on your network with
Internet access.
1
PoE
ENGLISH
7
E
THE CAMERA
E
THE CAMERA
E
THE CAMERA
Lights
The camera turns on.
• The rear panel Power light comes on.
•TheLink light starts flashing green if the Ethernet
cable is properly connected. The camera is ready for
use now.
If the Power light does not turn on, make sure the
cables are connected properly and that the power
source is turned on. If the lights still do not turn on,
please contact your camera vendor.
Configure the Camera
The camera receives an IP address automatically
(DHCP mode) by default. You can use the IPCam
Discovery Utility to find the camera in the network.
The camera uses IP address 192.168.1.100 if it can't
get an IP address automatically.
Supported Operating Systems
• Windows XP, Windows Vista or Windows 7
8
Minimum System Requirements
• CPU: Intel Pentium III 800 MHz
• RAM: 512 MB
• Screen Resolution: 1024 x 768
1. Insert the included CD into your CD-ROM drive. In
the Auto-Run screen, click Install Software and then
select ZyXEL CamView Utility in the screen that
displays. This installs both the ZyXEL CamView
Utility and the IPCam Discovery Utility.
2. The IPCam Discovery Utility icon appears on your
computer’s desktop after the install is complete.
3. Double-click the icon to open the utility.
ENGLISH
9
E
THE CAMERA
E
THE CAMERA
E
THE CAMERA
a. Wait while it searches for connected cameras.
b. Double-click the camera you want to configure.
10

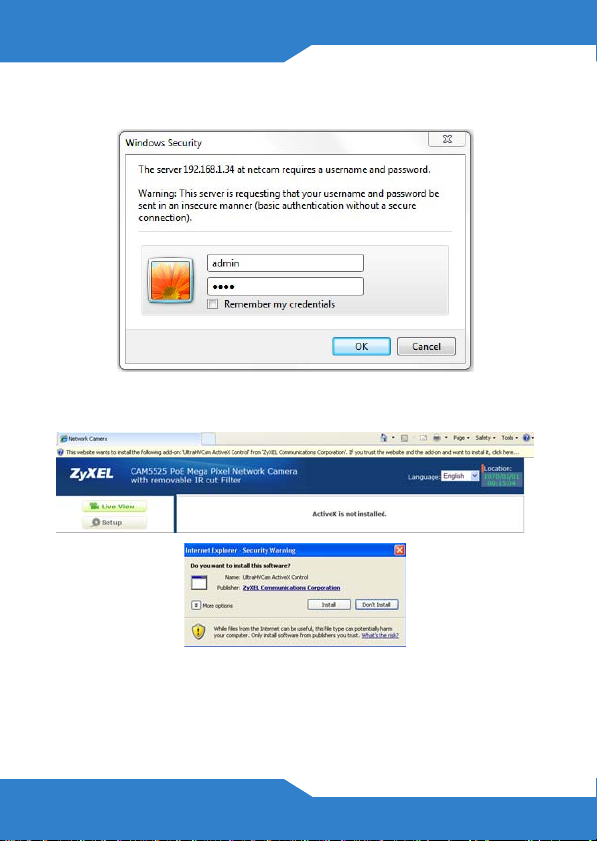

4. Your web browser opens. Use the default username
‘admin’ and password ‘1234’ to log in.
Internet Explorer needs Active-X installed. Refreshing
the screen may display a prompt to install it.
Other browsers may need a Java plug-in installed.
The Live View displays after the browser is configured
correctly. The screen layout varies slightly by
browser.
