ZyXEL Communications X-550N Manuale utente

X550N Series

Wireless N Gigabit Router

Quick Start Guide

Version 3.60

3/2008

Edition 1

DEFAULT LOGIN

IP Address http://192.168.1.1

Password 1234

X550N Series Quick Start Guide

Overview

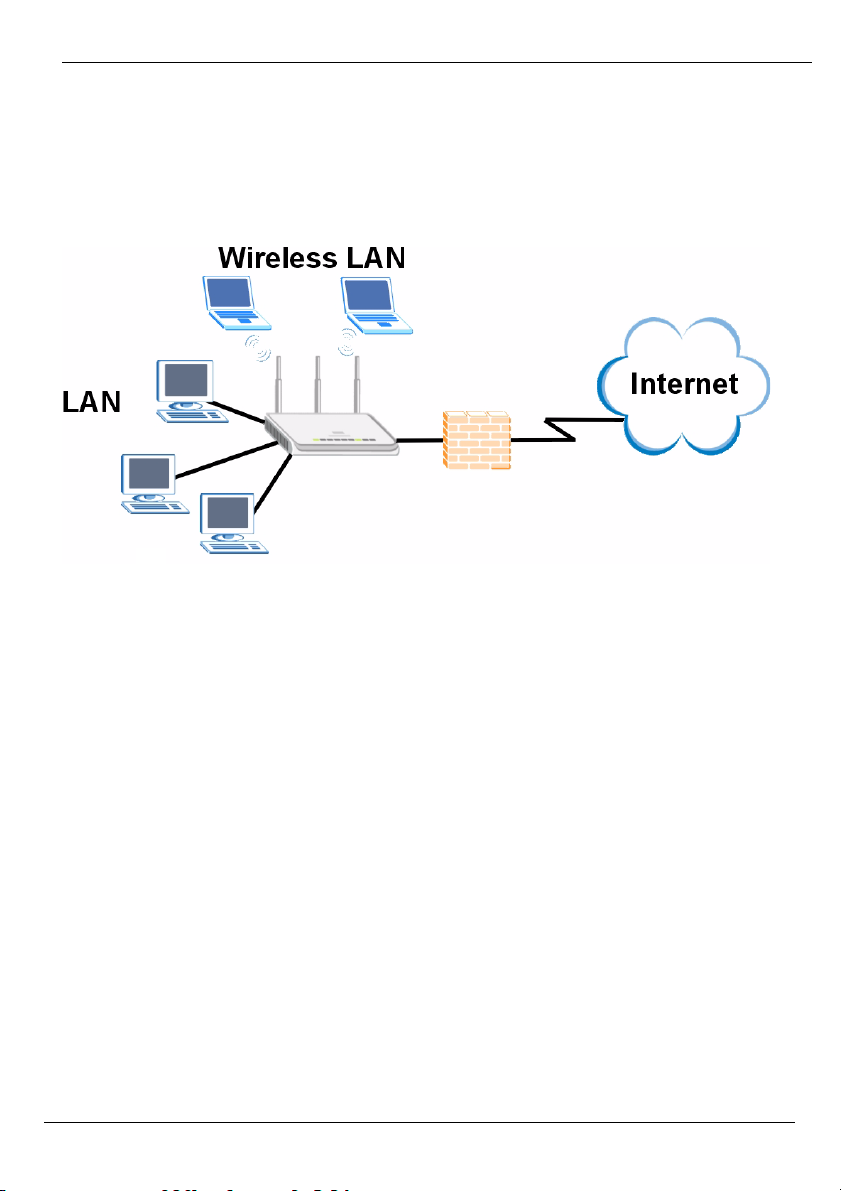

The X550N is an IEEE 802.11b/g/n wireless broadband router or access point (AP). As a

router, the X550N directs traffic between your wireless network and another network such

as the Internet as shown below, providing services such as content filtering, bandwidth

management and a firewall.

This Quick Start Guide shows you how to do the following with your X550N in router mode:

1Connecting Your Hardware

2Accessing the Web Configurator

3Connecting to the Internet with the Wizard

4Set Up a Wireless Network Manually or with WPS

See your User’s Guide on the CD in the package on how to set up the X550N as an AP

and for more information on all features.

To read the User’s Guide insert the CD that came in the box into your CD-ROM drive. A

screen should pop up. Navigate to the User’s Guide from this screen. If a screen does not

pop up, open Windows Explorer (click My Computer), click on the CD-ROM drive (usually

drive D:) and navigate to it from there.

X550N Series Quick Start Guide

1 Hardware Connections

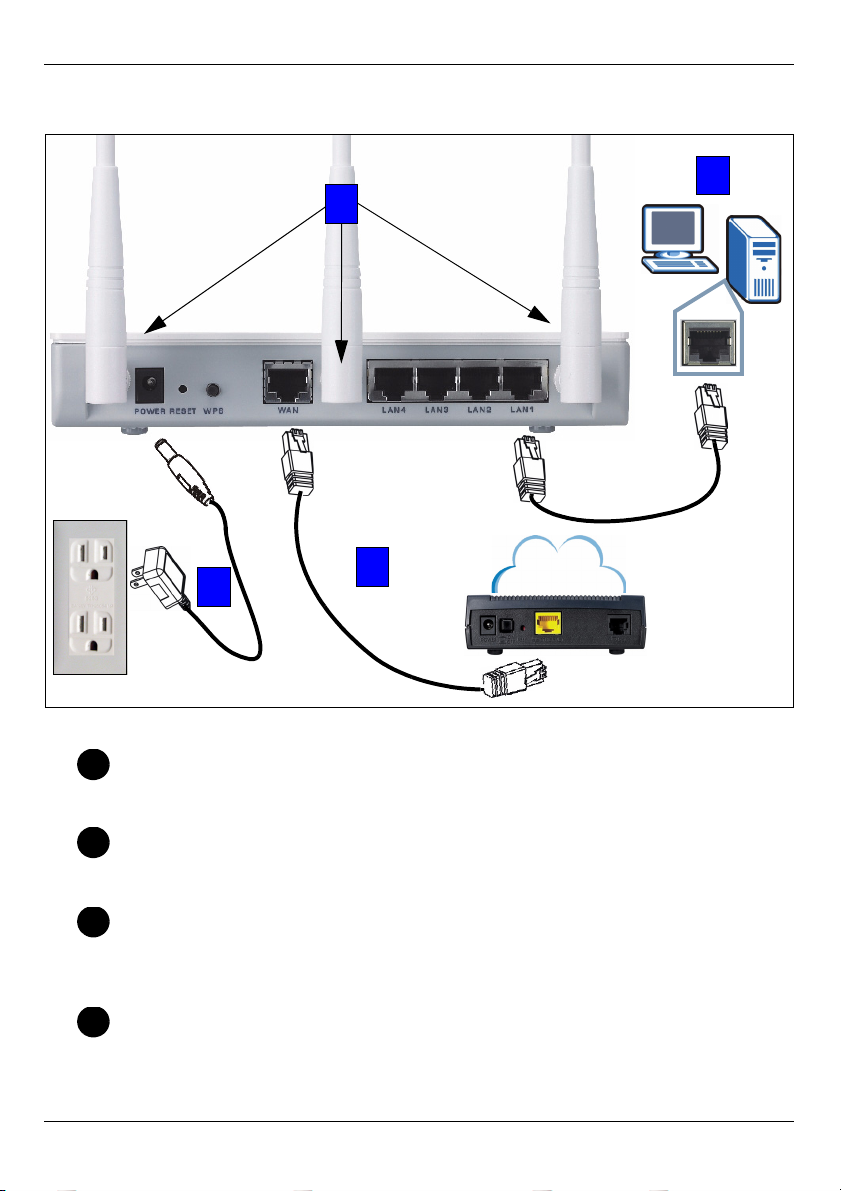

Do the following to make hardware connections for initial setup.

Antennas

Connect each antenna to an antenna socket, ensuring the antennas are screwed

in firmly and angled upwards.

LAN

Connect the Ethernet port on your computer to a LAN port on the X550N using the

included Ethernet cable.

WAN

Connect the WAN port on your X550N to the Ethernet port on the device with which

you are accessing the Internet (for example, a router or modem) using an Ethernet

cable.

POWER Connection

Use the power adapter from the package to connect the POWER socket to an

appropriate power source.

Internet

X550N Series Quick Start Guide

The LEDs

Look at the LEDs (lights). When you connect the power, the power LED ( ) blinks and

stays on once the device is ready.

The LAN ( ) and WAN ( ) LEDs turn on if the corresponding connections

are properly made.

VIf an LED does not turn on, check your connections. If this doesn’t help,

disconnect the X550N from its power source, wait for a few seconds and

turn it back on.

2 Accessing the Web Configurator

Default Login Information

1Launch an Internet browser such as Internet Explorer. Enter “http://192.168.1.1” as

shown below.

IP address http://192.168.1.1

administrator password 1234

X550N Series Quick Start Guide

2The Password window displays. Enter the password (“1234” is the default) and click

VIf the login screen does not display, make sure your computer is set to

receive an IP address dynamically. If that doesn’t help, check your web

browser’s security settings (see the appendix in the User’s Guide for

information on both suggestions).

3Change the password in the screen that follows and click Apply.

4Click Go to Wizard setup to set up your X550N for the first time

3 Connection Wizard Setup

1Select a language. Click Next.

X550N Series Quick Start Guide

2Click Next in the following screen to proceed with the Connection Wizard.

"Enter the Internet access information exactly as given to you by your ISP in

each wizard screen. Click Next to continue or click Back to return to the

previous screen. Current screen information will be lost if you click Back.

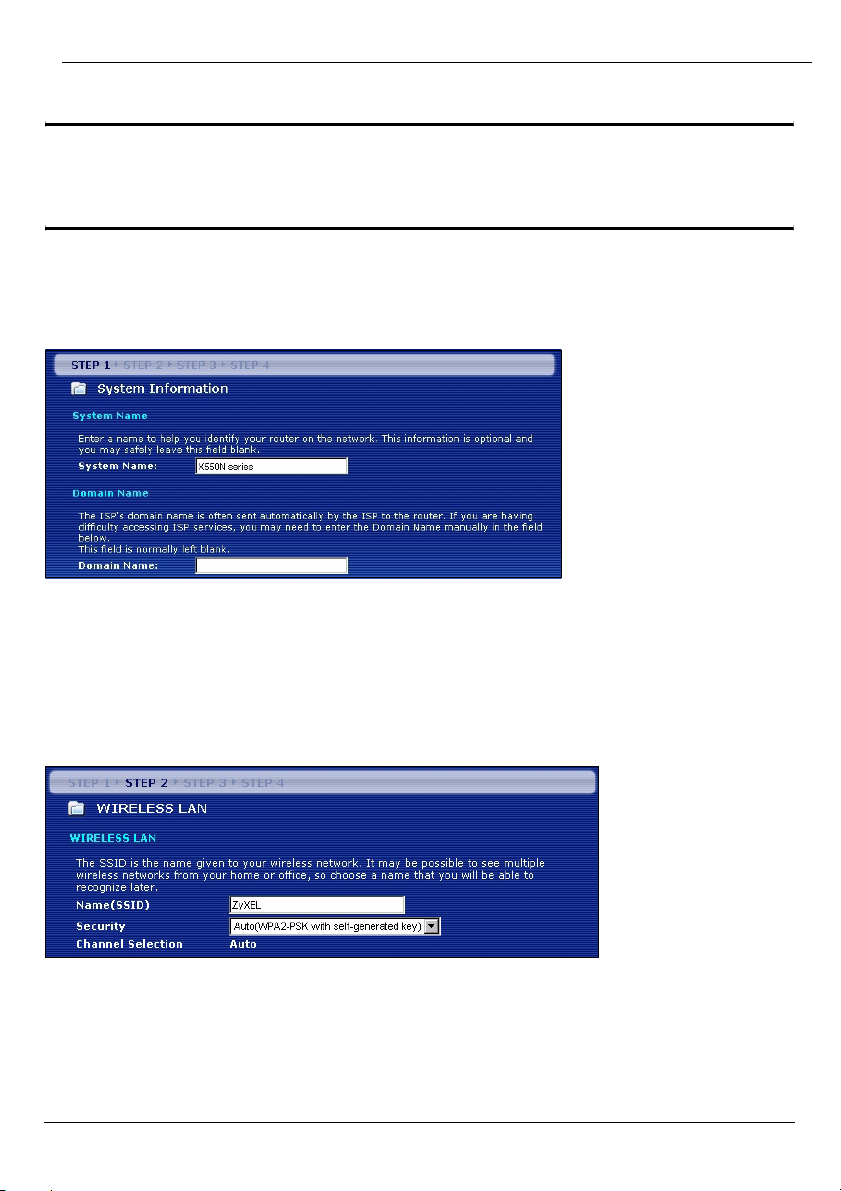

3.1 System Information

This screen is optional. You can just click Next.

3.2 Wireless LAN

Configure your X550N to support a wireless network by following these steps.

1Enter a unique Name (SSID) to identify the X550N on the wireless LAN.

2Select Auto to automatically use WPA-PSK which provides a high level of security. See

your User’s Guide for information on other kinds of security. Click Next.

X550N Series Quick Start Guide

3Write down the security key that displays in the pop-up screen. Computers on the wireless

network will need this security key to access the X550N. The security key is case-sensitive

so “ABCD” is not the same as “abcd”.

"Write down the security key, Name (SSID), Security and Channel

Selection for later use as the X550N and other devices on your wireless

network must use the same settings.

4Click OK to continue.

3.3 WAN Connection

You may need to wait several minutes while the wizard attempts to detect which WAN

connection type (Ethernet, PPP over Ethernet or PPTP) you are using.

• If the wizard detects your connection type, follow the steps for your connection type as

given below.

• If the wizard cannot detect a connection type, you must select your connection type from

the drop-down list box in the screen below. If you do not know what connection type to use,

check with your Internet Service Provider (ISP).

"If you were given Internet access settings, type them in the following fields.

Otherwise leave the default settings and click Next.

X550N Series Quick Start Guide

Ethernet Connection

Select Ethernet as your WAN connection type and click Next to go to section 3.4.

PPP over Ethernet Connection

1Select PPP over Ethernet as your WAN connection type

2Type a Service Name (if your ISP gave you one), User Name and Password. Click Next

to go to section 3.4.

PPTP Connection

1Select PPTP as your WAN connection type.

2Type a User Name and Password.

3Type a PPTP Server IP Address.

4Type a Connection ID/Name (if provided by your ISP).

5If your ISP did not assign you a fixed PPTP IP address, select Get automatically from

ISP.

6If your ISP assigned you a fixed PPTP IP address, select Use fixed IP address to give

the X550N a fixed, unique PPTP IP address and subnet mask.

X550N Series Quick Start Guide

7Click Next to go to section 3.4.

3.4 WAN IP Address

• If your ISP did not assign you a fixed IP address, select Get automatically from your ISP

and click Next to go to section 3.5.

• If your ISP gave you a fixed IP address:

1Select Use fixed IP address provided by your ISP. Click Next.

2In the next screen type the WAN IP address, WAN IP Subnet Mask and the gateway IP

address given by your ISP.

If you were given DNS server settings, type them in the fields. Otherwise leave the default

settings and click Next.

3.5 WAN MAC Address

A MAC address is a number which uniquely identifies a device on any network. Set the

WAN port’s MAC address by either using your device’s factory assigned default MAC

address or cloning the MAC address of a computer on your LAN. By default, the X550N

uses the factory assigned MAC address to identify itself on the WAN.

X550N Series Quick Start Guide

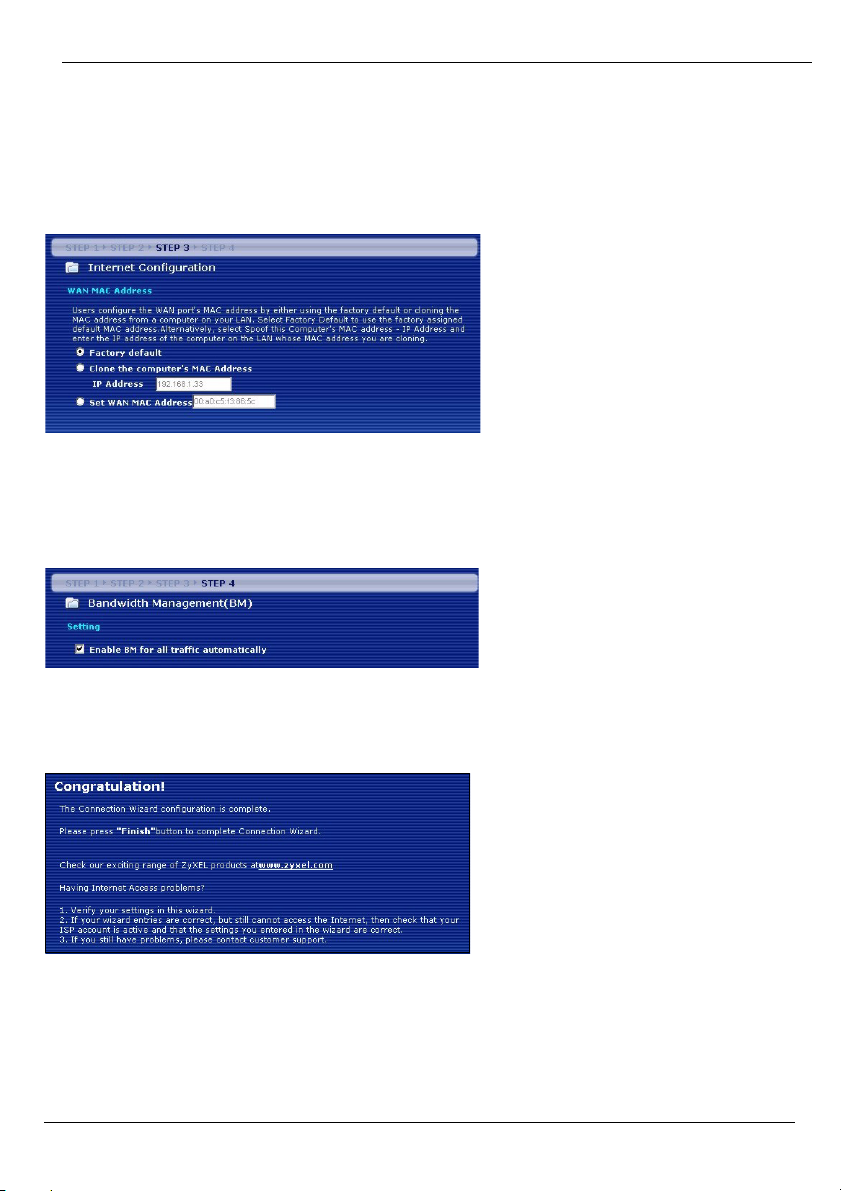

•SelectFactory Default to use the factory-assigned, default MAC address.

•SelectClone the Computer’s MAC Address to clone the MAC address from a computer

on your LAN. Type the IP address of the computer with the MAC address you are cloning. It

is advisable to clone the MAC address from a computer on your LAN even if your ISP does

not presently require MAC address authentication.

•SelectSet WAN MAC Address if you know the MAC address you want to use.

3.6 Bandwidth Management

Select Enable BM for all traffic automatically to have the X550N prioritize data traffic

according to the its use. For example, video streaming may have higher priority than email.

Leave unchecked if unsure. Click Next.

3.7 Setup Complete

1Click Apply to save your changes in the next screen that appears in the wizard.

2Click Finish in the screen below to complete the wizard setup.

3Congratulations. Open a web browser, such as Internet Explorer, to visit your favorite

website.
