3-form SimpleSpec 250.02 Manuale utente
Contents Overview
(2) =+
M8 × 25mm
Threaded Rod
3151754
(2)
Coupler with
Cover Plate
3151639
(2)
Cable Coupler with
Cover Plate KIT
3151639K
(2)
3mm Cable with
Terminal End
3-15-723
(1)
Varia
Panel ½"
=
(2)
Fixed Surface Bracket
for M8 KIT
3-15-179-K
+ + + +
Fixed Surface
Bracket for M8
315179
(2)
M8 × 14mm
SHCS
3157778
(2)
M6 × 12mm
Set Screw
315-776
(2)
M6 × 2mm
Set Screw
315-777
(2)
M8 × 4mm
SHCS
3156363
(2)
(2) =
1" Top Gripper KIT
315-749K
+
1" Top Gripper
315-749
(2)
M6 × 12mm
Set Screw
315-776
(4)
(1) =
1" Shelf Holder
315-754K
+
Shelf Holder
315-754
(1) (1)
M6 × 12mm
Set Screw
315-776
For Each Additional Panel
(×2) 3mm cable with Terminal End 315-723
(×2) Cable Coupler with Cover Plate 3151639K
(×1) 1" Top Gripper 315-749K
(×4) Suspend Anchoring KIT 3157-K
(×2) 1" Shelf Holder 315-754K
(×2) Fixed Surface Bracket for M8 315179-K
(4) =
Suspend Anchoring KIT
3-15-7-K
+ +
M8 Threaded
Wood Insert
315-791
(4)
M8 Concrete
Anchor
315311A
(4)
M8 Threaded
Rod, 5mm
315332A
(4) +
M8 Thread
Rod, 25mm
3151754
(4)
M8 Toggle
Bolt Anchor
315-734
(4) +
2
For more information, please visit 3-form.com or call 800.726.0126
APRIL 2018 | MANRTG25002 | REV 002 © 2018 3form, Inc. All rights reserved.
SimpleSpec 250.02tm
Installation Manual
Ready To Go
Overview
Create luid motion and dynamic presence with this 25.2 column feature. Design intimate or expansive installations with
formed panels. It can be used as a standalone accent feature or create a light scale partition with a run of the 25.2.
96"
(2439mm)
16"
(407mm)
Cable Coupler with
Cover Plate KIT
3-15-1639-K
1" Top Gripper KIT
3-15-0749-K
3mm Cable with
Terminal End
3-15-0723
Varia Panel ½"
Suspend
Anchoring KIT
3-15-7000-K
+
Fixed Surface Bracket
for M8 KIT
3-15-1790-K
Suspend
Anchoring KIT
3-15-7000-K
+
3
For more information, please visit 3-form.com or call 800.726.0126
APRIL 2018 | MANRTG25002 | REV 002 © 2018 3form, Inc. All rights reserved.
SimpleSpec 250.02tm
Installation Manual
Ready To Go
Installation
Required Tools
Metric Allen
Wrenches
*If anchoring in concrete follow Steps 1a-f, if anchoring in drywall follow Steps 1g-l, if anchoring in wood follow Steps 1m-n.
Then move on to Step 1o.
Anchor Cable Couplers1
Drill Drill Bits Hammer Drill Hammer
Drill Ø1mm hole, minimum 65mm
deep.
Remove drilling debris with a blowout
bulb or with compressed air.
With screw in anchor (315311A), use a
hammer to insert anchor.
b ca Concrete Installation
4
For more information, please visit 3-form.com or call 800.726.0126
APRIL 2018 | MANRTG25002 | REV 002 © 2018 3form, Inc. All rights reserved.
SimpleSpec 250.02tm
Installation Manual
Ready To Go
Anchor Cable Couplers cont...1
Installation
e fd
Place a washer under the screw head. Torque the screw to 15 Nm. Remove screw.
Metal
Studs
Metal
Studs
h ig
Drill ؾ" (19mm) hole. Minimum
clearance behind wall = 1⅞" (48mm)
Position the metal channel parallel
with the plastic legs. Insert the metal
channel through the drilled hole into
the wall cavity.
Pull the metal channel irmly against the
inner wall cavity by tugging the plastic
pull ring.
Hollow Substrate Installation
5
For more information, please visit 3-form.com or call 800.726.0126
APRIL 2018 | MANRTG25002 | REV 002 © 2018 3form, Inc. All rights reserved.
SimpleSpec 250.02tm
Installation Manual
Ready To Go
Installation
1Anchor Cable Couplers cont...
o
3-15-1754
Anchor appropriate
for substrate
3-15-1639
k lj
Slide the plastic cap forward along the
legs until it is seated lush to the work
surface.
Snap the plastic legs o lush at the
plastic cap by pushing outward.
Note: Maximum torque on screw or rod
is 5 ft-lb.
nm
Drill Ø⁄" (Ø11.1mm) hole, minimum
2mm deep.
Use an Allen wrench to install the M8
Threaded Insert (315-791).
Wood Installation
6
For more information, please visit 3-form.com or call 800.726.0126
APRIL 2018 | MANRTG25002 | REV 002 © 2018 3form, Inc. All rights reserved.
SimpleSpec 250.02tm
Installation Manual
Ready To Go
Installation
2Attach Cable Assembly
a b
3-15-0723
3-15-1639
3-15-1639
3-15-1639
Complete this step for both cable assemblies.
3Attach Top Grippers
a
3-15-0749
3-15-0749
3-15-0723
3-15-0723
b
3-15-0776
3-15-0749
7
For more information, please visit 3-form.com or call 800.726.0126
APRIL 2018 | MANRTG25002 | REV 002 © 2018 3form, Inc. All rights reserved.
SimpleSpec 250.02tm
Installation Manual
Ready To Go
Installation

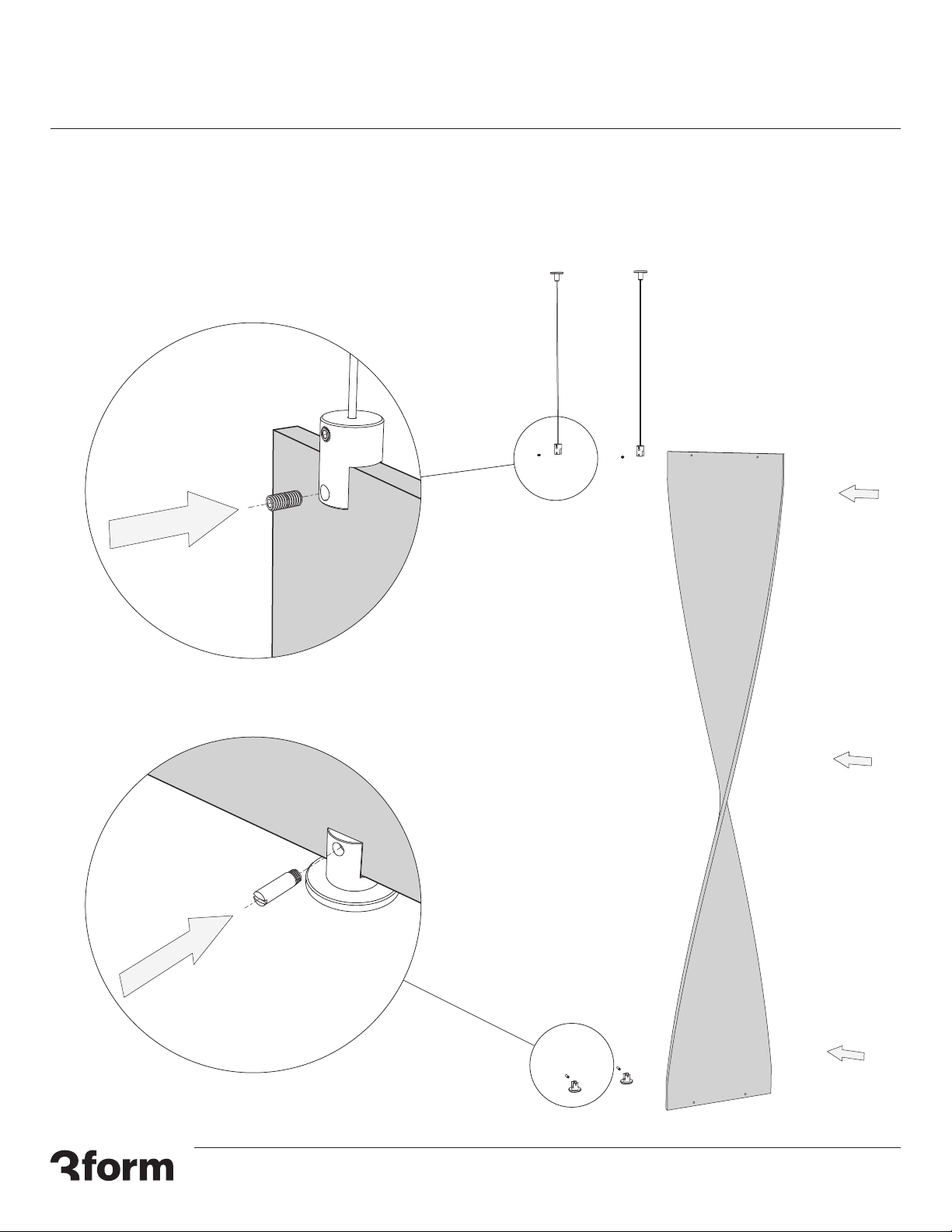

6Remove Panel 7Anchor Surface Brackets
Install loor anchors in concrete following Steps 1a-f.
a
b
3-15-0777 (×2)
3-15-1790 (×2)
3-15-3011A (×2)
9
For more information, please visit 3-form.com or call 800.726.0126
APRIL 2018 | MANRTG25002 | REV 002 © 2018 3form, Inc. All rights reserved.
SimpleSpec 250.02tm
Installation Manual
Ready To Go
