10-Port 100BASE-FX and

20-Port 10/100BASE-TX

Fast Ethernet Layer 2

Switching Modules

Quick Start Guide

For the CoreBuilder®9000 Enterprise Switch

Module Descriptions This guide describes key installation information for two

CoreBuilder®9000 Fast Ethernet (FEN) Switching Modules:

■The 10-port 100BASE-FX Fast Ethernet Layer 2 Switching Module

(Model Number 3CB9LF10MC) has ten 100 Mbps Ethernet fiber-optic

ports with SC connectors on its front panel and two 1-Gigabit ports

on the back for connection to the chassis backplane.

■The 20-port 10/100BASE-TX Fast Ethernet Layer 2 Switching Module

(Model Number 3CB9LF20R) has twenty 10/100 Mbps RJ-45 ports on

its front panel and two 1-Gigabit ports on the back for connection to

the chassis backplane.

Each of these FEN Switching Modules operates as a Layer 2 switch and

occupies a single switching module slot in the CoreBuilder 9000 7-slot

chassis, 8-slot chassis, or 16-slot chassis.

Key Features The 10/100BASE-TX and 100BASE-FX FEN Switching Modules support

the following key features:

■Hot-swapping of modules

■Management using the Administration Console

(a command line interface), the Web Management suite of

applications with an Internet browser, or SNMP-based applications

210-Port 100BASE-FX and 20-Port 10/100BASE-TX Fast Ethernet Layer 2 Switching Modules Quick Start Guide

For information about the software features that these modules support,

see the:

■CoreBuilder 9000 Implementation Guide

■Command Reference Guide

■CoreBuilder 9000 Release Notes for the Fast Ethernet and Gigabit

Ethernet Layer 2 Switching Modules

Front Panel On the 10-port 100BASE-FX FEN Switching Module, the front panel ports

are numbered 1 through 10, as shown in Figure 1. The two 1-Gigabit

ports on the back of the module (not shown in Figure 1) are numbered

11 and 12.

On the 20-port 10/100BASE-TX FEN Switching Module, the front panel

ports are numbered 1 through 20, as shown in Figure 1. The two

1-Gigabit ports on the back of the module (not shown in Figure 1) are

numbered 21 and 22.

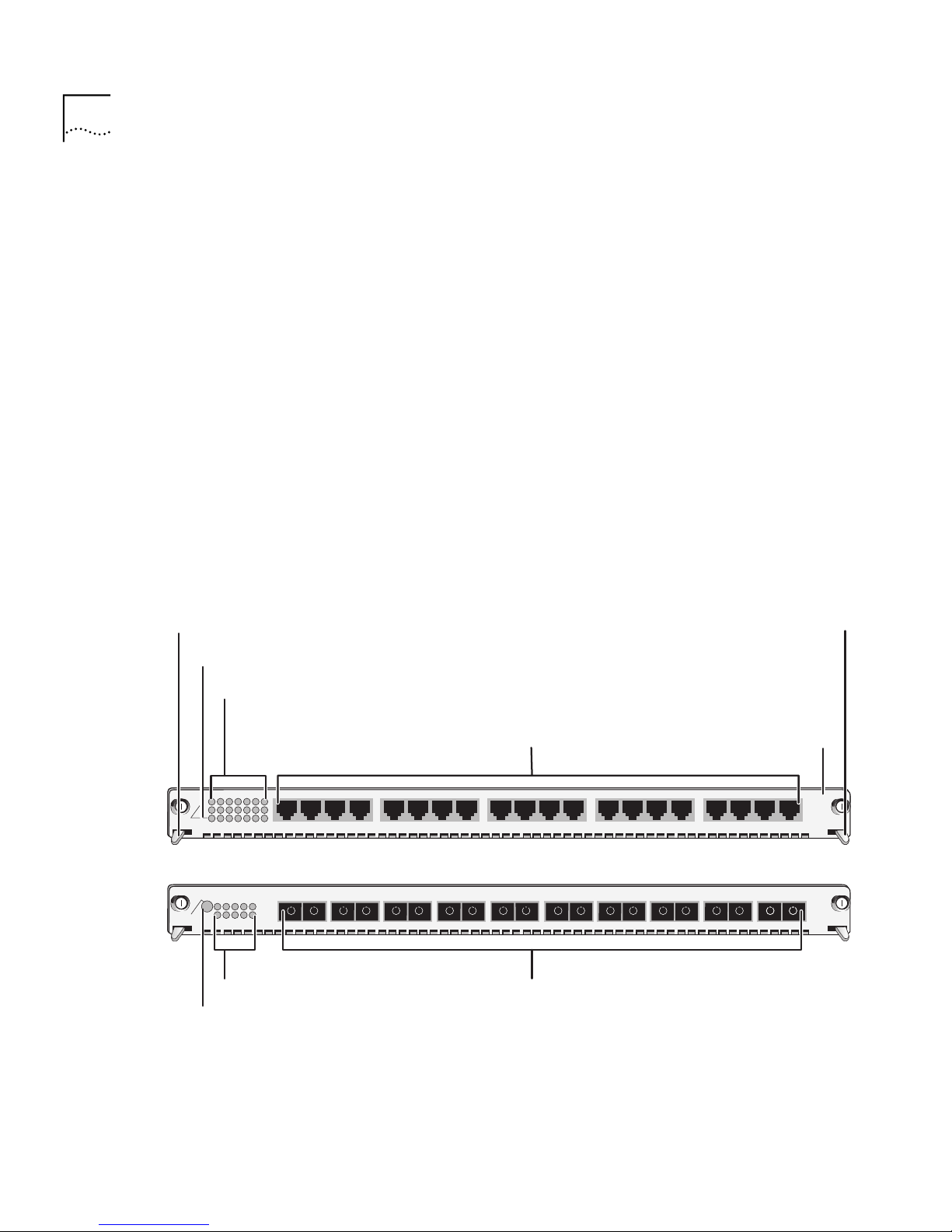

Figure 1 Front Panels for the 10/100BASE-TX and 100BASE-FX FEN Modules

In the 7-slot chassis, you install the modules horizontally with the LEDs at

the left. In the 8-slot chassis and the16-slot chassis, you install the

modules vertically with the LEDs at the top.

3CB9LF10MC

MOD STAT

3CB9LF20R

MOD STAT

10X

11X

12X

13X

14X

15X

16X

17X

18X

19X

20X

3CB9LF20R

MOD STAT

10X

11X

12X

13X

14X

15X

16X

17X

18X

19X

20X

Model number

Ejector handle

Module Status LED

Port Status LEDs

RJ-45 ports

Ejector handle

Module Status LED

Port Status LEDs Fiber-optic ports

(SC connectors)

100BASE-FX

10/100BASE-TX

10-Port 100BASE-FX and 20-Port 10/100BASE-TX Fast Ethernet Layer 2 Switching Modules Quick Start Guide 3

Audience Description This guide is intended for trained technical personnel only. Do not

attempt to install, remove, or replace the 10/100BASE-TX or 100BASE-FX

FEN Switching Modules if you have not had the proper training from

3Com. For training information in the United States and Canada, call

1-800-NET-3COM. For the numbers to call in other locations, visit the

3Com Web site:

www.3Com.com/support/

Safety Precautions When you handle components in a CoreBuilder 9000 system, be sure

that you follow all safety precautions. To avoid electric shocks, burns, or

equipment damage, read and follow these warnings:

WARNING: Allow only trained service personnel to install, remove, or

replace any module in the chassis.

WARNING: Hazardous energy exists within the system. Use extreme

caution when you install, remove, or replace any module in the chassis.

When the system is on:

■Never insert metal objects such as a screwdriver or a finger with

jewelry into open module slots.

■Do not touch any connections within the chassis with your hands or

fingers.

WARNING: To ensure optical safety when installing a FEN Switching

Module, comply with the following precaution:

Although the data communication LEDs used in this product meet the

regulatory requirements for casual exposure to the eye, as with any

source of bright light, it is advised that you do not look into the light

source.

LED Safety Information: IEC 825 and EN60825, Class 1 LED Device. For

connection only to Class 1 LED Devices.

CLASS 1

LED PRODUCT

410-Port 100BASE-FX and 20-Port 10/100BASE-TX Fast Ethernet Layer 2 Switching Modules Quick Start Guide

ESD Safety Information

Electrostatic discharge (ESD) can damage components of the module.

ESD, which occurs when a module is improperly handled, can cause

complete or intermittent failures.

CAUTION: To prevent ESD-related damage:

■Always wear an ESD wrist strap (not provided) when you handle a

module, ensuring that the strap makes good skin contact and is

properly grounded.

■Keep the module in its antistatic bag until you are ready to install it.

Handling Precautions When you handle a module, follow these precautions:

■Always handle the module by the front panel only.

■Do not touch the components, pins, leads, or solder connections.

■Do not twist or otherwise force the module into the chassis when you

insert it into the module guides.

■Before you push the module into the chassis, verify that the module

ejector handles are open.

■When you slide the module into the 7-slot chassis, match the left and

right module guides. In the 8-slot chassis or 16-slot chassis, match the

upper and lower module guides.

For details, see “Installation Prerequisites” and “Installing the Module”

later in this guide.

10-Port 100BASE-FX and 20-Port 10/100BASE-TX Fast Ethernet Layer 2 Switching Modules Quick Start Guide 5

Unpacking

Instructions

Use the following procedure when you unpack a FEN Switching Module:

1Verify that the module is the correct product by matching the 3C number

that is listed on the shipping box label to the 3C number that you ordered

(Model Number 3CB9LF10MC for the 10-port 100BASE-FX Fast Ethernet

Layer 2 Switching Module or Model Number 3CB9LF20R for the 20-port

10/100BASE-TX Fast Ethernet Layer 2 Switching Module).

2Remove the module, in its antistatic bag, from the shipping box.

3Observing the caution instructions, remove the module from its antistatic

bag and inspect it for physical damage.

CAUTION: Handle the module only by the front panel. Do not touch any

components, pins, leads, or solder connections.

If the module appears to be damaged, replace it in the antistatic bag, put

it back in the shipping box, and contact your network supplier.

4Verify that the box also contains:

■CoreBuilder 9000 Release Notes for the Fast Ethernet and Gigabit

Ethernet Layer 2 Switching Modules

■10-Port 100BASE-FX and 20-Port 10/100BASE-TX Fast Ethernet

Layer 2 Switching Modules Quick Start Guide for the

CoreBuilder 9000 Enterprise Switch (this guide)

If the listed contents are not in your shipping box, contact your network

supplier.

All shipping boxes are reusable. After you remove the contents, replace

the packing materials in the box and store it for future use.

610-Port 100BASE-FX and 20-Port 10/100BASE-TX Fast Ethernet Layer 2 Switching Modules Quick Start Guide

Installation

Prerequisites

Before you install a module, make the following preparations:

■Verify that the chassis is properly installed in a rack, on a table, or on a

shelf, according to the instructions in either of these guides:

■7-Slot Chassis Quick Installation Guide for the CoreBuilder 9000

Enterprise Switch

■Chassis Quick Installation Guide for the CoreBuilder 9000

Enterprise Switch 8-slot Chassis and 16-slot Chassis.

■Have a flat-blade torque screwdriver available to secure the module to

the chassis after you install it.

■Read the CoreBuilder 9000 Release Notes for the Fast Ethernet and

Gigabit Ethernet Layer 2 Switching Modules for important information

about installing and upgrading modules in an existing chassis or a new

chassis.

CAUTION: All modules in a CoreBuilder 9000 chassis must operate at

compatible software levels. You must verify the software release on all

new and existing modules in your chassis and upgrade as necessary. See

the CoreBuilder 9000 Release Notes for the Fast Ethernet and Gigabit

Ethernet Layer 2 Switching Modules for a module software compatibility

requirements table, mandatory upgrade procedures, and other important

information.

Module Placement

in the Chassis

Note the following chassis slot restrictions and recommendations when

you choose a chassis slot for the 10-port 100BASE-FX Fast Ethernet

Switching Module or the 20-port 10/100BASE-TX Fast Ethernet

Switching Module:

■In the 7-slot chassis:

■Do not install the module in slot 7. This slot is reserved for a

Gigabit Ethernet (GEN) Switch Fabric Module.

■Install the module in slot 1, 2, 3, 4, 5, or 6.

■In the 8-slot chassis:

■Do not install the module in slot 7 or slot 8. These slots are

reserved for GEN Switch Fabric Modules.

■Install the FEN Switching Module in slot 1, 2, 3, 4, 5, or 6.

10-Port 100BASE-FX and 20-Port 10/100BASE-TX Fast Ethernet Layer 2 Switching Modules Quick Start Guide 7

■In the 16-slot chassis:

■Do not install the module in slot 8 or slot 9. These slots are

reserved for GEN Switch Fabric Modules.

■Install the module in slot 1, 2, 3, 4, 5, 6, 7, 10, 11, or 12.

■3Com recommends that you do not install the module in slot 13,

14, 15, or 16 because these slots have only one connection to the

GEN Switch Fabric Module.

■Table 1, Table 2, and Table 3 list the relationship between the

following:

■24-port GEN Switch Fabric Module (SFM) (Model Number 3CB9FG24

or Model Number 3CB9FG24T)

■10-port 100BASE-FX FEN Switching Module

■Switching module slots in the 7-slot chassis, 8-slot chassis, and 16-slot

chassis, respectively

Table 4, Table 5, and Table 6 list the relationship between the following:

■24-port GEN Switch Fabric Module (SFM)

■20-port 10/100BASE-TX FEN Switching Module

■Switching module slots in the 7-slot chassis, 8-slot chassis, and 16-slot

chassis, respectively

Table 7 and Table 8 list the relationship between the following:

■9-port GEN Switch Fabric Module (SFM) (Model Number 3CB9FG9)

■10-port 100BASE-FX FEN Switching Module

■Switching module slots in the 7-slot chassis and 8-slot chassis,

respectively

Table 9 and Table 10 list the relationship between the following:

■9-port GEN Switch Fabric Module (SFM)

■20-port 10/100BASE-TX FEN Switching Module

■Switching module slots in the 7-slot chassis and 8-slot chassis,

respectively

Use the table information to help select a slot for your module, as well as

administer the system after you have completed the installation.

810-Port 100BASE-FX and 20-Port 10/100BASE-TX Fast Ethernet Layer 2 Switching Modules Quick Start Guide

Ta b l e 1 Mapping the 24-port GEN SFM and the 10-port FEN Switching Module to the 7-slot Chassis

Chassis

Slot

Number

Number of SFM

Backplane Ports

Allocated to Slot

10-port Switching

Module Backplane

Port Numbers

SFM Backplane Port

Numbers Assigned to

Chassis Slot

SFM LED Numbers

Assigned to Backplane

Port Numbers

14; up to 2 can be

accessed by this

module

24; up to 2 can be

accessed by this

module

34; up to 2 can be

accessed by this

module

44; up to 2 can be

accessed by this

module

54; up to 2 can be

accessed by this

module

64; up to 2 can be

accessed by this

module

7Reserved for an SFM Not applicable Not applicable Not applicable

10-Port 100BASE-FX and 20-Port 10/100BASE-TX Fast Ethernet Layer 2 Switching Modules Quick Start Guide 9

Ta b l e 2 Mapping the 24-port GEN SFM and the 10-port FEN Switching Module to the 8-slot Chassis

Chassis

Slot

Number

Number of SFM

Backplane Ports

Allocated to Slot

10-port Switching

Module Backplane

Port Numbers

SFM Backplane Port

Numbers Assigned to

Chassis Slot

SFM LED Numbers

Assigned to Backplane

Port Numbers

14; up to 2 can be

accessed by this

module

24; up to 2 can be

accessed by this

module

34; up to 2 can be

accessed by this

module

44; up to 2 can be

accessed by this

module

54; up to 2 can be

accessed by this

module

64; up to 2 can be

accessed by this

module

7Reserved for an SFM Not applicable Not applicable Not applicable

8Reserved for an SFM Not applicable Not applicable Not applicable

10 10-Port 100BASE-FX and 20-Port 10/100BASE-TX Fast Ethernet Layer 2 Switching Modules Quick Start Guide

Ta b l e 3 Mapping the 24-port GEN SFM and the 10-port FEN Switching Module to the 16-slot Chassis

Chassis

Slot

Number

Number of SFM

Backplane Ports

Allocated to Slot

10-port Switching

Module Backplane

Port Numbers

SFM Backplane Port

Numbers Assigned to

Chassis Slot

SFM LED Numbers

Assigned to Backplane

Port Numbers

1 2 11

2 2 11

3 2 11

4 2 11

5 2 11

6 2 11

7 2 11

8Reserved for an SFM Not applicable Not applicable Not applicable

9Reserved for an SFM Not applicable Not applicable Not applicable

10 211

11 211

12 211

13 111 21 21

14 111 22 22

15 111 23 23

16 111 24 24

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali 3Com Interruttore

3Com

3Com IntelliJack NJ200 Manuale utente

3Com

3Com Baseline 3C16470 Manuale utente

3Com

3Com CoreBuilder 9000 Manuale utente

3Com

3Com 5500-EI Series Manuale utente

3Com

3Com 4200G PWR Manuale utente

3Com

3Com 1000BASE-SX GBIC Manuale utente

3Com

3Com LinkBuilder MSH Manuale utente

3Com

3Com COREBUILDER 7000HD Manuale utente

3Com

3Com 3C16981A-US - Superstack 3 Switch 3300... Manuale utente

3Com

3Com SUPERSTACK 3 3250 Manuale utente

3Com

3Com 5500 SI - Switch - Stackable Manuale utente

3Com

3Com CoreBuilder 6000 Manuale di istruzioni

3Com

3Com OFFICECONNECT ETHERNET HUB 8 Manuale utente

3Com

3Com CoreBuilder 5000 Manuale utente

3Com

3Com 2848 SFP - Baseline Switch Plus Manuale utente

3Com

3Com Gigabit Switch 8 Manuale utente

3Com

3Com 3C16476CS Manuale utente

3Com

3Com 3C16710 - OfficeConnect 8/TPM Hub Manuale utente

3Com

3Com Baseline 2226 Plus Manuale di istruzioni

3Com

3Com NJ240FX - IntelliJack Switch Manuale utente

3Com

3Com OfficeConnect 3C1670500 Manuale

3Com

3Com SuperStack II 3C16665A Manuale utente

3Com

3Com 3C16735A - OfficeConnect Switch Manuale utente

3Com

3Com SUPERSTACK 3 3226 Come usare

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
