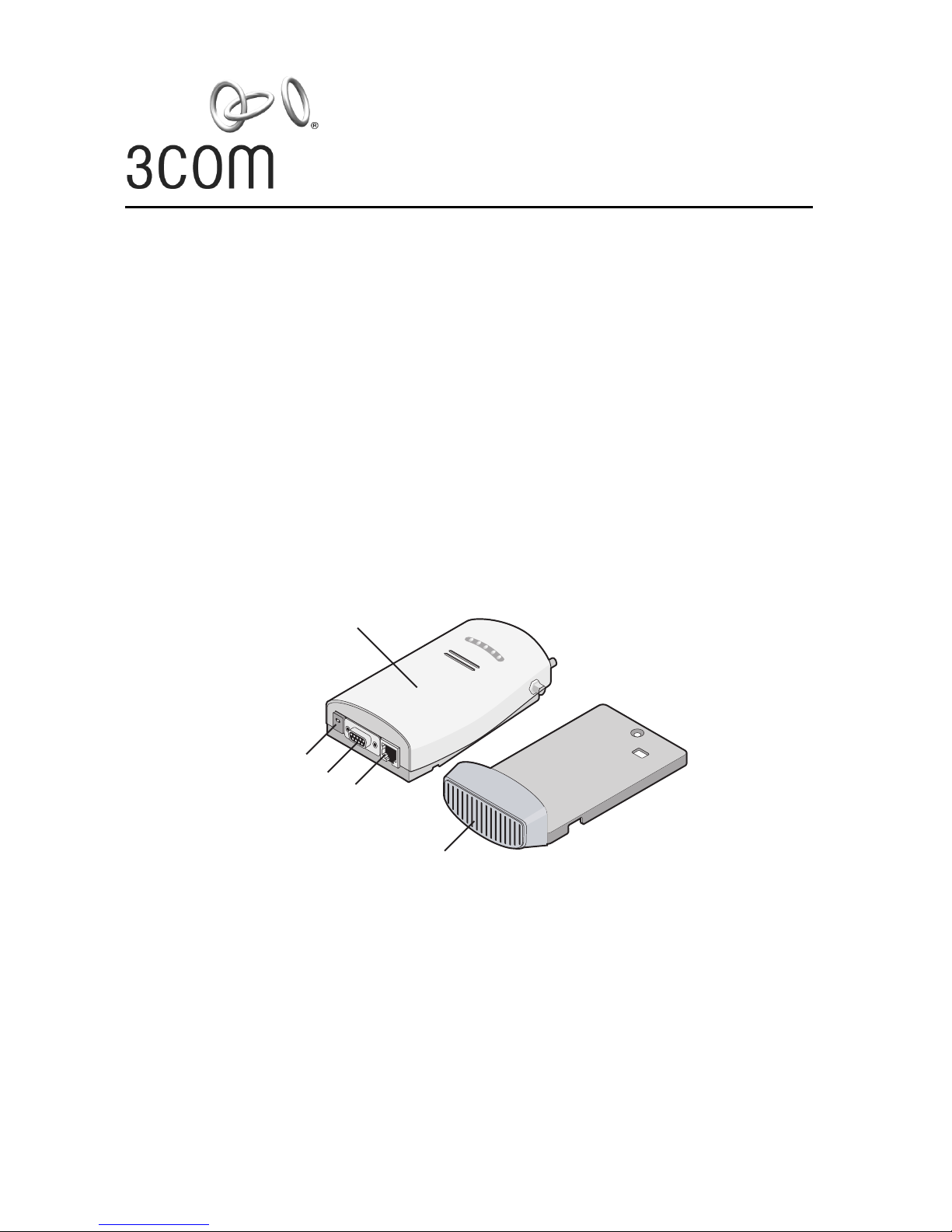

Quick Start Guide

11a/b/g Wireless Workgroup Bridge

3CRWE675075

The 3Com 11a/b/g Wireless Workgroup Bridge combines high-performance, interoperability, and ease-

of-use to join isolated wired networks into a cohesive wireless local area network (WLAN). Instead of

traveling over wires, data is transmitted across the WLAN using radio waves.

The 3Com 11a/b/g Wireless Workgroup Bridge includes a robust suite of standards-based security

features, and supports wireless network standards including 802.11a and 802.11g. For a complete list of

the Bridge’s features, see the 3Com 11 a/b/g Wireless Workgroup Bridge User Guide located on the

3Com Installation CD.

This Quick Start Guide describes the basic installation of the Bridge. It covers the following topics:

■Unpacking the Bridge

■Deciding Where to Place the Bridge

■Connecting the Bridge

■Checking the LED Indicators

■Attaching An External Antenna

■Determining if you Need to Configure the Bridge

■Using the 3Com Installation CD

For complete instructions on using the Bridge, see the 3Com 11 a/b/g Wireless Workgroup Bridge

User Guide located on the 3Com Installation CD.

oup

idg

Observing Safety Precautions

This equipment must be installed in compliance with local and national building codes, regulatory

restrictions, and FCC rules. For the safety of people and equipment, only professional network personnel

should install the Bridge.

1 Unpacking the Bridge

Make sure that you have the following items, which are included with the Bridge:

■Power adapter and power cord.

■Standard Category 5 unshielded twisted pair (UTP) Ethernet cable.

■Locking bar (used for securing a wall-mounted installation).

■Rubber feet (four; used for a flat-surface installation).

■3Com Installation CD.

2 Deciding Where to Place the Bridge

Place the Bridge in a dry, clean location near the hub, computer, or printer that will be connected to the

Bridge. The location must have a power source and be within the following distance of a Wi-Fi-

compliant wireless LAN access point or ad hoc wireless station:

■For 802.11a compatibility, place the Bridge within 50 m (164 ft) of a Wi-Fi compliant wireless

LAN access point.

■For 802.11b/g compatibility, place the Bridge within 100 m (300 ft) of a Wi-Fi compliant

wireless LAN access point.

The location should be away from transformers, heavy-duty motors, fluorescent lights, microwave ovens,

refrigerators, or other equipment that could cause radio signal interference.

WARNING: To comply with FCC radio frequency (RF) exposure limits, a minimum body-to-

antenna distance of 20 cm (8 in.) must be maintained when the Bridge is operational.

WARNING: To avoid possible injury or damage to equipment, you must use either the provided

power supply or power supply equipment that is safety certified according to UL, CSA, IEC, or

other applicable national or international safety requirements for the country of use. All references

to power supply in this document refer to equipment meeting these requirements.

CAUTION: The 3Com power supply (part number 61-0107-000) input relies on a 16A rated

building fuse or circuit protector for short circuit protection of the line to neutral conductors.

Wall-mounting the Bridge

The Bridge comes equipped with a cradle for mounting on a wall. For additional security, the Bridge also

comes with a locking bar, which can be used with a security lock (not provided) to lock the Bridge to the

cradle after the Bridge is mounted to the wall.

To wall-mount the Bridge:

1Screw the cradle to a wall.

2Route the power and Ethernet cables through the large opening in the cradle.

The figures below show the cradle being mounted to a wall, and then a cable being routed

through the large opening in the cradle.

3Connect the power and Ethernet cables to the ports on the front of the Bridge.

4Snap the Bridge onto the cradle.

To install the locking bar, push the locking bar through the opening in the side of the cradle until the

hole on the locking bar is exposed. Insert a lock (not provided) through the hole on the locking bar,

and then close the lock to secure it in place. See the user guide for detailed instructions.

Placing the Bridge on a Flat Surface

To install the Bridge on a flat surface such as a table or desktop, remove the backing from the four

rubber feet and attach them on the bottom of the cradle.

CAUTION: Do not place the Bridge on any type of metal surface. Select a location that is clear

of obstructions and provides good reception.

Wall-mounting the cradle Routing a cable

Inserting the locking bar Securing the bar with a lock

.11g

.100

.10

.11a

.11g

.100

.10

.11a

3 Connecting the Bridge

Before connecting the Bridge to an Ethernet client, connect the power supply. The figure below shows

the ports for connecting the power and Ethernet cables.

The bridge can also be connected to a serial device. Serial cables come with a variety of connector sizes.

If your connector is large and prevents the cradle from being attached to the Bridge, remove the end cap

on the cradle. This allows the connector to extend through the cradle.

Connecting to an Ethernet Device

The Bridge is designed to be connected to an Ethernet client device such as a hub, computer, or printer.

Connecting to a Hub

You can supply network connections for up to 16 devices, such as computers and network printers, by

connecting the Bridge to an Ethernet hub, as shown below.

CAUTION: To avoid the possibility of a transmission loop situation between the Bridge and

an access point, which could disrupt network operation, do not connect a Bridge that is set

in Wireless Client (Infrastructure) mode directly to the LAN (for example, through a wall

port or through a hub that is connected directly to the LAN).

100

oup

id g

plin

oint

POWER

ETHERNET

WIRELESS

Connecting to a Network Printer

You can connect a network printer directly to the Bridge or to a hub that is connected to the Bridge.

Used this way, the Bridge allows you to place network printers in areas that are not wired for Ethernet.

1Configure the network printer as you would for connecting it to the wired LAN. For

details on configuring the printer, see your printer documentation.

2If necessary, configure the Bridge to associate with your access point.

3Connect the Bridge to power in its permanent location.

4Connect the network printer directly to the Bridge as shown in the figure below, or into a

hub that is connected to the Bridge as shown in the previous section, “Connecting to a

Hub.”

Connecting to a Computer

You can connect the Bridge directly to a computer through Ethernet as shown below. Used this way, the

Bridge can convert a desktop computer to a wireless computer. This connection also allows you to

configure a Bridge before connecting it to another device.

CAUTION: You can directly connect the Bridge to a hub that does not have an uplink

(MDIX) port, without the need of an Ethernet crossover cable.

100

oup

id g

oint

POWER

ETHERNET

WIRELESS

100

oup

idg

oint

POWER

ETHERNET

WIRELESS

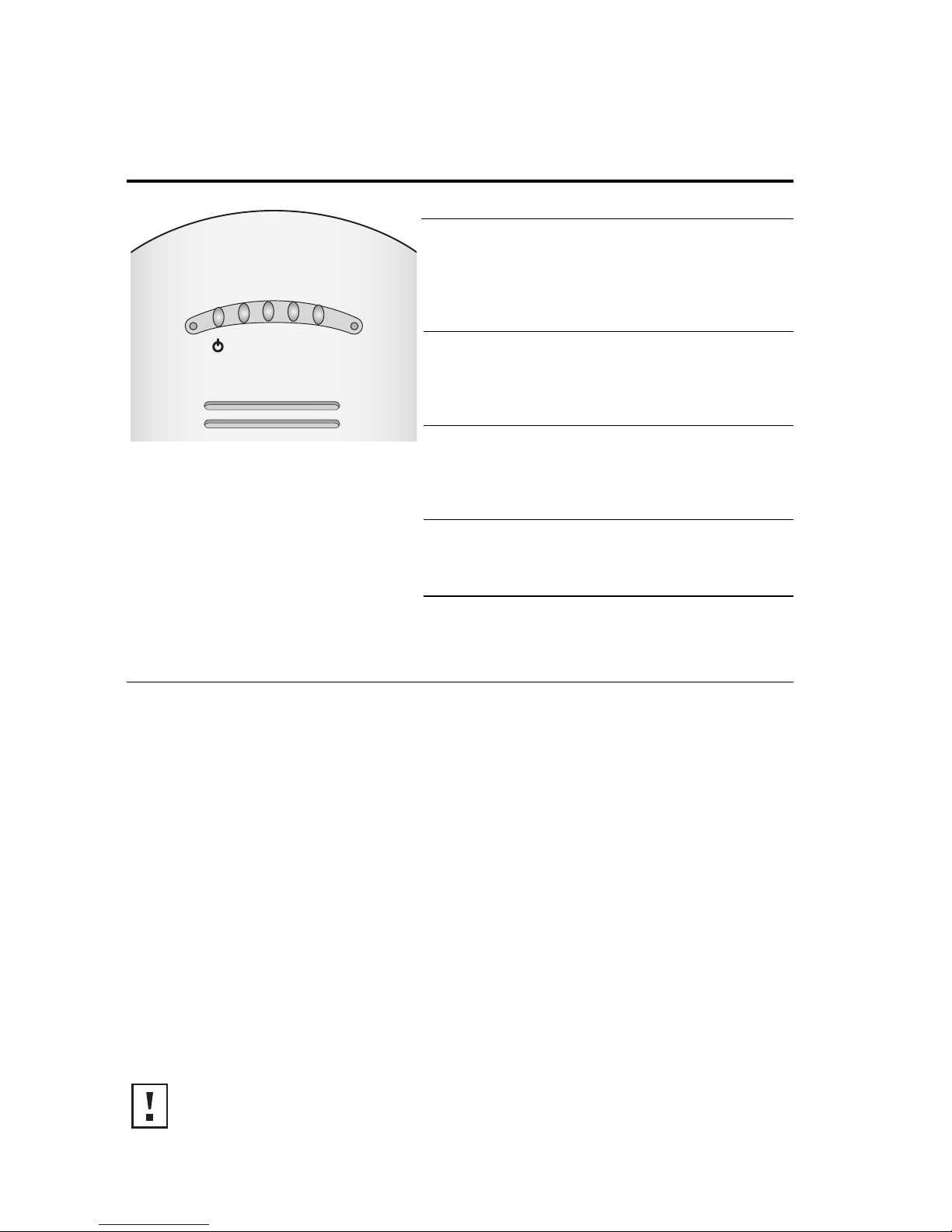

4 Checking the LED Indicators

When the Bridge is connected to power, LEDs indicate activity as follows (solid LED indicates connection;

blinking LED indicates activity):

5 Attaching An External Antenna

The Bridge has two internal diversity dual-band antennas. If you want to increase the range of the

Bridge, an external antenna can be attached to the external antenna connector on the Bridge. The

3Com-approved external antenna for this Bridge is the 3Com 2.4/5 GHz Omnidirectional Workgroup

Bridge Antenna (3CWE501). For more information, go to www.3Com.com

6 Determining if you Need to Configure the Bridge

If your network has a DHCP server and no special security requirements, you can most likely use the

Bridge just as it is shipped from the factory. View the Bridge’s default settings on the next page to

determine whether or not you need to configure the Bridge for your network.

It takes about one to two minutes for the Bridge to determine if there is a DHCP server on the network.

If your network does not have a DHCP server or is more complex, you will want to configure the Bridge

and organize devices so that you can manage the wireless LAN easily and keep it secure.

LED Color Indicates

Power Green

Off

The Bridge is powered up

and operating normally.

The Bridge is not receiving

power or there is a fault with

the power supply.

11a Green

Off

The Bridge has WLAN frame

transmission over the

802.11a 5 GHz radio band.

No link is present.

11g Green

Off

The Bridge has WLAN frame

transmission over the

802.11g 2.4 GHz radio band.

No link is present.

100 Green

Off

The Bridge has a 100 Mbps

Fast Ethernet connection.

No link is present.

10 Green

Off

The Bridge has a 10 Mbps

Ethernet connection.

No link is present.

CAUTION: For non-U.S. versions of the Bridge, you need to set the Country mode. This is done

when you first open the Bridge’s Configuration Management System. Select the Country in which

the Bridge is operating and then click Apply.

.11g

.100

.10

.11a

Networks with a DHCP Server

If your network has a DHCP server, an IP address is automatically assigned to the Bridge. It takes about

one to two minutes for the Bridge to determine if there is a DHCP server on the network. Use the 3Com

Wireless Infrastructure Device Manager (Widman) included on the 3Com Installation CD to locate the

Bridge on the network and view its IP address.

After you determine the Bridge’s IP address, you can enter that IP address into a web browser on a computer

on the same subnet to view the Bridge’s system status or change its configuration.

Networks without a DHCP Server

If your network does not have a DHCP server, the Bridge uses a default IP address (169.254.2.2) that is

assigned at the factory. You can use that IP address to configure the Bridge, or you can assign a new

IP address to the Bridge.

To verify that the Bridge is using the default IP address assigned at the factory:

1Connect a computer directly to the Bridge using the supplied standard Category 5

UTP Ethernet cable.

2Enter the Bridge’s default IP address (169.254.2.2) into the computer’s web browser.

If the Configuration Management System starts, the Bridge is using the factory assigned

IP address. You can configure the Bridge with the following login information:

■Login name: admin

■Password: none (blank)

If the Configuration Management System does not start, the Bridge is on a different subnet

than the computer. Install and start the 3Com Wireless Infrastructure Device Manager to

discover the Bridge’s IP address.

Bridge Default Settings

The table below shows the Bridge configuration factory defaults.

Property Default Setting

Device Name 3Com WWB

Device Location None (blank)

Country For U.S. version, United States and Canada

For non-U.S. version, set by the user

Client Mode Support multiple wired Ethernet clients

IP Network Setting Obtain IP address automatically

IP Address Obtained automatically (with a DHCP server)

169.254.2.2 (without a DHCP server)

Subnet Mask Obtained automatically (with a DHCP server)

255.255.0.0 (without a DHCP server)

Gateway IP Address Obtained automatically (with a DHCP server)

0.0.0.0 (without a DHCP server)

Network Mode Wireless Client (Infrastructure)

Radio Mode Auto Select

Wireless LAN Service Area Attach to any WLAN Service Area (ESSID) automatically

Channel Selection Automatic Best Channel (uses access point setting)

Transmit Power 100%

trademarks of 3Com Corporation. All other company and product names may be trademarks of the

respective companies with which they are associated.

DQA6750-75AAA01

Published July 2004

7 Using the 3Com Installation CD

The 3Com Installation CD contains the following tools and utilities:

■3Com Wireless Infrastructure Device Manager—an administration tool that helps you

select 3Com wireless LAN devices and launch their configurations in your Web browser.

■3Com 3CDaemon Server Tool—a firmware upgrade tool that can act as a TFTP Server, a

SysLog Server, an optional TFTP Client, or an optional FTP Server.

To use the 3Com Installation CD, you need a computer running Internet Explorer (latest version is

recommended) and one of the following operating systems: Windows XP, Windows 2000,

Windows NT 4.0, Windows Me, or Windows 98.

To install one of the tools on your computer:

1Turn on the computer.

2Insert the 3Com Installation CD in the CD-ROM drive.

The setup menu appears. If it does not appear, you can start the setup menu from the

Windows Start menu. For example: Start > Run > d:setup.exe.

3In the menu, click Tools and Utilities.

4In the next screen, click the tool you want to install.

5Follow the instructions on the screens to complete the installation.

Reboot the computer if prompted to do so.

6Launch the tool from the Windows Start menu.

For details on using the Wireless Infrastructure Device Manager, see “Using the 3Com

Wireless Infrastructure Device Manager” in the 3Com 11 a/b/g Wireless Workgroup Bridge

User Guide.

For instructions on using the 3CDaemon Server Tool, see the application’s online help.

Antenna Selection Internal

Data Preamble Long (if Network Mode is set to Ad-Hoc)

Same as access point setting (if Network Mode is set to Wireless Client

[Infrastructure])

Security Setting Open System (no security)

802.1x Authentication State Disabled

SNMP Enabled

Access Control List Disabled

Administration Login Name admin

Administration Password None (blank)

TFTP Server IP Address None

FTP Server IP Address None

Altri manuali per 3CRWE675075 - 11a/b/g Wireless LAN Workgroup...

Indice

Altri manuali 3Com Punto di accesso wireless

3Com

3Com 3CRWE820096A - Wireless LAN Access Point... Manuale utente

3Com

3Com 3CRGPC10075 Manuale utente

3Com

3Com OfficeConnect 3CRWE454A72 Manuale utente

3Com

3Com AirConnect Manuale

3Com

3Com MAP 2750 Manuale utente

3Com

3Com 3CRWX275075A - Wireless LAN Managed Access Point... Manuale utente

3Com

3Com 3CRWX385075A - Wireless LAN Managed Access Point... Manuale utente

3Com

3Com 3CRWE825075A Manuale utente

3Com

3Com 7760 - Wireless 11a/b/g PoE Access Point Manuale utente

3Com

3Com 3CRWX315075A - Wireless LAN Managed Access Point... Manuale utente

3Com

3Com AP9152 Manuale utente

3Com

3Com 8760 - Wireless Dual Radio 11a/b/g PoE Access... Manuale utente

3Com

3Com 8760 - Wireless Dual Radio 11a/b/g PoE Access... Manuale utente

3Com

3Com 3CRWE776075 Manuale utente

3Com

3Com WL-607 Manuale utente

3Com

3Com Wireless LAN 11 Mbps Manuale utente

3Com

3Com 8250 Manuale utente

3Com

3Com AirConnect 9550 Manuale utente

3Com

3Com LANplex 6000 Manuale utente

3Com

3Com 8500 Manuale utente

3Com

3Com OfficeConnect 3CRWE454G75 Manuale utente

3Com

3Com OfficeConnect 3CRWE41196 Manuale utente

3Com

3Com 8200 Manuale utente

3Com

3Com Wireless 11n USB Adapter Manuale utente

Manuali Punto di accesso wireless popolari di altre marche

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuale utente

Ubiquiti

Ubiquiti NanoStation NSM2 Manuale utente

Cisco

Cisco Aironet 1550 Series Manuale utente

Aruba

Aruba IAP-335 Manuale utente

Advantek Networks

Advantek Networks AWN-AP-54MR Manuale utente

IP-COM

IP-COM AP355 Manuale utente

Buffalo

Buffalo AirStation WLA-L11G Manuale utente

EnGenius

EnGenius EnStationACv2 Manuale utente

D-Link

D-Link DAP-3662 Manuale utente

xG Technology

xG Technology xMax CN1300 Manuale utente

Widelink

Widelink ezWave WAP-1100 Series Manuale utente

Edimax

Edimax CAP1200 Manuale utente

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuale utente

Aruba

Aruba AP-203R Manuale utente

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuale utente

CreatComm

CreatComm TB5F Manuale utente

SineDigital

SineDigital MW-1500AP(H) Manuale utente

TP-Link

TP-Link AP9650 V1 Manuale utente
