ass-mxaq VESA Adapter

Assembly instructions

The VESA adapter is compatible with the following products from

Asus(asus.com): Designo MX27AQ, Designo MX279HS, Designo MX27UCS.

The VESA adapter allows you to conveniently mount your ASUS brand monitor to a

monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and

nuts.

If you want to mount your VESA adapter directly to the wall, use suitable screws

and dowels (not included).

2

Assembly instructions

Assembly instruction

Step 1

First, remove the base of your Asus monitor. To do this,

loosen the screw under the monitor base. (Figure 1)

Please make sure you have a soft surface when you

store the monitor for disassembly / assembly.

Figure 1

Step 2

Now slide the 3idee VESA adapter onto the foot from behind,

as shown. (Figure 2)

It is important that the hole in the VESA adapter is

aligned with the hole in the monitor base. (follows in

step 3)

Figure 2

3Assembly instructions

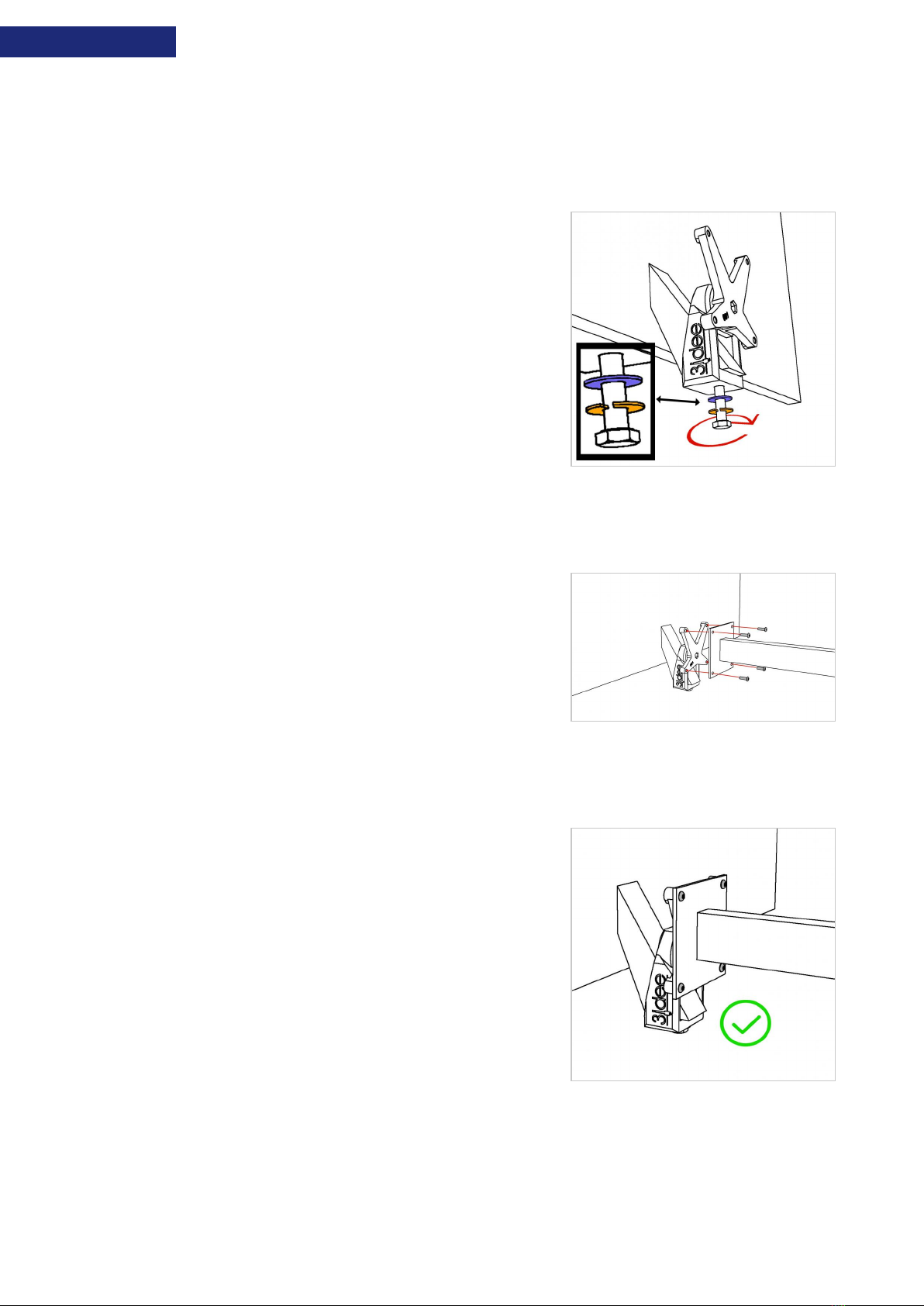

Step 3

Now screw the screw + washer + spring washer into the rear

monitor base from below. (Figure 3)

Please pay attention to the correct order of the

washers. This is important for the permanent safety

of the assembly.

Figure 3

Step 4

Now the monitor + VESA adapter can be screwed to your

VESA arm. (Figure 4)

Please use the 4 screws included in the scope of delivery.

Figure 4

Step 5

Finally, please check again whether all screws have been

tightened correctly.

However, please keep in mind that this is a plastic part.

Figure

4

Assembly instructions

Safety instructions

General notes

Make sure that all screws are tight and that the monitor audibly clicks into place during installation (if

available).

The material of the adapter is not heat resistant. Avoid direct heat around the adapter such as PC

exhaust or direct sunlight in summer.

PLA is UV resistant but not suitable for high temperatures.

Avoid jerky movements (pulling, tearing) on the PC monitor. This can affect the performance of the

VESA adapter.

Do not subject the PC monitor to excessive loads such as leaning or pushing. This can impair the

performance of the VESA adapter.

Material Notes

The adapter is made of high-quality polylactide (PLA) plastic. PLA is both a colorfast and UV-resistant

material and has low flammability. Polylactide has a low temperature resistance of approx. 45°C-55°C

and is therefore not suitable for use in the vicinity of direct heat and heat sources.

We wish you a lot of fun with your product.

Your 3idee Team

Responsible for this content:

3idee Technologies S.à r.l

5, ZA Um Lenster Bierg

L-6125 Junglinster

Luxembourg
