3idee Hp2xf-o Manuale utente

www.3idee.eu

hp2xf-o VESA Adapter

Assembly instructions

The VESA adapter is compatible with the following products from hp

(hp.com): OMEN X 25f Gaming Monitor.

The VESA adapter allows you to conveniently mount your HP brand monitor to a

monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and

nuts.

If you want to mount your VESA adapter directly to the wall, use suitable screws

and dowels (not included).

2

Assembly instructions

Assembly instruction

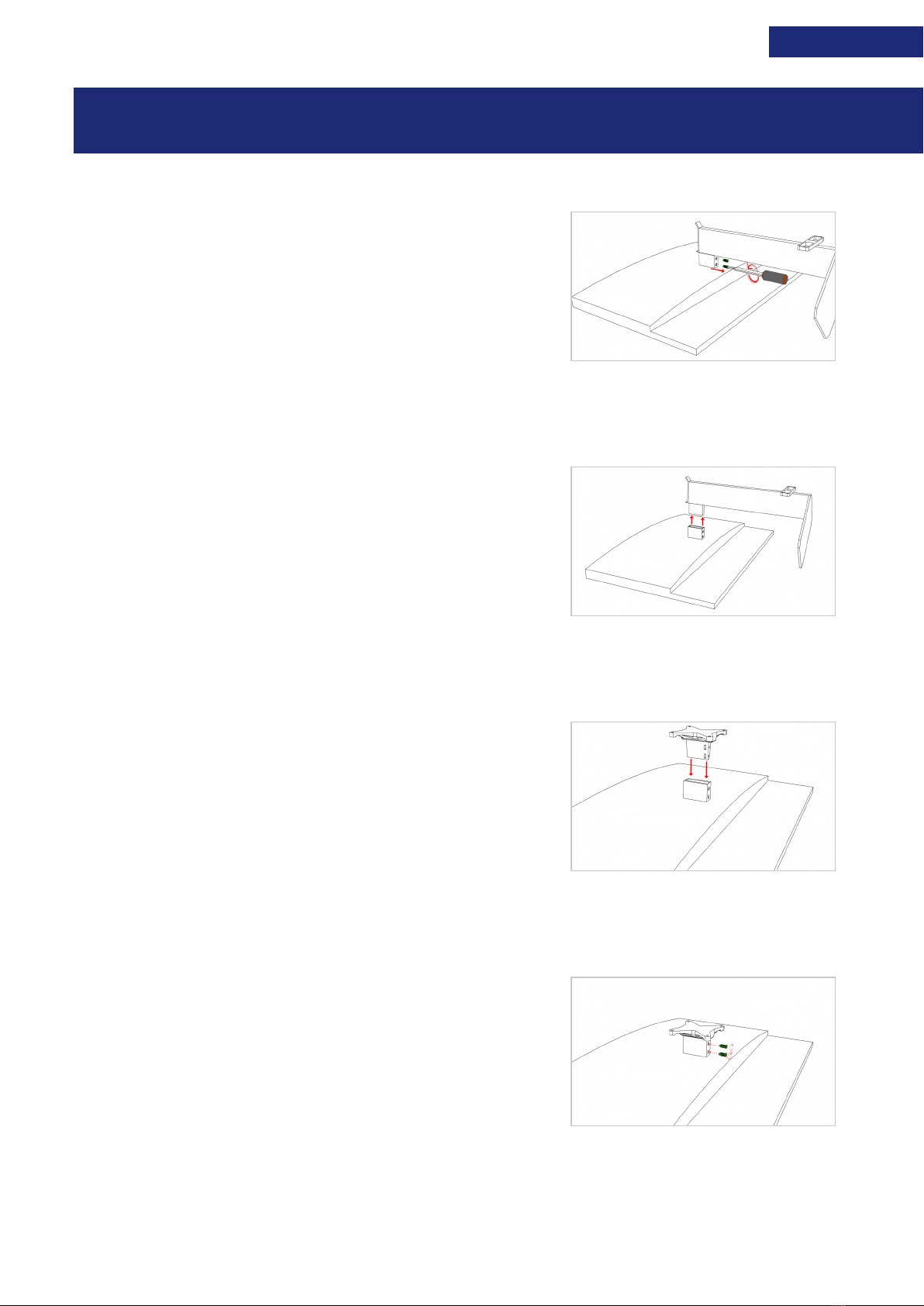

Step 1

Place your screen in a safe, soft place so that your screen

does not get damaged.

Remove the base of your monitor if it is already attached.

Use a screwdriver and unscrew the two screws underneath

the mount. (Figure 1)

Don't put the two screws too far away, we will need them

again in a moment to fix the VESA adapter. Figure 1

Step 2

Now pull out the base of your monitor upwards. (Figure 2)

Figure 2

Step 3

Now insert the 3idee VESA adapter into your HP Omen

monitor. (Figure 3)

Figure 3

Step 4

Now you can reuse the two screws you loosened earlier to

attach the VESA adapter to your monitor. (Figure 4)

Figure 4

3Assembly instructions

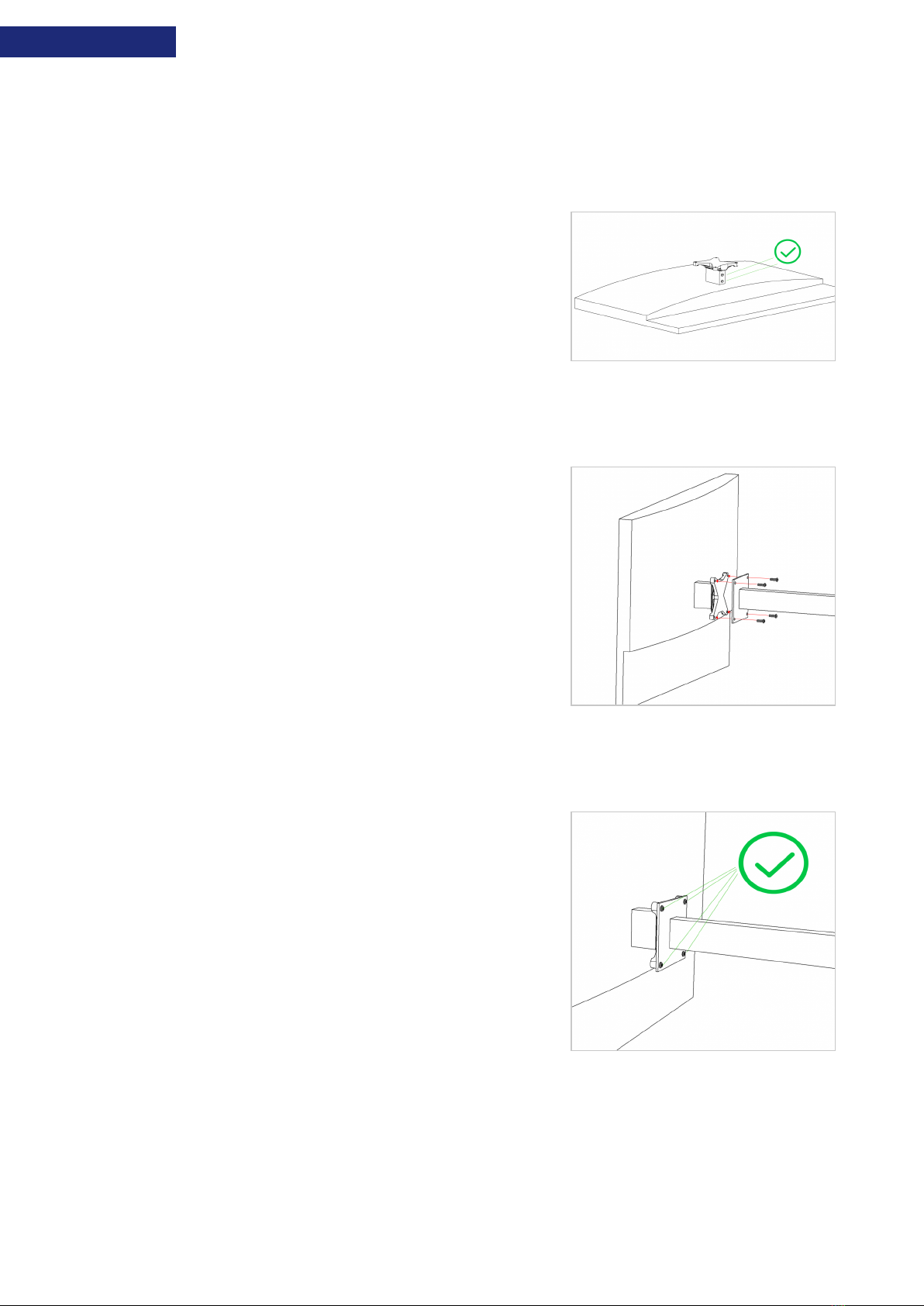

Step 5

Please check if you have fastened the two screws correctly.

(Figure 5)

Figure 5

Step 6

Now hold the VESA adapter on your monitor arm and screw

it tight from behind with the other hand. (Figure 6)

Figure 6

Step 7

Figure

4

Assembly instructions

Safety instructions

General notes

Make sure that all screws are tight and that the monitor audibly clicks into place during installation (if

available).

The material of the adapter is not heat resistant. Avoid direct heat around the adapter such as PC

exhaust or direct sunlight in summer.

PLA is UV resistant but not suitable for high temperatures.

Avoid jerky movements (pulling, tearing) on the PC monitor. This can affect the performance of the

VESA adapter.

Do not subject the PC monitor to excessive loads such as leaning or pushing. This can impair the

performance of the VESA adapter.

Material Notes

The adapter is made of high-quality polylactide (PLA) plastic. PLA is both a colorfast and UV-resistant

material and has low flammability. Polylactide has a low temperature resistance of approx. 45°C-55°C

and is therefore not suitable for use in the vicinity of direct heat and heat sources.

We wish you a lot of fun with your product.

Your 3idee Team

Responsible for this content:

3idee Technologies S.à r.l

5, ZA Um Lenster Bierg

L-6125 Junglinster

Luxembourg
