ass-vz VESA Adapter

Assembly instructions

The VESA adapter is compatible with the following products from Asus

(asus.com): VZ249HE, VZ279HE, VX279Q, VX279, VX248H, VX228H,

VX24AH, VX238H, VX249H, VZ27AQ, V229 and VZ279H.

The VESA adapter allows you to conveniently mount your ASUS brand monitor to a

monitor arm with a VESA hole pattern (75 x 75mm). Use the included screws and

nuts.

If you want to mount your VESA adapter directly to the wall, use suitable screws

and dowels (not included).

2

Assembly instructions

Assembly instruction

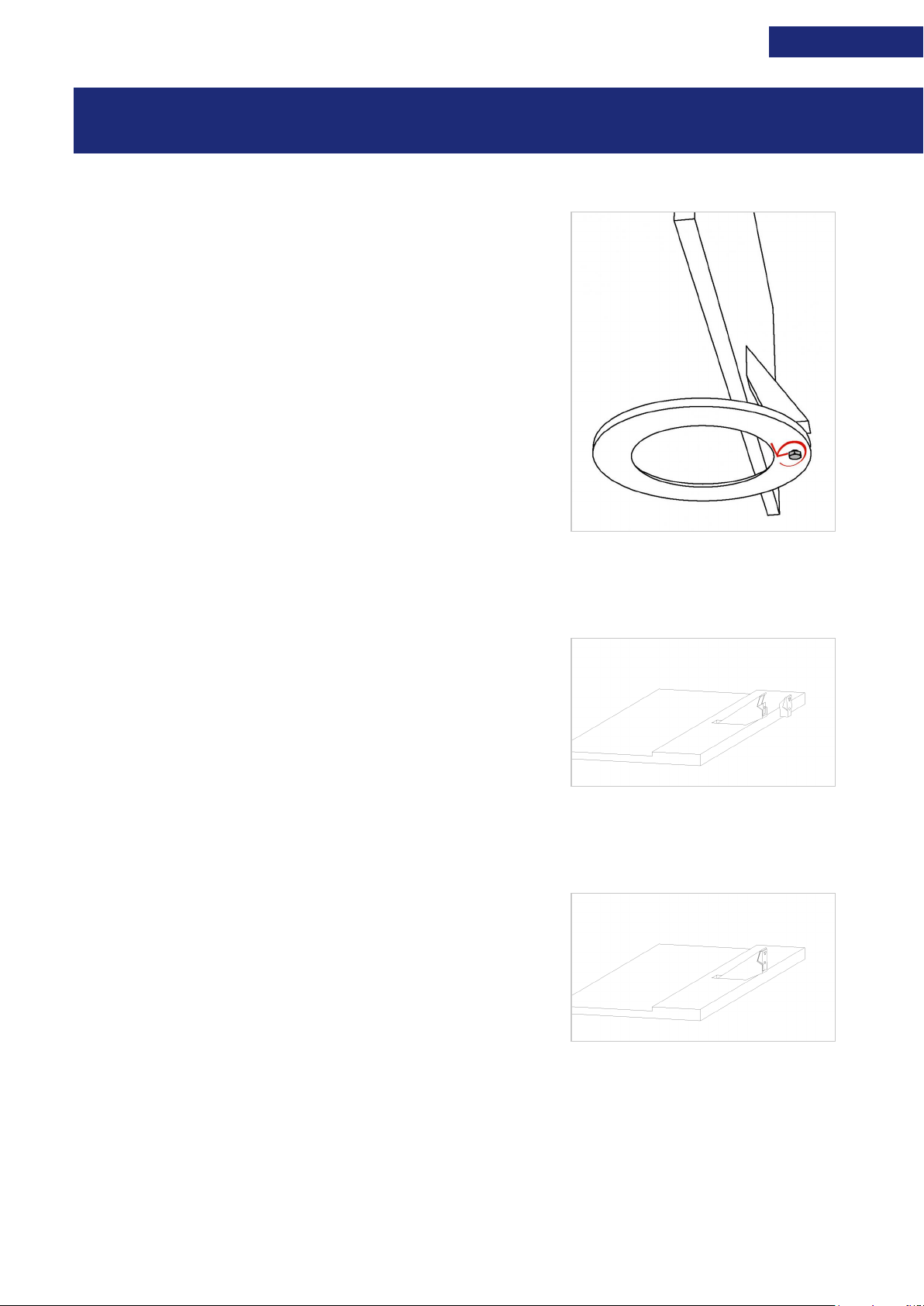

Step 1

First, remove the base of your Asus monitor. To do so, loosen

the screw underneath the monitor base. (Figure 1)

Please make sure you have a soft surface when

storing the monitor for disassembly / assembly.

Figure 1

Step 2

Now attach the included plastic adapter to your monitor base

from below as shown. (Figure 2)

Figure 2

Step 3

This is how the attached plastic adapter should look now.

(Figure 3)

Figure 3

3Assembly instructions

Step 4

Now please move the 3idee VESA adapter from below onto

the monitor base / plastic adapter as shown. (Figure 4)

The triangle in the plastic adapter must fit into the triangle in

the metal piece

.

Figure 4

Step 5

The VESA adapter should now be in this position before we

proceed to the next step. (Figure 5)

Figure 5

Step 6

Now screw the supplied screw from behind through the VESA

adapter into the monitor base. (Figure 6)

Use a Phillips screwdriver for this.

Figure 6

Step 7

Please check if the screw has been tightened properly.

(Figure 7)

Figure 7

4

Assembly instructions

Step 8

For this step, we recommend the help of a 2nd person.

Now the monitor + VESA adapter can be screwed to your

VESA arm. (Figure 8)

Please use the 4 screws included in the delivery.

Figure 8

Step 9

Please make sure that all 4 screws are tightened firmly.

5Assembly instructions

Safety instructions

General notes

Make sure that all screws are tight and that the monitor audibly clicks into place during installation (if

available).

The material of the adapter is not heat resistant. Avoid direct heat around the adapter such as PC

exhaust or direct sunlight in summer.

PLA is UV resistant but not suitable for high temperatures.

Avoid jerky movements (pulling, tearing) on the PC monitor. This can affect the performance of the

VESA adapter.

Do not subject the PC monitor to excessive loads such as leaning or pushing. This can impair the

performance of the VESA adapter.

Material Notes

The adapter is made of high-quality polylactide (PLA) plastic. PLA is both a colorfast and UV-resistant

material and has low flammability. Polylactide has a low temperature resistance of approx. 45°C-55°C

and is therefore not suitable for use in the vicinity of direct heat and heat sources.

We wish you a lot of fun with your product.

Your 3idee Team

Responsible for this content:

3idee Technologies S.à r.l

5, ZA Um Lenster Bierg

L-6125 Junglinster

Luxembourg
