3M 3443-107N Istruzioni per il montaggio
3M™Locator Plate 3443-107N
Instructions for the assembly of .100” x .100” preassembled
socket connectors
November 2012
78-9101-4048-8-B 3
1.0 General
The 3M Locator Plate 3443-107N is designed to aid in the assembly of the preassembled socket
connector family for all positions. End-to-end as well as daisy chain length (min daisy chain length
± 45 mm). Set-up and assembly instructions are based on termination procedures with 3M manual
and pneumatic presses.
Locator plate includes:
• Instruction sheet
• 3 mounting screws
• 1 M571x26 Hex Key
• 1 SW 2.5 56x18 Hex Key

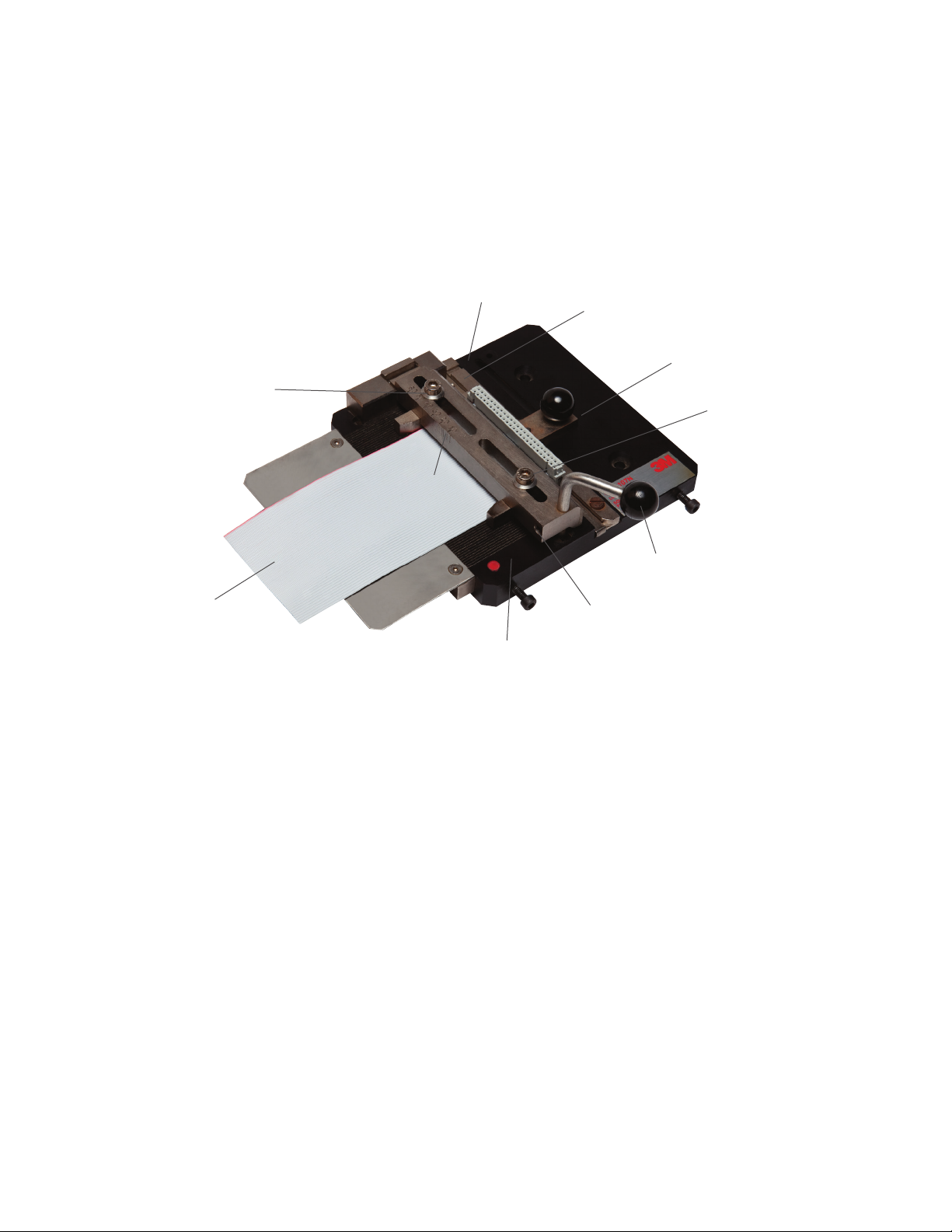

Figure 1
3767-0005
(Optional)
2
2.0 Tool Preparation
2.1 Mount lever ①on the guiding wing ②and secure by locking screw ③. Make sure that the plastic
ball is facing towards the operator (see Figure 2).
2.2 Remove the platen from the assembly press. Adjust shut height to 17 for the 3M™Assembly Press
3640, or to 17½ for presses the 3M™Assembly Presses 3335 and 3316 using shut height gauge
3436-1B. The the 3M™Assembly Press 3830 shut height is self-adjusting.
2.3 Place the locator plate on the press and fasten it with the two locking screws, that are included.
Note: If the optional 3M™Staging Platform (part number 3767-0005) is used, please refer to its own
instruction sheet for mounting.
Figure 2
3.0 Assembly Procedure
3.1 Cut cable to the required length.
3.2 Loosen the left cable guide screw ④. Lift the guiding wing ②and slide the left cable guide ④
into the required position depending on the connector size to be used. Connector pole sizes are
indicated on the guiding wing ②. Lower the guiding wing ②and make sure that the serrations of
the base plate ⑤and cable guide ④are fully aligned. Tighten the cable guide locking screw.
3.3 Insert the appropriate cable ⑩under guiding wing ②and adjust the right cable guide ⑥. Make sure
that the base plate ⑤and cable guide ⑥serrations are aligned and that the right cable guide ⑥is as
close as possible to the cable ⑩.
3.4 Adjust the cable stop as required (see Figure 1). For daisy chain assemblies: left position ⑧. For
end-to-end assemblies: right position ⑨.
3.5 Install the proper platen (3442-9) onto the press.
3.6 Remove the connector from the packing strip cover down, IDCs facing down towards the plate.
1
5
3
6
9
7
8
4
10
2
3
3.7 Slide the connector into the guiding groove against the connector locator stop ⑦.
3.8 Place the cable ⑩into the base plate serrations. For end-to-end assemblies, smoothly slide the
cable between cable guides ④⑥, under the guiding wing ②against cable stop ⑨. For daisy chain
assemblies, until the required length is obtained. The cable will fit between the cover and the
contacts of the connector.
Note: If the cable is not entering into the connector smoothly, check the flatness of the cable used.
3.9 Complete the assembly by closing the press handle.
Note: Never operate a pneumatic press without ensuring that there is a connector in the locator plate.
3.10 Raise the press handle and remove the finished assembly by lifting the guiding wing ②with the
lever ①.
3.11 Visually inspect to ensure that: a) The cover is fully locked. If not, check the shut height gauge.
b) The cable is correctly aligned in the cover. If not, check the cable guide adjustment.
