3One data IES206G-2GS Manuale utente

IES206G-2GS

Unmanaged Industrial Ethernet

Switch Quick Installation Guide

3onedata Co., Ltd.

Address:

3/B, Zone 1, Baiwangxin High Technology

Industrial Park, Xili, Nanshan District,

Shenzhen

Website:

www.3onedata.com

Tel:

+86 0755-26702688

Fax:

+86 0755-26703485

【Package Checklist】

Please check whether the package and accessories are intact

while using the switch for the first time.

Industrial Ethernet switch

Certification

Quick installation guide

Warranty card

DIN-Rail mounting attachment

If any of these items are damaged or lost, please contact our

company or dealers, we will solve it ASAP.

【Product Overview】

The product is full Gigabit unmanaged DIN-Rail industrial

Ethernet switch. Model as follows: IES206G-2GS (2 Gigabit

SFP + 4 Gigabit copper ports).

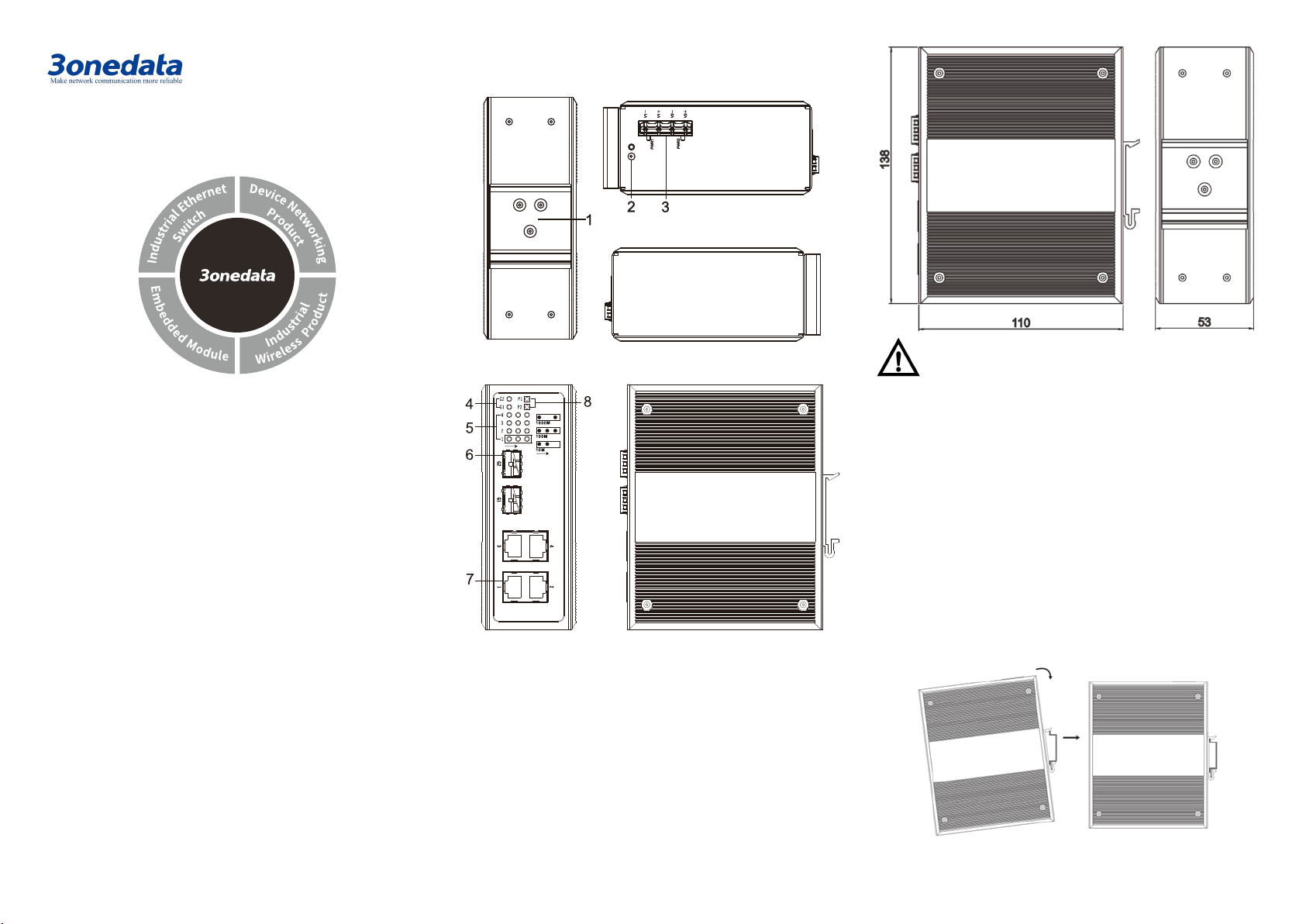

【Panel Design】

Rear view, Top view and Bottom view

Front view and Side view

1. DIN-Rail mounting kit

2. Grounding screw

3. Power input terminal block

4. Gigabit SFP connection indicator

5. Gigabit copper port speed indicator

6. 1000 Base-X gigabit Ethernet SFP slot

7. 10/100/1000Base-T(X) gigabit Ethernet interface

8. Power input status indicator P1/P2

【Mounting Dimension】

Unit: mm

Attention before mounting:

Don't place or install the device in area near water or

moist, keep the relative humidity of the device

surrounding between 5%~95% without condensation.

Before power on, first confirm the supported power

supply specification to avoid over-voltage damaging the

device.

The device surface temperature is high after running;

please don't directly contact to avoid scalding.

【DIN-Rail Mounting】

For convenient usage in industrial environments, the product

adopts 35mm DIN-Rail mounting, mounting steps as below:

Step 1 Check whether the DIN-Rail mounting kit that

comes with the device is installed firmly.

Step 2 Insert the bottom of DIN-Rail mounting kit (one side

with spring support) into DIN-Rail, and then insert

the top into DIN-Rail.

Tips:

Insert a little to the bottom, lift upward and then insert

to the top.

Step 3 Check and confirm the product is firmly installed on

DIN-Rail, and then mounting ends.

【Disassembling DIN-Rail】

Step 1 Power off the device.

Step 2 After lift the device upward slightly, first shift out the

top of DIN-Rail mounting kit, and then shift out the

bottom of DIN-Rail, disassembling ends.

Attention before powering on:

Power ON operation: first connect power line to the

connection terminal of device power supply, and then

power on.

Power OFF operation: first unpin the power plug, and

then remove the power line, please note the operation

order above.

【Power Supply Connection】

DC power supply

The device provides 4 pins power

supply input terminal blocks and

two independent DC power supply

systems of PWR1 and PWR2. The

power supply supports nonpolarity

and anti-reverse connection. It can normally operate after

reverse connection. Power supply range: 24VDC (12 ～

48VDC)

【Checking LED Indicator】

The function of each LED is described in the table as below:

LED

Status

Description

PWR1 is connected and running

normally

OFF

PWR1 is disconnected and running

abnormally.

PWR2 is connected and running

normally

OFF

PWR2 is disconnected and running

abnormally

Link/ACT

(G1-G2,

1-4)

Ethernet port connection is active.

Blinking

Data transmitted

OFF

Ethernet port connection is inactive.

SPEED

（1-4）

Ethernet port speed is 1000M

Ethernet port speed is 100M

Ethernet port speed is 10M

【Specification】

Panel

Gigabit SFP

1000Base-X, SFP slot

Gigabit copper port

10/100/1000Base-T(X)

self-adapting RJ45 port, full/half

duplex mode, support MDI/MDI-X

self-adaption

Indicator

Power indicator, interface

indicator,Speed indicator

Exchange attributes

Backplane bandwidth

12G

Packet buffer size

1Mbit

MAC table size

Power supply

Input power supply

24VDC (12~48VDC)

Support dual power supply

redundancy, nonpolarity and

anti-reverse connection

Access terminal

4 pins 7.62mm pitch terminal

blocks

Consumption

No-load

1.44W@24VDC

Full-load

4.34W@24VDC

Environmental

Limits

Working temperature

-40~75℃

Storage temperature

-40~85℃

Working humidity

5%~95% (no condensation)

Protection grade

IP40 (metal shell)
