A4Tech G9-540F Manuale utente

User Manual

Model: G9-540F

www.a4tech.com

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE

FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND

(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT

MAY CAUSE UNDESIRED OPERATION.

Federal Communications Commission Requirements

The equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction, may cause harmful interference to radio communication.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

●Reorient of relocate the receiving antenna.

●Increase the separation between the equipment and receiver.

●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

●Consult the dealer or an experienced radio/TV technician for help.

THE CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR

COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and receiver.

(2) This device must accept any interference received, including interference that may cause undesired

operation.

FCC Radiation Exposure Statement

The equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets

the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. The equipment has very low

levels of RF energy that it is deemed to comply without testing of specific absorption ratio (SAR).

1. Hardware Installation

1). Connect the Multi-link receiver

Take out the Multi-link receiver from bottom of the mouse and connect it to your computer.

2). Insert the batteries

Open the battery cover and insert the supplied batteries.

Note: Make sure the positive (+) and negative (-) ends of the battery match the polarity indicators inside the

battery compartment.

3). Turn on your Mouse

Push the power switch to ON position and turn on your mouse. >>Then LED light at the bottom of the mouse

is on immediately.

4). Position the wireless mouse and Multi-link receiver within 15m operating range (Note: The actual distance

depends on the environment.)

Note: For more functions such as RF Channel Lock, Gesture 16-in-1, 4-way Wheel and so on, please install

the G9 16-in-1(enclosed in the CD) software first!

2. Software Installation (Note: The software is applicable to Windows 2000/ XP/ 2003/ Vista/

Windows 7)

1). Uninstall previous installed mouse software.

2). Insert the enclosed CD to start installation and follow the on-screen instructions to finish the software

installation.

3). The shortcut icon " " will appear on your desktop screen, and then you have successfully installed the

software. (Otherwise, installation is failed and you have to remove the software and re-install.)

To remove the software, follow the steps:

Go to Start >> Programs >> A4TECH Software >> G9 16-in-1 >> Uninstall G9 16-in-1

To launch the software

Double click on the icon " " at the right-down corner of your system tray or double click on the icon " " at

your desktop screen. The "Main Menu" of "16-in-1" software will pop up.

3. Knowing the "16-in-1" software

"16-in-1" software offers programmable 16 functions in 1 click with RIGHT button.

Gesture 16-in-1

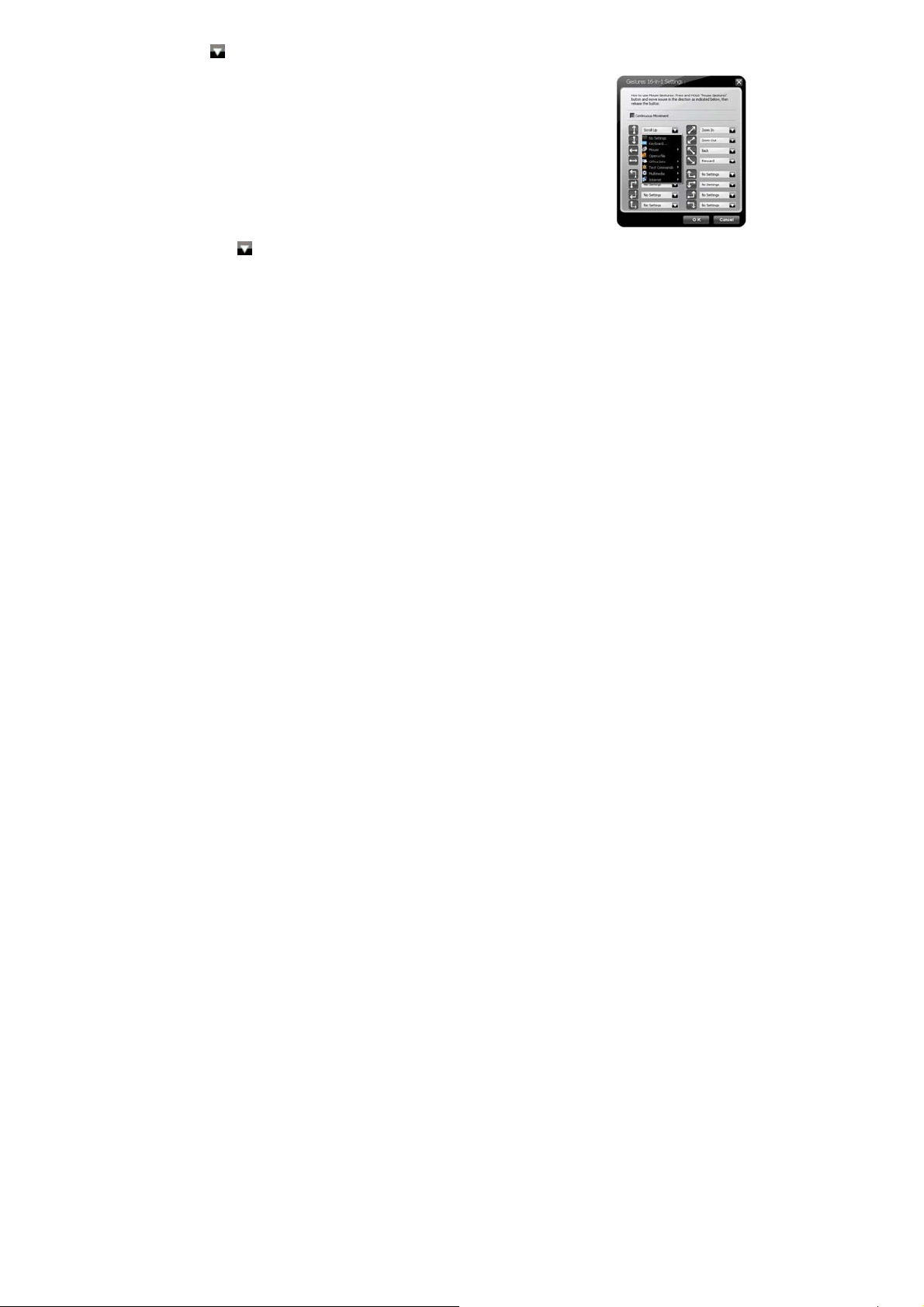

1). Click " " of "Gesture Button  " at the "Main Menu" page and select "Gesture 16-in-1". The setup screen

will pop up as below.

Setup Screen

2). Click any " " at "Setup Screen", you will see the function list. Now you may setup 16 most-frequently-

used commands to the "Gesture Button ", and then click "Apply" at "Main Menu" of "16-in-1" software to save

your new setting! There are more than 30 commands you may select, including Keyboard, Mouse, Office, Text,

Multimedia, Internet and Open a file.

3). Knowing "16-in-1" functions

Function list Function instruction

No Setting There is no button setting being defined.

Keyboard You may setup the "Gesture Button" to simulate a keyboard’s keystroke, or a key

combination with “Win”, “Ctrl”, “Shift” and “Alt”, then followed with any keystroke on the

keyboard, and then assign it to the "Gesture Button".

Mouse You may setup "Gesture Button" to be one of “mouse left button, mouse right button,

wheel up and wheel down”.

Open a File You may setup the "Gesture Button" to open a file or program by one-click during

presentation.

Usage:

1). Select “Open a File” from the pull-down menu of the "Gesture Button" as "Figure 1"

shows.



Figure.1 Figure 2

2). A screen of file listings will pop up as "Figure 2" shows.

3). Select a file that you would open it with the "Gesture Button " and click “Open”.

4). Now you can see a file you selected has been assigned to "Gesture Button."

5). Click “Apply” to save the new setting.

Example: While make a presentation, it is embarrassing to keep others waiting due to searching for a

document, or look up for a program or a shortcut. With “Open a File” function, you may have better way to

resolve this issue. By setting up "Gesture Button②" in association to the document, program or shortcut, all

you need to do is to open any file instantly with "Gesture Button②" .

Office Sets You may setup any one of Office command sets such as: “Zoom In, Zoom Out, Paste

Text” to the "Gesture Button".

1. Zoom In/Out：One click to perform zoom in or zoom out function, applicable to CAD,

ACDSee, Windows or text editing programs.

2. Paste Text：One click to perform “Select, Copy & Paste” texts, it turns office jobs can

never be so simple.

Text

Commands

Quick access to Office, such as: New File, Open File, Save File, Redo, Undo.

Multimedia Quick access to Multimedia commands, such as: Media Player (Open), Previous, Next,

Stop, Play/Pause, Mute, Volume+, Volume-…etc.

Internet: Quick access to usually used Internet commands, such as: Backward, Forward, Stop,

Refresh, Search, My Favorite, Web Browser, E-mail...etc.

How to use "Gesture Button" as "16-in-1" function

Example 1:

Using as “Zoom In” command by default, when you are viewing a picture with ACDSee, or browsing a PPT

file in the Office, or Reading a PDF file…etc, just pressing the “Gesture Button ”and draw the line as shown

below, then release the “Gesture Button ”, the picture or the document will be zoomed in immediately.

Press and hold the gesture button to draw any of 16 lines and directions

as shown on the right, then release the button. The corresponding

commands will be executed immediately, including Keyboard, Mouse,

Office, Text, Multimedia, Internet and open a file, which can be preset

and store to your receiver memory.

Diagrams of 16 mouse

gestures

a. Start: Press the "Gesture Button "

b. Track of the drawing line: Draw the line as the

arrow direction.

c. End: Release the "Gesture Button "

d. Then the picture has been zoomed in.

Example 2:

See the contrast in EXCEL after drawing the line.

Now let's take " " as example to show you how to use these functions：

1. Select " " icon to represent "Zoom In" as shown:

2. Click " " to close the setup screen.

3. Click “ ” to save to receiver’s memory.

4. Draw the line in Excel.

Original After drawing the line, the column has been enlarged

Draw the line in Windows Picture and Fax Viewer.

Original After Drawing Line, the picture has been enlarged

DPI Setting

Click " " on "DPI Settings" of the Main Menu of "G9 16-in-1" software to adjust 5-level sensitivities among

800-1000-1200-1600-2000 DPI depending on different display applications

The icon will be displayed at the system tray when you adjust the DPI-level. You also can

change the DPI-level directly by pressing the DPI shift button(upon the model used).

Illustration of Mouse DPI

DPI Indication Explanation

800DPI

1000DPI

1200DPI

1600DPI

2000DPI

Mouse Report Rate

Mouse Report Rate is the term that how many times the mouse sends data to the computer in one second.

For instance, "Report Rate 500Hz" means "the mouse sends 500 times of data to the computer in one second".

G9 16-in-1 offers 3 report rates, e.g., 125Hz, 250Hz and 500Hz respectively. The higher times stands for the

smoother the cursor movement and precise click response, especially suitable for game play, which requires

high speed and quick response. (For a conventional mouse, the report rate is 125Hz).

According to various applications, the bandwidth is divided into 3 report rate levels:

1X Speed: USB report rate is 125Hz, suitable for office and general users, power consumption is the lowest.

2X Speed: USB report rate is 250Hz, suitable for CAD users, power consumption is normal.

4X Speed: USB report rate is 500Hz, suitable for heavy-duty game players, power consumption is high.
