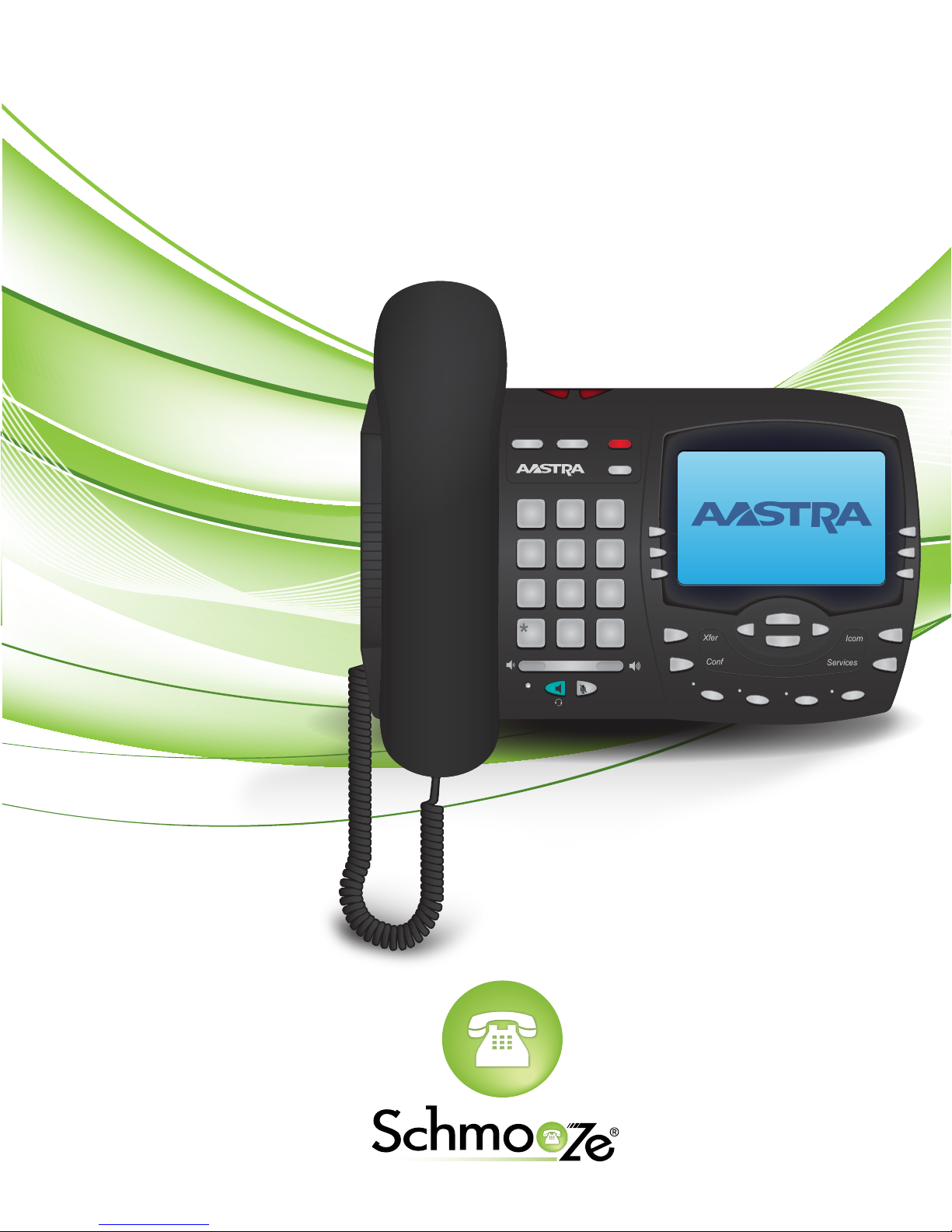

Aastra 9480i Series Manuale

Aastra 9480i

Admin Guide

Schmooze Com Inc.

Options

Xfer

ABC DEF

JKL

GHI MNO

TUV

PQRS

WXYZ

1 2 3

4 5 6

789

Conf

L1 L2 L3 L4

Services

Icom

Goodbye

9480i

RedialHold

Chapters

Reset to Factory Defaults

How to Find the IP Address and MAC Address

How to Set the TFTP Boot Server

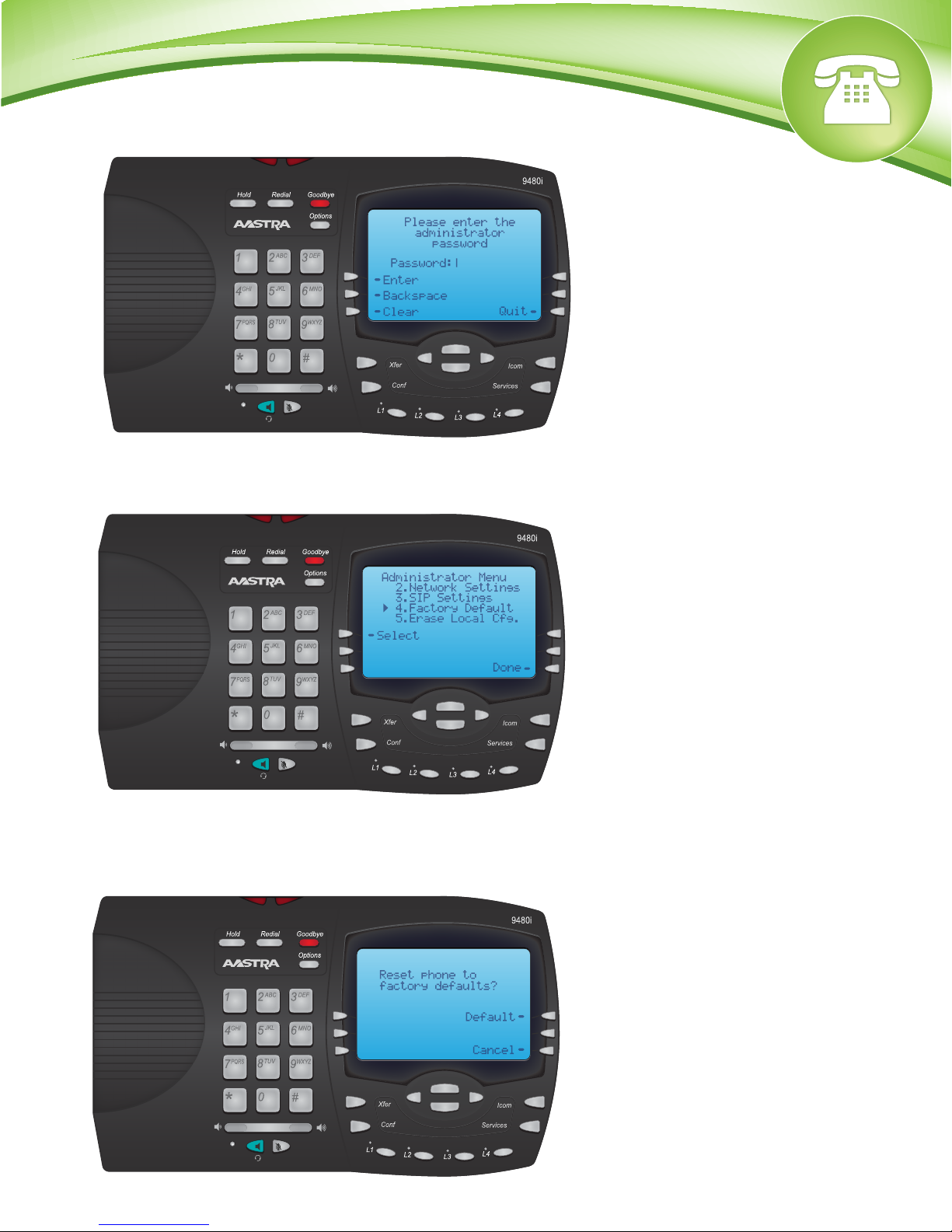

Reset to Factory Defaults

Quick Steps

1. Select the Options button.

2. Select the Admin Menu Option.

3. Enter the Admin Password. (Note: The default password is 22222).

4. Select option 4, Factory Default.

5. Press Default on the right hand side of the screen to confirm. The phone will now reboot and

will be defaulted when it starts back up.

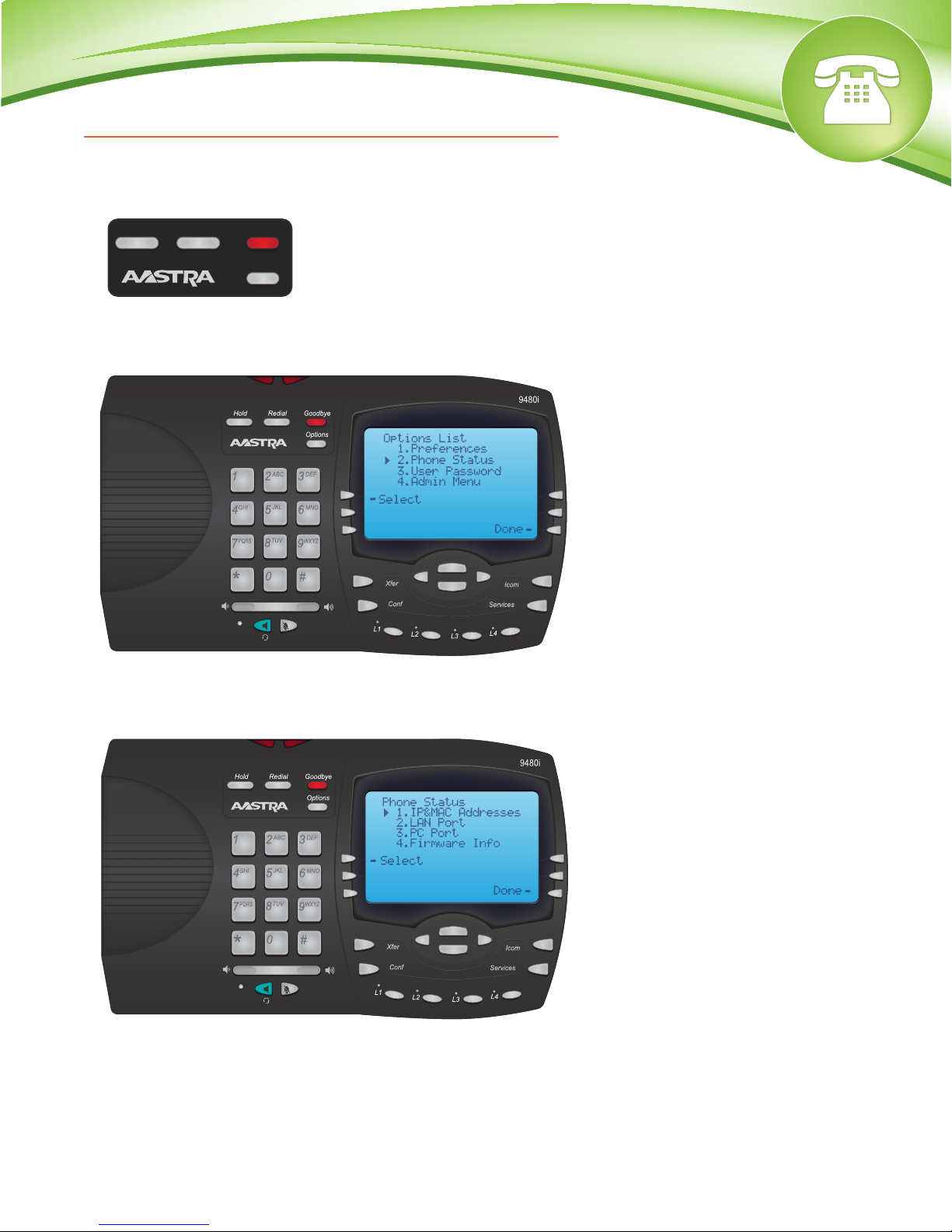

How to Find the IP Address and MAC Address

Quick Steps

1. Select the Options button

2. Next select Phone Status, Option 2.

3. You will now select Option 1, IP&MAC Address.

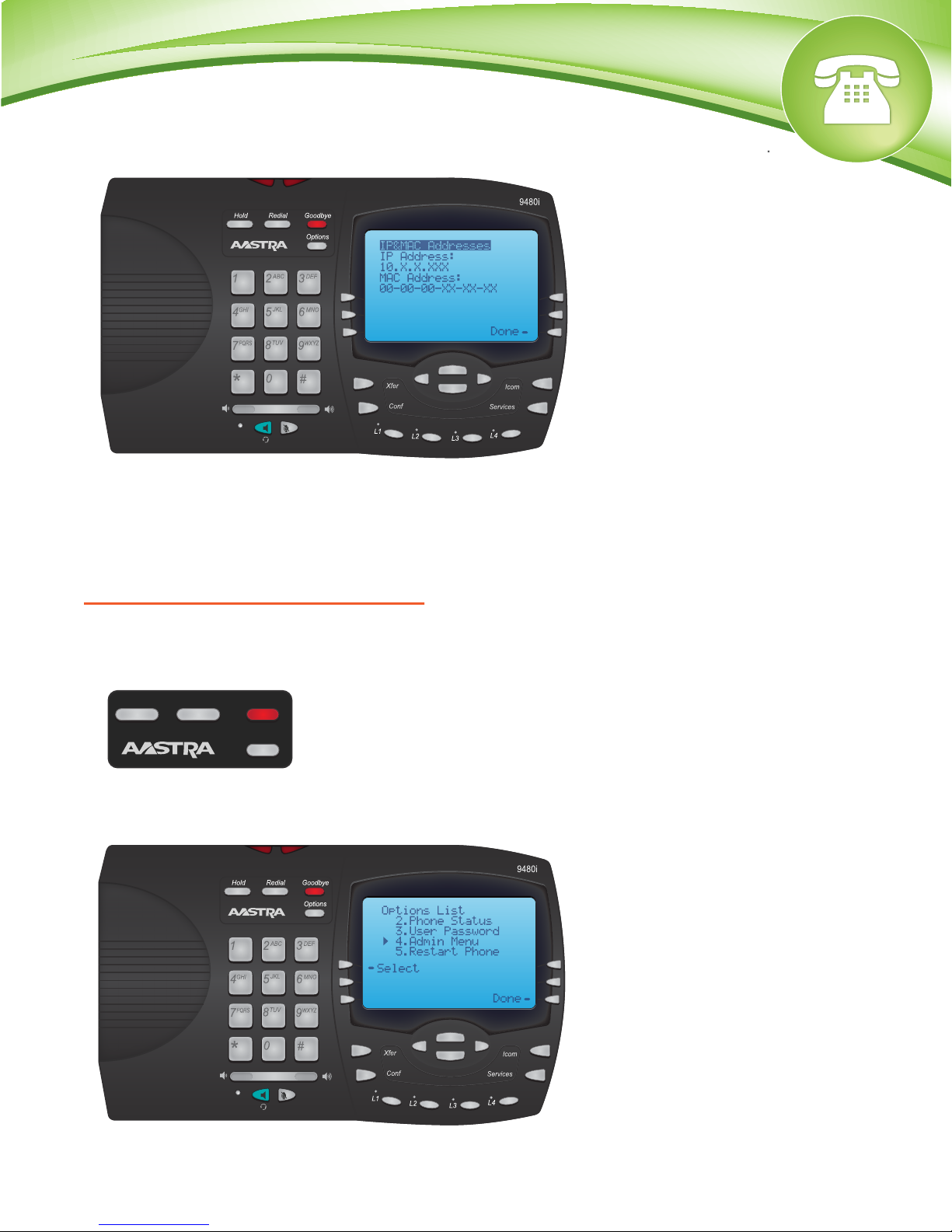

4. You will now be shown the current IP Address and the MAC address of the phone.

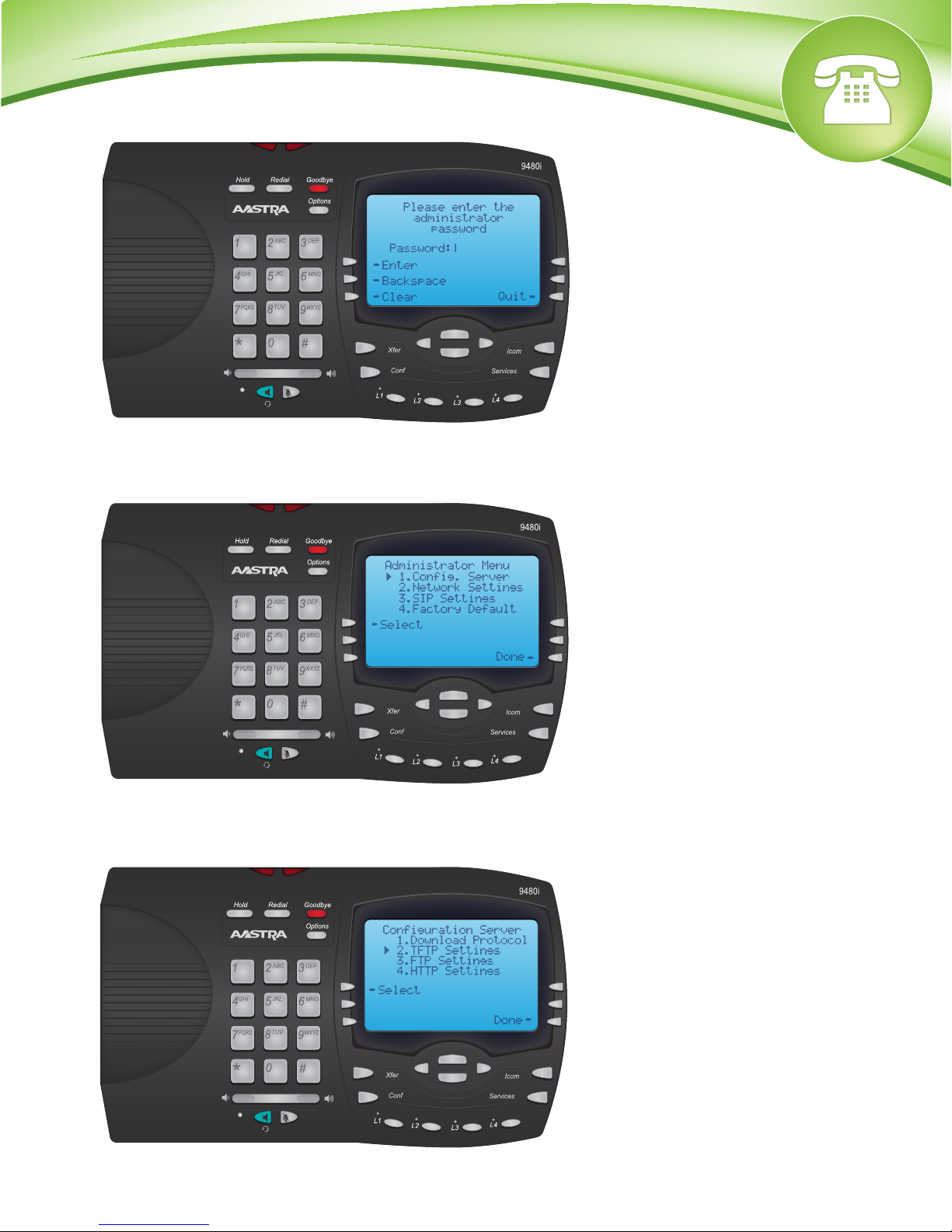

How to Set the TFTP Boot Server

Quick Steps

1. Select the Options button

2. Select the Admin Menu Option.

3. Enter the Admin Password. (Note: The default password is 22222).

4. Select Config. Server.

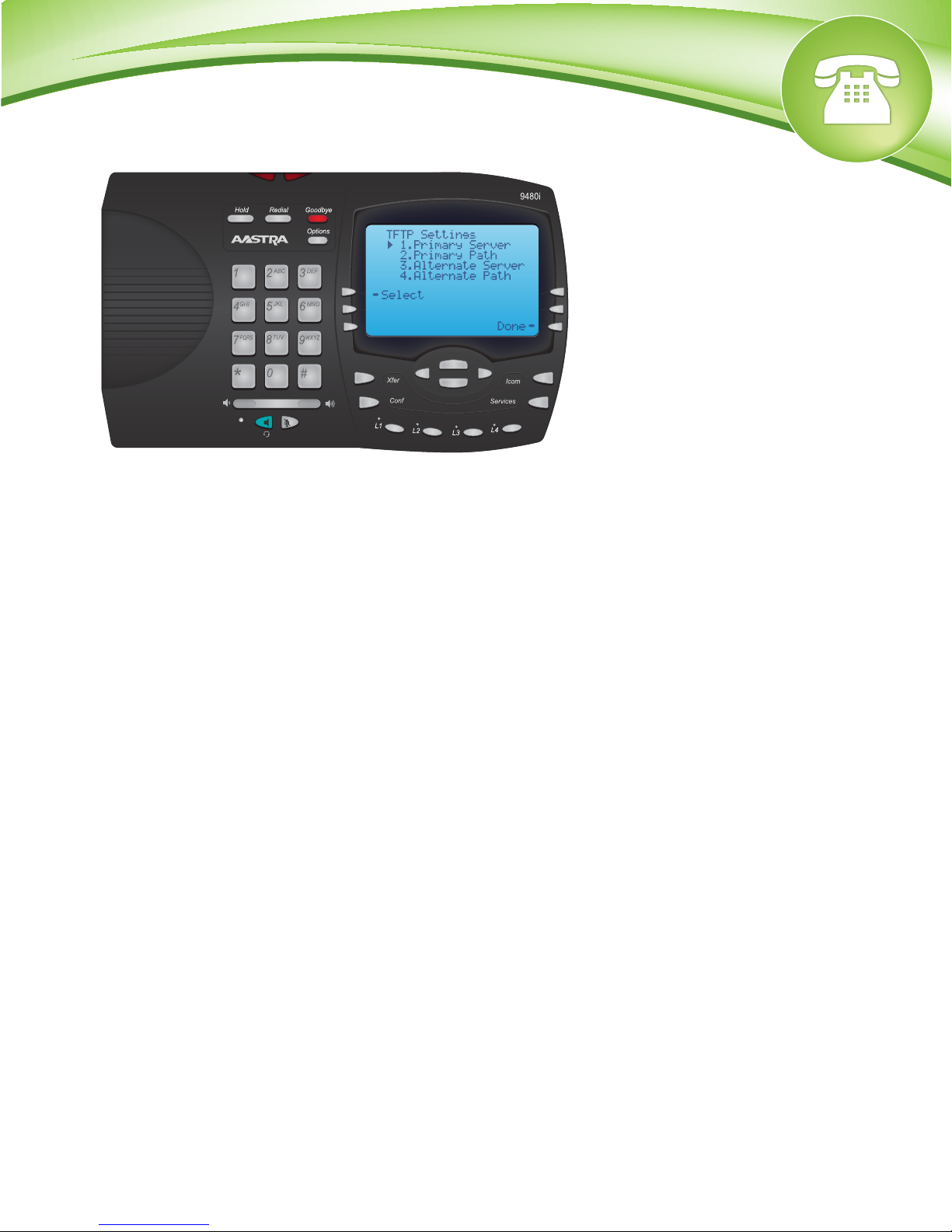

5. Select Option 2, TFTP Settings.

6. Select Primary Server.

7. Use the Keypad to input the IP address of the PBX. Then press the DONE button.

Options

GoodbyeRedialHold

Chapters

Reset to Factory Defaults

How to Find the IP Address and MAC Address

How to Set the TFTP Boot Server

Reset to Factory Defaults

Quick Steps

1. Select the Options button.

2. Select the Admin Menu Option.

3. Enter the Admin Password. (Note: The default password is 22222).

4. Select option 4, Factory Default.

5. Press Default on the right hand side of the screen to confirm. The phone will now reboot and

will be defaulted when it starts back up.

How to Find the IP Address and MAC Address

Quick Steps

1. Select the Options button

2. Next select Phone Status, Option 2.

3. You will now select Option 1, IP&MAC Address.

4. You will now be shown the current IP Address and the MAC address of the phone.

How to Set the TFTP Boot Server

Quick Steps

1. Select the Options button

2. Select the Admin Menu Option.

3. Enter the Admin Password. (Note: The default password is 22222).

4. Select Config. Server.

5. Select Option 2, TFTP Settings.

6. Select Primary Server.

7. Use the Keypad to input the IP address of the PBX. Then press the DONE button.

Chapters

Reset to Factory Defaults

How to Find the IP Address and MAC Address

How to Set the TFTP Boot Server

Reset to Factory Defaults

Quick Steps

1. Select the Options button.

2. Select the Admin Menu Option.

3. Enter the Admin Password. (Note: The default password is 22222).

4. Select option 4, Factory Default.

5. Press Default on the right hand side of the screen to confirm. The phone will now reboot and

will be defaulted when it starts back up.

How to Find the IP Address and MAC Address

Quick Steps

1. Select the Options button

2. Next select Phone Status, Option 2.

3. You will now select Option 1, IP&MAC Address.

4. You will now be shown the current IP Address and the MAC address of the phone.

How to Set the TFTP Boot Server

Quick Steps

1. Select the Options button

2. Select the Admin Menu Option.

3. Enter the Admin Password. (Note: The default password is 22222).

4. Select Config. Server.

5. Select Option 2, TFTP Settings.

6. Select Primary Server.

7. Use the Keypad to input the IP address of the PBX. Then press the DONE button.

Options

GoodbyeRedialHold

Chapters

Reset to Factory Defaults

How to Find the IP Address and MAC Address

How to Set the TFTP Boot Server

Reset to Factory Defaults

Quick Steps

1. Select the Options button.

2. Select the Admin Menu Option.

3. Enter the Admin Password. (Note: The default password is 22222).

4. Select option 4, Factory Default.

5. Press Default on the right hand side of the screen to confirm. The phone will now reboot and

will be defaulted when it starts back up.

How to Find the IP Address and MAC Address

Quick Steps

1. Select the Options button

2. Next select Phone Status, Option 2.

3. You will now select Option 1, IP&MAC Address.

4. You will now be shown the current IP Address and the MAC address of the phone.

How to Set the TFTP Boot Server

Quick Steps

1. Select the Options button

2. Select the Admin Menu Option.

3. Enter the Admin Password. (Note: The default password is 22222).

4. Select Config. Server.

5. Select Option 2, TFTP Settings.

6. Select Primary Server.

7. Use the Keypad to input the IP address of the PBX. Then press the DONE button.

Options

GoodbyeRedialHold

Chapters

Reset to Factory Defaults

How to Find the IP Address and MAC Address

How to Set the TFTP Boot Server

Reset to Factory Defaults

Quick Steps

1. Select the Options button.

2. Select the Admin Menu Option.

3. Enter the Admin Password. (Note: The default password is 22222).

4. Select option 4, Factory Default.

5. Press Default on the right hand side of the screen to confirm. The phone will now reboot and

will be defaulted when it starts back up.

How to Find the IP Address and MAC Address

Quick Steps

1. Select the Options button

2. Next select Phone Status, Option 2.

3. You will now select Option 1, IP&MAC Address.

4. You will now be shown the current IP Address and the MAC address of the phone.

How to Set the TFTP Boot Server

Quick Steps

1. Select the Options button

2. Select the Admin Menu Option.

3. Enter the Admin Password. (Note: The default password is 22222).

4. Select Config. Server.

5. Select Option 2, TFTP Settings.

6. Select Primary Server.

7. Use the Keypad to input the IP address of the PBX. Then press the DONE button.

Chapters

Reset to Factory Defaults

How to Find the IP Address and MAC Address

How to Set the TFTP Boot Server

Reset to Factory Defaults

Quick Steps

1. Select the Options button.

2. Select the Admin Menu Option.

3. Enter the Admin Password. (Note: The default password is 22222).

4. Select option 4, Factory Default.

5. Press Default on the right hand side of the screen to confirm. The phone will now reboot and

will be defaulted when it starts back up.

How to Find the IP Address and MAC Address

Quick Steps

1. Select the Options button

2. Next select Phone Status, Option 2.

3. You will now select Option 1, IP&MAC Address.

4. You will now be shown the current IP Address and the MAC address of the phone.

How to Set the TFTP Boot Server

Quick Steps

1. Select the Options button

2. Select the Admin Menu Option.

3. Enter the Admin Password. (Note: The default password is 22222).

4. Select Config. Server.

5. Select Option 2, TFTP Settings.

6. Select Primary Server.

7. Use the Keypad to input the IP address of the PBX. Then press the DONE button.

Schmooze Com Inc.

http://schmoozecom.com

(920) 886-8130
