FEA-01 user’s manual 3

FEA-01 user’s manual

Safety instructions

Overview

The chapter contains the safety instructions that you must follow

when installing and operating the FEA-01 F-series Extension

Adapter. Read the safety instructions before you work on the unit.

In addition to the safety instructions given below, read the

complete safety instructions of the specific drive you are working

on.

General safety instructions

WARNING! Ignoring the following instructions can cause

physical injury or death, or damage to the equipment.

•Only qualified electricians are allowed to install and maintain

the drive.

•The drive and adjoining equipment must be properly earthed.

•Do not work on a powered drive. After switching off the input

power, always allow the intermediate circuit capacitors 5

minutes to discharge before working on the drive, the motor or

the motor cable. Always ensure by measuring with a

multimeter (impedance at least 1 Mohm) that the drive is

discharged before beginning work.

•The motor cable terminals of the drive are at a dangerously

high voltage when input power is applied, regardless of motor

operation.

•There can be dangerous voltages inside the drive from

external control circuits even when the drive input power is

shut off. Exercise appropriate care when working on the unit.

A6 manual template.book Page 3 Friday, January 8, 2010 3:39 PM

4 FEA-01 user’s manual

FEA-01 F-series Extension Adapter

Overview

The FEA-01 F-series Extension Adapter is an extension unit for the

mounting of FIO I/O extension modules and FEN encoder modules

outside the drive unit. The FEA-01 is connected to the drive via a

DDCS-protocol fiber-optic link. One I/O extension module can be

mounted on one FEA-01 adapter. Several FEA-01 adapters can be

connected in a ring topology using fibre optic cable.

Optical component types

The FEA-01 has a 10 MBd fiber-optic link. The drive must also

have a 10 MBd DDCS fiber-optic connection. The following optical

cable types can be used:

Note: The optical components (transmitter and receiver) on a fibre

optic link must be of the same type.

•Plastic optical fibre (POF) cables (max. length 30 m) and

•Hard Clad Silica (HCS®) cables (max. length 200 m).

HCS cables allow longer connection distances because of their

lower attenuation. HCS®is a registered trademark of SpecTran

Corporation.

The optical component types used in ABB drive equipment are

presented in Settings and connections.

A6 manual template.book Page 4 Friday, January 8, 2010 3:39 PM

FEA-01 user’s manual 5

Settings and connections

Layout

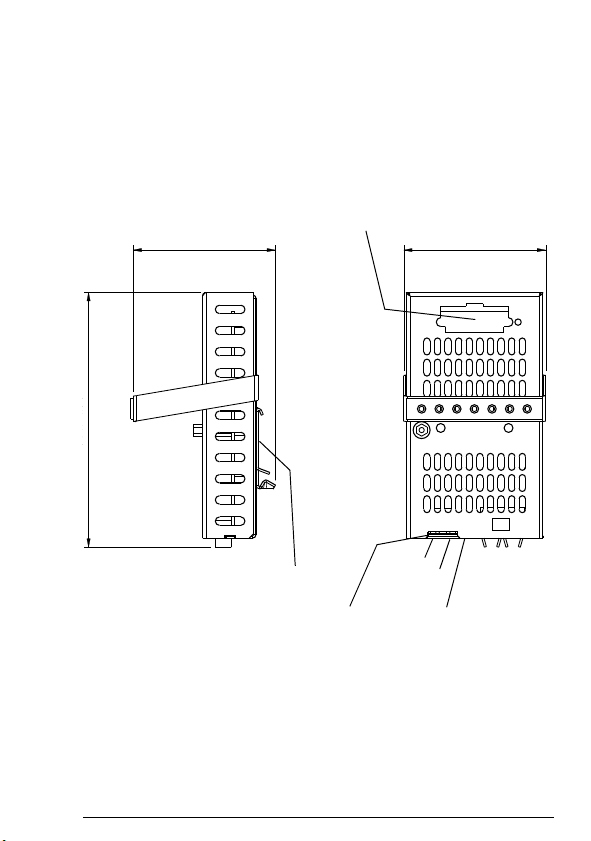

The following figure shows the layout and dimensions of the

FEA-01, indicating the F-series module connector and front

components such as the diagnostic LED, fiber-optic transmitter

(V1), receiver (V2) and power supply connector.

Power supply

The FEA-01 requires a supply voltage of 24 V DC ±10%.

10 MBd

channel

68 mm [2.7 in]

V1 V2

Power supply

connector (24 V)

DIN rail mounting

Diagnostic LED

(POWER OK)

+24 V DC

GND

120 mm [4.7 in]

67 mm [2.6 in]

F-series module

connector

A6 manual template.book Page 5 Friday, January 8, 2010 3:39 PM

6 FEA-01 user’s manual

Diagnostic LED

The green diagnostic LED on the circuit board of the FEA-01 unit

can be viewed on the front of the metal housing.

The LED is lit when the FEA-01 is powered. If the LED is off when

power is applied, there is a fault.

Fiber-optic link connection

Connect the FEA-01 V1 (TXD) connector to the drive RXD

connector. Connect the FEA-01 V2 (RXD) connector to the drive

TXD connector as shown below.

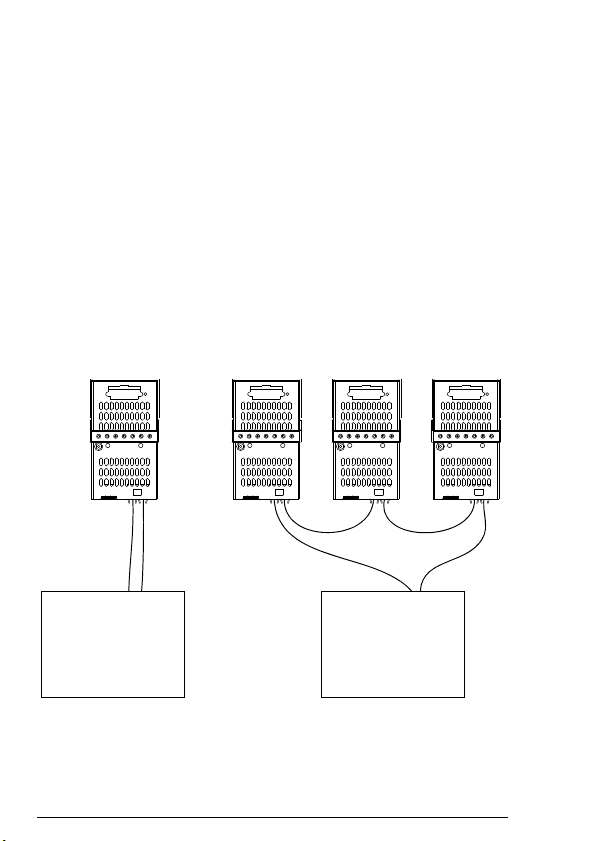

Multiple FEA-01 F-series Extension Adapters are connected

together in a ring topology as shown below.

For more information on the fiber-optic link connection, see the

relevant firmware manual.

Drive

FEA-01 FEA-01 FEA-01

V2V1 V2V1 V2V1

RXD TXD

Drive

RXD TXD

V2V1

FEA-01

A6 manual template.book Page 6 Friday, January 8, 2010 3:39 PM

FEA-01 user’s manual 7

Mechanical installation

The housing of the FEA-01 unit has two spring-loaded fasteners

for vertical or horizontal 35 × 7.5 mm DIN rail mounting. The

mounting rail must be earthed to a noiseless earth. If the rail is not

mounted on a properly earthed base, a separate earthing

conductor must be used. The conductor must be as short as

possible and its cross-sectional area must be 6 mm2at least.

Note: No solid copper conductor may be used (stranded wire

allowed only).

The unit should be mounted so that air can freely pass through the

ventilation holes in the housing. Mounting directly above heat-

generating equipment should be avoided.

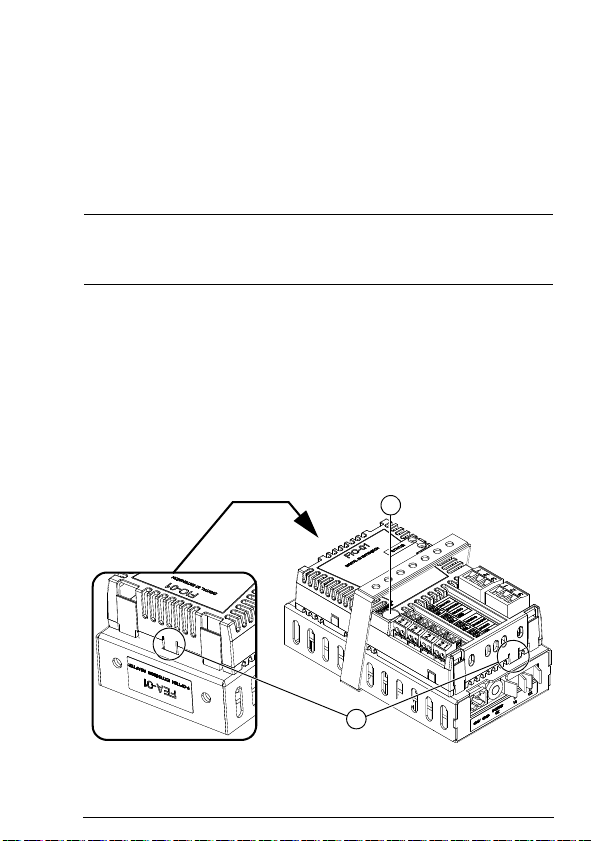

Mounting an I/O extension module

To mount an I/O extension module, insert the plastic retaining clips

of the module (a) into the slots in the FEA-01 and fasten the screw

(b). Correct installation of the screw is essential for fulfilling the

EMC requirements and for proper operation of the module. For

more information, see the relevant user’s manual.

A6 manual template.book Page 7 Friday, January 8, 2010 3:39 PM

8 FEA-01 user’s manual

Technical data

Housing: Painted and zinc-plated sheet steel

Dimensions: 67 × 120 × 68 mm

Mounting: Onto 35 × 7.5 mm DIN rail

Power supply connection

•Voltage: 24 V DC ±10%

•Current consumption: Refer to I/O extension module’s

User’s Manual.

Connectors

•Fiber-optic link connection: Avago Versatile Link (10 MBd)

•Power supply connection: Detachable screw terminal block

(Phoenix Contact MSTBA 2.5/2-G-5.08)

LED: Diagnostic LED labeled ‘POWER OK’.

Ambient conditions: The applicable ambient conditions specified

for the drive in its hardware manual are in effect.

Degree of protection: IP20

Standards: Complies with the safety standard IEC 61800-5-1 and

EMC standard IEC 61800-3.

A6 manual template.book Page 8 Friday, January 8, 2010 3:39 PM

Further information

Product and service inquiries

Address any inquiries about the product to your local ABB

representative, quoting the type designation and serial number of

the unit in question. A listing of ABB sales, support and service

contacts can be found by navigating to www.abb.com/drives and

selecting Sales, Support and Service network.

Product training

For information on ABB product training, navigate to

www.abb.com/drives and select Training courses.

Providing feedback on ABB Drives manuals

Your comments on our manuals are welcome. Go to

www.abb.com/drives and select Document Library – Manuals

feedback form (LV AC drives).

Document library on the Internet

You can find manuals and other product documents in PDF format

on the Internet. Go to www.abb.com/drives and select Document

Library. You can browse the library or enter selection criteria, for

example a document code, in the search field.

A6 manual template.book Page 9 Friday, January 8, 2010 3:39 PM

3AFExxxxxxxx Rev x / EN

EFFECTIVE: xx.xx.xxxx

ABB Oy

AC Drives

P.O. Box 184

FI-00381 HELSINKI

FINLAND

Telephone +358 10

22 11

Fax +358 10

22 22681

Internet http://

www.abb.com

ABB Inc.

Automation Technologies

Drives & Motors

16250 West Glendale Drive

New Berlin, WI 53151 USA

Telephone 262 785-

3200

800-

HELP-365

Fax 262 780-

5135

ABB Beijing Drive Systems Co. Ltd.

No. 1, Block D, A-10 Jiuxianqiao Beilu

Chaoyang District

Beijing, P.R. China, 100015

Te l e p ho n e

+86 10 5821 7788

Fax

+86 10 5821 7618

Internet

http://www.abb.com

ABB Oy

Drives

P.O. Box 184

FI-00381 HELSINKI

FINLAND

Tel +358 10 22 11

Fax +358 10 22 22681

www.abb.com/drives

ABB Inc.

Automation Technologies

Drives & Motors

16250 West Glendale Drive

New Berlin, WI 53151

USA

Tel 262 785-3200

1- 800-HELP-365

Fax 262 780-5135

www.abb.com/drives

ABB Beijing Drive Systems

Co. Ltd.

No. 1, Block D,

A-10 Jiuxianqiao Beilu

Chaoyang District

Beijing, P.R. China, 100015

Tel +86 10 5821 7788

Fax +86 10 5821 7618

www.abb.com/drives

3AUA0000071412 Rev A EN 2010-01-08
