Ethernet Adapter

Product Guide

SPA-ZC 400

Ethernet Adapter SPA-ZC 400

Features • IEC 61850 connectivity for REF 541/3/5

REM 543/5 and RET 541/3/5

• Easy-to-use configuration tool for

IEC 61850 data mapping

• IEC 61850 horizontal communication

(GOOSE)

• Disturbance recorder file upload via

IEC 61850

• Simultaneous dual port communication

for LON®and SPA (Optional)

• Communication over SPA/TCP

• Communication over Modbus/TCP

REF 542plus

COM600

Application

a060239

Fig. 1 Conceptual picture of a typical system setup

Introduction

SPA-ZC 400 enables connection of one

REF 541/3/5, REM 543/5 or RET 541/3/5

device to the IEC 61850-8-1 Station bus.

IEC 61850 is the new standard for substation

communication. Additionally to being a com-

munication standard, it also supports general

substation automation functions as well as the

engineering process.

The GOOSE messaging of the IEC 61850

standard is used in substation automation for

fast horizontal communication between Intel-

ligent Electronic Devices (IED) to send, for

example, interlocking and blocking informa-

tion.

SPA-ZC 400 also enables ethernet access to

an IED using the SPA over TCP/IP and Mod-

bus over TCP/IP.

In addition to the IEC 61850-8 communication

the

SPA-ZC 400 optionally enables

simulta-

neous dual port communication for fibre-optic

SPA and LON

More information on how to physically con-

nect the device can be found in the chapter 5

of the Installation and Commissioning man-

ual. SPA-ZC 400 programming is described

in the Installation and commissioning man-

ual, chapter 6, Engineering.

As a prerequisite, you should understand the

communication properties of the IED that is

to be connected to Ethernet adapter. This

information is available in the manual for the

protection IED in question.

1MRS755450

Issued: 08.11.2004

Status: Updated

Version:D/20.05.2009

Data subject to change without notice

Ethernet Adapter SPA-ZC 400

1MRS755450

Design Module parts

1. Ethernet connector

2. LON/SPA bus FO connector (optional)

3. LON/SPA Rx LED

4. LON/LAN service pin

5. LAN and diagnostic LEDs

A040138b

Fig. 2 Parts of SPA-ZC 400

Technical data Interfaces

SPA-ZC 400 - IED interface

Fixed mechanics and fixed connectors for

REF 541/543/545, REM 543/545 and

RET 541/543/545

• D-type subminiature connector for

IEC 61850 traffic

• D-type subminiature connector for simul-

taneous dual port communication.

IEC 61850 interface

LAN connectors

• RJ-45 (STP CAT5e) galvanic connection

• MT-RJ multimode glass fibre transceiver

• LC multimode glass fibre transceiver

LON/SPA interface (Optional)

Fibre optic connector options

• ST multimode glass fibre transmit-

ter/receiver pair or

• Snap-in multimode plastic fibre transmit-

ter/receiver pair

Optical fibres

See fibre optic quides:

• SPA-ZF Optical glass fibres, multimode

graded index type specifications,

1MRS755371

• Plastic-core fibre optic cables, features and

instructions for mounting,

1MRS752089-MUM

Diagnostic leds

SPA-ZC 400 common diagnostic LEDs:

- Power

- Diagnostic:

-Red

- Green

LAN diagnostic LEDs:

- LINK

- TX

- RX

LON/SPA diagnostic LED:

- RX

195

00-0C-02-B0-CC-00

20.4

SPA-ZC 400

ETHERNET ADAPTER

POWER

LINK

DIAG

LAN

SERVICE

ETHERNET

RX TX

PLASTIC GLASS

IEC 61850

MODBUS TCP

SPA TCP

Ethernet Adapter SPA-ZC 400

1MRS755450

Technical data (cont´d)

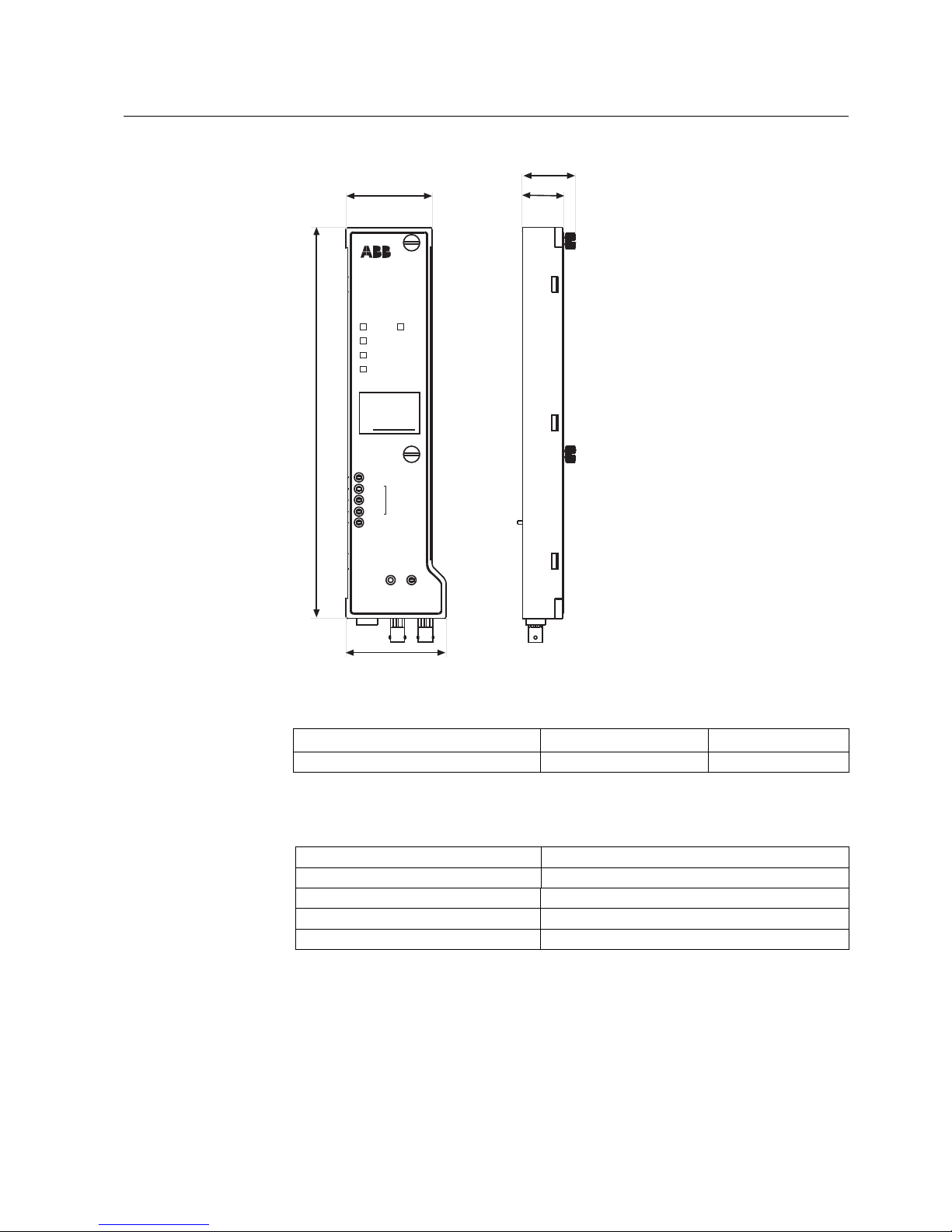

SPA-ZC400 dimensions and weight

A040130b

Fig. 3 SPA-ZC 400 dimensions

Type Dimensions [mm] Weight [g]

SPA-ZC 400 195 x 50 x 26 130

Tests and conditions

Environmental tests and conditions

Recommended service temperature range -10...+55°C (continuous)

Transport and storage temperature range -40...+85°C according to the IEC 60068-2-48

Dry heat test IEC 60068-2-2

Dry cold test IEC 60068-2-1

Damp heat test IEC 60068-2-30

Electromagnetic compatibility tests

EMC immunity test level meets the requirements listed below

1 MHz burst disturbance test, class III

Common mode

Differential mode

According to the IEC 60255-22-1

2.5 kV

1.0 kV

Electrostatic discharge test, class IV

For contact discharge

For air discharge

According to the IEC 6100-4-2 and

IEC 60255-22-2

6 kV

8 kV

Radio frequency interference tests

Conducted, common mode

Radiated, amplitude-modulated

Radiated, pulse-modulated

According to the IEC 61000-4-6 and

IEC 60255-22-6

10 V (rms), f = 150 kHz ... 80 MHz

According to the IEC 61000-4-3 and

IEC 60255-22-3

10 V/m (rms), f = 80 ... 2700 MHz

According to the ENV 50204 and

IEC 60255-22-3

10 V/m, f = 900 MHz

Fast transient disturbance tests

All terminals

According to the IEC 60255-22-4 and

IEC 61000-4-4

4 kV

Surge immunity test

Power supply

According to the IEC 60255-22-5 and IEC 61000-4-5

4 kV, line-to-earth

2 kV, line-to-line

Power frequency (50 Hz) magnetic field According to the IEC 61000-4-8

300 A/m continuous

Electromagnetic emission tests

Conducted, RF-emission (Mains term.)

Radiated RF-emission

According to the EN 55011

EN 55011, class A, IEC 60255-25

CE compliance Complies with the EMC directive 2004/108/EC and the LV

directive 2006/95/EC

Standard tests

Mechanical tests

Vibration tests (sinusoidal)

Shock and bumb test

According to the IEC 60255-21-1, class I

According to the IEC 60255-21-2, class I

Supply current consumption

Running 340 mA

Start up 430 mA

Ethernet Adapter SPA-ZC 400

1MRS755450

Technical data (cont´d)

RoHS Compliance

Complies with the RoHS directive 2002/95/EC

SPA-ZC400MMG

Ethernet connector type

M MTRJ

L LC

R RJ-45

Protocol type

M Modbus/TCP

E IEC 61850

S SPA/TCP

Device type

Optical transmitter and receiver for SPA/LON bus

P plastic fibre cable

G glass fibre cable

- no fibre option

Ethernet Adapter SPA-ZC 400

1MRS755450

Ordering

A060158

Fig. 4 Ordering information for SPA-ZC400

SPA-ZC 400CD

• SPA-ZC 400 Configuration CD:

- Communication Engineering Tool

(CET) for SPA-ZC40x

- Connectivity packages for

REF 541/543/545, REM 543/545 and

RET 541/543/545.

Order at least one SPA-ZC 400 configu-

ration CD with your delivery to get the Com-

munication Engineering Tool for SPA-ZC40x

and the Connectivity Packages. SPA-ZC 400

packages do not include the configuration CD

by default.

References Related documents

Name of the document Document id

SPA-ZC 400 Installation and commissioning manual 1MRS755347

SPA-ZC 400 configuration CD 1MRS151048

CAP 505 User’s Guide 1MRS752292-MUM

SPA-ZF Optical glass fibres, multimode graded index

type specifications

1MRS755371

Plastic-core fibre optic cables, features and

instructions for mounting

1MRS752089

Standard IEC 61850, parts -6, -7-2, -7-3, -7-4, -8-1

ABB Oy

Distribution Automation

P.O. Box 699

FI-65101 Vaasa, FINLAND

Tel +358 10 22 11

Fax +358 10 224 1094

www.abb.com/substationautomation
