ABB TL Series Manuale utente

1/4

—

T WILI GHT SW ITCH

TL LINE

Installation manual

TL1, TL1 Pole, TLS

Installation Manual

Document ID: 9AKK107991A3020

Revision: A

2020-10-13

Disclaimer

The information in this document is subject to change without notice and should not be construed

as a commitment by ABB Spa. ABB Spa assumes no responsibility for any errors that may appear in

this document.

In no event shall ABB Spa be liable for direct, indirect, special, incidental or consequential damages

of any nature or kind arising from the use of this document, nor shall ABB Spa be liable for

incidental or consequential damages arising from use of any software or hardware described in

this document.

Copyrights

This document and parts thereof must not be reproduced or copied without written permission

from ABB Spa, and the contents thereof must not be imparted to a third party nor used for any

unauthorized purpose.

The software or hardware described in this document is furnished under a license and may be

used, copied, or disclosed only in accordance with the terms of such license.

Trademarks

ABB Spa is a registered trademark of the ABB Group. All other brand or product names mentioned

in this document may be trademarks or registered trademarks of their respective holders.

Contact

ABB SpA

Via Dell'industria, 18

20010 – Vittuone – Milano

Italy

Tel. +39 02 2415 0000

2/4

Safety warning

The device must always be protected on the incoming side by fuse or circuit

breaker with a max nominal current of 16A

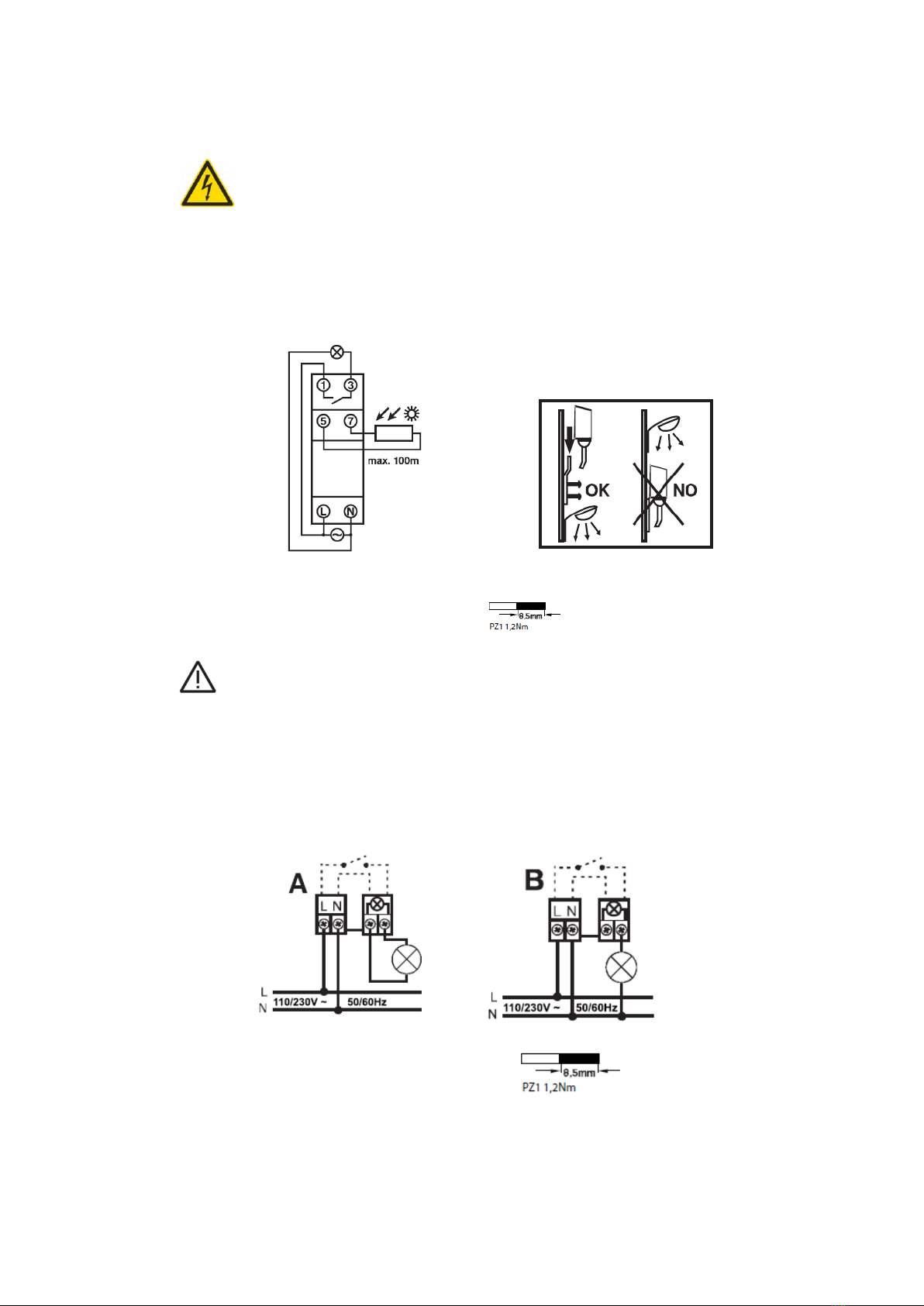

1. Mounting Instruction TL1 + TLs (peripherical device)

Tightening torque

Important notice

After installation the cable coming out from the device must be fixed re-

liably.

2. Mounting Instruction TL1 Pole

Tightening torque

3/4

3. Technical data

TL1

TL1 Pole

Rated supply voltage

110 ÷ 230 AC

Contact type

1NO polarized

Incandescent lamps

110 V

1000

230V

1000

LED/CFL –externally ballasted

110 V

300

230V

300

LEDi/CFLi –self ballasted

110 V

230V

100

Rated frequency

50/60

Switching delay ON

23+-10%

25+-10%

Switching delay OFF

23+-10%

35+-10%

Brightness range (with tolerance of +-20%)

2…200

Protection degree twilight switch

IP20

IP54

Protection degree sensor

IP54

Operating temperature twilight switch

°C

-25…+55°

-40…+70

Operating temperature sensor

°C

-40…+70

Storage temperature twilight switch

°C

-40…+70

-50…+80

Storage temperature sensor

°C

-50…+80

Power consumption

0.4 W cosphi 0.4 (idle)

0.9 W cosphi 0.42 (active)

0.25 W cosphi 0.35 (idle)

0.8 W cosphi 0.4 (active)

4/4

TL1

TL1 Pole

Max terminal cross section

mm2

Terminals

loss-proof screw

Screw Type

PZ1

Tightening torque: terminals

1.2

Tightening torque: screw sensor

1.2

Mounting

on DIN Rail

Pole/wall mounted

Switching status indication /brightness range

red/green LEDs

Max wiring length

100

Max wiring width

1000w

mm2

2,5

all other

mm2

1,5

sensor

mm2

0,75

Modules

n°

Reference standards

EN 60669-1

EN 60662-2-1

EN60730-1
