Ability VS12100 2M Manuale utente

AI-Vue 2MP ANPR Bullet Network Camera

Quick Start Guide

Model:

VS12100

VS12112 (with 4G version)

AI IP Camera Quick Start Guide

1.1 Accessing via Web Browser

Default IP address

User name

Password

https://192.168.0.11

admin

AbAi.Camera1

1.2 Appearance Description

The overview of the bullet camera is shown below:

AI IP Camera Quick Start Guide

1.3 Packing list

Component

Pieces

Camera

Drilling sticker

Power terminal

Crimping terminal（support 0.75mm2 and 1.0mm2 cable）

Allen wrench（M4）

Star wrench (T20)

Waterproof connector for network cables

Quick Start Guide

Desiccant packet (Optional)

Expansion tube

Tapping screw

Sun shield cover

Screw and washer assembled for sun shield cover

4G Antenna for the 4G version (VS12112 only)

AI IP Camera Quick Start Guide

GPS Antenna for the 4G version (VS12112 only)

1.4 Cable

Item

Description

LAN/POE

Ethernet/POE connection. This interface supports POE.

DC 12V+ / DC 12V –

Power input interface. DC 12V（9.0V～15.0V）

ALARM_OUT

ALARM_REF

Alarm output and reference interfaces. The interface work

together to form the alarm output.

ALARM_IN

GND

Alarm input interface. There may be multiple alarm

interfaces. For a given number of interfaces, n, they are

numbered (for example: ALARM_IN0,

ALARM_IN1, …,ALARM_INn). Each one connects to the

GND connection to form a single alarm input.

AUDIO IN/

AUDIO OUT/

AUDIO_GND

Audio input/output interface and audio ground interface.

ALARM_OUT

ALARM_REF

Alarm output and reference interfaces. The interface work

together to form the alarm output.

AI IP Camera Quick Start Guide

ALARM_IN

GND

Alarm input interface. There may be multiple alarm

interfaces. For a given number of interfaces, n, they are

numbered (for example: ALARM_IN0,

ALARM_IN1, …,ALARM_INn). Each one connects to the

GND connection to form a single alarm input.

UART RX

UART TX

GND

UART TX/RX interface.

RS485

RS485 A/B interface.

Cable interface

AI IP Camera Quick Start Guide

2. Installation

2.1 Note

2.1.1Make sure the device in the package is in good condition and all the

assembly parts are included.

You will need the following:

AI IP Camera Quick Start Guide

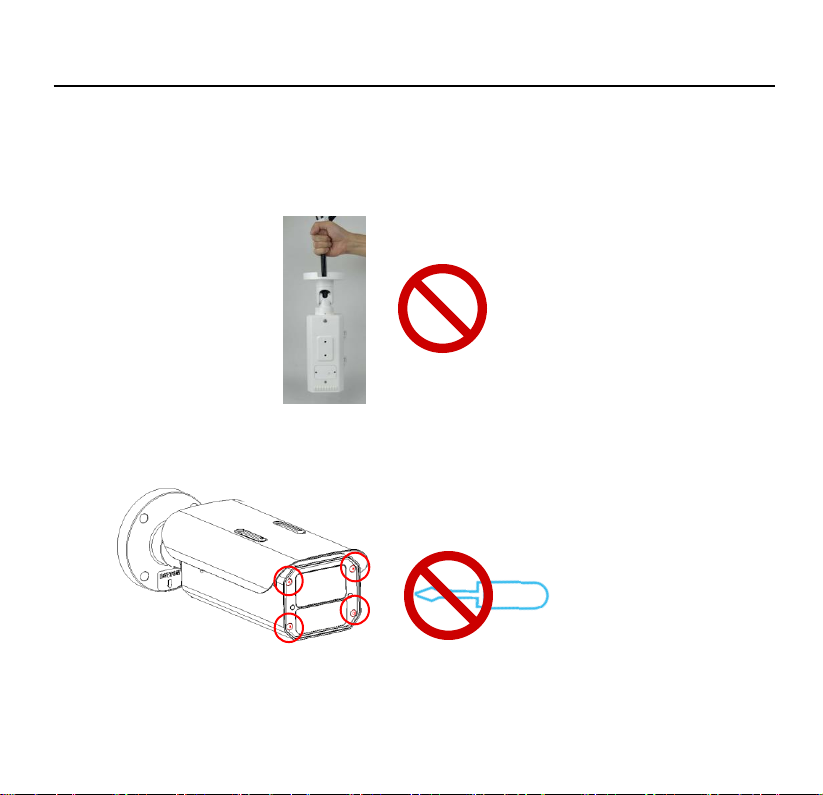

2.2 Caution

Please do not lift a camera by its cable.

Please do not open the front cover.

AI IP Camera Quick Start Guide

2.3 Bottom cover of the camera removes

Use a Philips screwdriver to remover the bottom cover of camera. Then, you can

see the Reset button and SD card slot.

AI IP Camera Quick Start Guide

2.4 Reset Button

Use the Phillips screwdriver to remove the bottom cover of camera.

To restore the camera to factory settings and software reboot the camera,

you need to press and hold the reset button 5~10 seconds.

To restore the camera to factory settings and hardware reboot the camera,

you need to press and hold the reset button more than 10 seconds.

Reset Button

AI IP Camera Quick Start Guide

2.5 Micro SD card installation

The SD card slot supports only class 6 or higher Micro SD card. To replace a Micro SD

card, the device must be powered off. Otherwise, system exception may occur. When a

Micro SD card is used for the first time, log in to the web client of the device and format

the Micro SD card. For details, see the Configuration Guide.

Please refer to figure 2.5, insert the memory card to memory card slot on the rear

housing of the camera. Use Phillips screws (#2) to remove the bottom cover of camera

and insert the SD card. During SD card installation, you are advised to turn the camera

maintenance window downward and insert the SD card into the SD card slot from

below to avoid accidentally dropping the SD card into the camera.

SD Card Slot
