Acer AT3201W Manuale utente
Acer LCD TV
AT3201W
User’s Guide
01-AT3201W_en.indd 1 2005/5/9 ¤U¤È 12:07:32
Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies’ product names or trademarks are used herein for
identification purposes only and belong to their respective companies.
Copyright © 2005. Acer Incorporated.
All Rights Reserved.
Acer LCD TV AT3201W User’s Guide
Original Issue: May 2005
01-AT3201W_en.indd 2 2005/5/9 ¤U¤È 12:07:32
Contents
Important safety instructions 5
Taking care of your remote control 6
Cleaning and servicing 6
First things first 7
Basic features and benefits 7
Packing checklist 7
Your LCD TV overview 8
Front panel view 8
Rear panel view 9
Basic connection 11
Connecting the power cord 11
Connecting an antenna 11
Connecting DVD/VCR/AV equipment 12
Connecting a camera, camcorder or video game 12
Connecting headphones 13
Connecting a PC or Notebook 13
Remote control overview 14
Getting started 18
Power On 18
Setup Wizard 18
Changing channels 18
Adjusting the volume 18
OSD Navigation 19
Navigating the OSD using the remote control: 19
Advanced Features 20
Empowering Key: Scenario Mode and Favourite Channels 20
PIP/PBP/POP 22
Parental Control 22
Troubleshooting 23
Product specifications 24
01-AT3201W_en.indd 3 2005/5/9 ¤U¤È 12:08:10
01-AT3201W_en.indd 4 2005/5/9 ¤U¤È 12:08:17
English
5

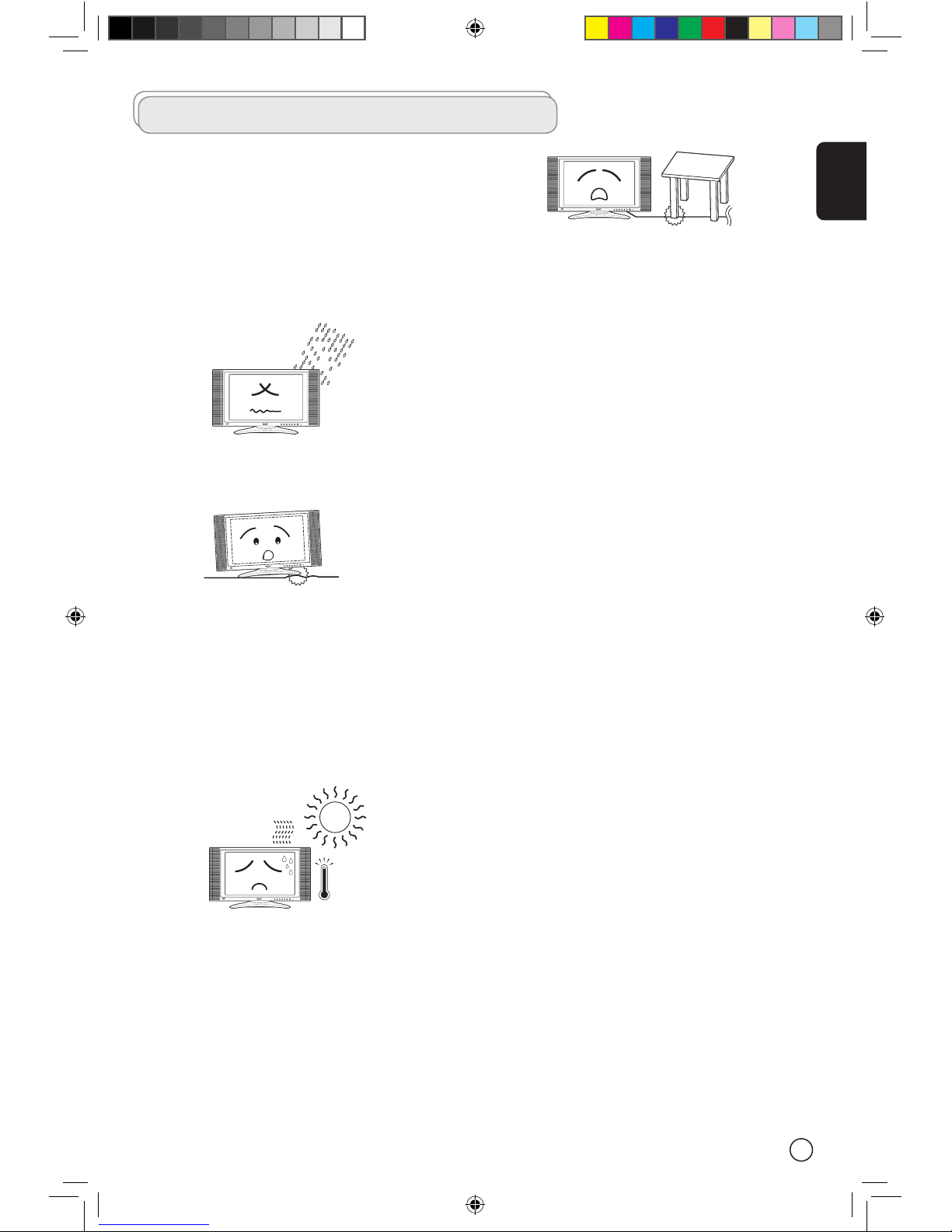

Important safety instructions
Read these instructions carefully. Save them for fu-
ture reference.
1 Follow all warnings and instructions marked on
the product.
2 Unplug this product from the power outlet be-
fore cleaning. Use a soft, moist cloth for clean-
ing. Do not use liquid or aerosol cleaners.
3 Do not use this product near water. Do not spill
water or any other liquid on the product.
4 Do not place this product on an unstable cart,
stand, or table. The product may fall, causing
serious damage to the product.
5 Slots and openings are provided for ventila-
tion; to ensure reliable operation of the prod-
uct and to protect it from overheating. These
openings must not be blocked or covered. The
openings should never be blocked by placing
the product on a bed, sofa, rug, or other simi-
lar surface. This product should never be placed
near or over a radiator or heat register, or in a
built-in installation unless proper ventilation is
provided.
6 This product should be operated from the type
of power source indicated on the label. If you
are unsure of the type of power source avail-
able, consult your dealer or local power com-
pany before use.
7 Do not step on or place heavy objects on the
power cord. Carefully route the power cord
and any cables away from foot traffic. Do not
locate this product where persons will step on
the cord.
8 If an extension cord is used with this product,
make sure that the total ampere rating of the
equipment plugged into the extension cord
does not exceed the extension cord ampere
rating. Also, make sure that the total rating of
all products plugged into the wall outlet does
not exceed the fuse rating.
9 Never push objects of any kind into this prod-
uct through cabinet slots as they may touch
dangerous voltage points or short out parts
that could result in a fire or electric shock.
10 Do not attempt to service this product yourself,
as opening or removing covers may expose you
to dangerous voltage points or other risks. Re-
fer all servicing to qualified service personnel.
11 Unplug this product from the wall outlet and
refer servicing to qualified service personnel
under the following conditions:
a. When the power cord or plug is damaged or
frayed.
b. If liquid has been spilled into the product.
c. If the product has been exposed to rain or
water.
d. If the product does not operate normally
when the operating instructions are fol-
lowed. Adjust only those controls that are
covered by the operating instructions since
improper adjustment of other controls may
result in damage and will often require
extensive work by a qualified technician to
restore the product to normal condition.
e. If the product has been dropped or the case
has been damaged.
f. If the product exhibits a distinct change in
performance, indicating a need for service.
12 Only use the correct power cord (provided in
your accessories box) for this product. Always
disconnect the power cord from the wall outlet
before servicing or disassembling this equip-
ment.
INPUT - VOLUME + - CHANNEL + MENU POWER
INPUT- VOLUME +- CHANNEL +MENUPOWER
INPUT - VOLUME + - CHANNEL + MENU POWER
INPUT - VOLUME + - CHANNEL + MENU POWER
01-AT3201W_en.indd 5 2005/5/9 ¤U¤È 12:08:19
English
6
Taking care of your remote control
Follow these steps to ensure proper care of your remote control:
• Handle the remote control with care. Dropping it, placing it in direct sunlight, or allowing it to get
wet may cause damage.
• Do not tamper with the batteries, and keep them away from children.
• When you anticipate that the remote control will not be used for an extended period, remove the
batteries to prevent possible damage from battery leakage.
• Dispose of batteries according to local regulations. Recycle if possible.
Cleaning and servicing
When cleaning your LCD TV, follow these steps:
1 Power off the TV.
2 Disconnect the power cord.
3 Use a soft, moist cloth. Do not use liquid or aerosol cleaners.
01-AT3201W_en.indd 6 2005/5/9 ¤U¤È 12:08:23
English
7
First things first
We would like to thank you for making the Acer LCD TV your choice. Your new Acer LCD TV will provide
you with years of entertainment, versatility, and satisfaction.
This User’s Guide introduces you to the various features of your LCD TV, and provides clear and concise
information about the product. It is important that you read it thoroughly before use and retain it for fu-
ture reference.
Basic features and benefits
• Wide display with 1366 x 768 resolution - HDTV ready display
• Simultaneous pre-viewing of programs with 4 different Picture-In-Picture modes
• Excellent sound enhancement with SRS WOW technologies
• Brilliant color with gamma correction
• Minimized motion artefacts through noise reduction
• Sharp and accurate image with de-interlacing and comb filter
• Best DVD video quality with 3:2/2:2 pull down recovery
• Stylish appearance

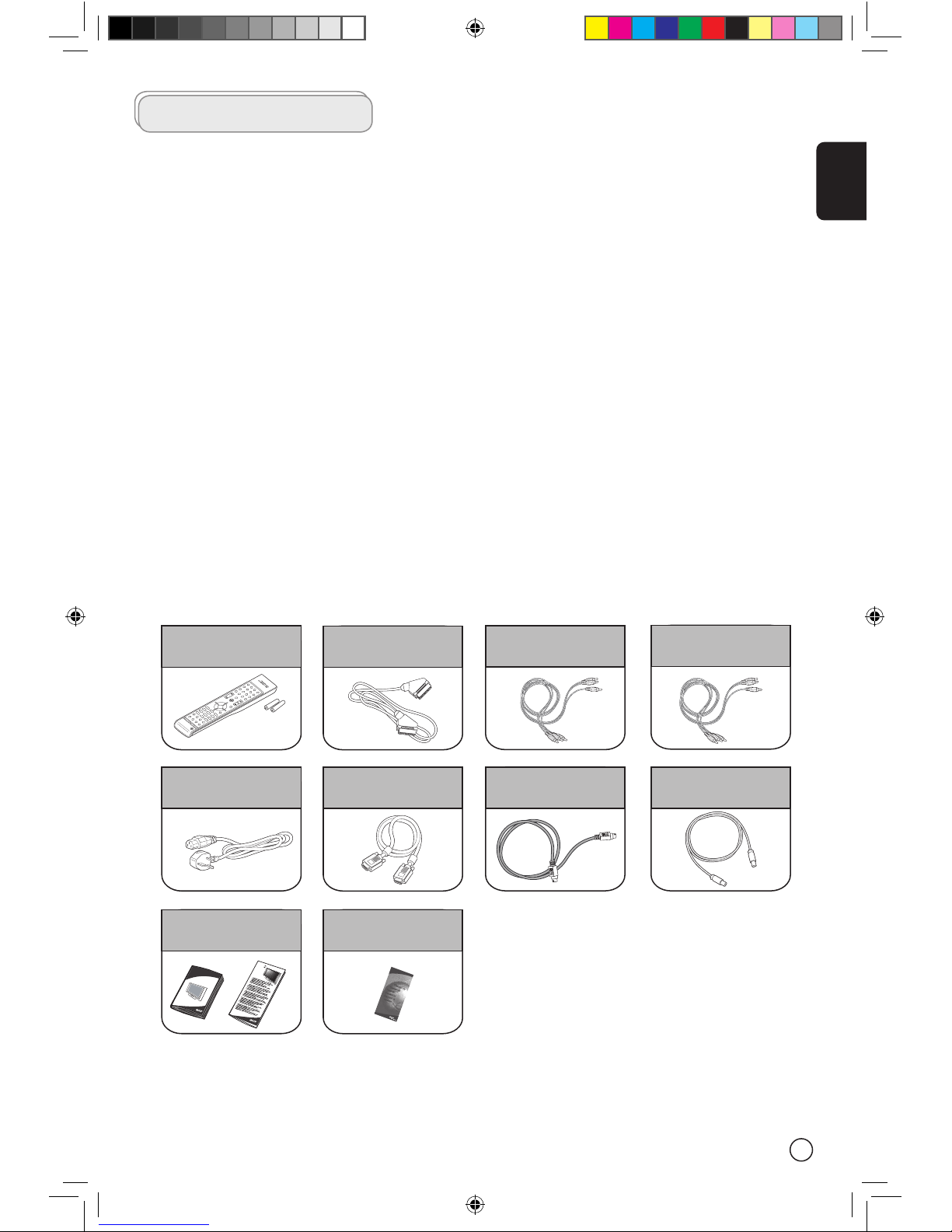

Packing checklist
In addition to the accessory box, your LCD TV package should contain the following accessories. Please en-
sure that they are all present.
Remote Control (X1)
AAA Batteries (X2)
SCART cable (X1) Composite cable (x1) Component cable (x1)
W
arranty
Garantie
Garanzia
Garantie
Garant’a
Garantie
LCD TV
S-video cable (X1)
Warranty card
Acer LCD TV
AT3201W
D-Sub cable (X1) TV cable (X1)
User Manual &
Quick guide
Power cord-UK (X1)
01-AT3201W_en.indd 7 2005/5/9 ¤U¤È 12:08:28
English
8
Your LCD TV overview

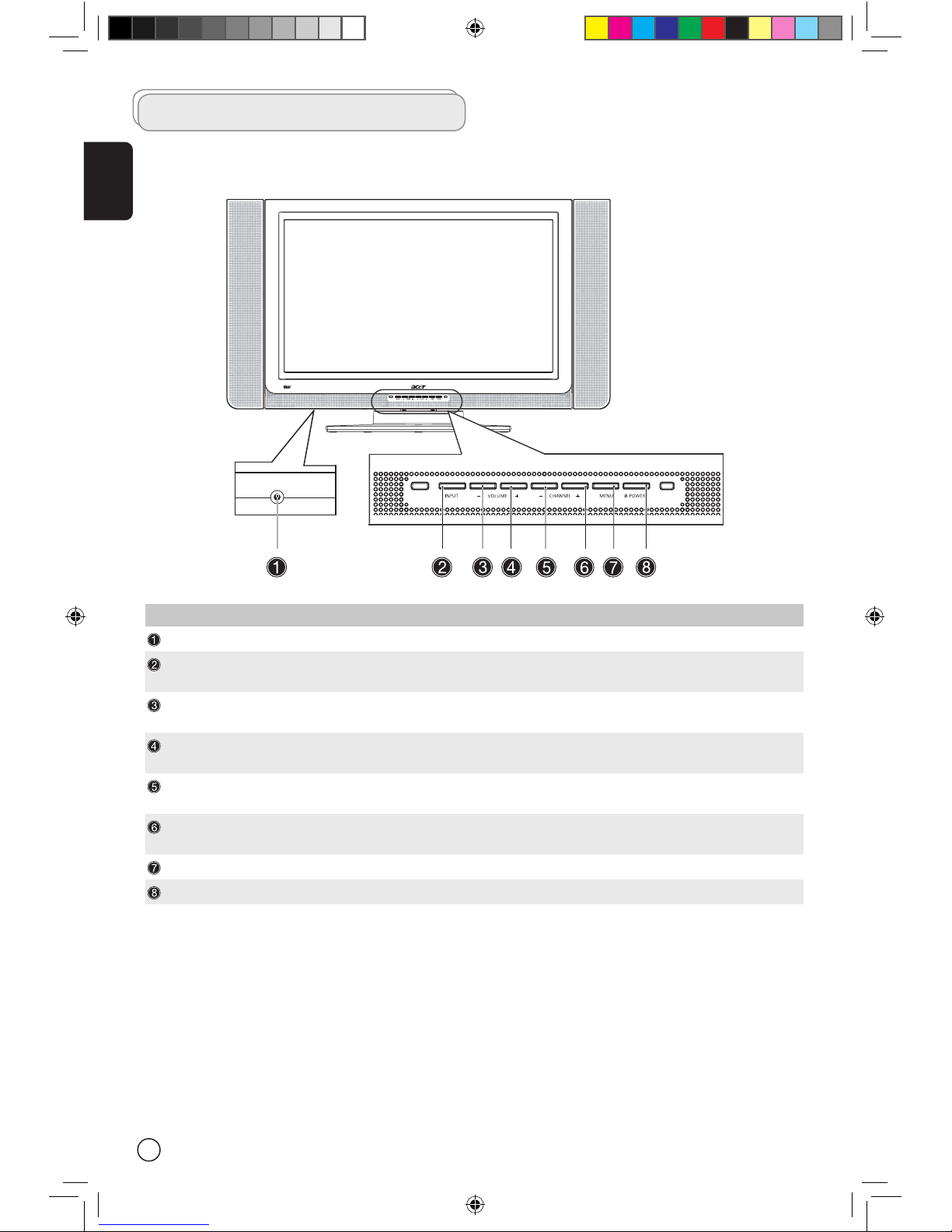

Front panel view
No. Item Description
Headphone Connects to headphones.
Input Select source.
When the OSD is on, press this button to confirm selection
Vol Down Volume down.
When the OSD is on, functions the same as the Left arrow
Vol Up Volume up.
When OSD is on, functions the same as the Right arrow
Channel Down Channel down.
When the OSD is on, functions the same as the Down arrow
Channel Up Channel up.
When the OSD is on, functions the same as the Up arrow
Menu Turns the OSD menu ON and OFF
Power Turns the Power ON and OFF
01-AT3201W_en.indd 8 2005/5/9 ¤U¤È 12:09:08
English
9

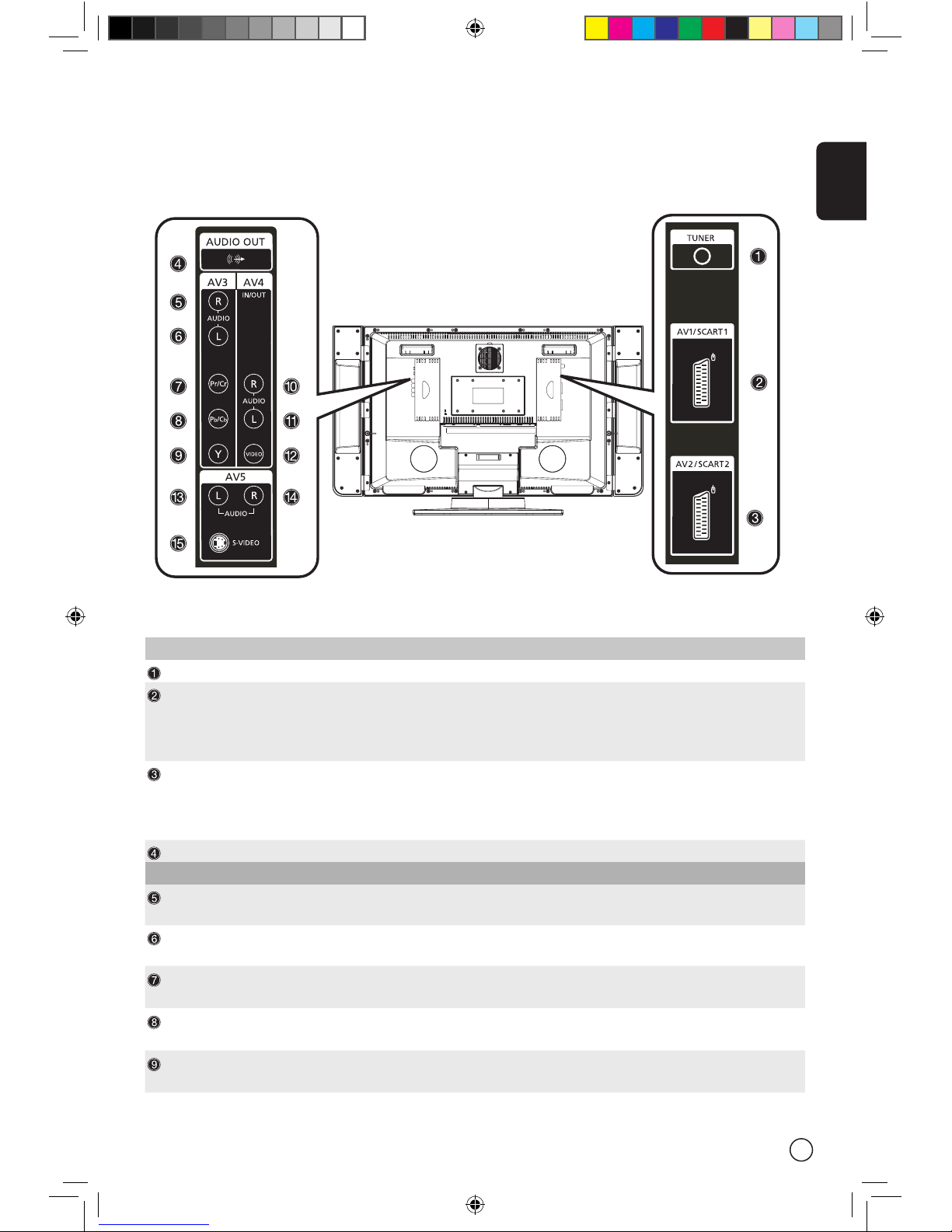

No. Item Description
Tuner Connects to the outdoor antenna cable
AV1 / SCART 1 In Supports an external device with a SCART cable(for RGB, CVBS, S-Video,
Audio left/right input)
Out In TV mode, connects to your VCR In or PVR In with SCART cable to re-
cord TV programs
AV2 / SCART 2 In Supports external device with a SCART cable(for RGB, CVBS, S-Video,
YPbPr/YCbCr, Audio left/right input)
Out In TV mode, connect to your VCR In or PVR In with a SCART cable to re-
cord TV programs
Audio Out Connects to the audio jack input of your external device.
AV3
Audio-R Connects to the Audio-R output of your DVD, VCR player using the red
composite cable
Audio-L Connects to the Audio-L output of your DVD, VCR player using the white
composite cable
Pr/Cr Connects to the Component- Pr/Cr output of your DVD, VCR player using
the red component cable
Pb/Cb Connects to the Component- Pb/Cb output of your DVD, VCR player us-
ing the blue component cable
Y Connects to the Component-Y output of your DVD, VCR player using the
green component cable
Rear panel view
01-AT3201W_en.indd 9 2005/5/9 ¤U¤È 12:09:16
English
10

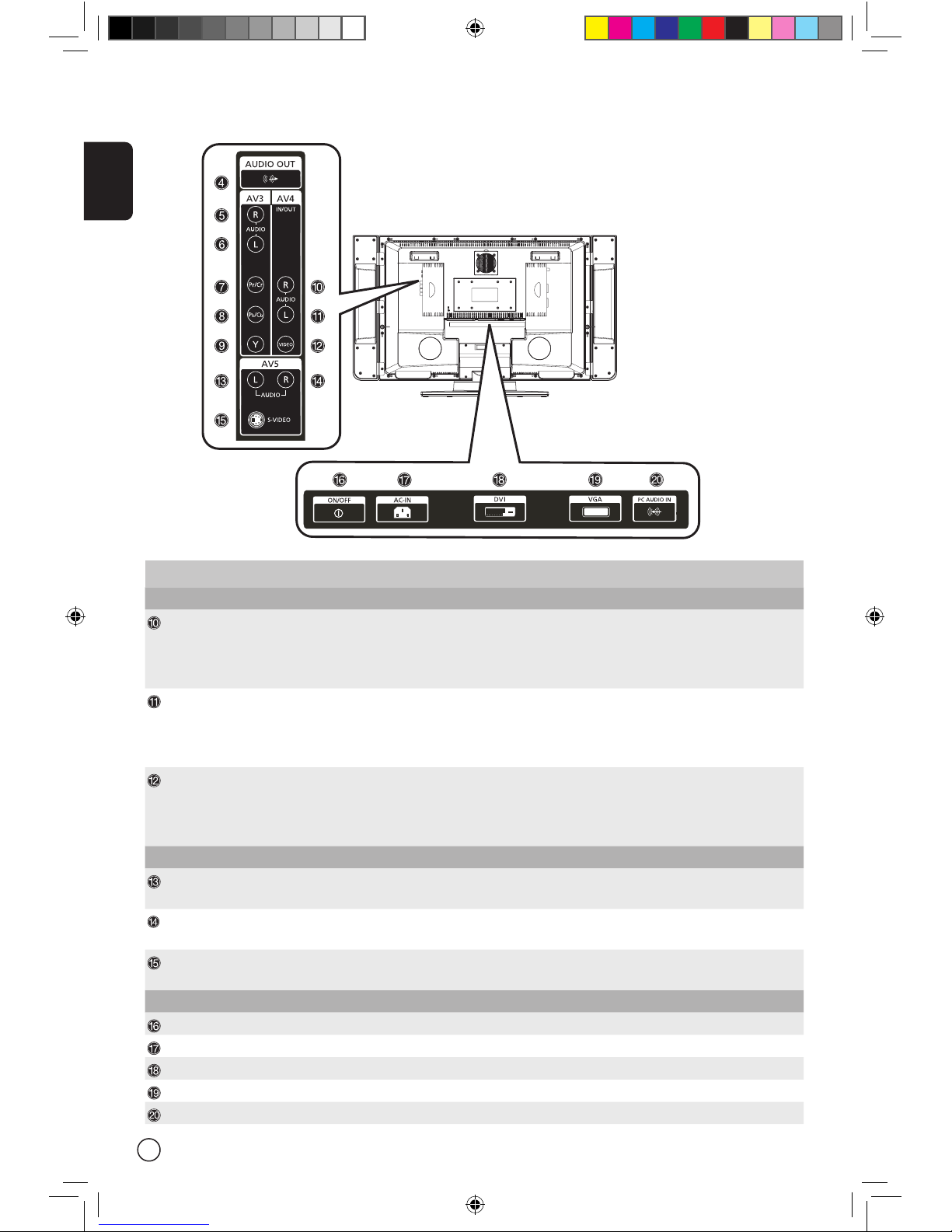

Rear panel view
No. Item Description
AV4
Audio-R In Connects to the Audio-R output of your external device with the red
composite cable
Out In TV mode, connects to your VCR In or PVR In with the red composite
cable to record TV programs (Please set AV4 to “Out” in OSD)
Audio-L In Connects to the Audio-L output of your external device with the white
composite cable
Out In TV mode, connects to your VCR In or PVR In with the white composite
cable to record TV programs (Please set AV4 to “Out” in OSD)
Video In Connects to the Composite - Video output of your external device with
the yellow composite cable
Out In TV mode, connects to your VCR In or PVR In with the white composite
cable to record TV programs (Please set AV4 to “Out” in OSD)
AV5
Audio-R Connects to the Audio-R output of your external device with the red
composite cable
Audio-L Connects to the Audio-L output of your external device with the white
composite cable
S-Video Connects to the S-Video output of your external device with the S-video
cable
Bottom
ON/OFF Turn the power on and off
AC In Connects to an AC power source
DVI Connects to an external DVI source
VGA Connects to a PC VGA Out
PC Audio In Connects to a PC audio jack Out
01-AT3201W_en.indd 10 2005/5/9 ¤U¤È 12:09:21
