PD726 & PH730

Service Guide

PRINTED IN TAIWAN

Service guide files and updates are available

on the AIPG/CSD web; for more information,

please refer to http://csd.acer.com.tw

Revision History

Please refer to the table below for the updates made on PD726 & PH730 service guide.

Date Chapter Updates

III

transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in

any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without

the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice.

Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the

contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular

purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the

programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its

dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential

damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation.

Intel is a registered trademark of Intel Corporation.

Pentium 4 and Celeron are trademarks of Intel Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective holders.

Conventions

The following conventions are used in this manual:

Screen messages Denotes actual messages that appear

on screen.

NOTE Gives bits and pieces of additional

information related to the current

topic.

WARNING Alerts you to any damage that might

result from doing or not doing specific

actions.

CAUTION Gives precautionary measures to

avoid possible hardware or software

problems.

IMPORTANT Reminds you to do specific actions

relevant to the accomplishment of

procedures.

Preface

Before using this information and the product it supports, please read the following general information.

1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION

decided for Acer's "global" product offering. To better fit local market requirements and enhance product

competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.

add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered

in this generic service guide. In such cases, please contact your regional offices or the responsible

personnel/channel to provide you with further technical details.

2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information

available on your regional web or channel. If, for whatever reason, a part number change is made, it will

not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer

office may have a DIFFERENT part number code to those given in the FRU list of this printed Service

Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and

service of customer machines.

Table of Contents

Chapter 1 System Introduction 1

Technical Speciﬁcation 1

Product Overview 3

System Block Diagram 7

Chapter 2 Firmware Upgrade 8

Equipment Needed 8

Installation Procedure 9

Firmware Upgrade Procedure 13

EDID Upgrade 16

EDID Introduction 16

Equipment Needed 16

Setup Procedure 17

EDID Key-in Procedure 17

Chapter 3 Mechanical Disassembly and Reassembly 21

Equipment Needed 21

General Information 21

Mechanical Disassembly Procedure 22

Mechanical Reassembly Procedure 32

Chapter 4 Troubleshooting 42

Equipment Needed 42

LED Lighting Message 42

Main Procedure 43

Function Test and Alignment Procedure 45

Product / Test Equipment / Test Condition 45

Guide to Entering Service Mode and Factory Reset 45

Inspection Procecdure 46

Chapter 5 Exploded Overview 48

Exploded Overview 48

Appendix Serial Number Deﬁnition System 91

I. Serial Number System Deﬁnition 91

II. PCBA Code Deﬁnition 92

III.The Different Parts PD726 / PH730 93

1 Chapter 1

System Introduction - PD726

Technical Speciﬁcation

Item Description

Dimensions (LxWxH) 350 x 282 x 118.75 mm

Weight Approx. 7.7 lbs (3.5 Kg)

Tilt Angle 6 degree with elevator mechanism

Keystone correction +/-16 degree (32 degree)

Lamp Door Projection Lamp power supply shut off automatically when door is opened

Power Supply

- Universal AC 100-240V ~ 50-60Hz with PFC input

- 300W for OSRAM E21.8 (G2) Lamp @ normal operation

- Variance FAN speed control (Depends on temperature variant)

Projection Lens [email protected], F/[email protected], 1.2X Manual Zoom Lens (WT41)

Throw Distance 1.2 - 12m (Mechanical Travel)

Brightness - 3060 ANSI Lumens Typical @ Normal Mode

- 2450 ANSI Lumens minimum @ Normal Mode

Contrast - 1200 : 1 Full White and Black (Minimum)

- 2000 : 1 Full White and Black (Typical)

Uniformity - 70% Japan standard (Minimum)

- 85% Japan standard (Typical)

Temperature Opterating : 5~35oC Storage : -20~60oC

Maximum Humidity Operating : 5~35oC, 80%RH (Max.), non-condensing

Storage : -20~60oC, 80%RH (Max.), non-condensing

Acoustic noise level Typical 35 dB(A) and maximum 37 dB(A) at 23+/- deg C for the full power (300W) mode

Typical 32 dB(A) and maximum 34 dB(A) at 23+/- deg C for the eco (250W) mode

Lamp Life 2000 hours min, 50% survival rate (Full Power Mode)

2500 hours min, 50% survival rate (Eco Mode)

Altitude

Operating : 0~2,500 ft for 5 oC~35oC

2,500~5,000 ft for 5 oC~30oC

5,000~10,000 ft for 5 oC~25oC

Storage : 40,000 ft (Max.)

MTBF Operating more than 12,000 hours (90% Conﬁdence Level)

Resolution 1024(H) x 768(V)

Color Wheel- Four segments: R(92) / G(83) / W(110) / B(75)

- 7200 rpm

DMD Chip - 0.7” 12o LVDS XGA Digital Mirror Device

Chapter 1

Chapter 1 2

System Introduction - PH730

Technical Speciﬁcation

Item Description

Dimensions (LxWxH) 350 x 282 x 118.75 mm

Weight Approx. 7.7 lbs (3.5 Kg)

Tilt Angle 6 degree with elevator mechanism

Keystone correction +/- 6 Degree

Lamp Door Projection Lamp power supply shut off automatically when door is opened

Power Supply

- Universal AC 100-240V ~ 50-60Hz with PFC input

- 230W for OSRAM E20.5 Lamp @ normal operation

- Variance FAN speed control (Depends on temperature variant)

Projection Lens f=22.25mm~26.69mm, F/2.5~2.8, 1.2X Manual Zoom Lens (YM10-M)

Throw Distance 1.5 - 10m (Mechanical Travel)

Brightness - 1020 ANSI Lumens -- Typical

- 820 ANSI Lumens -- Engineering Minimum

Contrast - 2500 : 1 Full White and Black -- Typical

- 1500 : 1 Full White and Black -- Engineering Minimum

Uniformity - 75% Japan standard (Minimum)

- 85% Japan standard (Typical)

Temperature Opterating : 5~35oC Storage : -20~60oC

Maximum Humidity Operating : 5~35oC, 80%RH (Max.), non-condensing

Storage : -20~60oC, 80%RH (Max.), non-condensing

Acoustic noise level Typical 32 dB(A) & maximum 34 dB(A) at 23+/-2 deg C for the full power (230W) mode

Typical 29 dB(A) & maximum 31 dB(A) at 23+/-2 deg C for the eco (180W) mode

Lamp Life 2000 hours min, 50% survival rate (Full Power Mode)

4000 hours min, 50% survival rate (Eco Mode)

Altitude

Operating : 0~2,500 ft for 5 oC~35oC

2,500~5,000 ft for 5 oC~30oC

5,000~10,000 ft for 5 oC~25oC

Storage : 40,000 ft (Max.)

MTBF Operating more than 12,000 hours (90% Conﬁdence Level)

Resolution 1280(H) x 768(V)

Color Wheel - Seven segments: B(47) / R(62) / G(56) / W(30) / B(47) / R(62) / G(56)

- 7200 rpm

DMD Chip - 0.65” LVDS WXGA Digital Mirror Device

3 Chapter 1

Product Overview

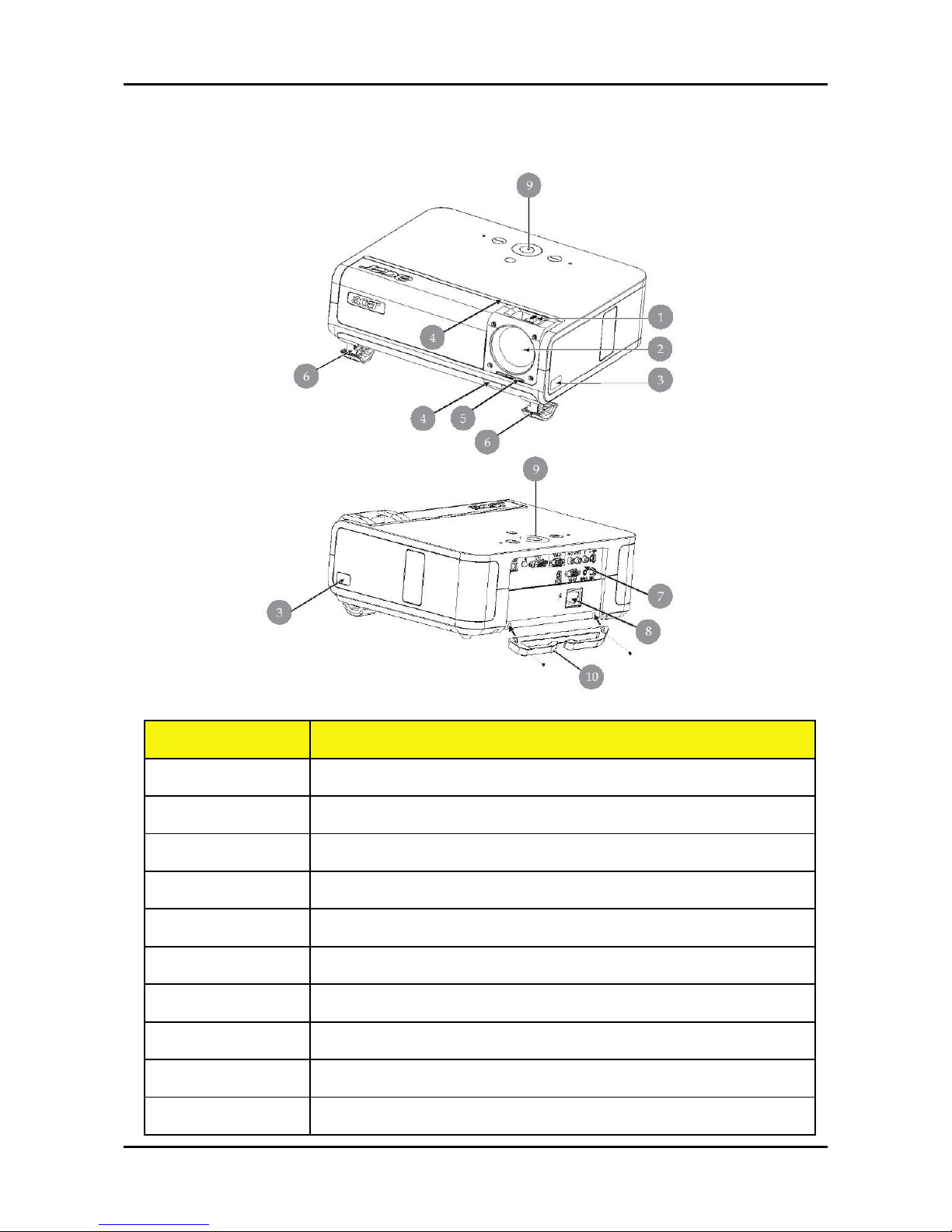

Main Unit

Item Description

1 Focus Ring / Zoom Ring

2 Zoom Lens

3 Elevator Button

4 Remote Control Receiver

5 Lens Cap Switch

6 Elevator Foot

7 Connection Ports

8 Power Socket

9 Control Panel

10 Detachable cable holder

Chapter 1 4

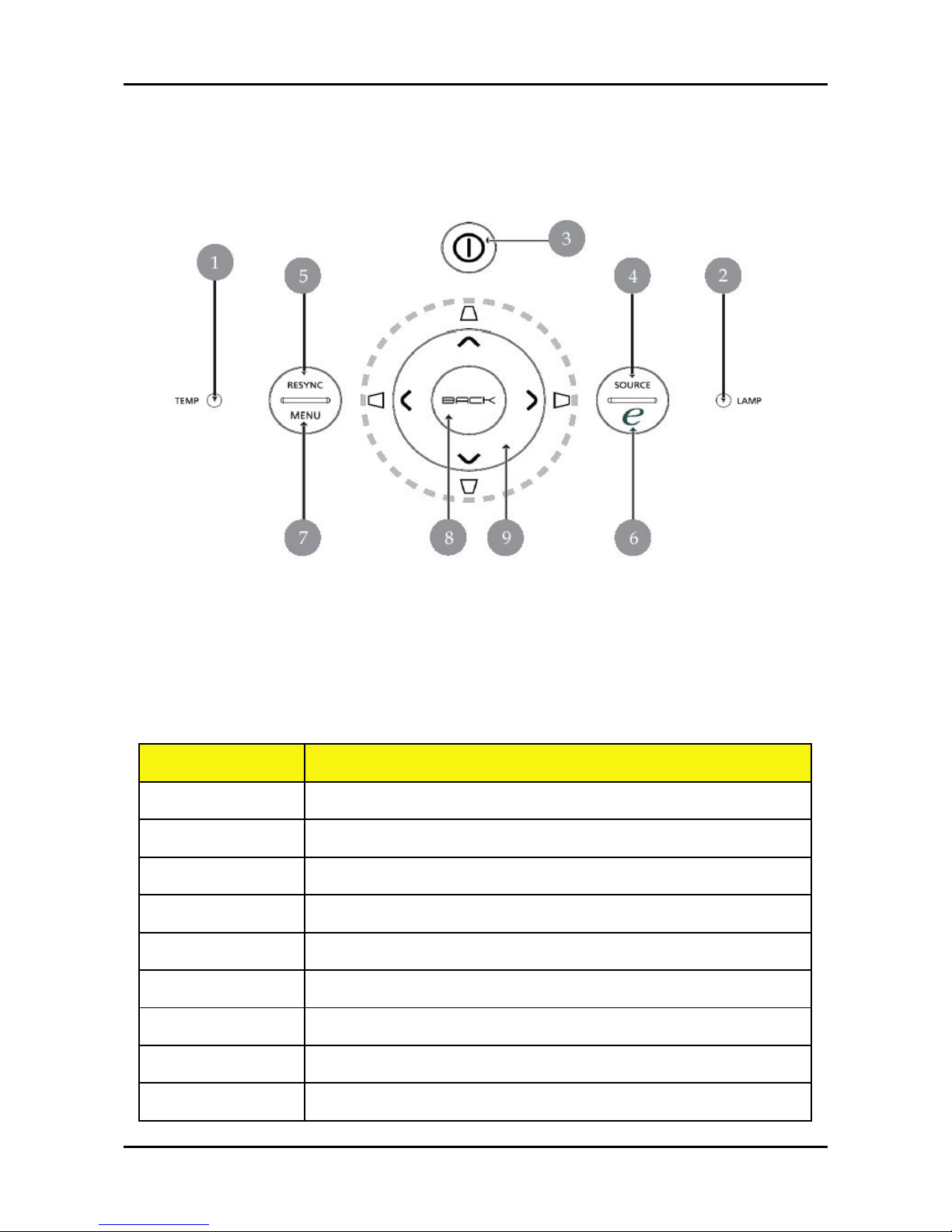

Control Panel

Item Description

1 Temp Indicator LED

2 Lamp Indicator LED

3 Power and Indicator LED (Power LED)

4 Source

5 Resync

6 Empowering Key

7 Menu

8 Back

9 Four Directional Select Keys (Keystone)
